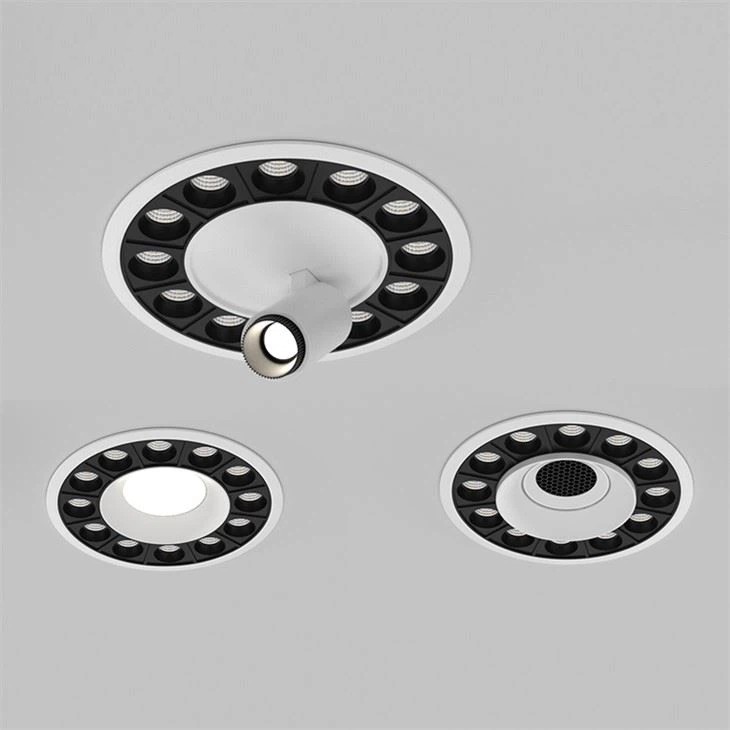

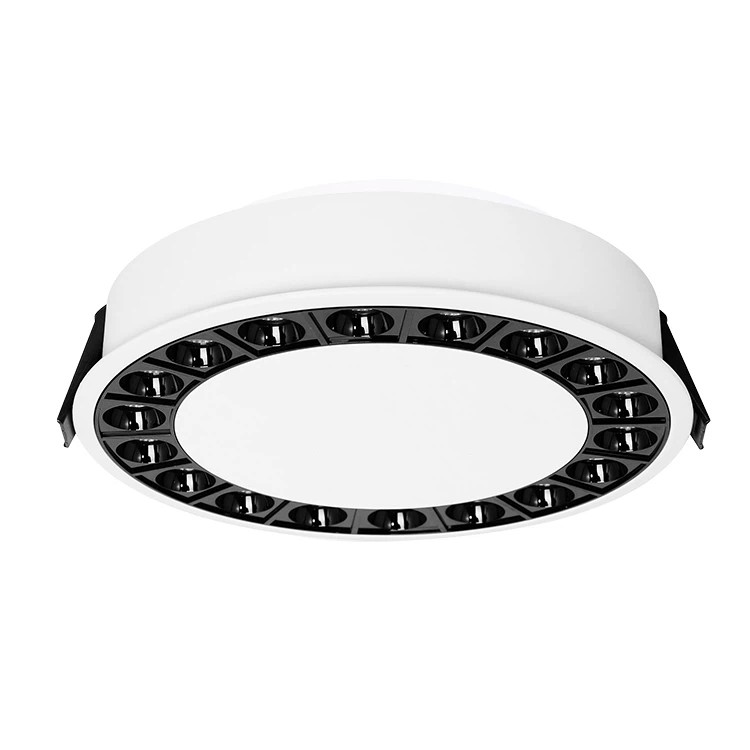

KSXTDR-A / KSXTDR-B SMD LED Downlight Series

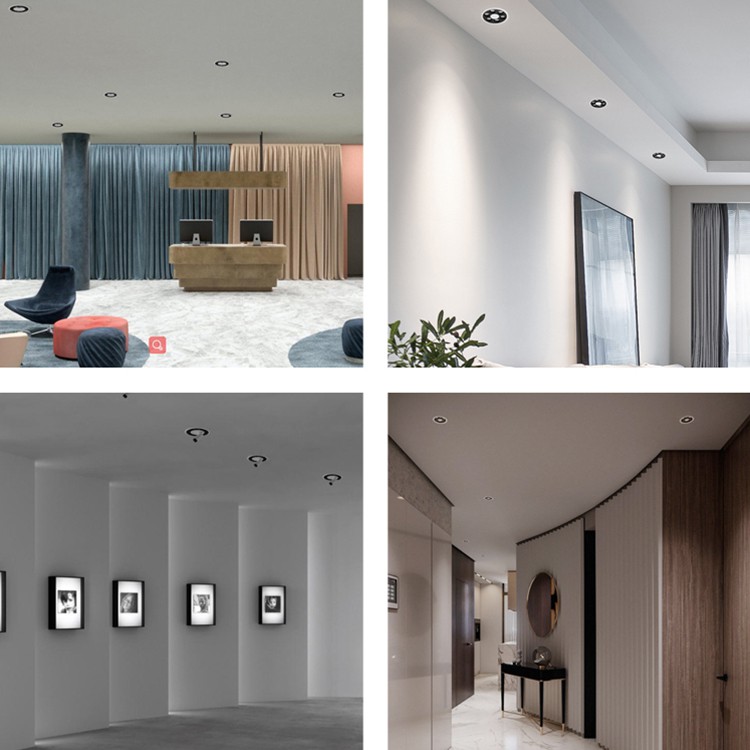

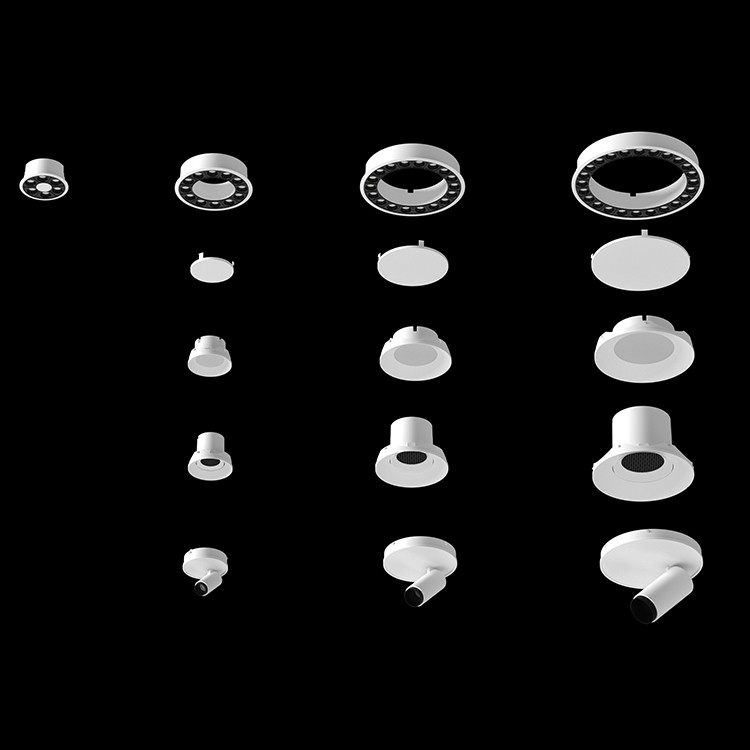

The KSXTDR-A and KSXTDR-B series provide aluminum SMD LED downlights for indoor lighting projects. The listed variants cover 8W to 30W, with 3000K, 4000K and 6000K color temperature options for residential, office, gallery, retail and showroom applications.
Select the required model, wattage, fixture dimensions and mounting configuration when requesting a project quotation. Confirm ceiling cutout and installation details for the selected variant before ordering.
Technical Specifications
|
Product |
SMD LED Downlight |
||||||
|
Material |
Aluminum |
||||||
|
Model |
KSXTDR-A |
KSXTDR-B |
|||||
|
Lights |
6 |
12 |
18 |
24 |
12 |
18 |
24 |
|
Size(mm) |
D80*35 |
D128*35 |
D173*35 |
D218*35 |
D70.4*35 |
D115.4*35 |
D160.4*35 |
|
Power |
8W |
15W |
20W |
30W |
8W |
15W |
20W |
|
Luminous |
640LM |
1200LM |
1600LM |
2400LM |
640LM |
1200LM |
1600LM |
|
CCT |
3000K/4000K/6000K |
||||||
|
Function |
Anti-Glare/Small/High Brightness |
||||||
|
Install Mode |
Surface Recessed |
||||||
|
App. |
Residence/Office/Museum/Gallery/Retail Store/Showroom |
||||||
