The KONS KS-XTD3470 surface mounted linear LED spotlight series offers 5, 10 and 15-head configurations with 5W, 10W and 15W power options. Ra90 colour rendering, four colour temperature options and 15°, 30° or 45° beams provide flexible choices for hotel, retail and commercial lighting projects.

KONS KS-XTD3470 Surface Mounted Linear LED Spotlight
The KS-XTD3470 series features a slim rectangular aluminium housing with individual recessed reflector cells. Its linear format is designed for surface mounted ceiling lighting in commercial interiors.
Key Features

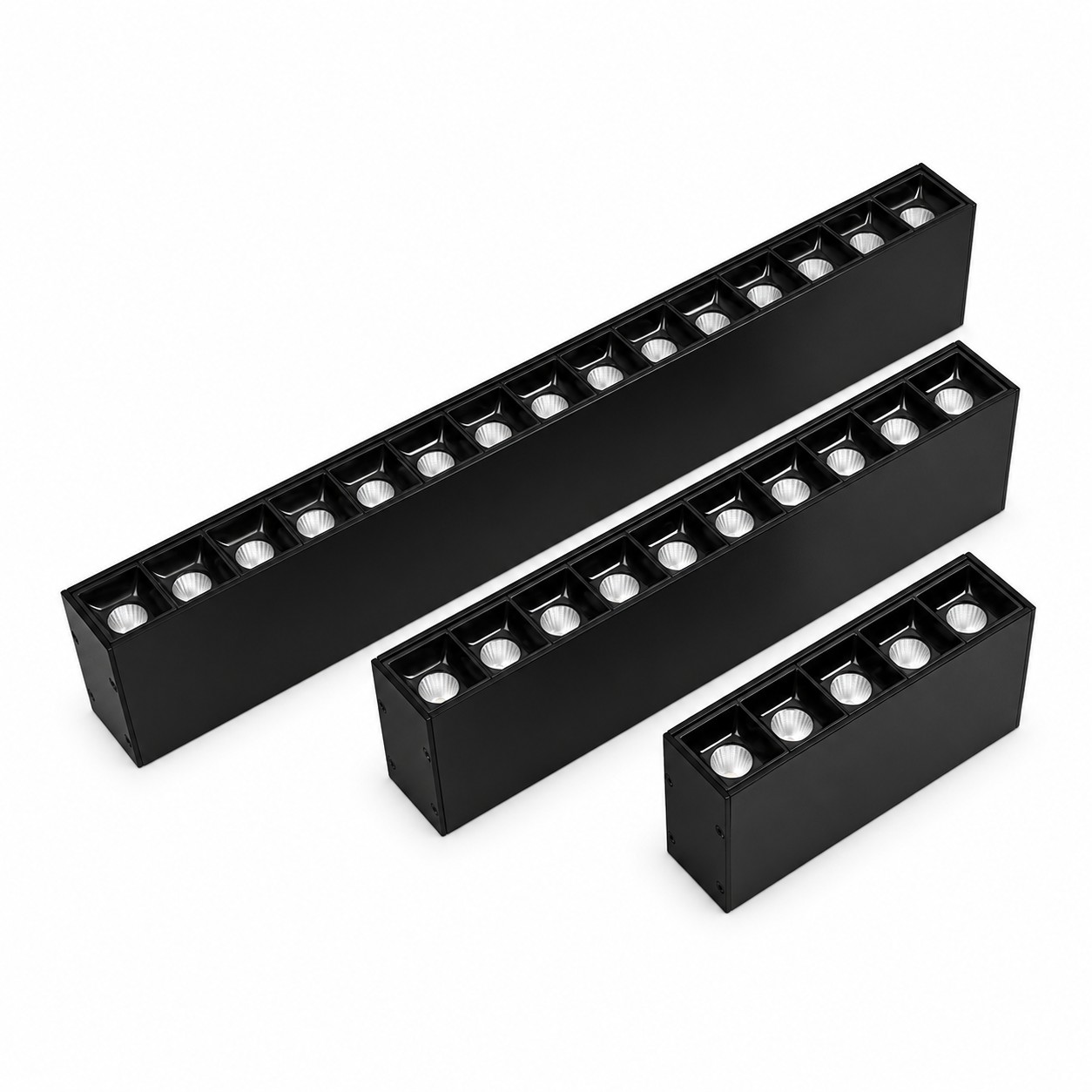

• 5, 10 and 15-head configurations
• Power options: 5W, 10W and 15W
• Colour rendering index: Ra90
• Aluminium housing
• Colour temperature options: 2700K, 3000K, 4000K and 5000K
• Beam angle options: 15°, 30° and 45°
• Black housing with individual reflector optics
• Surface mounted installation

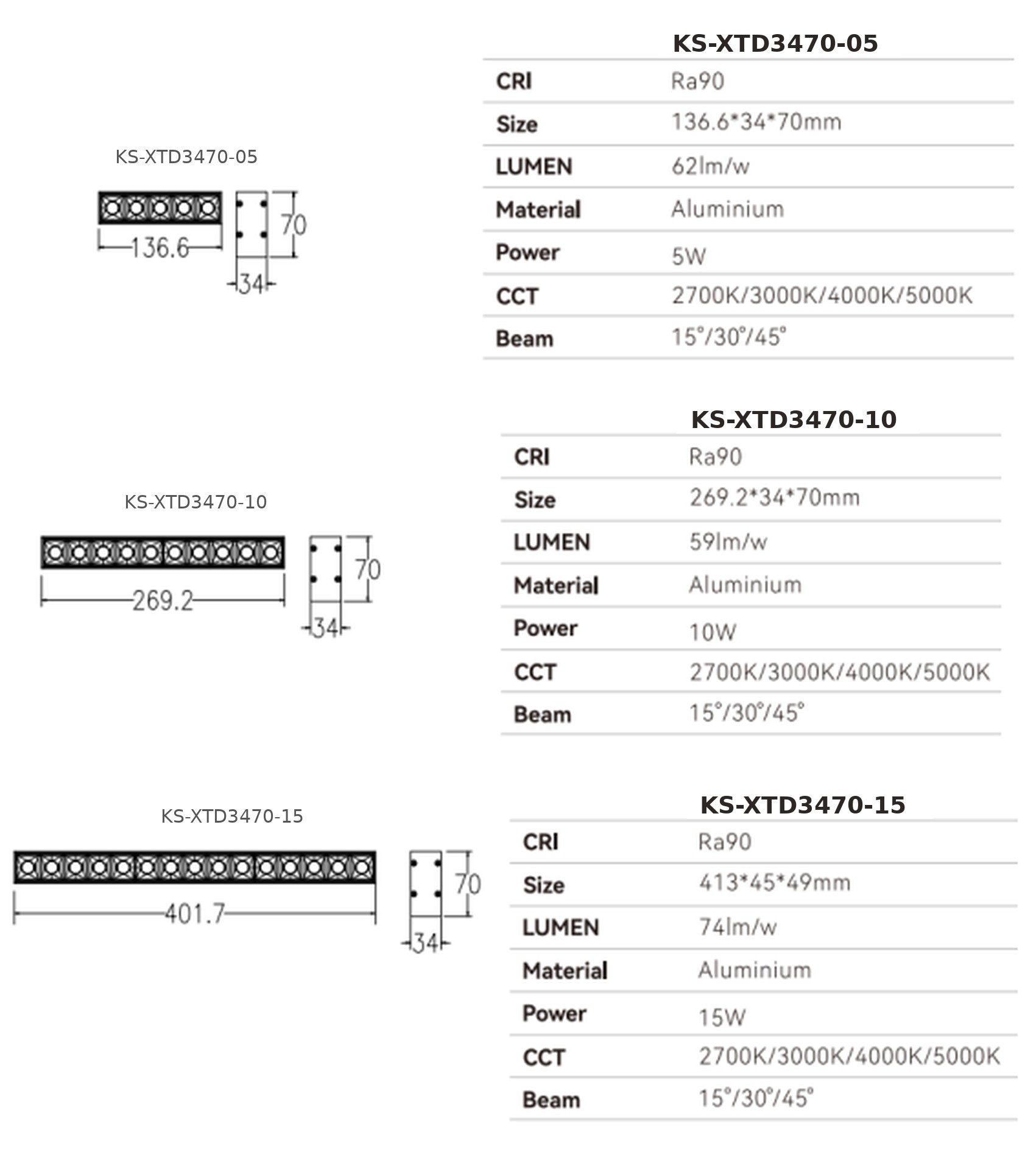

Model Specifications

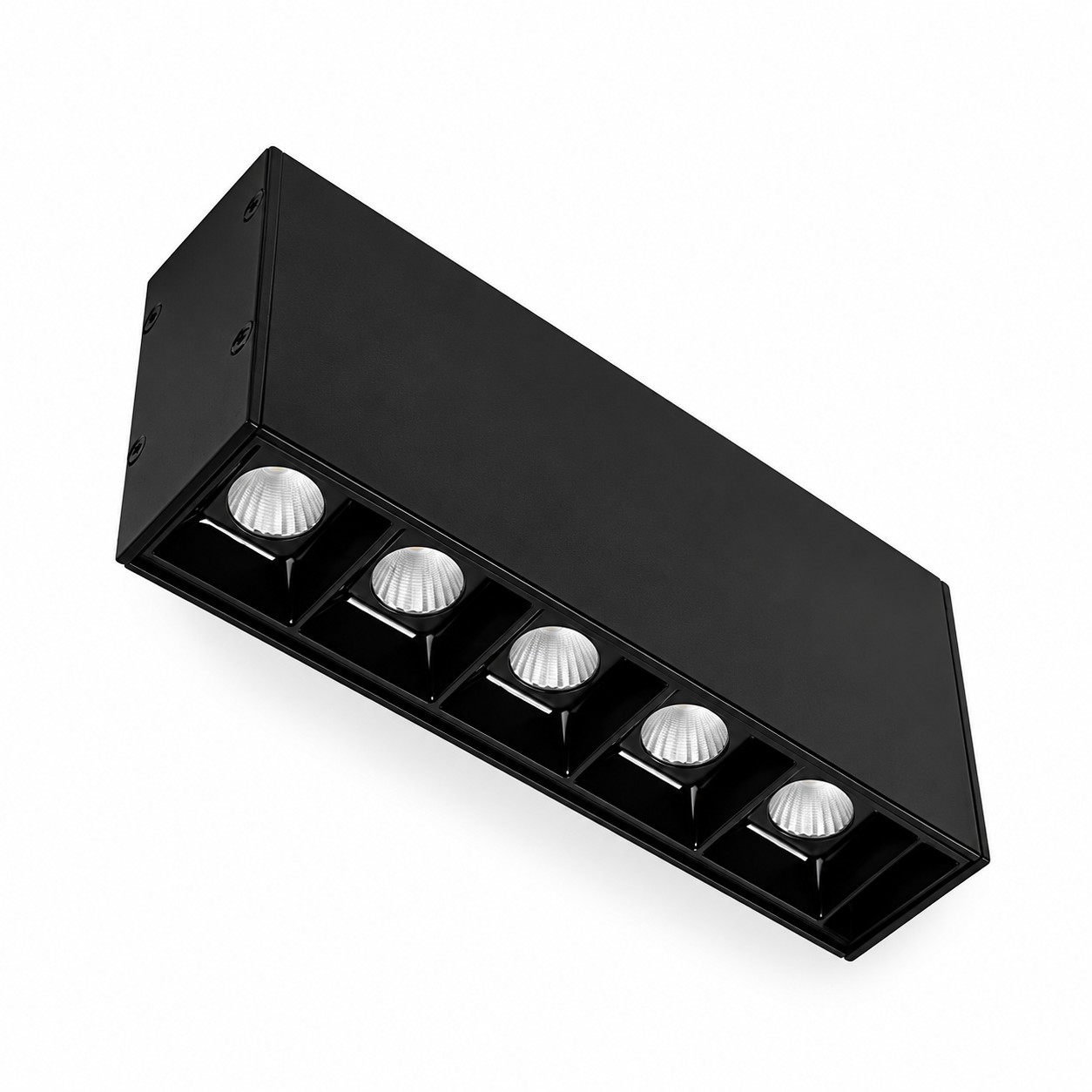

KS-XTD3470-05
• Number of heads: 5
• Power: 5W
• Dimensions: 136.6 × 34 × 70mm
• Luminous efficacy: 62 lm/W
• Colour rendering index: Ra90

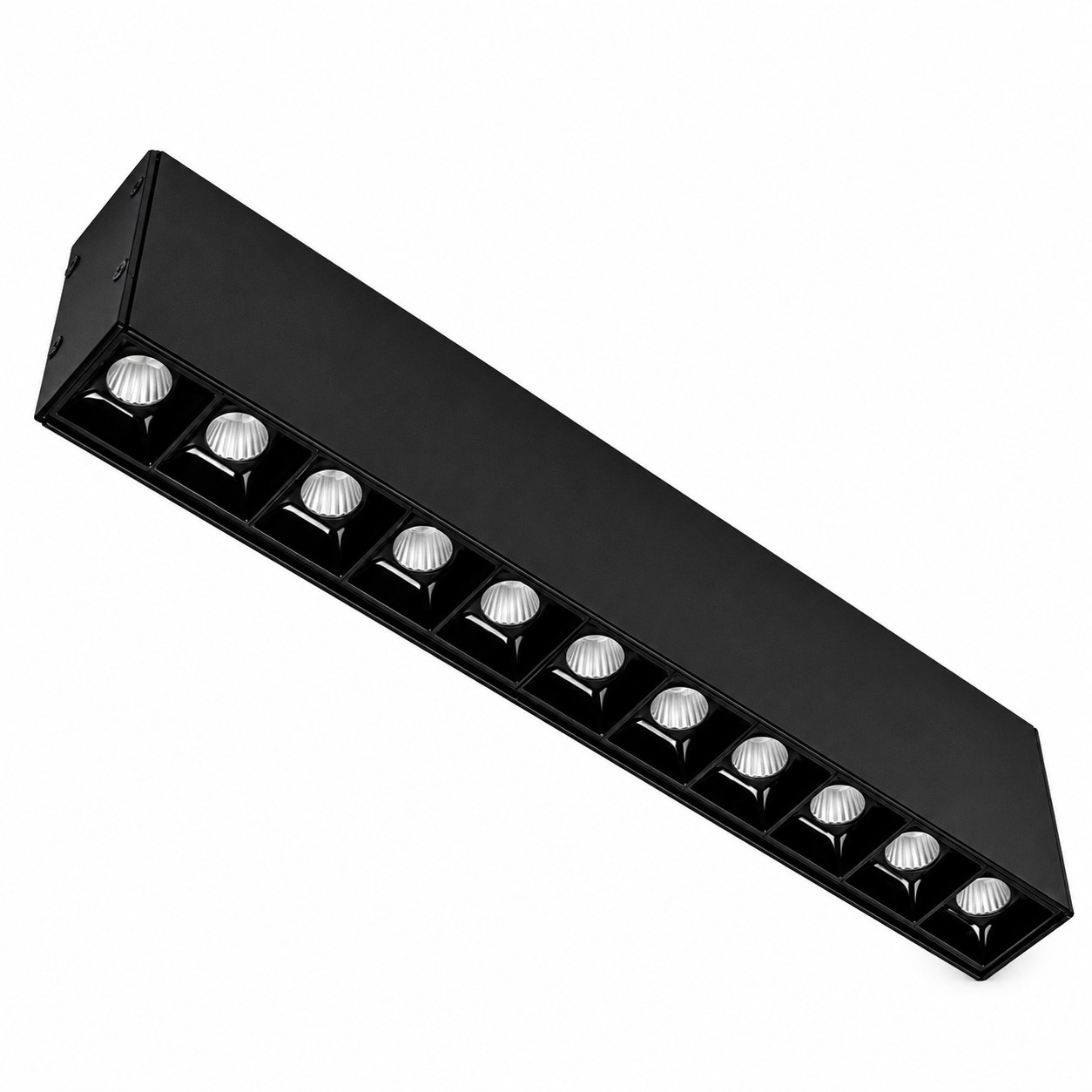

KS-XTD3470-10
• Number of heads: 10
• Power: 10W
• Dimensions: 269.2 × 34 × 70mm
• Luminous efficacy: 59 lm/W
• Colour rendering index: Ra90

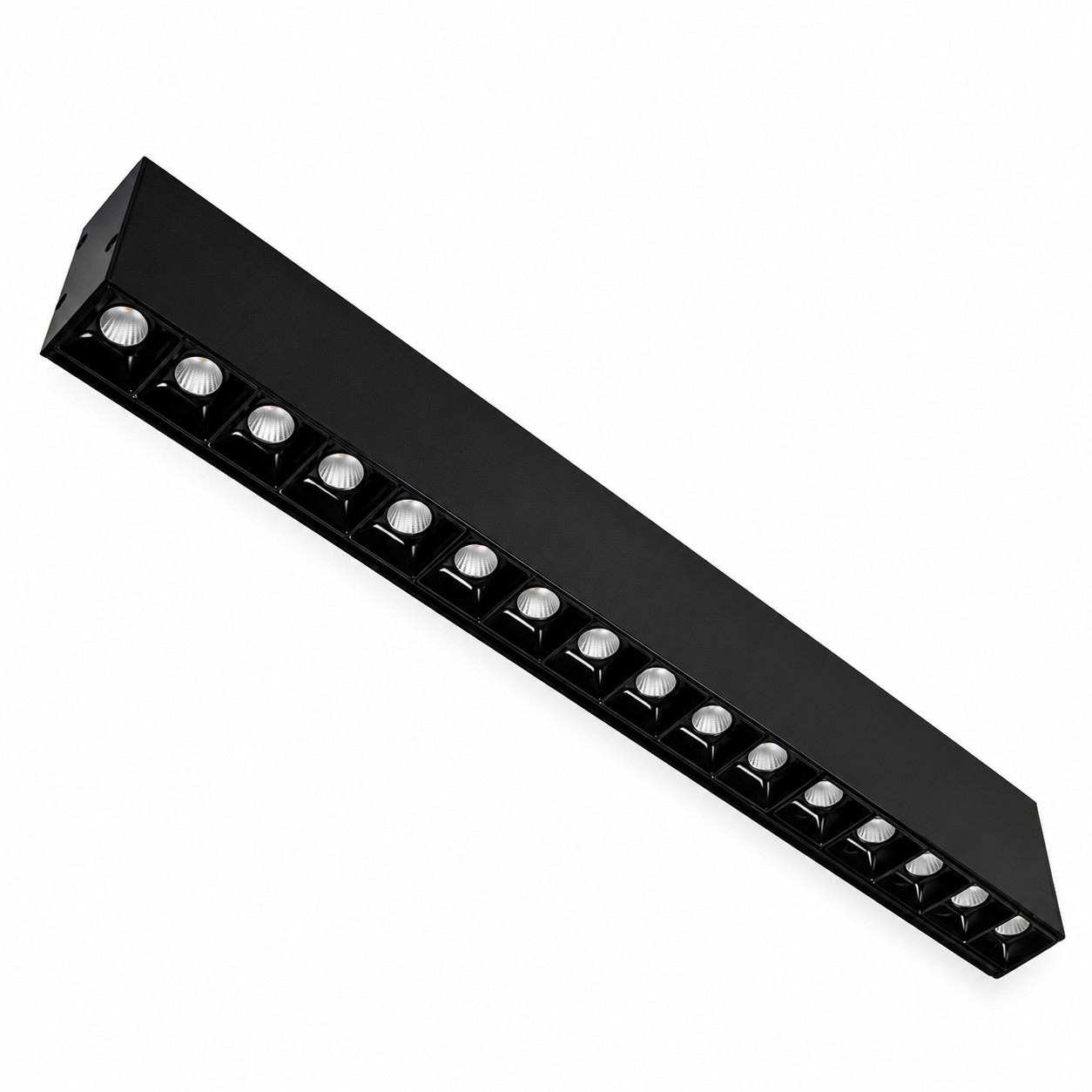

KS-XTD3470-15
• Number of heads: 15
• Power: 15W
• Luminous efficacy: 74 lm/W
• Colour rendering index: Ra90
• Please contact us for confirmed dimensions.
Applications
Hotel interiors, retail stores, showrooms, reception areas, corridors and commercial spaces.
Project Enquiries
Please specify the model, quantity, colour temperature and beam angle when requesting a quotation. Confirm input voltage, driver configuration and dimming requirements before ordering.
