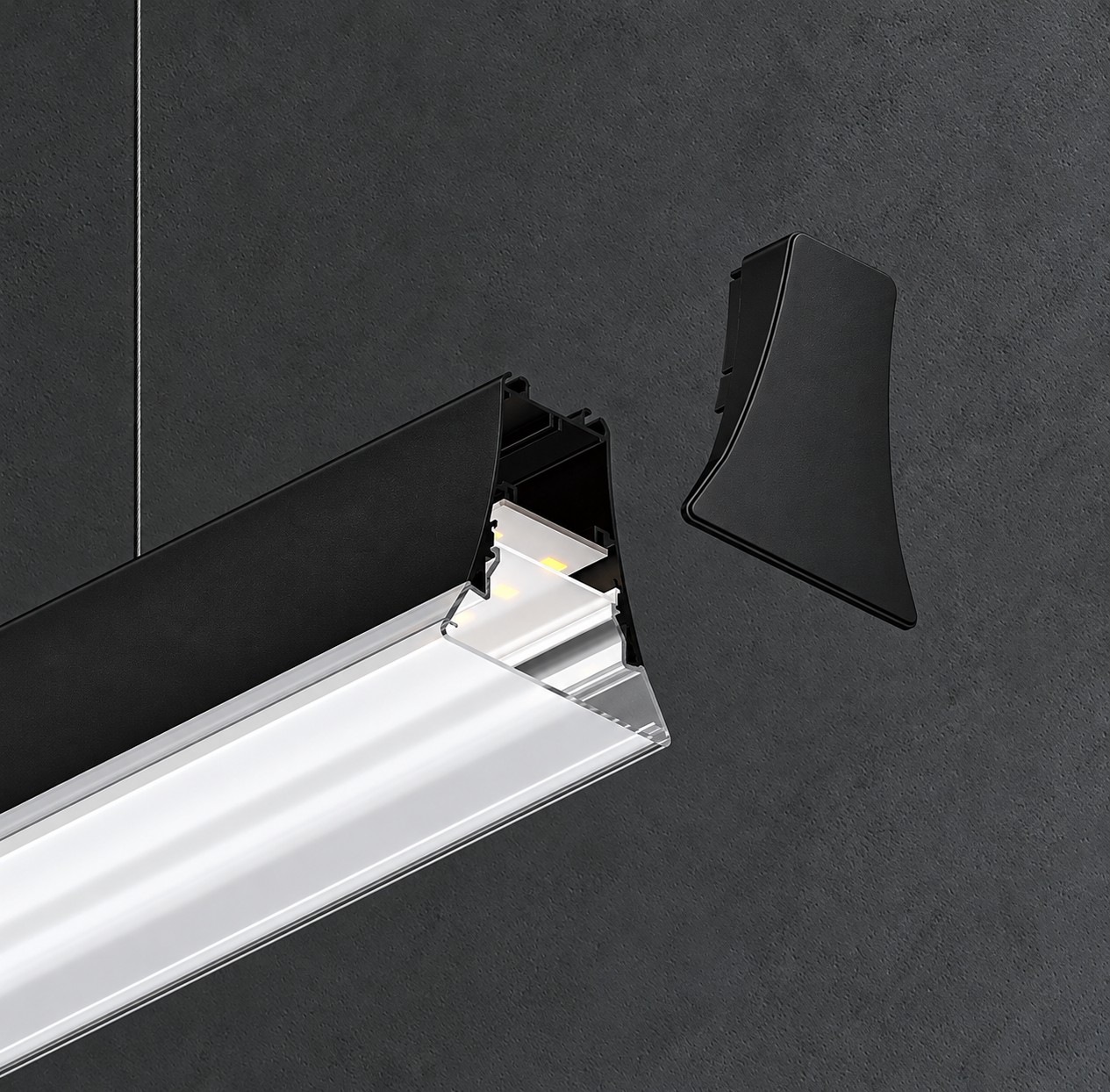

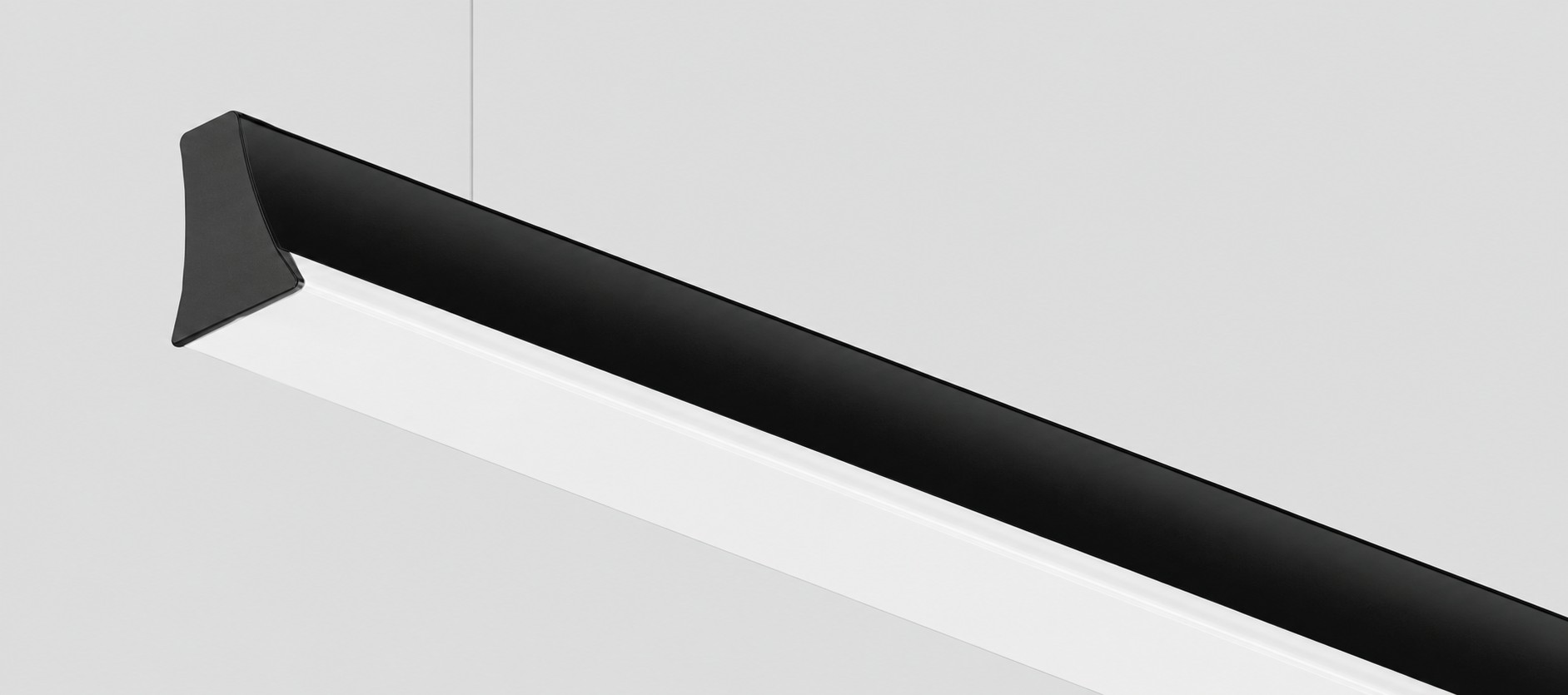

KSKD935-L Up and Down LED Linear Pendant Light

The KSKD935-L is a suspended LED linear light with upward and downward illumination, designed for commercial lighting projects and professional lighting procurement.

Dual-Diffuser Design

The L2 configuration combines an inner translucent acrylic diffuser with an outer clear prismatic diffuser. The convex outer diffuser allows light transmission through three sides. An optional horizontal-striped diffuser changes the light pattern from elongated strips to square-shaped spots.

Diffuser Options

• L1: Opal prismatic diffuser.
• L2: Inner translucent acrylic diffuser with an outer clear prismatic diffuser.
• Optional: Additional horizontal-striped diffuser for an alternative light pattern.

Materials and Construction

The fixture features a 6063 aluminum body, PMMA diffusers, and die-cast aluminum end caps. Available body finish codes are MB, MW, SR, SB, SW, and WG.

Technical Specifications

• Model: KSKD935-L
• Power: 25 W/m
• Luminous efficacy: 80–95 lm/W
• Dimensions: L × W103.5 × H110 mm
• Color temperature: 3000K / 4000K / 6000K
• Beam angle: 110°
• Body material: 6063 aluminum
• Diffuser material: PMMA
• End cap material: Die-cast aluminum
• Installation: Suspended
• Light distribution: Upward and downward

Project and Bulk Order Enquiries

For distributor enquiries and commercial project quotations, please provide your required fixture length, quantity, color temperature, body finish, diffuser configuration, and delivery destination.
