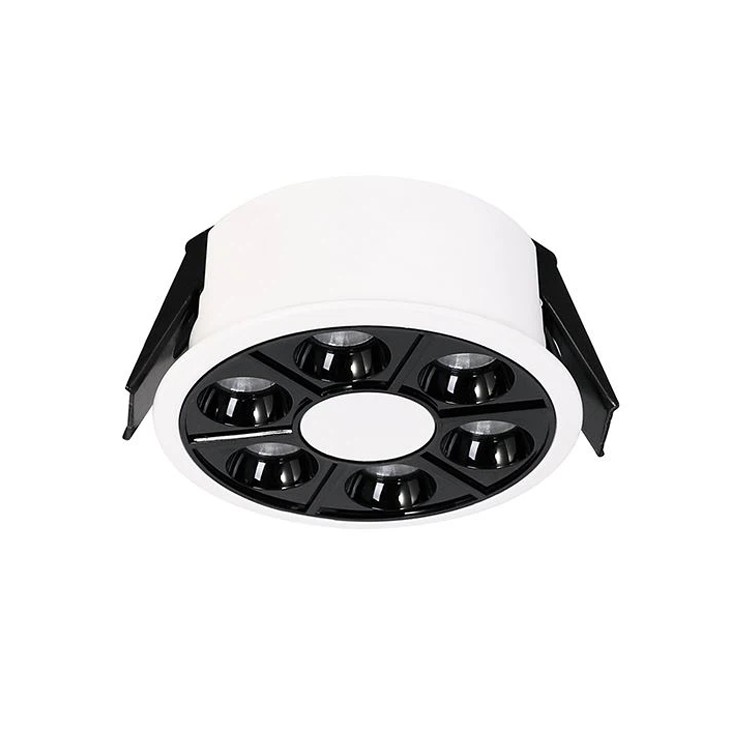

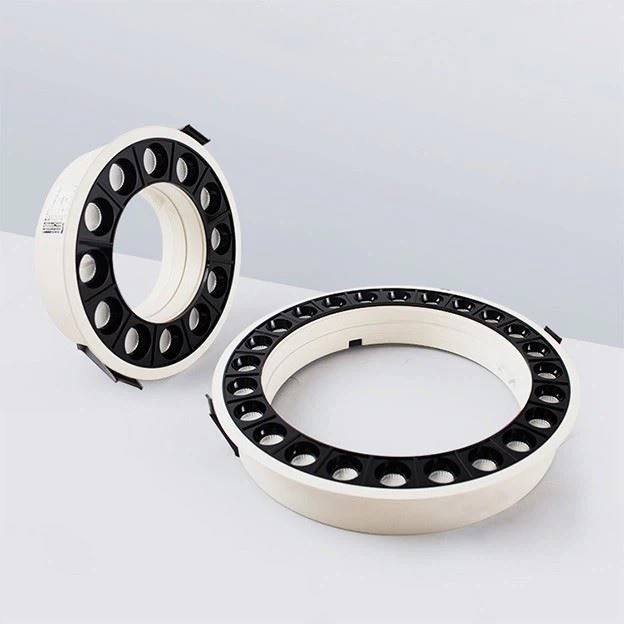

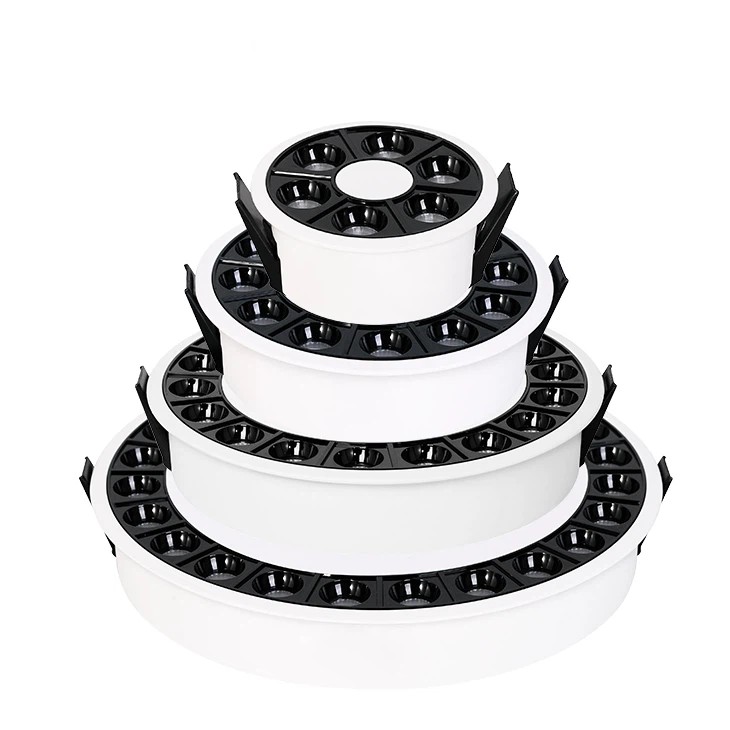

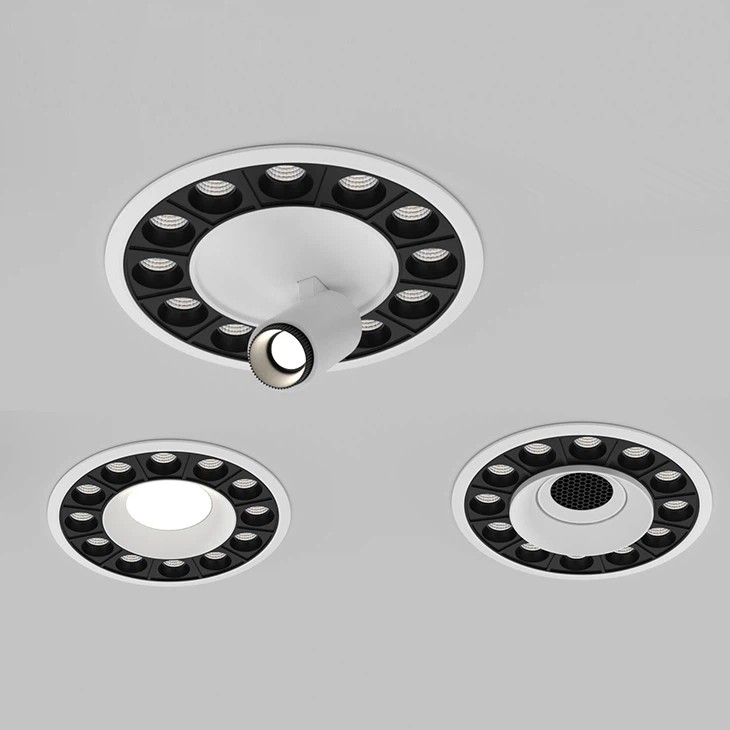

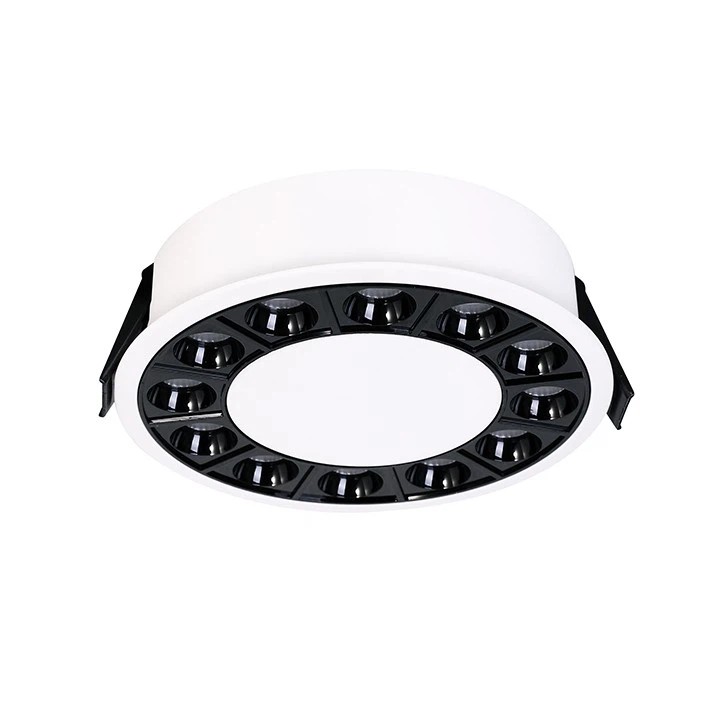

KSXTDR Circular Multi-Spot LED Downlight Series
The KSXTDR circular multi-spot LED downlight series offers listed 8W, 15W, 20W and 30W configurations for indoor retail, office, museum and showroom lighting. Aluminium construction, 20° / 34° / 48° beam options and 3000 K / 4000 K / 6000 K colour temperatures support project-specific selection.
Confirm the mounting version, module combination, body dimensions and ceiling cutout before specifying the fitting. The existing mounting description covers multiple versions and does not establish one installation method for every model. Request photometric data and any required glare assessment for the selected layout.
Series Specifications
| Product | Circular multi-spot LED downlight |
| Material | Aluminum |
| Model | KSXTDR |
| Power | 8W 15W 20W 30W |
| Listed luminous efficacy | 80 lm/W; confirm selected configuration |
| Beam Angle | 20°/34°/48° |
| CCT | 3000K/4000K/6000K |
| Function | Confirm optics and glare performance for the selected configuration |
| Installation Mode | Confirm recessed, surface or wall mounting version |

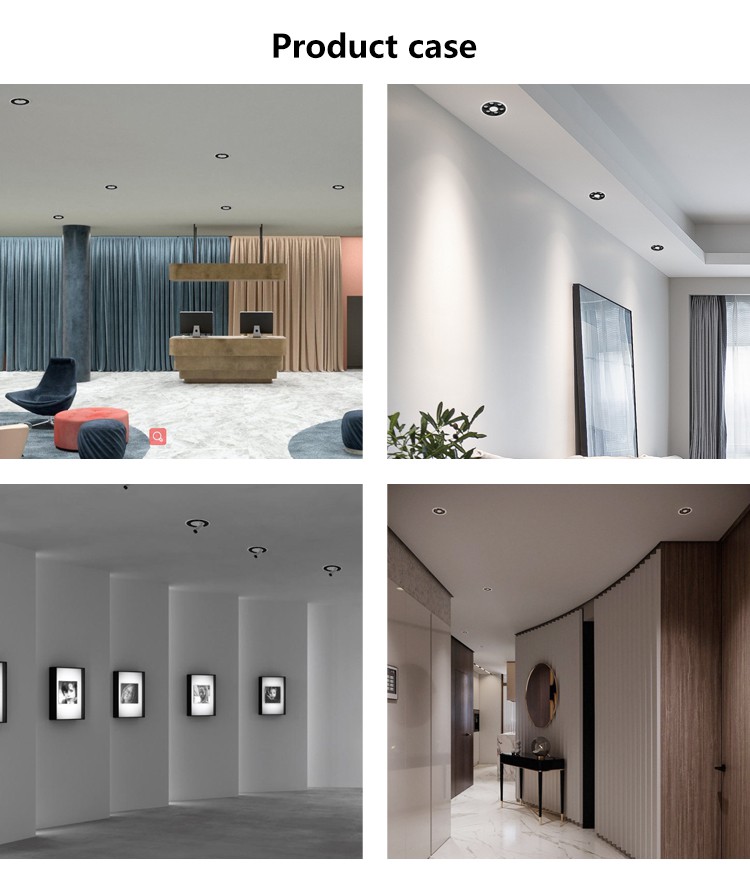

| Application | Shopping mall/Office/Museum/Gallery/Retail Store/Showroom |

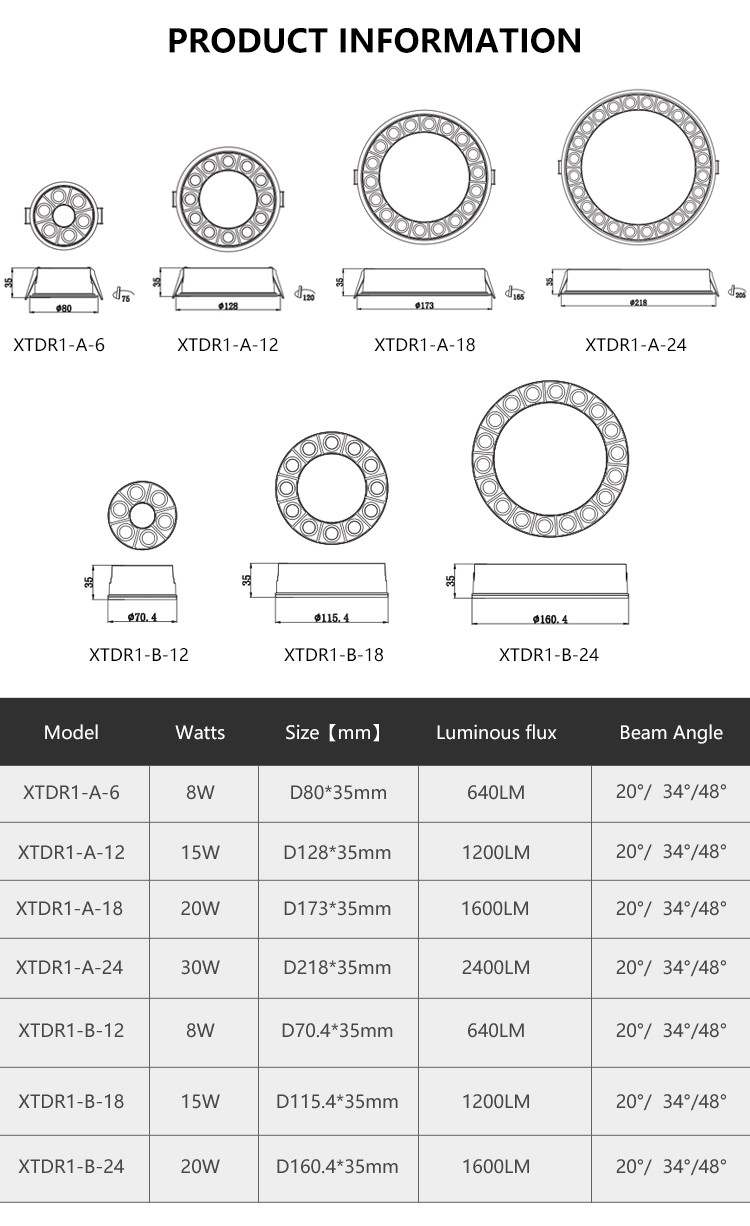

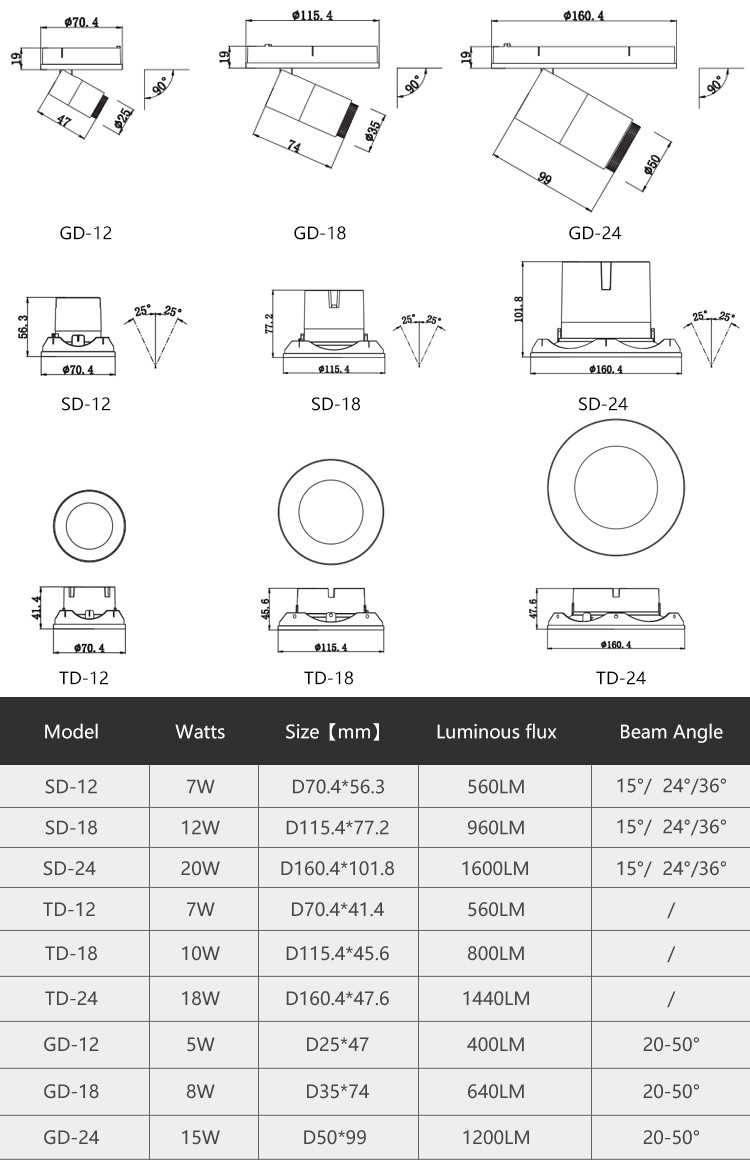

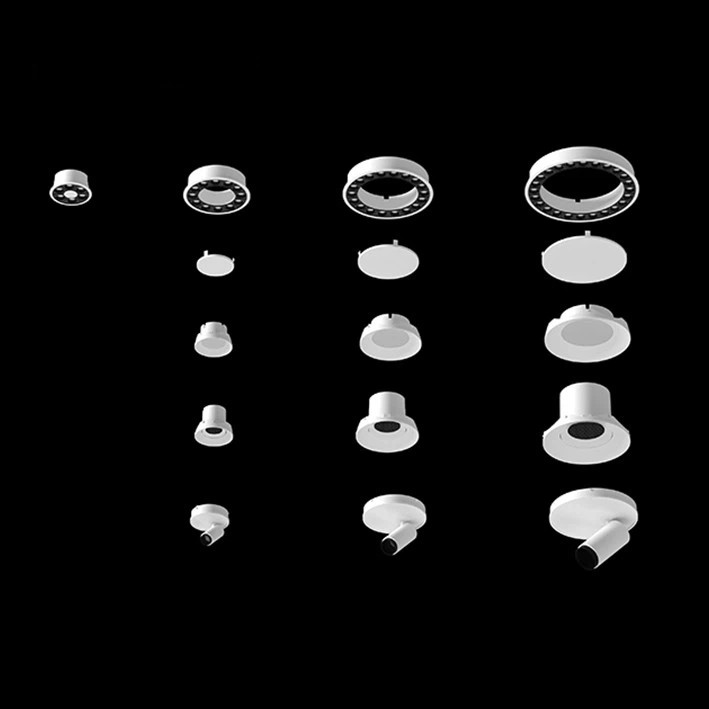

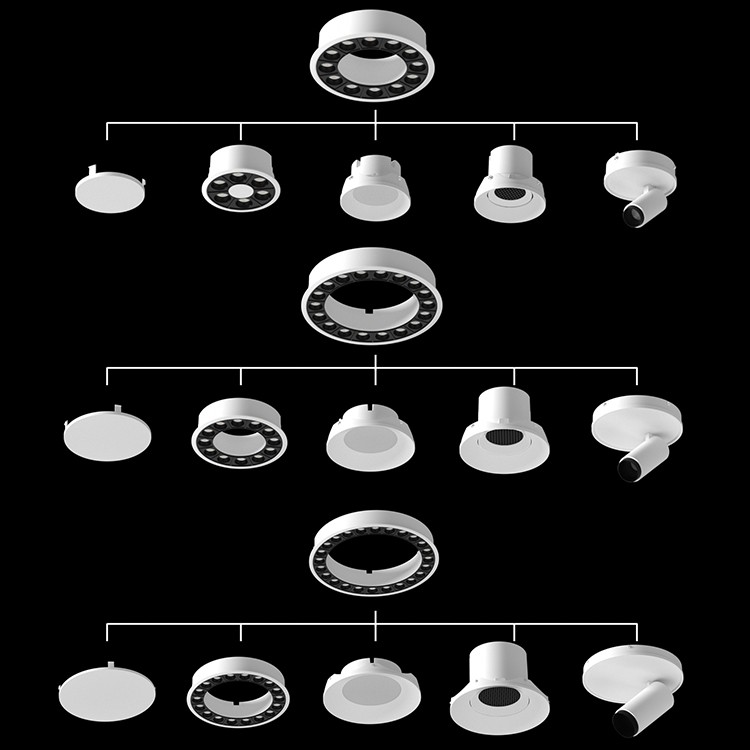

Product and Configuration References
Project Enquiry
Send KONSLIGHT the required power, quantity, beam angle, colour temperature, finish and mounting arrangement. Confirm driver configuration, installation drawings and delivery details before ordering.
