KSNMW-TSD recessed LED downlights offer 7W, 12W, 20W and 30W options with Ra90 color rendering and 15°, 24° or 36° beams. Cutout sizes range from 60mm to 110mm, with multiple reflector finishes for coordinated interior lighting. Contact KONS for bulk pricing and project quotations.

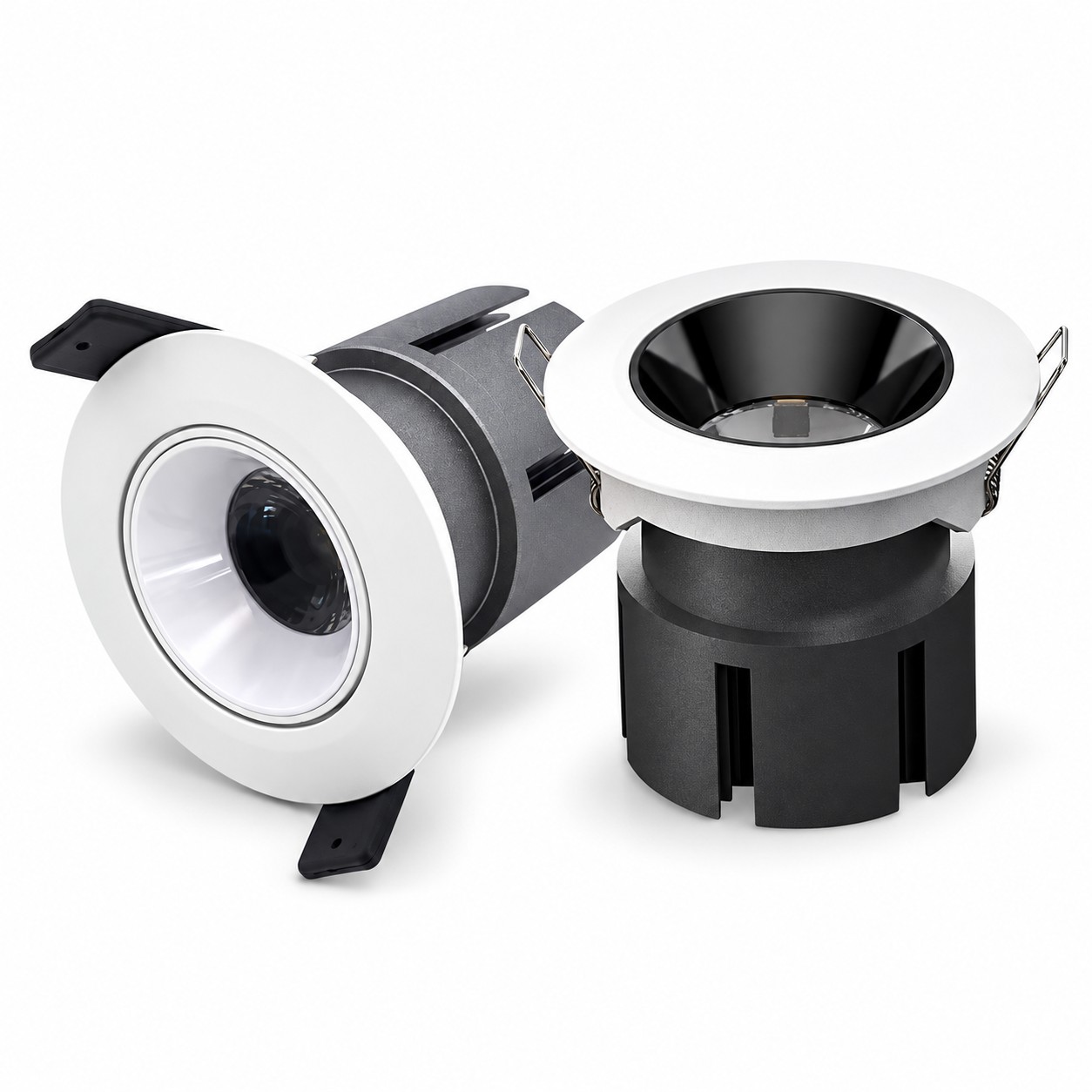

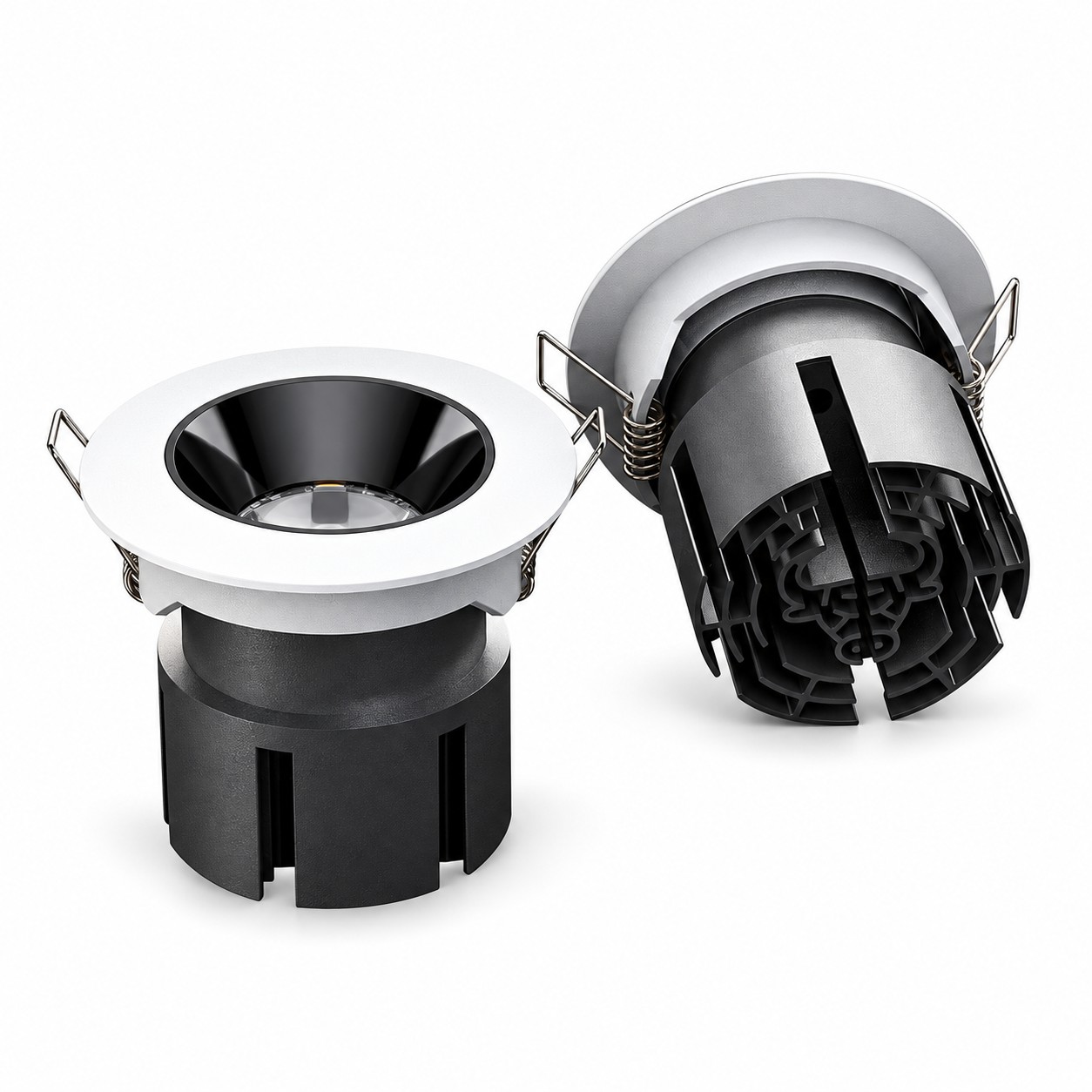

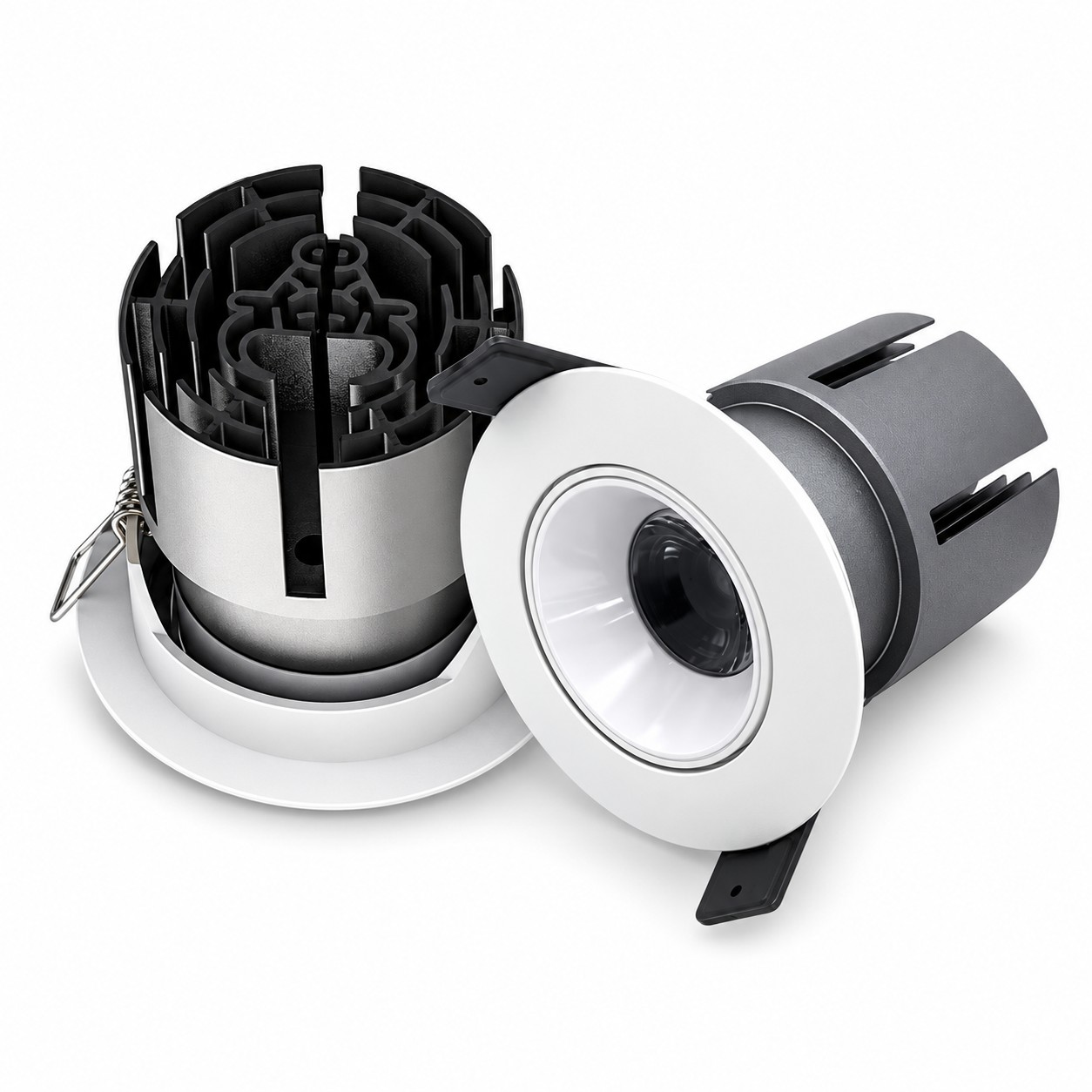

KSNMW-TSD Recessed LED Downlight Series
The KSNMW-TSD series provides four recessed LED downlight sizes for commercial and architectural interior lighting. Power options range from 7W to 30W, allowing buyers to select different models within a coordinated product family.
Each model features an aluminium housing, Ra90 color rendering and a choice of 15°, 24° or 36° beam angles. The white trim and recessed reflector provide a clean ceiling appearance.
Key Features
• Power options: 7W, 12W, 20W and 30W
• Ra90 color rendering
• 15°, 24° and 36° beam options
• Aluminium housings
• Cutout diameters from 60mm to 110mm
• Reflector finish options: GB, SL and WH

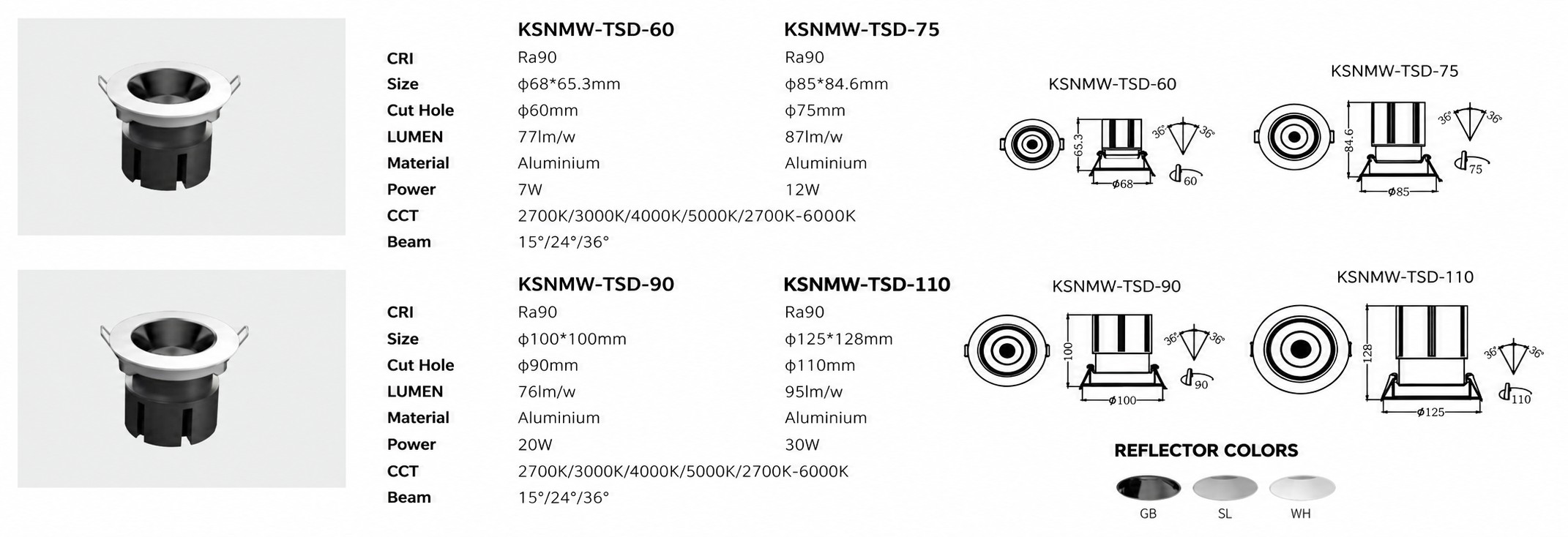

Model Specifications
• KSNMW-TSD-60 — 7W | Ø68 × 65.3mm | Ø60mm cutout
• KSNMW-TSD-75 — 12W | Ø85 × 84.6mm | Ø75mm cutout
• KSNMW-TSD-90 — 20W | Ø100 × 100mm | Ø90mm cutout
• KSNMW-TSD-110 — 30W | Ø125 × 128mm | Ø110mm cutout
Color Temperature Options
2700K, 3000K, 4000K and 5000K. A 2700K–6000K option is also listed; please confirm the required driver and control configuration when ordering.
Suggested Applications
Hotels, retail stores, showrooms, restaurants and residential interiors. Select the power, beam angle and installation size according to the project’s lighting requirements.
Wholesale, Distribution and Project Enquiries
For a quotation, please send the model, quantity, color temperature, beam angle, reflector finish and delivery destination. Contact KONS to confirm driver specifications, sample availability, minimum order quantity and production lead time.
