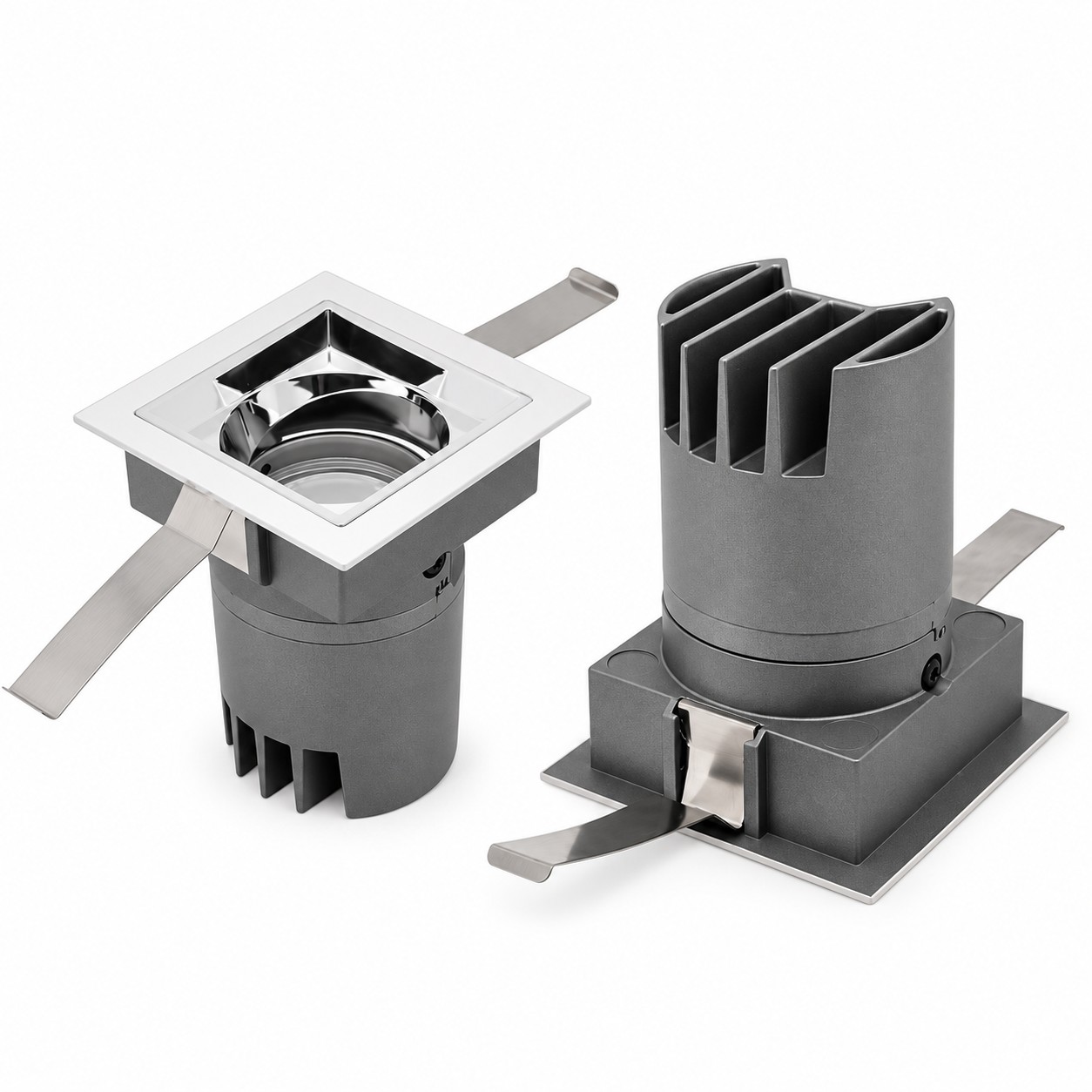

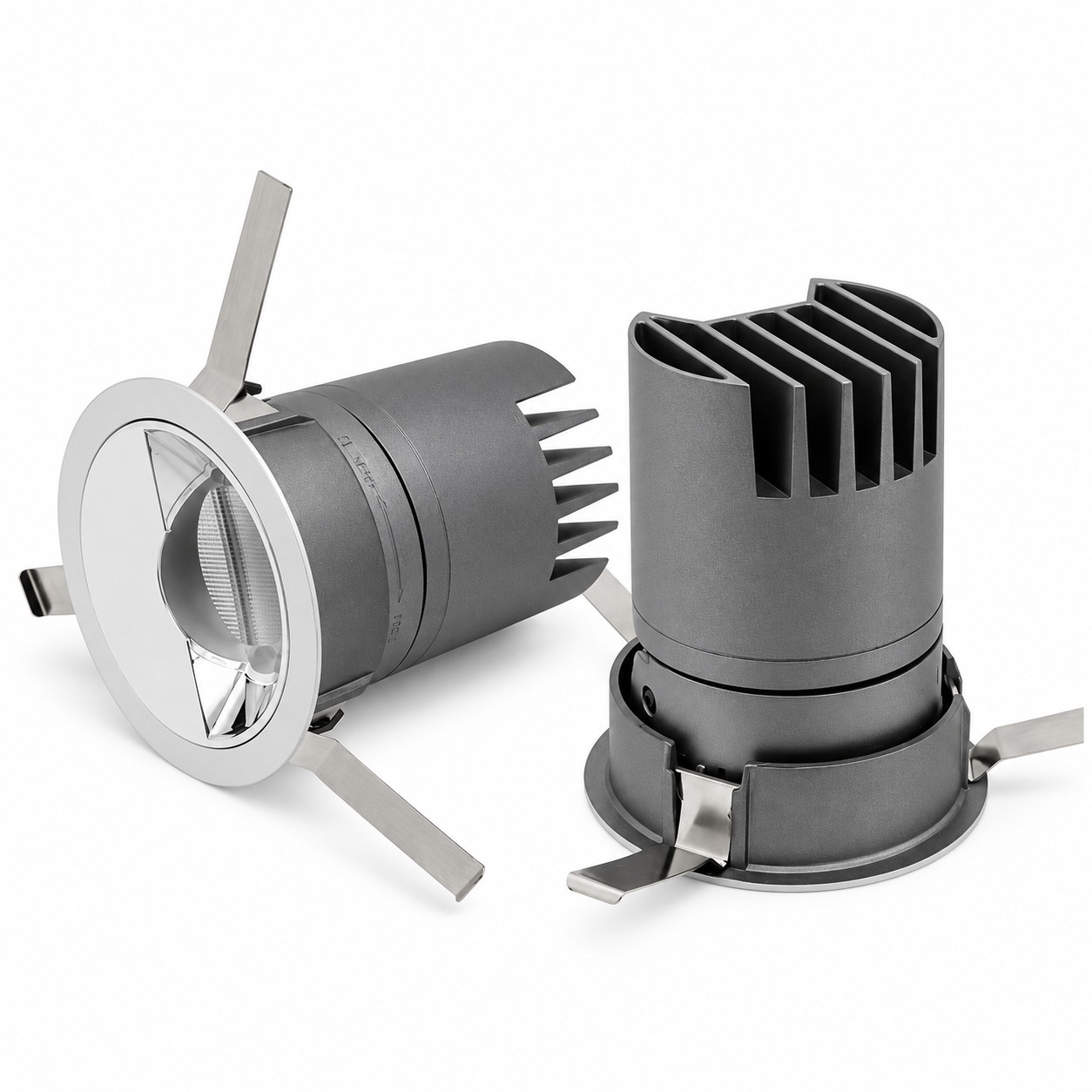

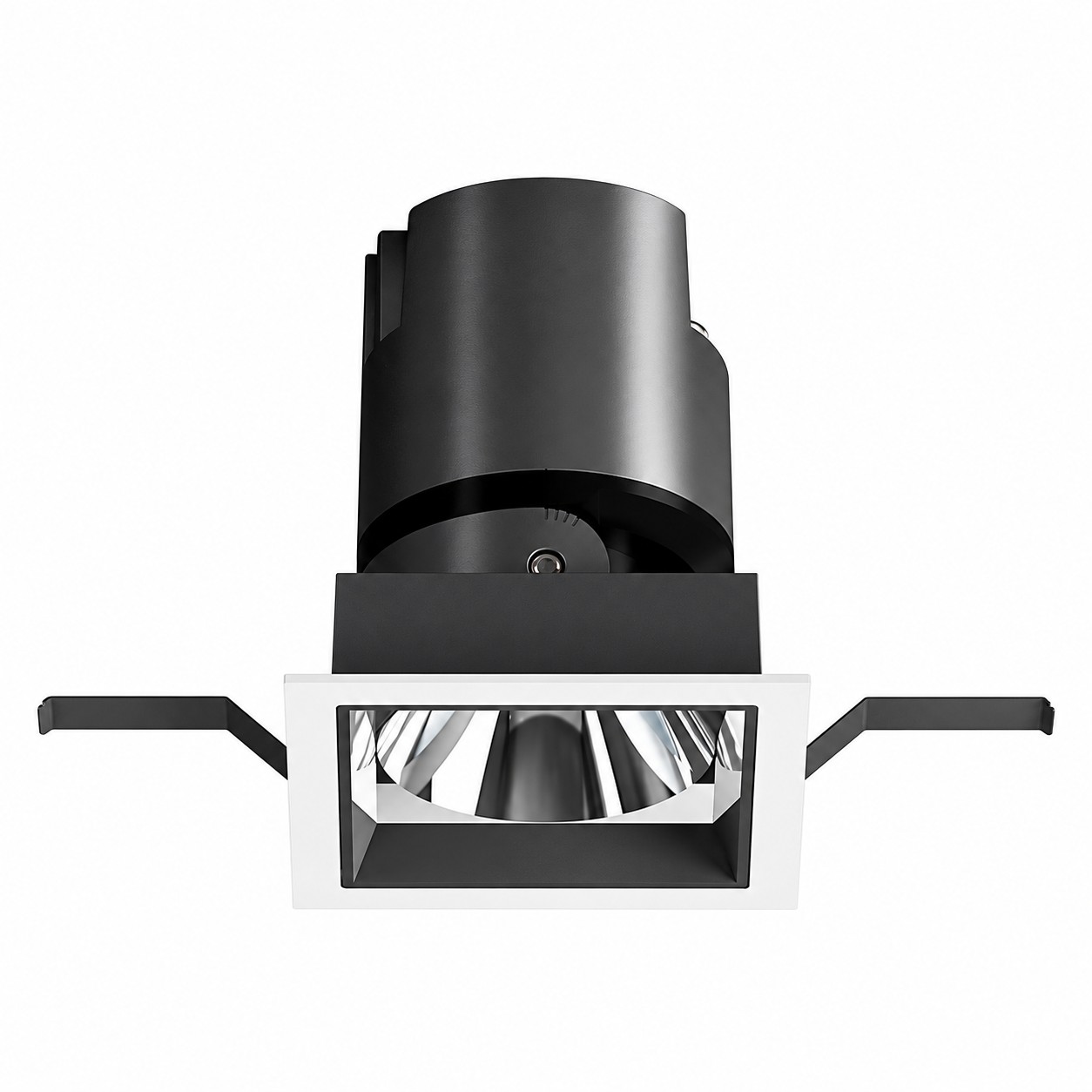

The KONS KS-HTSD Series offers recessed COB LED spotlights for hotel and hospitality interiors. A deeply recessed light source, refined reflector design and a choice of round or square trims create a coordinated ceiling appearance for guest rooms, lobbies, corridors, restaurants and reception areas.

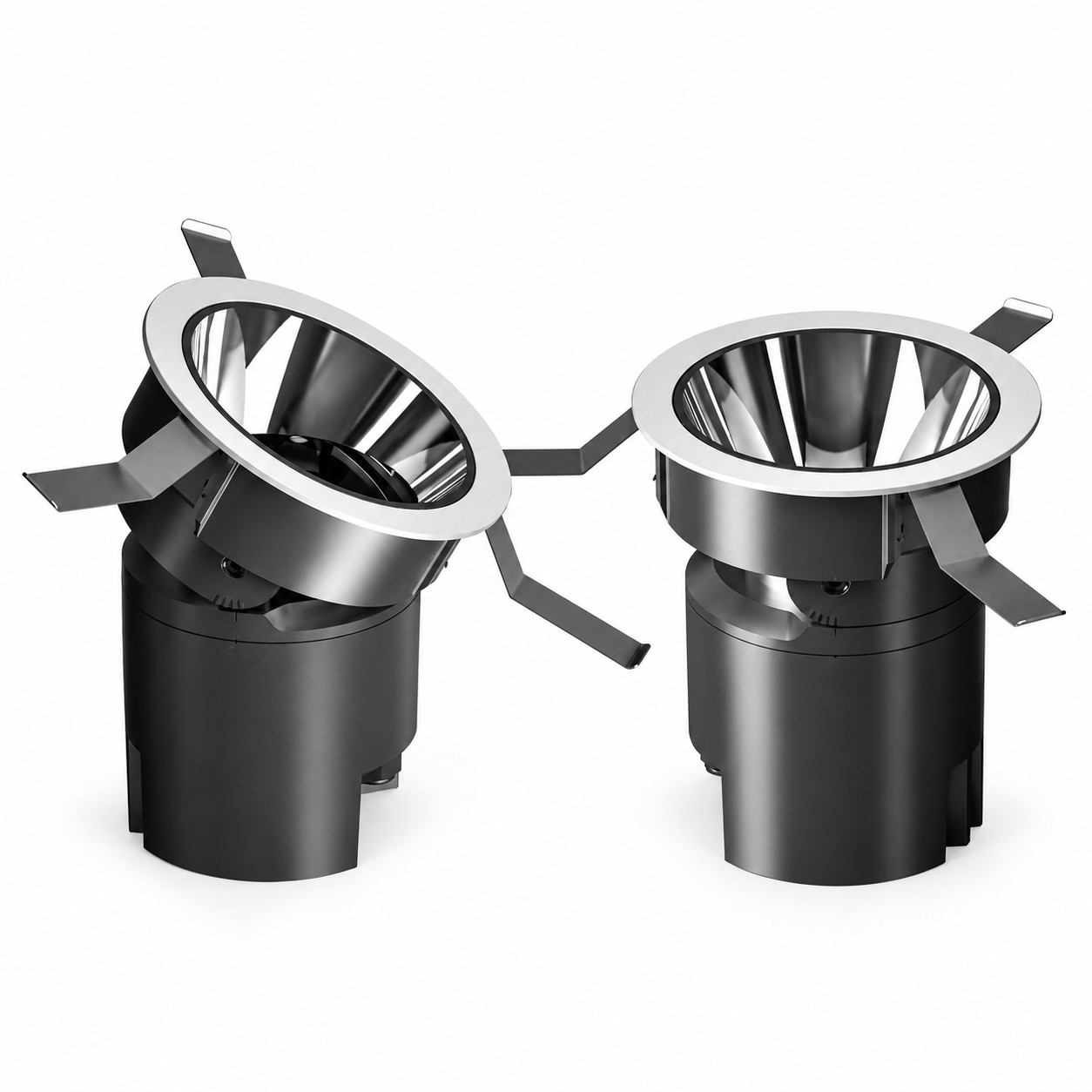

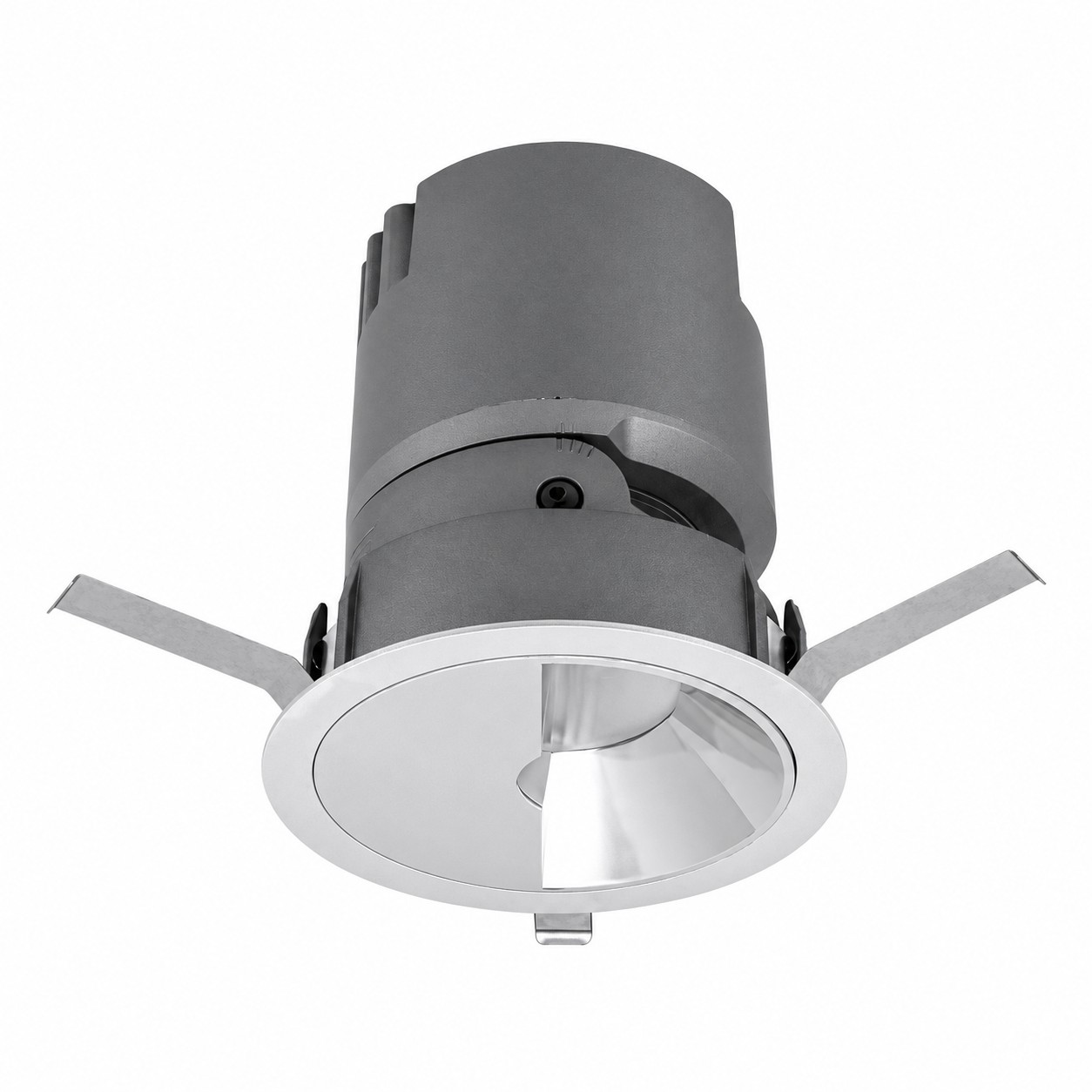

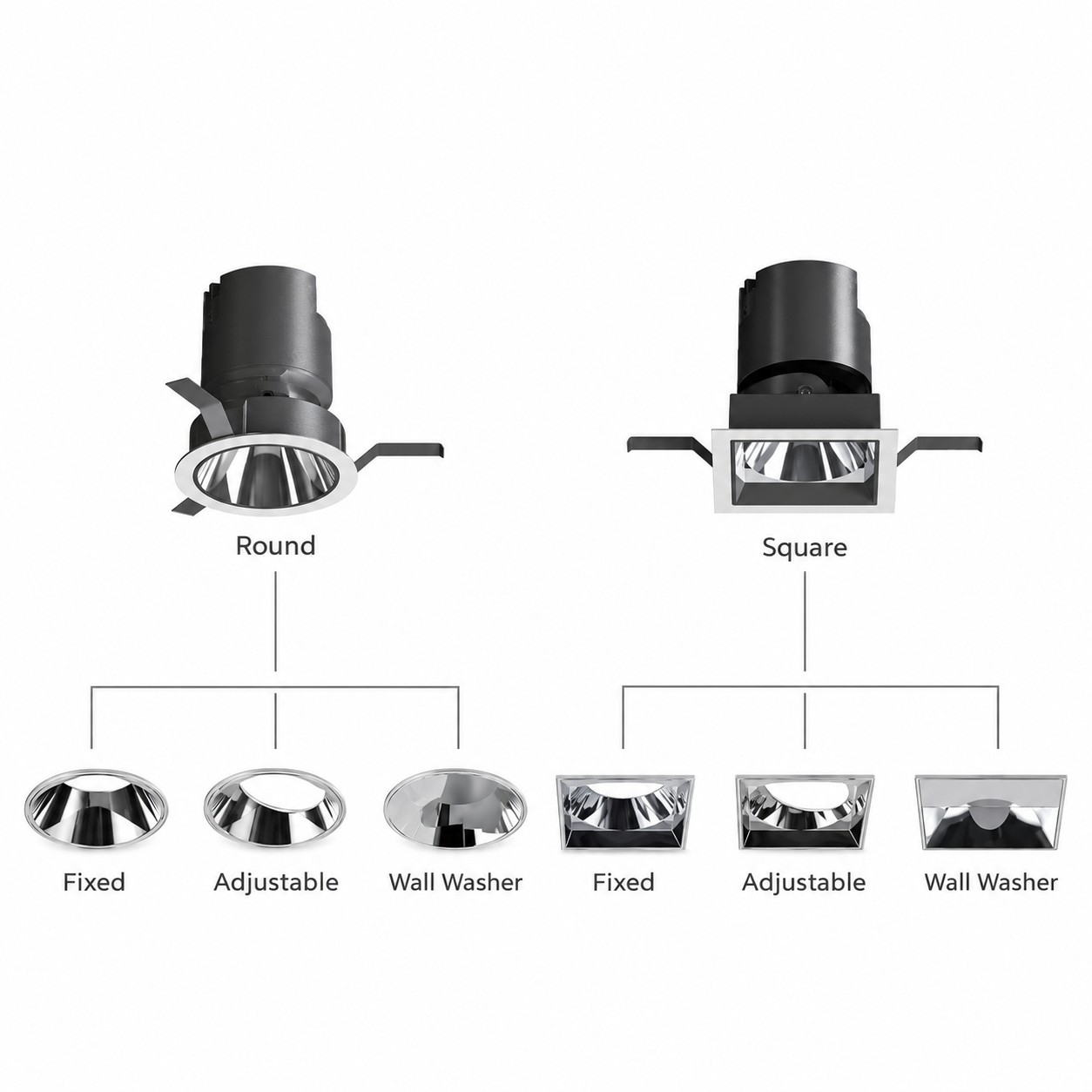

Three optical configurations support different lighting tasks. Fixed models provide downward illumination, adjustable models allow light to be directed toward selected features, and wall washer models use asymmetric optics for vertical surfaces. These options help lighting designers coordinate general, accent and wall lighting within one product family.

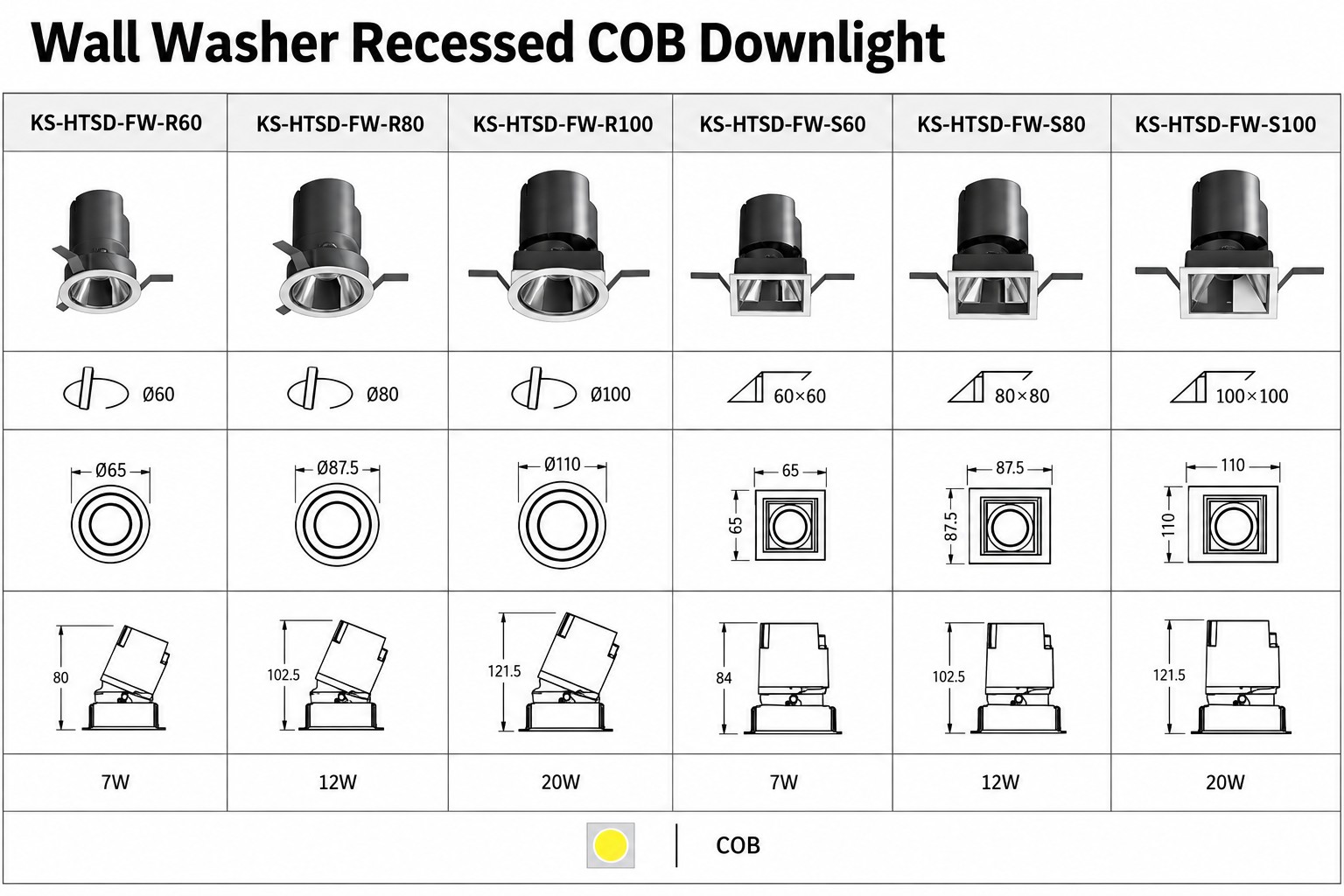

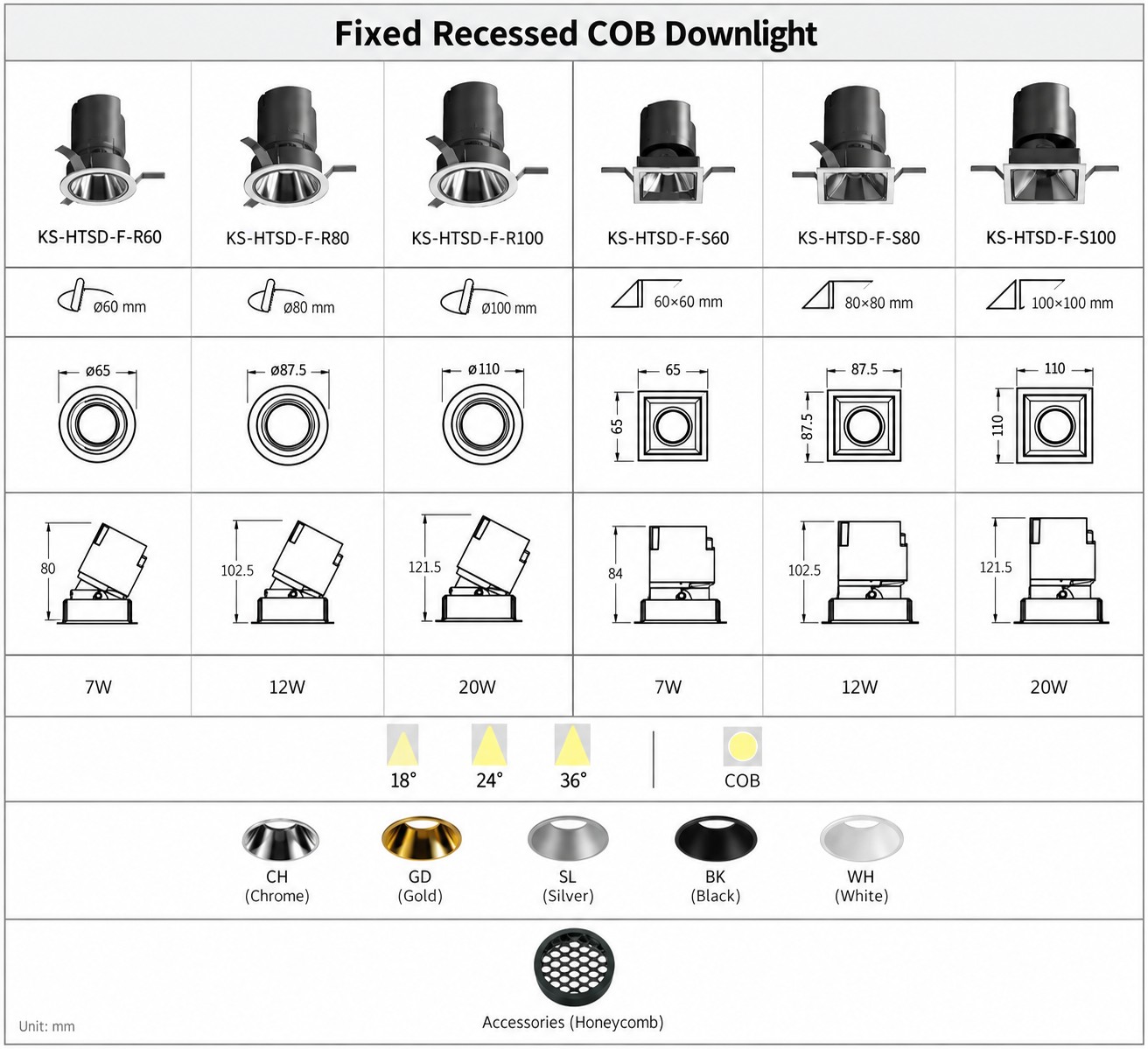

The series is available in 7W, 12W and 20W versions. Round models use Ø60, Ø80 and Ø100 mm ceiling cutouts, with outer trim diameters of Ø65, Ø87.5 and Ø110 mm. Square models use 60 × 60, 80 × 80 and 100 × 100 mm cutouts, with outer trim dimensions of 65 × 65, 87.5 × 87.5 and 110 × 110 mm.

Adjustable versions have listed heights of 84, 108.5 and 130.5 mm for the three power options. Fixed and wall washer round versions have heights of 80, 102.5 and 121.5 mm, while the corresponding square versions have heights of 84, 102.5 and 121.5 mm.

Fixed and adjustable spotlight versions offer 18°, 24° and 36° beam angles. Reflector finish options shown for these versions include chrome, gold, silver, black and white. A honeycomb accessory is also available for fixed and adjustable versions. Wall washer optics should be selected separately to suit the intended wall lighting layout.

For project quotations, specify the trim shape, power, optical configuration and applicable reflector finish. Confirm color temperature, color rendering, lumen output, driver specifications and dimming requirements before placing an order.
