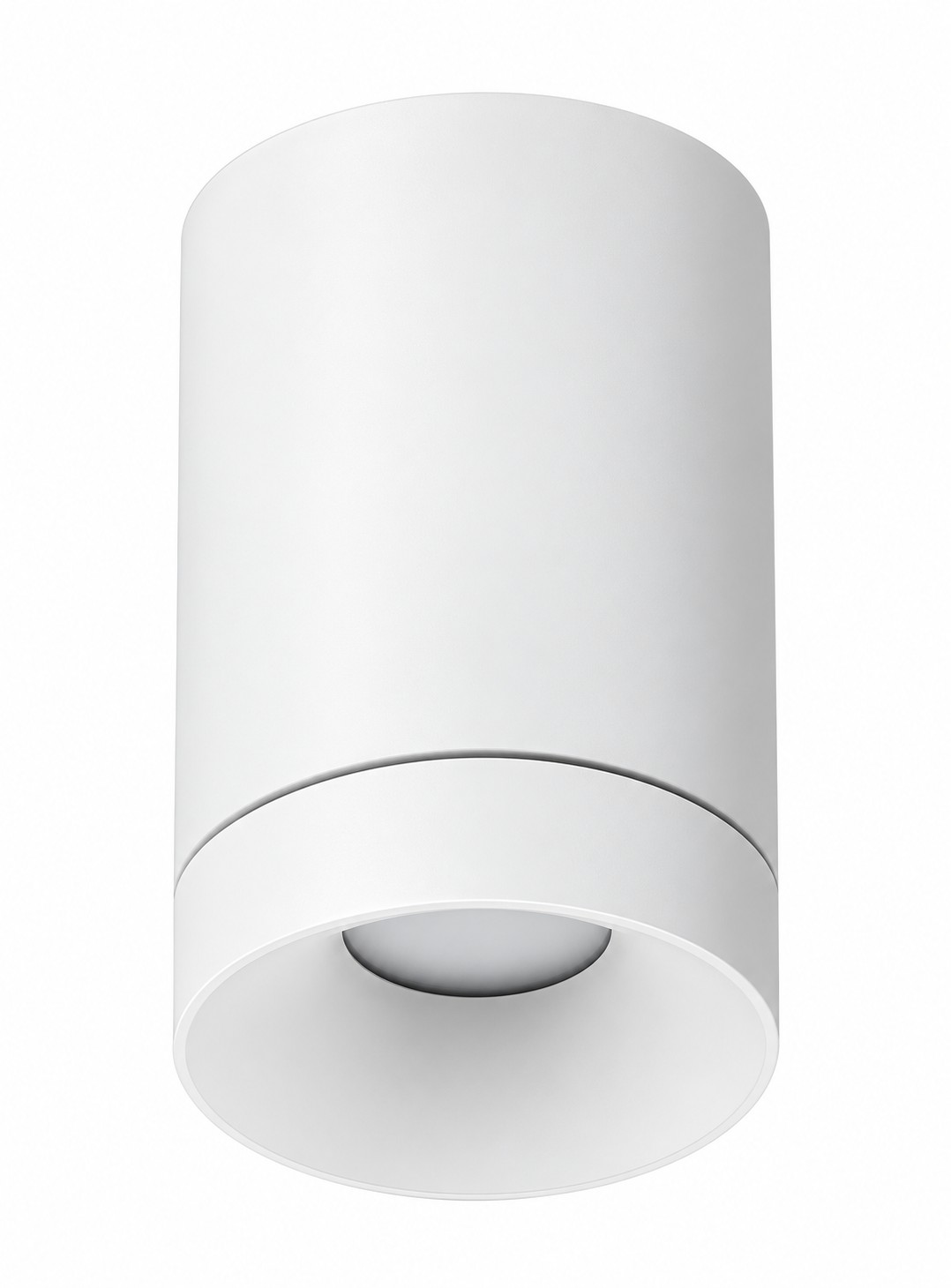

The KONS KS-MD012 Series offers compact cylindrical LED downlights for surface mounted ceiling installations. A smooth aluminium housing and recessed light opening create a clean appearance for hotel, residential and commercial interiors.

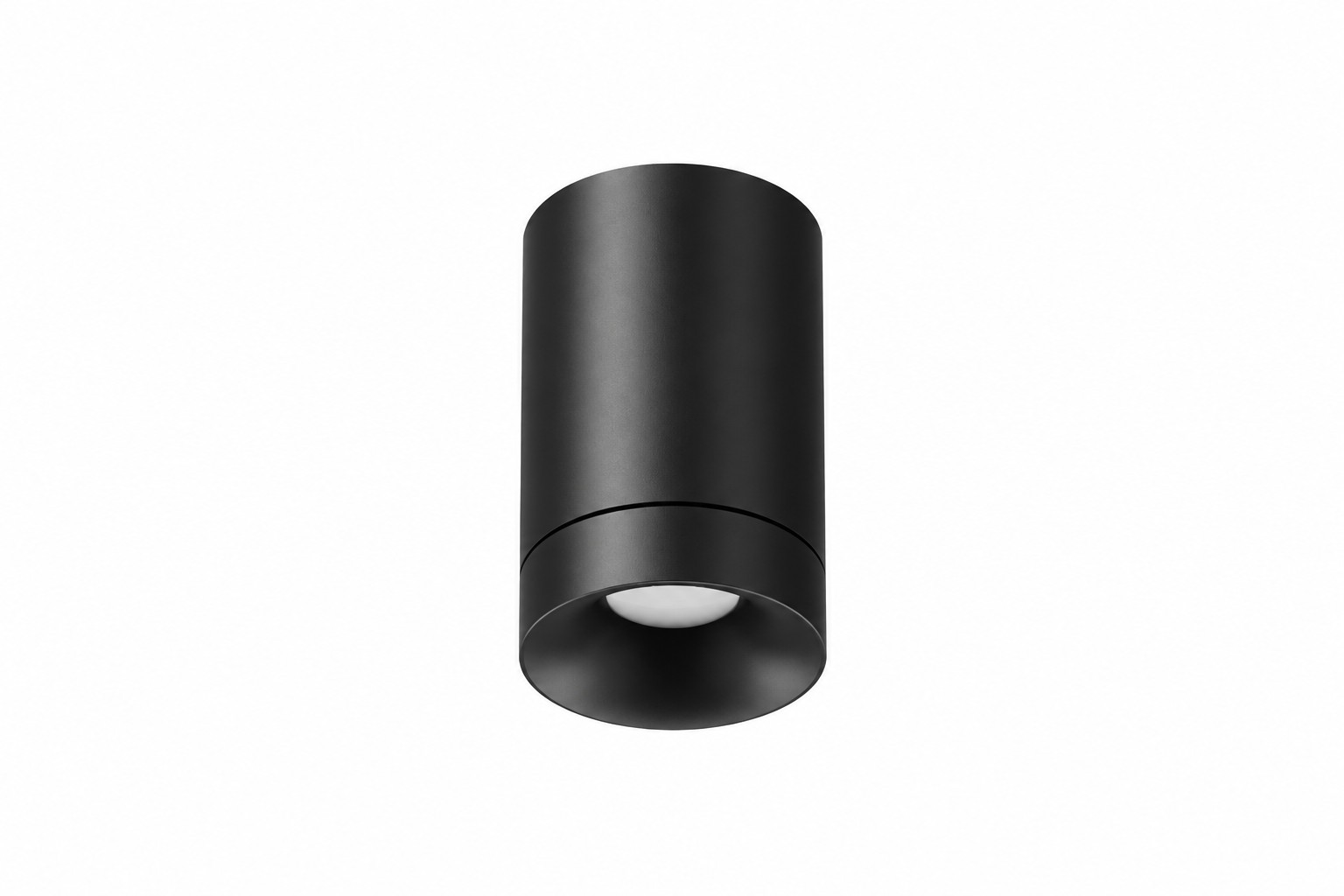

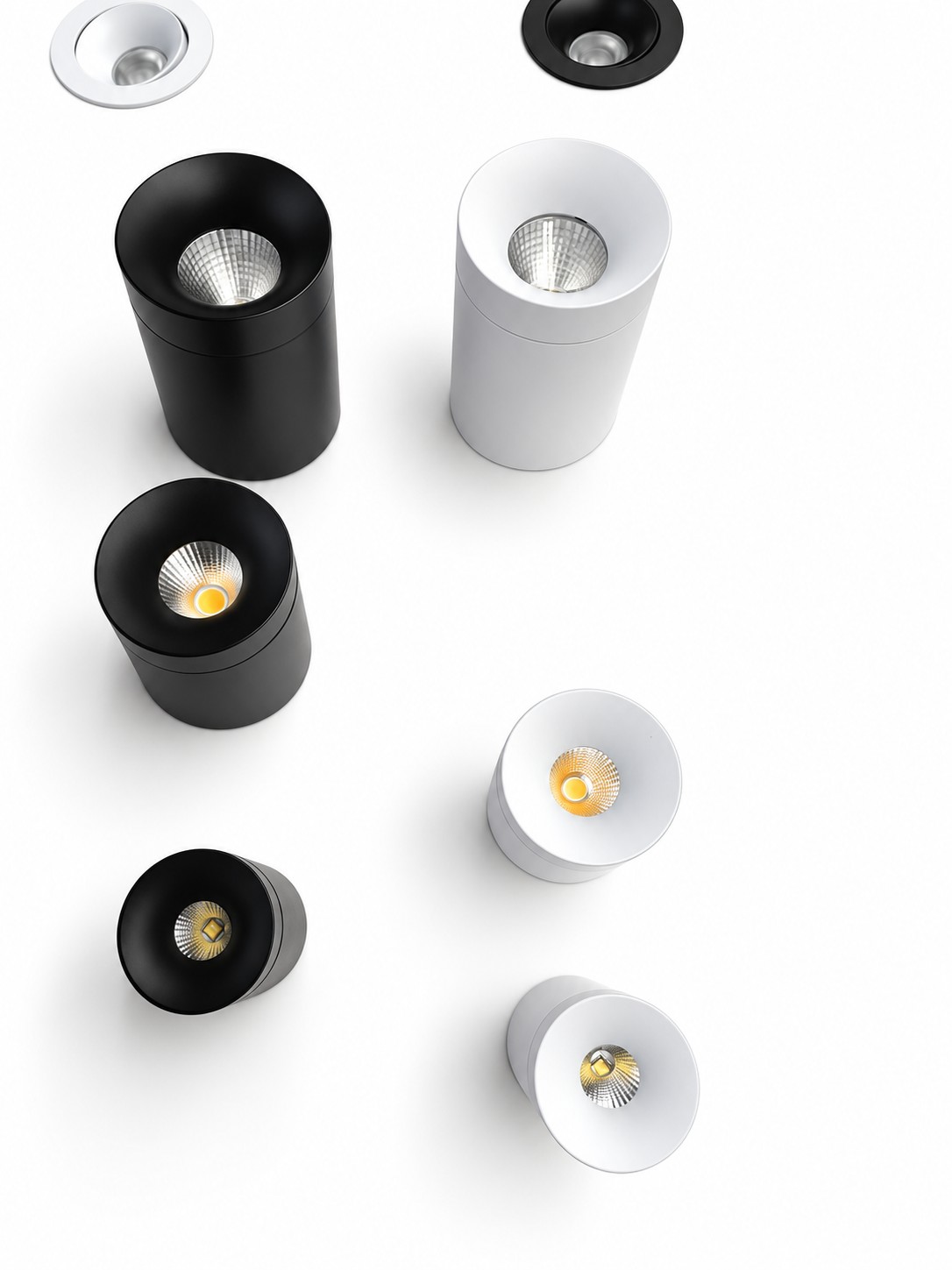

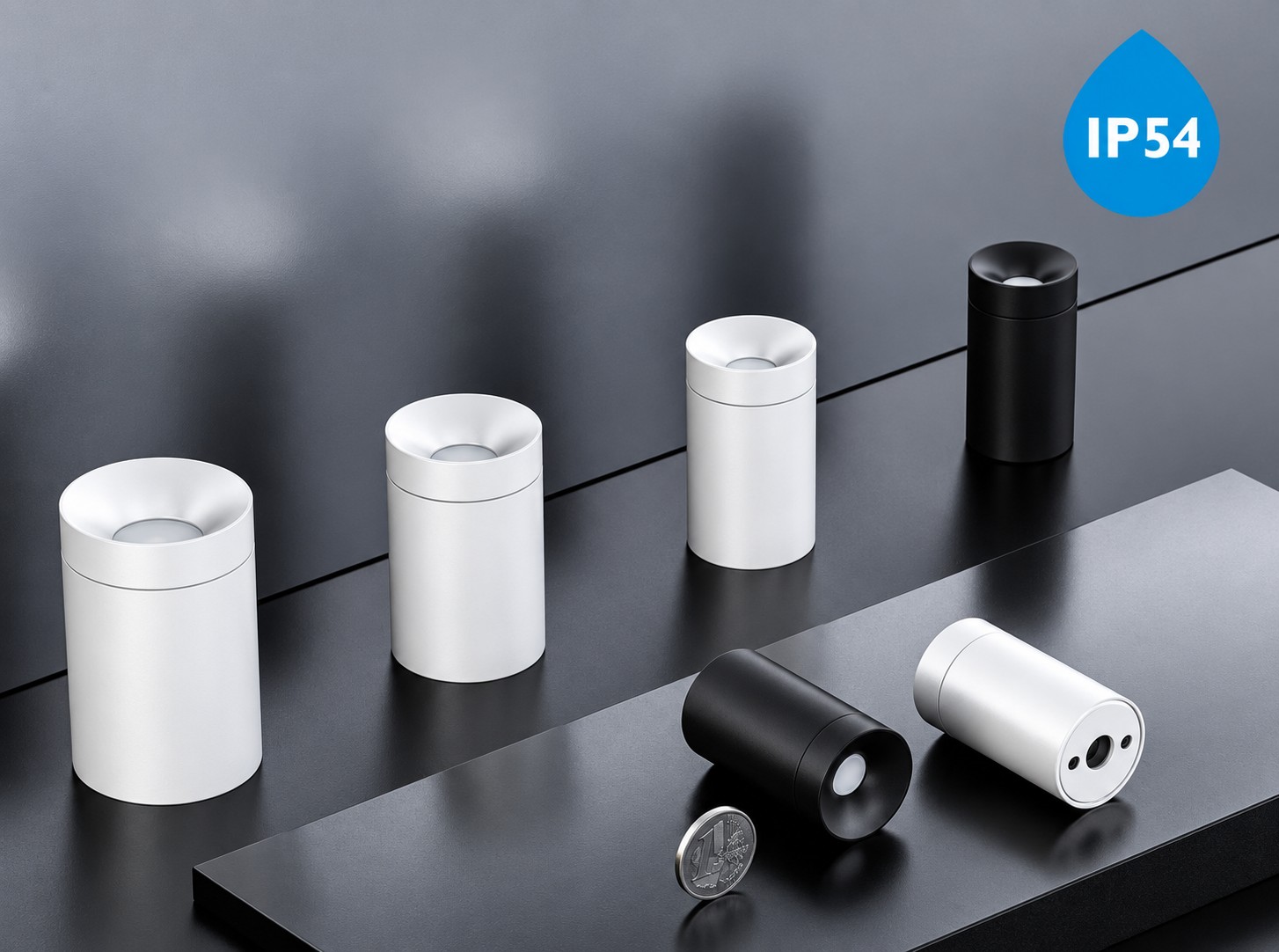

The series is available in 2W, 4W, 6W, 8W, 10W and 15W versions, with white and black housing finishes. The supplied collection image identifies the series as IP54. COB and SMD light source options are shown in the specifications; the applicable configuration should be confirmed for each model.

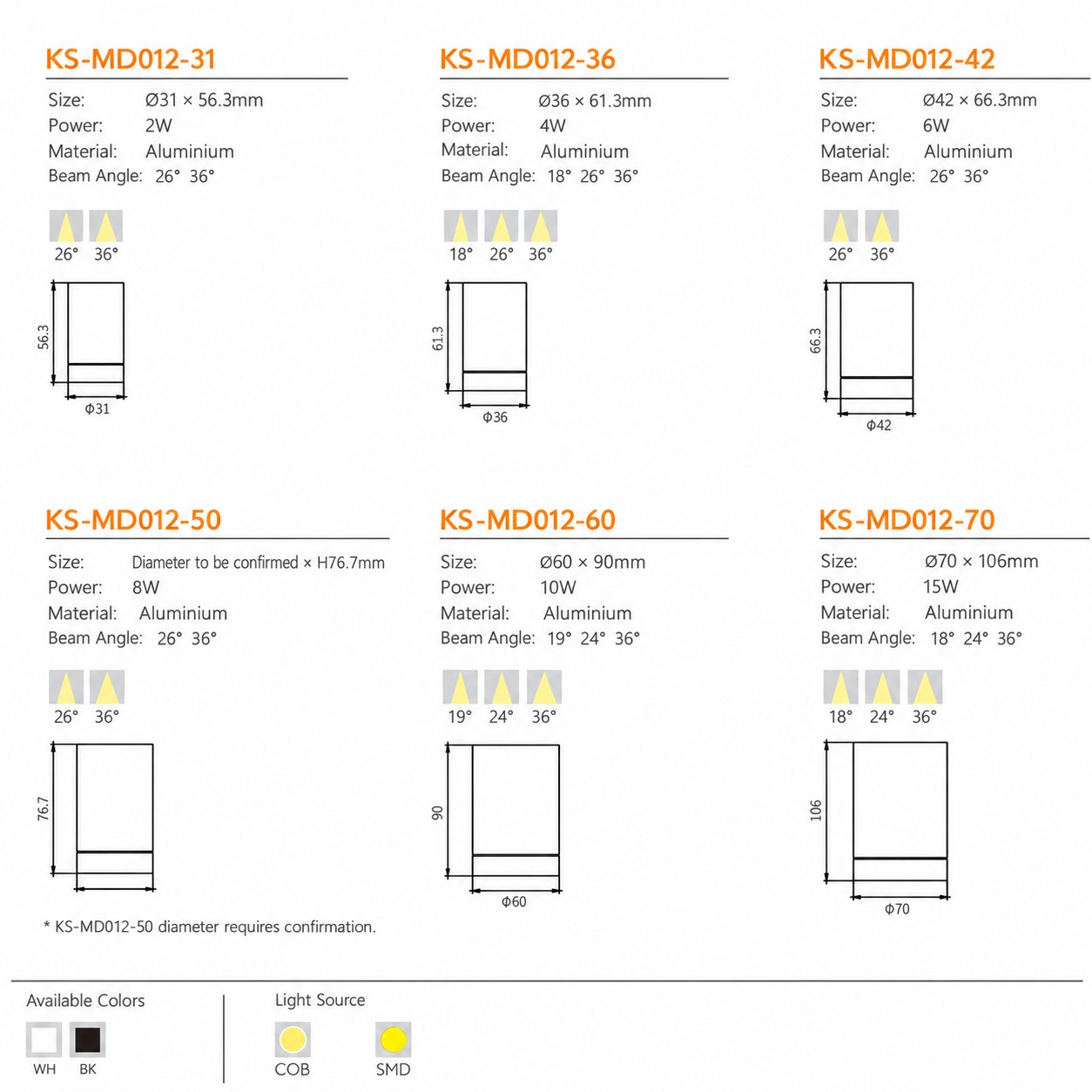

The 2W KS-MD012-31 measures Ø31 × 56.3 mm and offers 26° or 36° beams. The 4W KS-MD012-36 measures Ø36 × 61.3 mm, with 18°, 26° or 36° beam options. The 6W KS-MD012-42 measures Ø42 × 66.3 mm and offers 26° or 36° beams.

The 8W KS-MD012-50 has a listed height of 76.7 mm and offers 26° or 36° beams. Its diameter requires confirmation because the supplied text and drawing show different values. The 10W KS-MD012-60 measures Ø60 × 90 mm and offers 19°, 24° or 36° beams. The 15W KS-MD012-70 measures Ø70 × 106 mm, with 18°, 24° or 36° beam options.

The choice of sizes and beam angles supports coordinated ceiling lighting across different interior spaces. For project quotations, specify the model, housing finish and beam angle, then confirm color temperature, color rendering, lumen output, input voltage, driver and dimming requirements.
