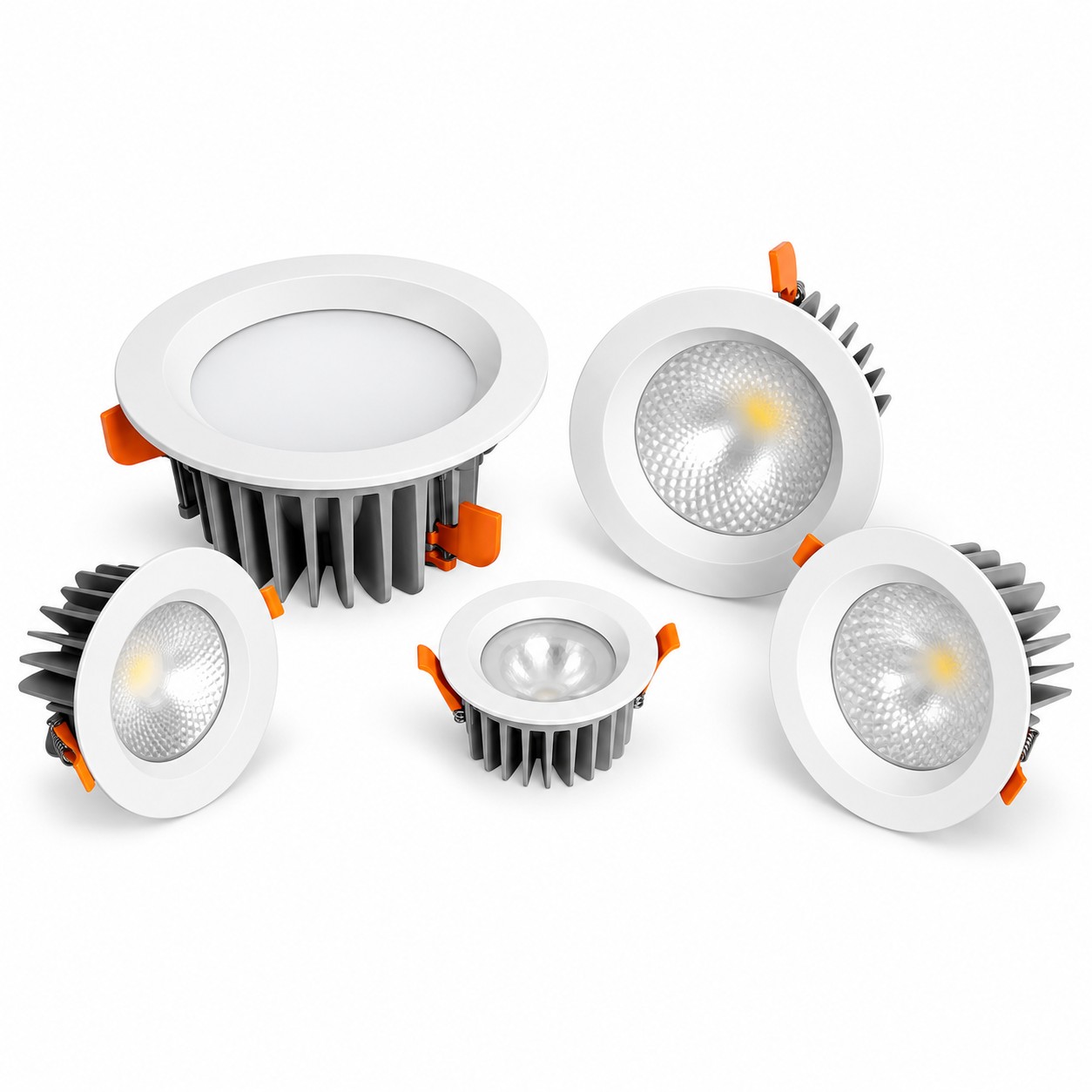

The KONS KS-TD053 series is a recessed LED downlight range for commercial and architectural lighting projects. Five power options—10W, 15W, 25W, 40W and 60W—provide a coordinated choice of sizes for different ceiling layouts.

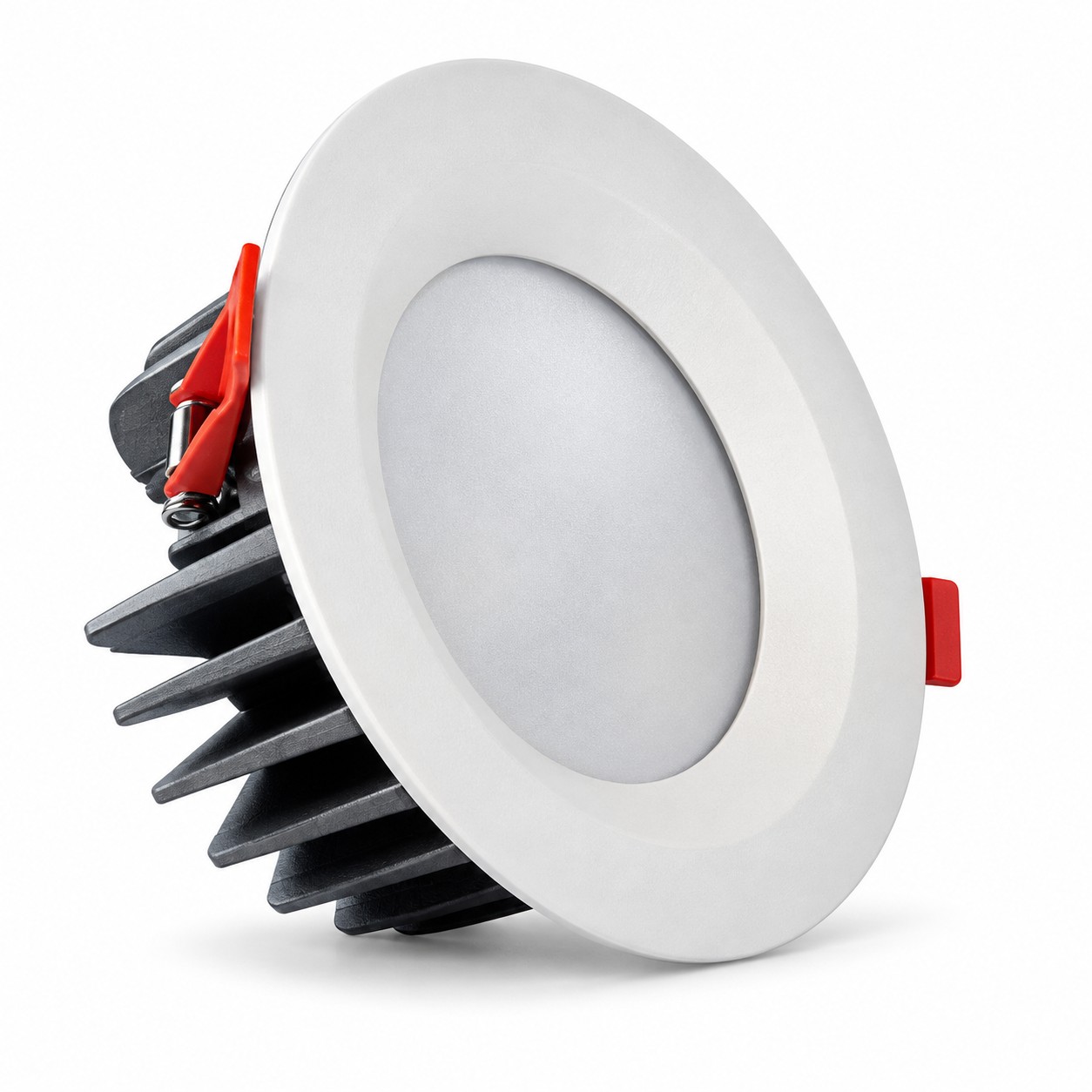

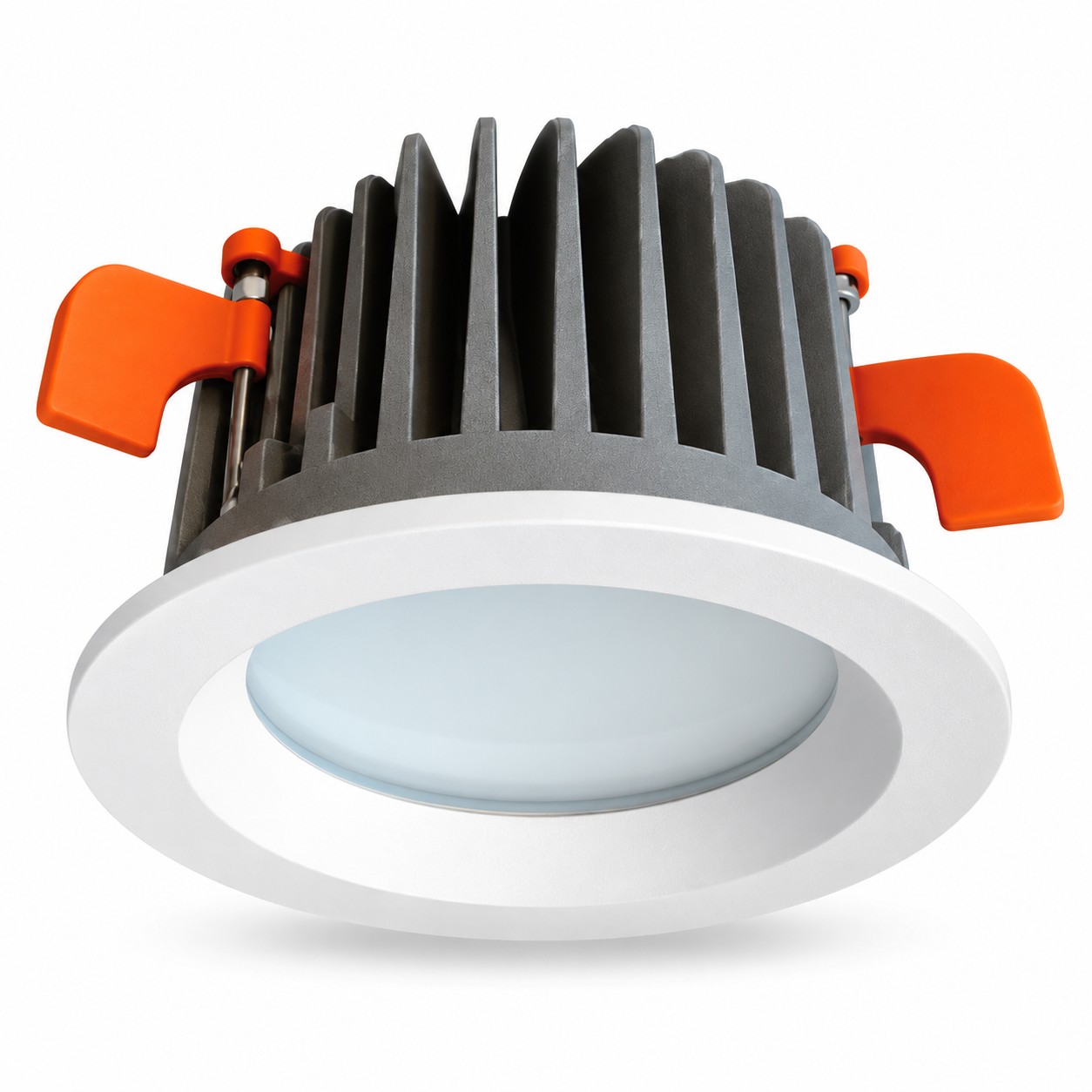

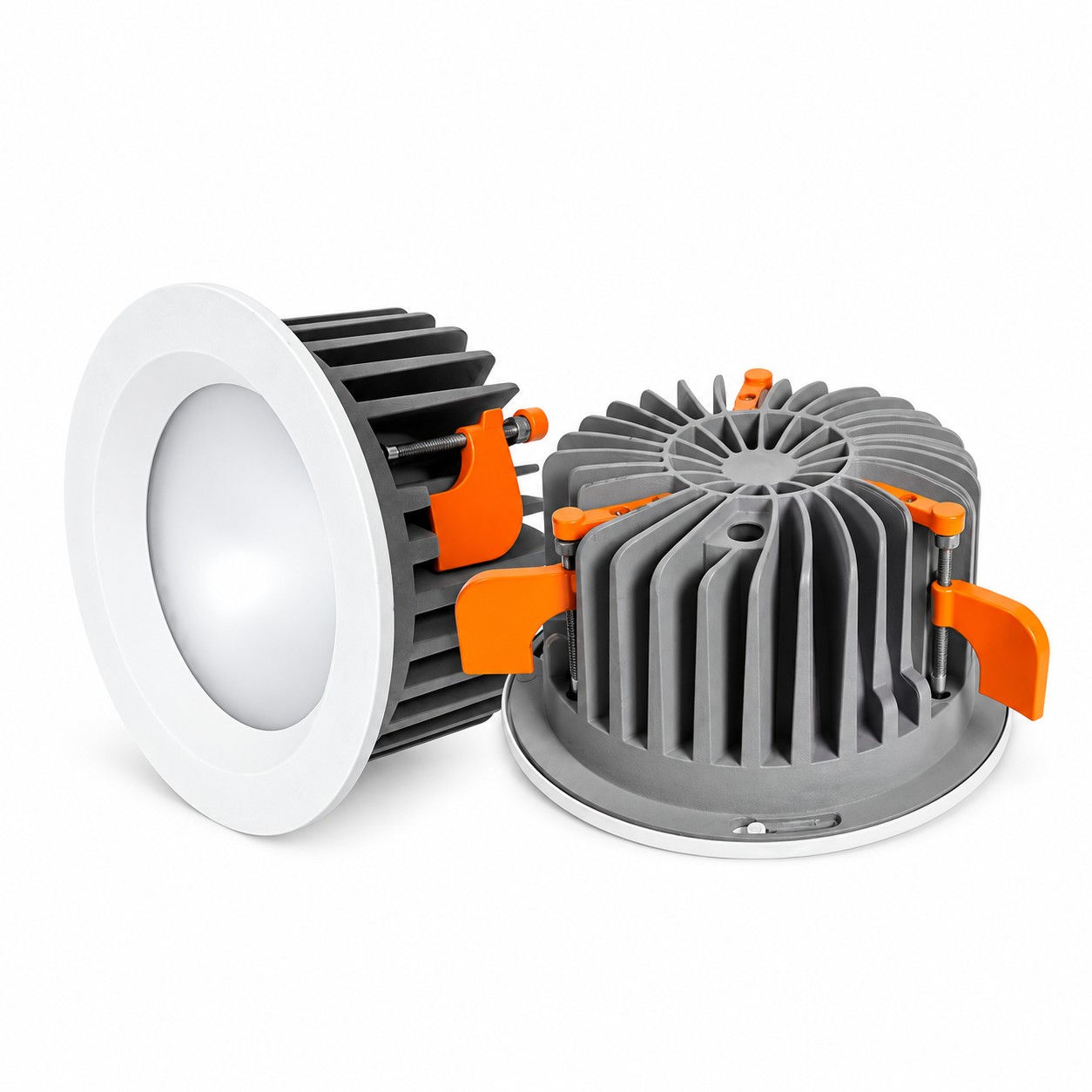

The series features a white circular trim, a finned die-cast aluminum housing and spring clips for recessed ceiling installation. COB and SMD 3030 light source configurations are listed for the range; please confirm availability for the selected model when ordering.

A specified 50° beam angle and four color temperature options—2700K, 3000K, 4000K and 5000K—offer choices for hotel, retail, office and residential lighting schemes.

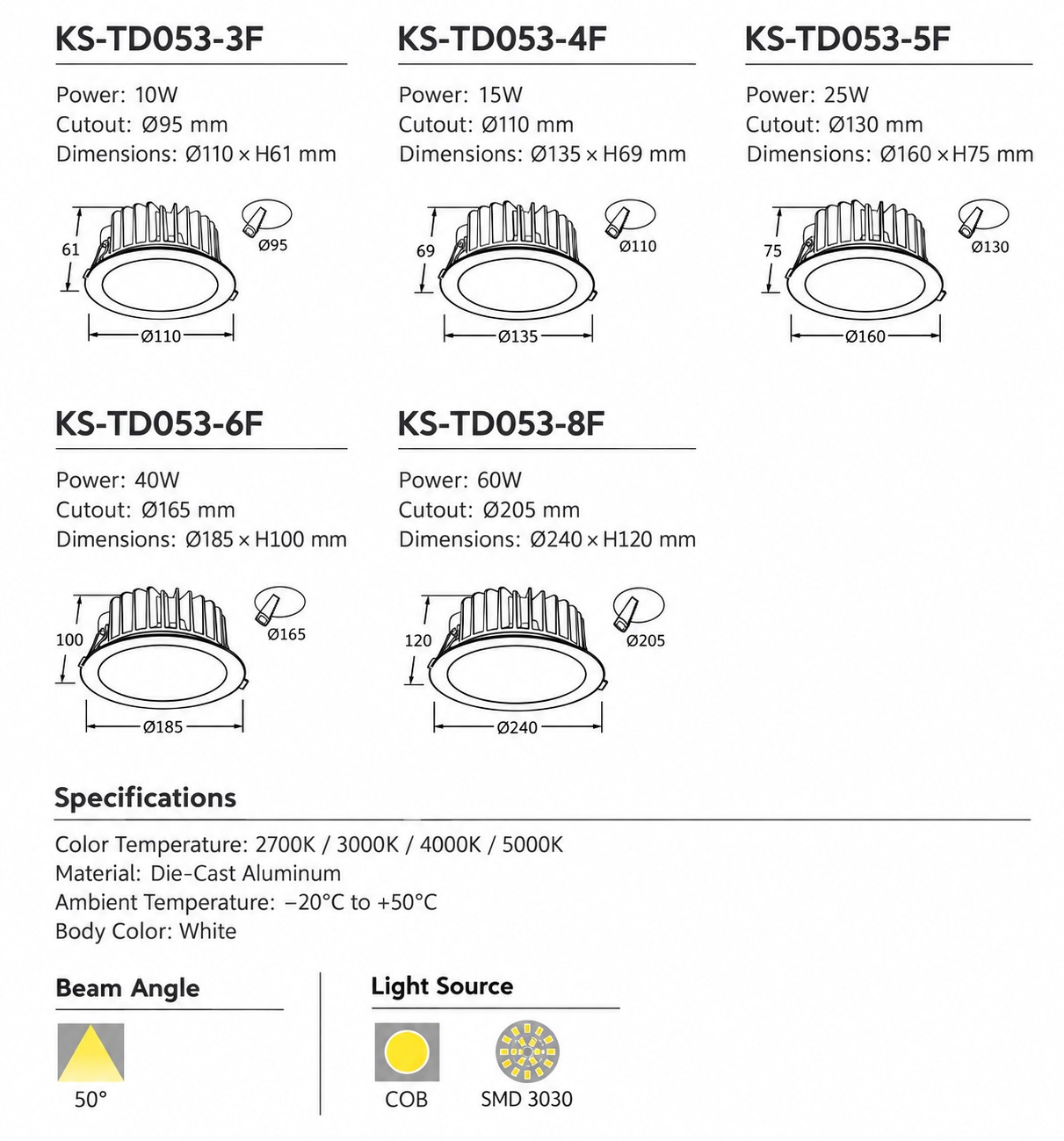

Ceiling cutouts range from 95 mm to 205 mm. The 10W model measures Ø110 × H61 mm, the 15W model Ø135 × H69 mm, the 25W model Ø160 × H75 mm, the 40W model Ø185 × H100 mm, and the 60W model Ø240 × H120 mm. Please check the required cutout and ceiling clearance before selecting a model.

The specified ambient operating temperature is −20°C to +50°C. For project quotations, please provide the model, light source configuration, color temperature and quantity. Contact KONS to confirm driver options and any additional project requirements.
