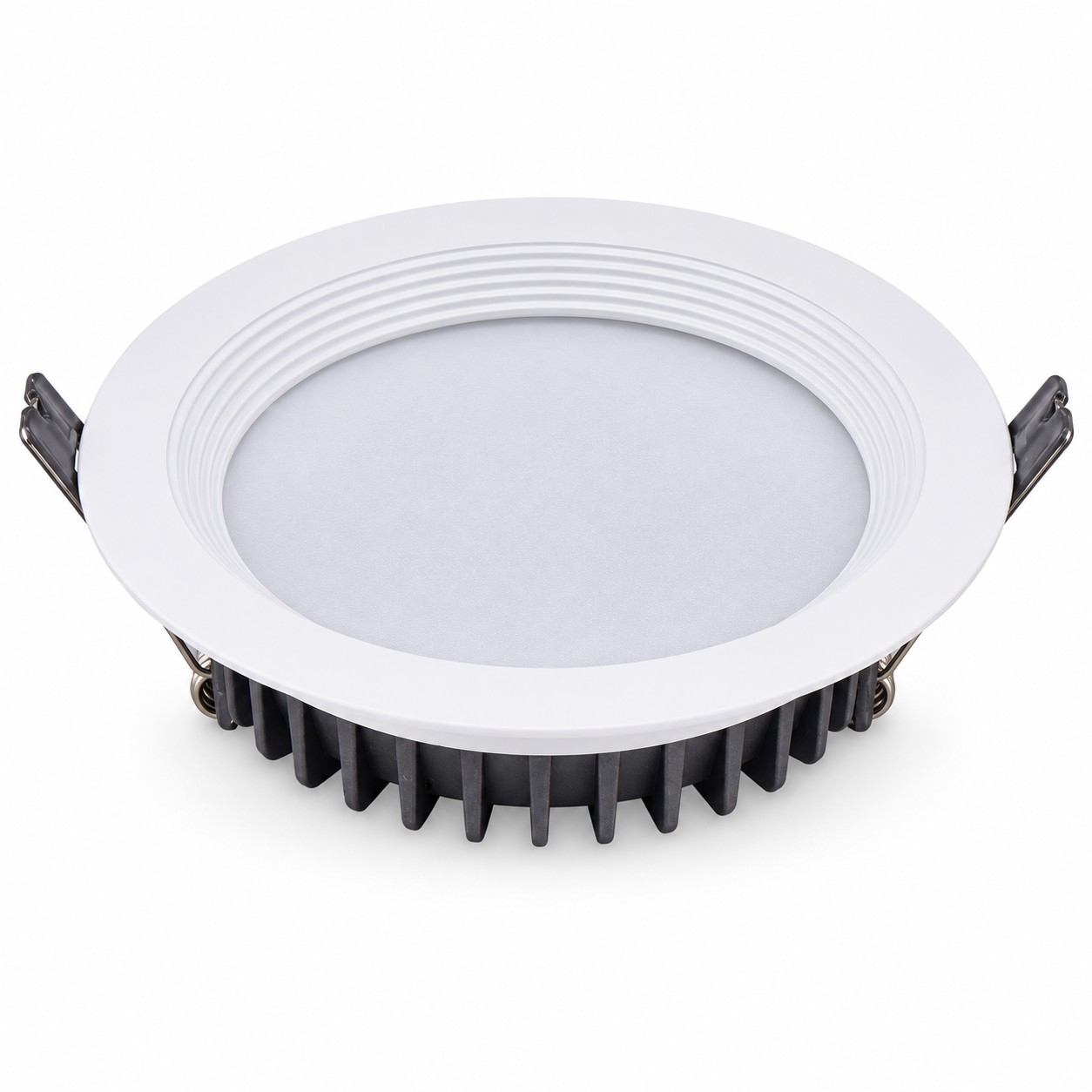

The KONS KS-TD055 series is a recessed LED downlight range featuring SMD 2835 light sources and a frosted diffuser. Seven power options—3W, 5W, 7W, 9W, 12W, 20W and 30W—provide a choice of sizes for different ceiling layouts and lighting requirements.

Three trim styles, designated A, B and C, allow the series to complement different interior designs. The range includes a plain trim, a beveled trim and a trim with concentric detailing, creating a coordinated appearance across hotel, office, retail and residential spaces.

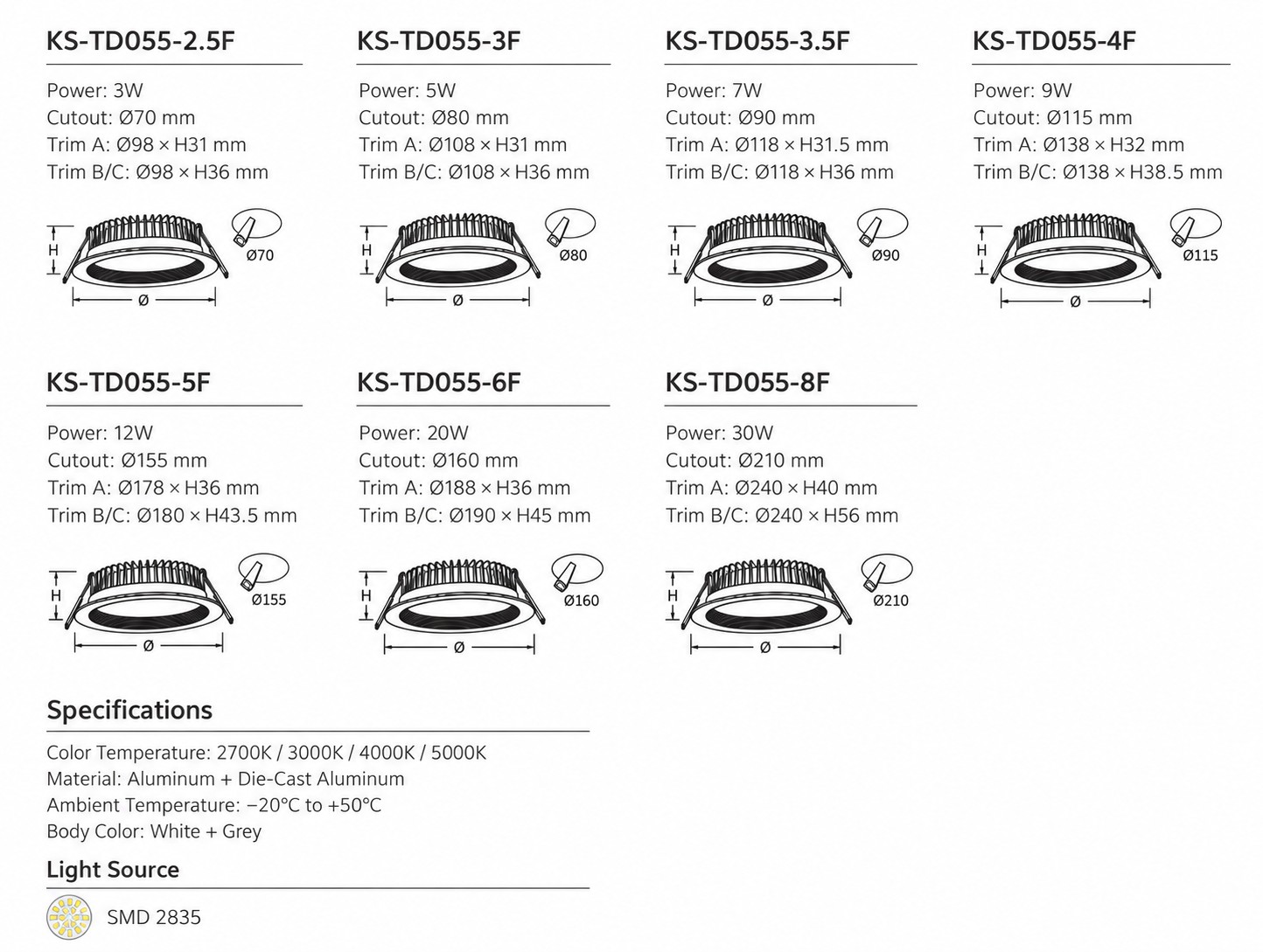

The housing combines aluminum and die-cast aluminum construction with a white and grey finish. Ceiling cutout sizes range from 70 mm to 210 mm. Overall dimensions vary by model and trim style; please refer to the specification chart when selecting a fitting.

Color temperature options include 2700K, 3000K, 4000K and 5000K, providing a choice from warm to cool white lighting. The specified ambient operating temperature is −20°C to +50°C.

For project quotations, please provide the required model, trim style, color temperature and quantity. Contact KONS to confirm available driver configurations and any additional performance requirements.
