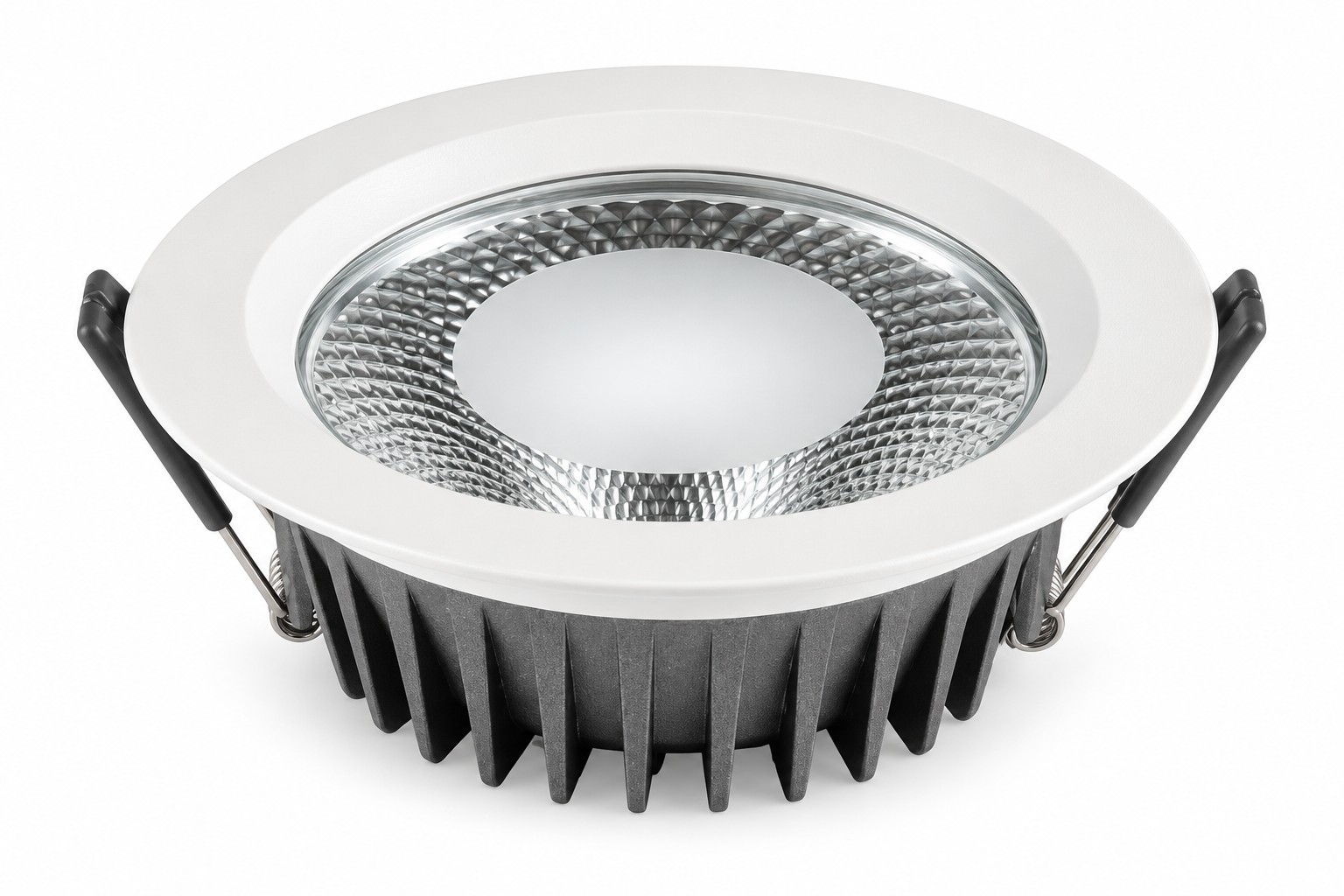

The KONS KS-TD056 series is a recessed COB LED downlight range designed for commercial and architectural lighting projects. Seven power options—5W, 7W, 9W, 12W, 15W, 20W and 30W—provide a coordinated selection for different ceiling layouts and lighting requirements.

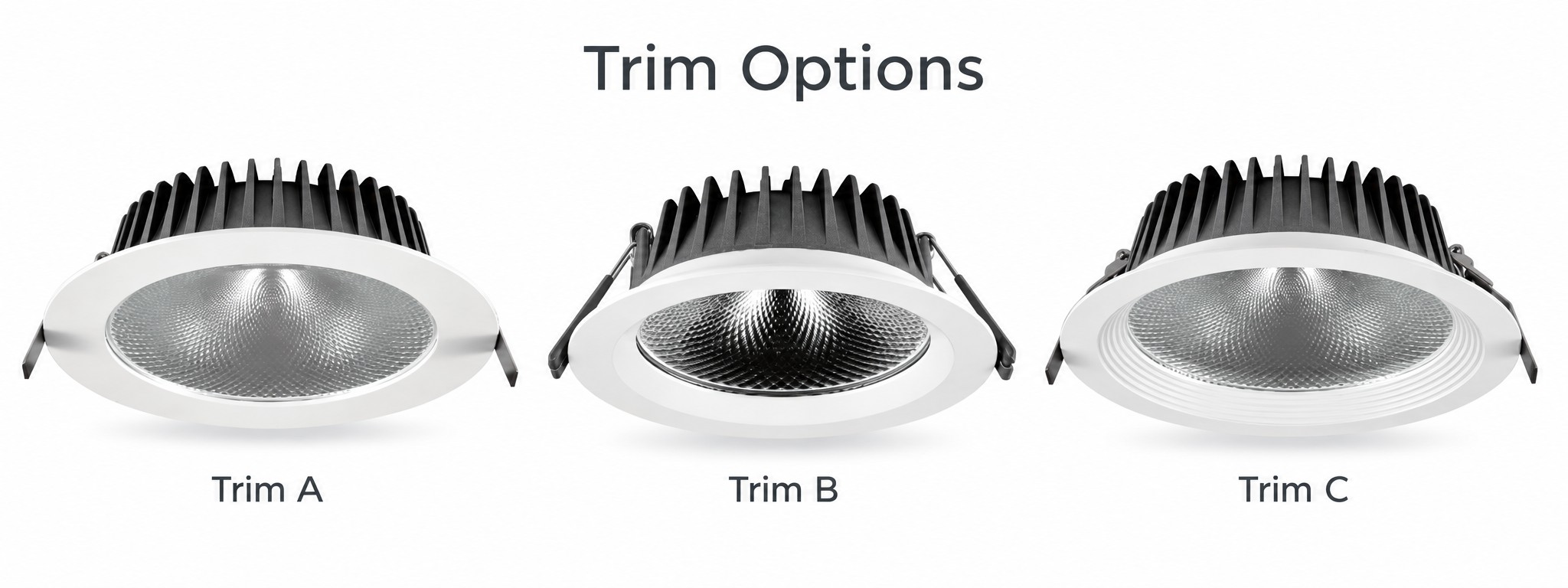

Three trim styles, designated A, B and C, offer a choice of ceiling finishes. The range includes a plain trim, a beveled trim and a trim with concentric detailing, making it suitable for hotel, retail, office and residential interiors.

The series features a 60° beam angle and four color temperature options: 2700K, 3000K, 4000K and 5000K. These options allow project buyers to select warm or cool white lighting to suit the intended space.

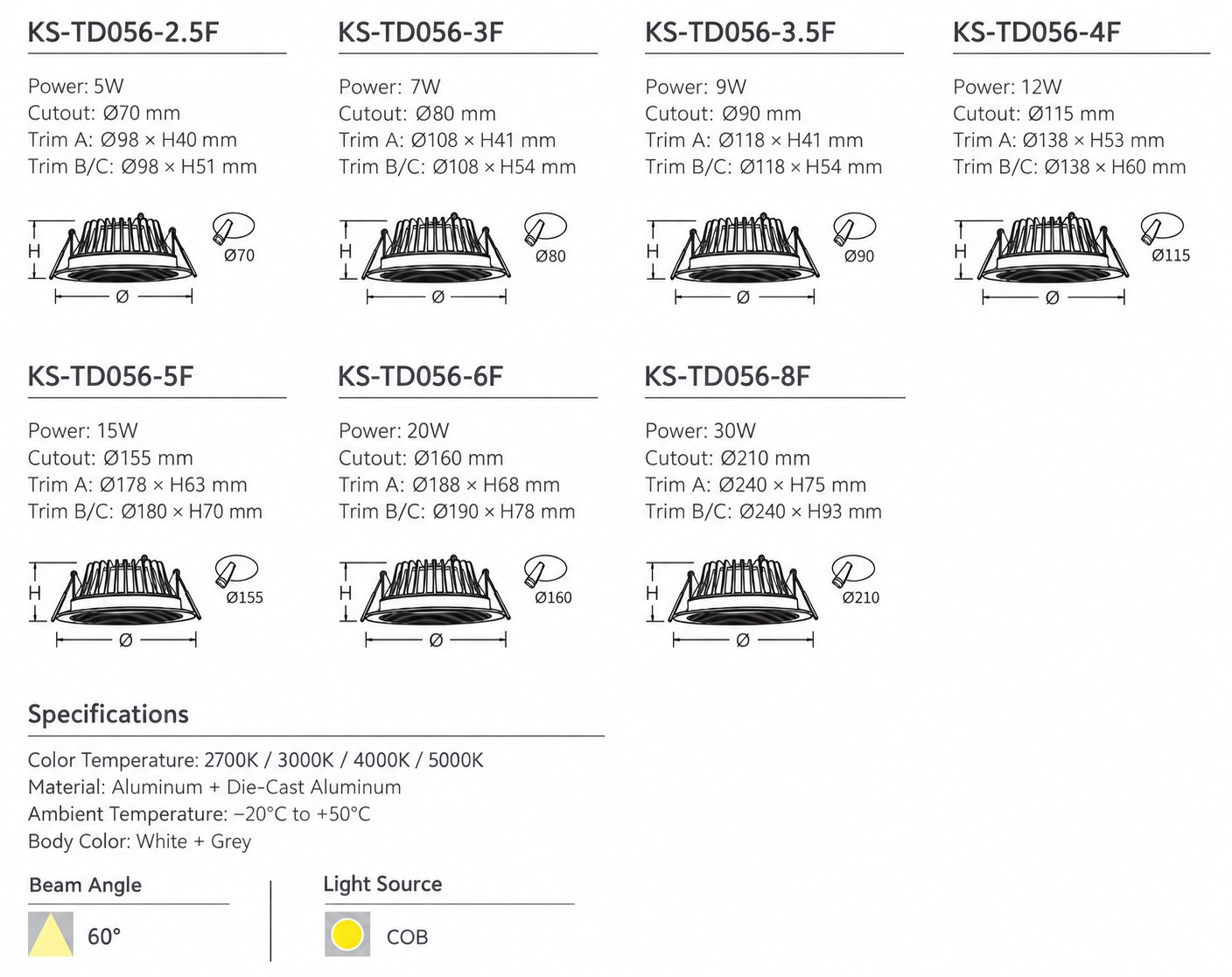

Aluminum and die-cast aluminum construction is combined with a white and grey body finish. Ceiling cutouts range from 70 mm to 210 mm. Overall diameter and height vary by model and trim style; please refer to the specification chart to confirm ceiling clearance before ordering. The specified ambient operating temperature is −20°C to +50°C.

For project quotations, please provide the required model, trim style, color temperature and quantity. Contact KONS to confirm available light source and driver configurations, together with any additional project requirements.
