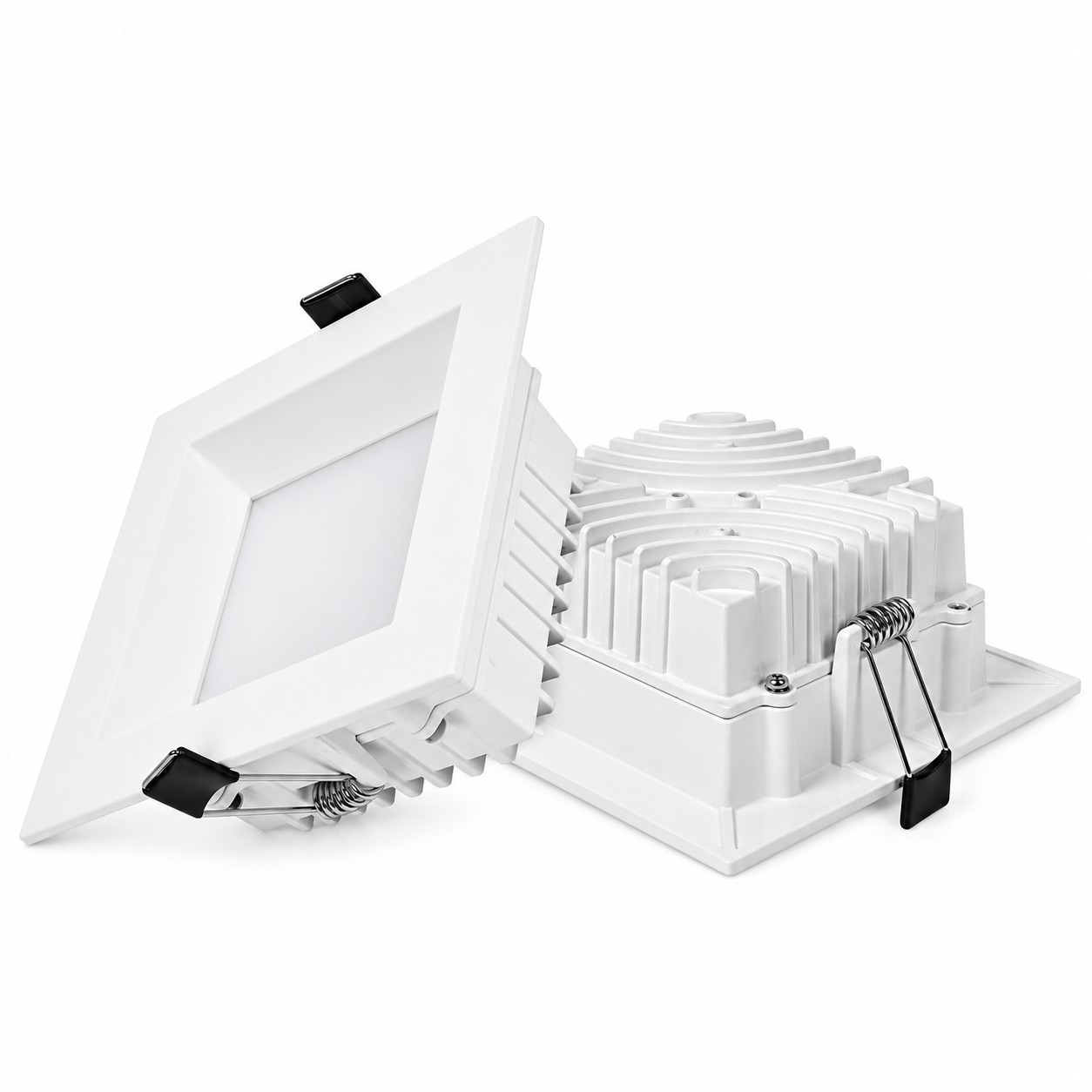

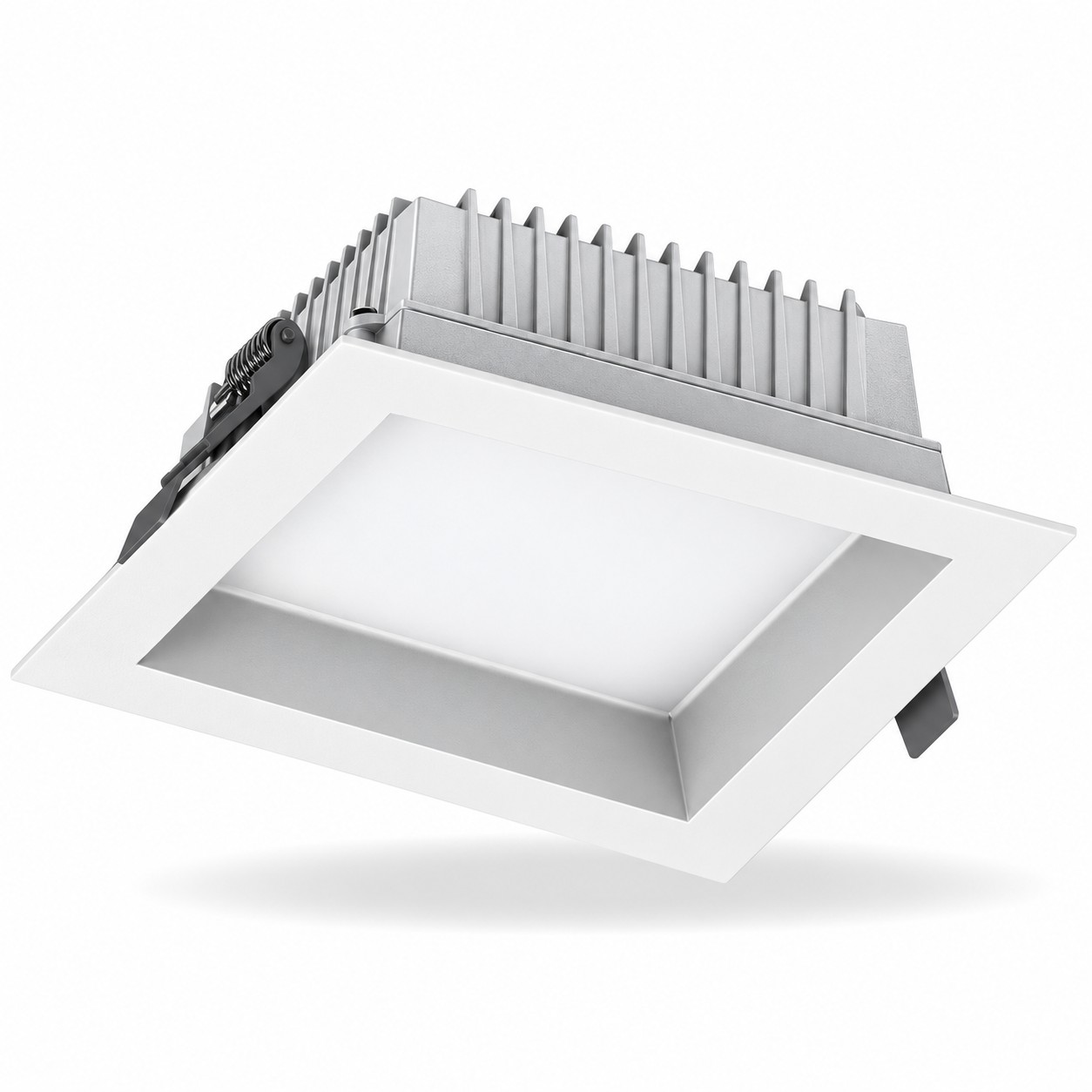

The KONS KS-TD058 series is a square recessed LED downlight range for commercial and architectural lighting projects. Available in 12W, 20W and 25W, the series offers three coordinated sizes for different ceiling layouts.

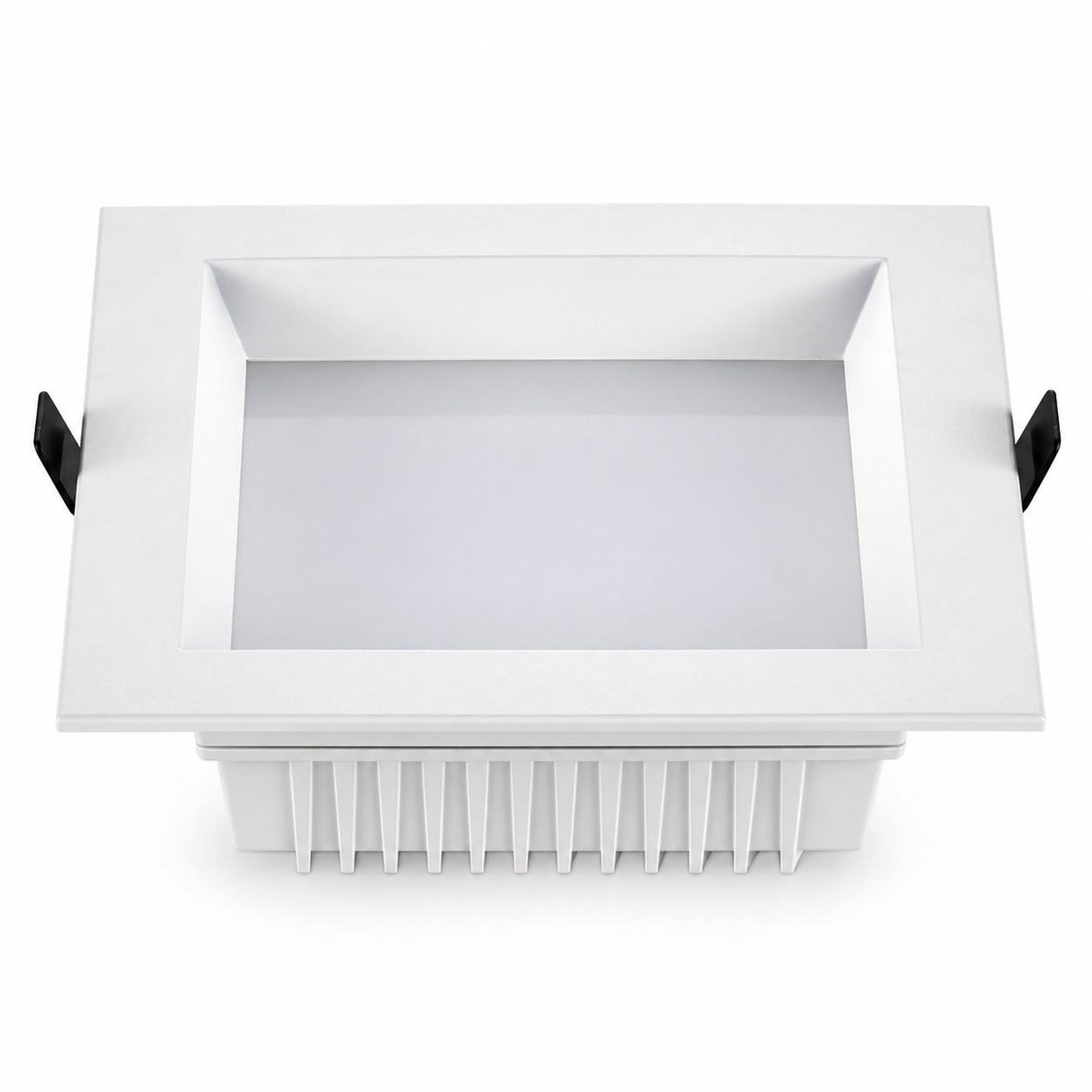

A white square trim, recessed frosted diffuser and inward-sloping baffle create a clean appearance for hotel, office, retail and residential interiors. The die-cast aluminum housing features cooling fins and spring clips for recessed ceiling installation.

The series uses SMD 2835 LEDs and offers four color temperature options: 2700K, 3000K, 4000K and 5000K. Project buyers can select the required color temperature to complement the interior lighting scheme.

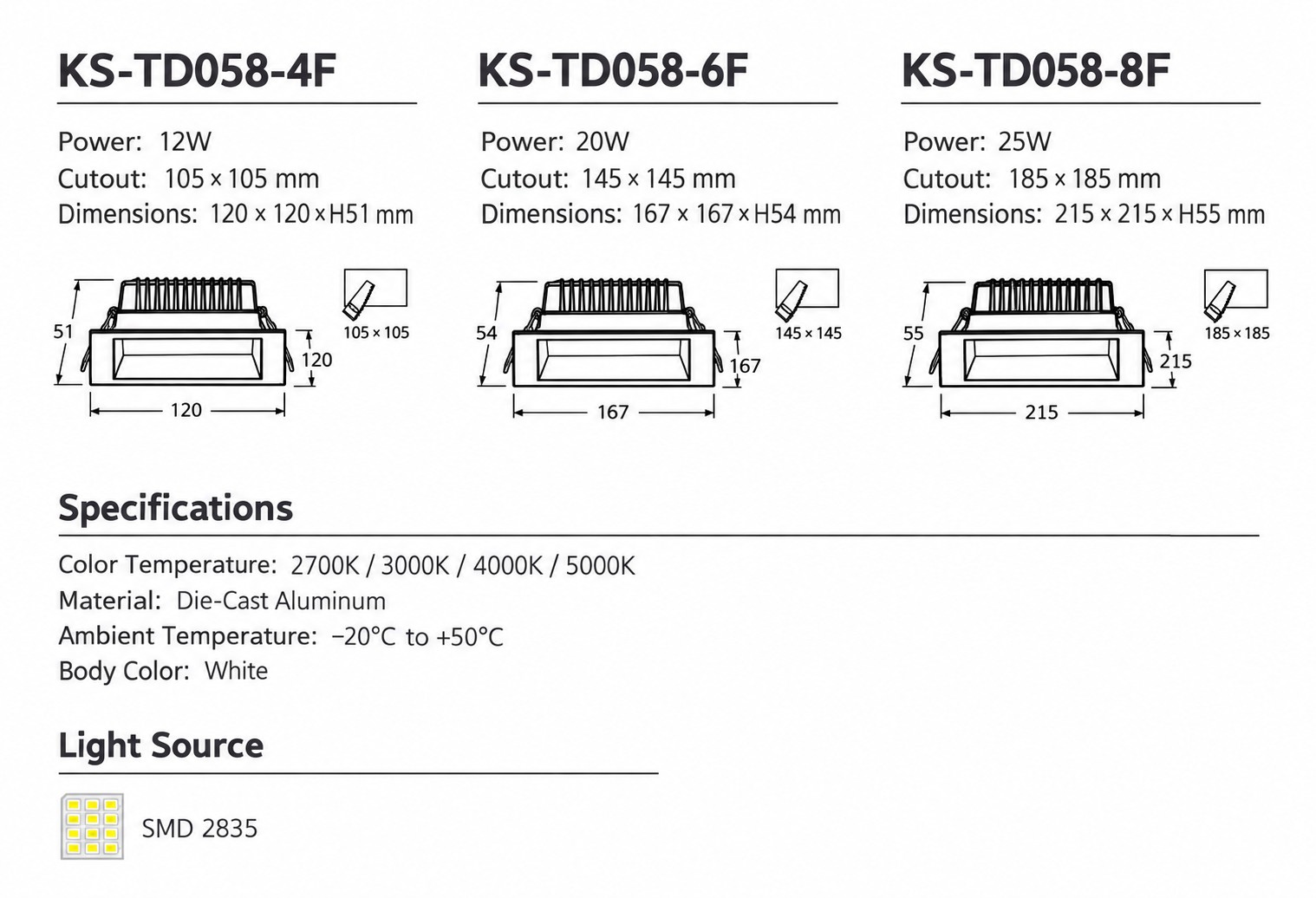

The KS-TD058-4F is rated at 12W, with a 105 × 105 mm ceiling cutout and overall dimensions of 120 × 120 × 51 mm. The KS-TD058-6F is rated at 20W, with a 145 × 145 mm cutout and dimensions of 167 × 167 × 54 mm. The KS-TD058-8F is rated at 25W, with a 185 × 185 mm cutout and dimensions of 215 × 215 × 55 mm.

The specified ambient operating temperature is −20°C to +50°C. Please check the ceiling cutout and installation clearance before ordering. For project quotations, provide the required model, color temperature and quantity, and contact KONS to confirm available driver configurations.
