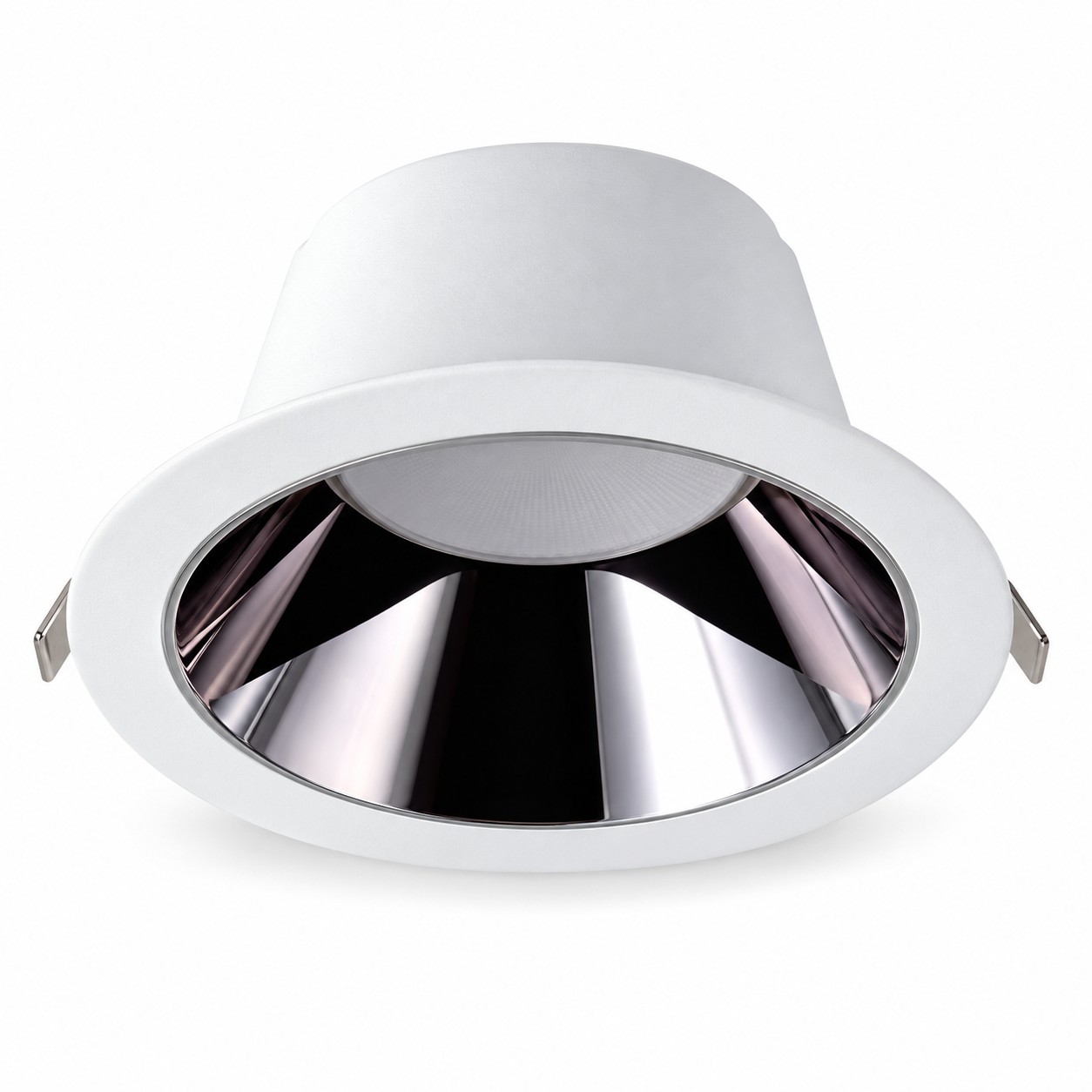

The KONS KS-TD065 series is a deep recessed LED downlight range for commercial and architectural lighting projects. Seven power options—5W, 7W, 9W, 12W, 15W, 20W and 30W—provide a coordinated selection for different ceiling layouts.

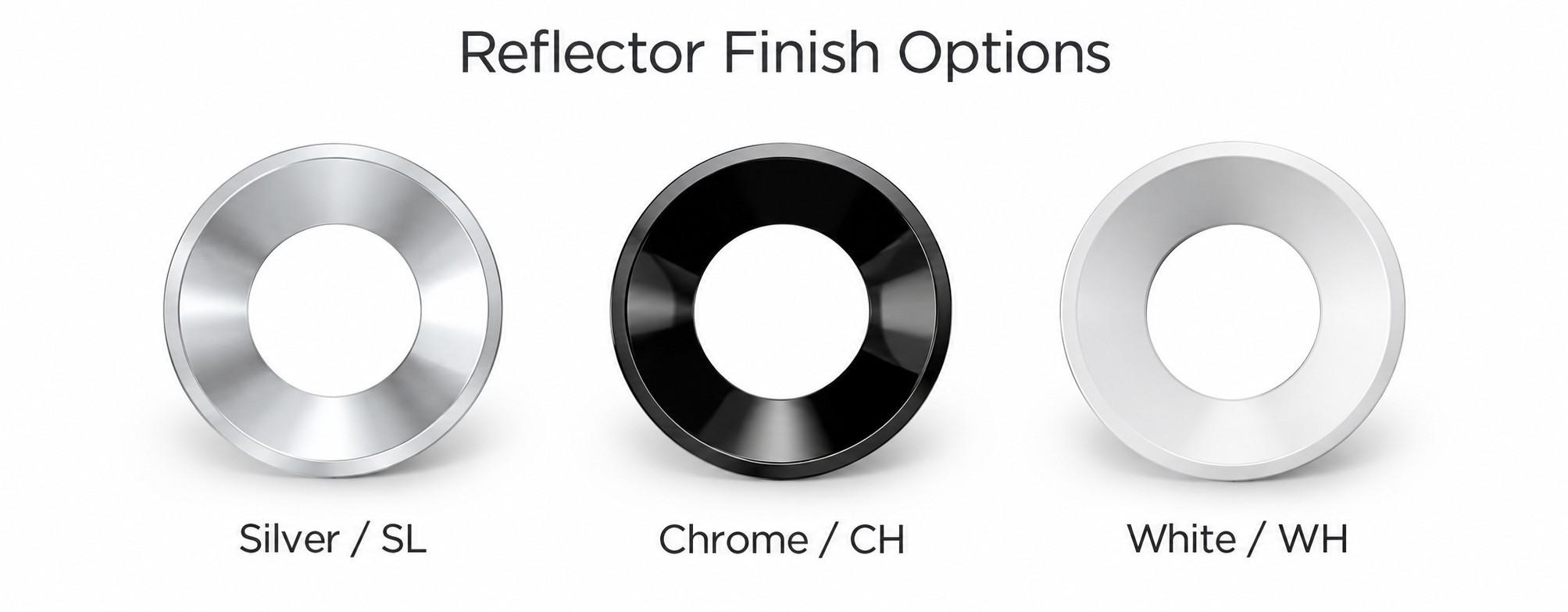

Silver, chrome and white reflector finishes allow the series to complement a variety of interior designs. The recessed light source and circular trim create a clean ceiling appearance for hotel, retail, office and residential spaces.

The series lists a 60° beam angle, with COB and SMD 2835 light source configurations. Please confirm the available configuration for the selected model when ordering.

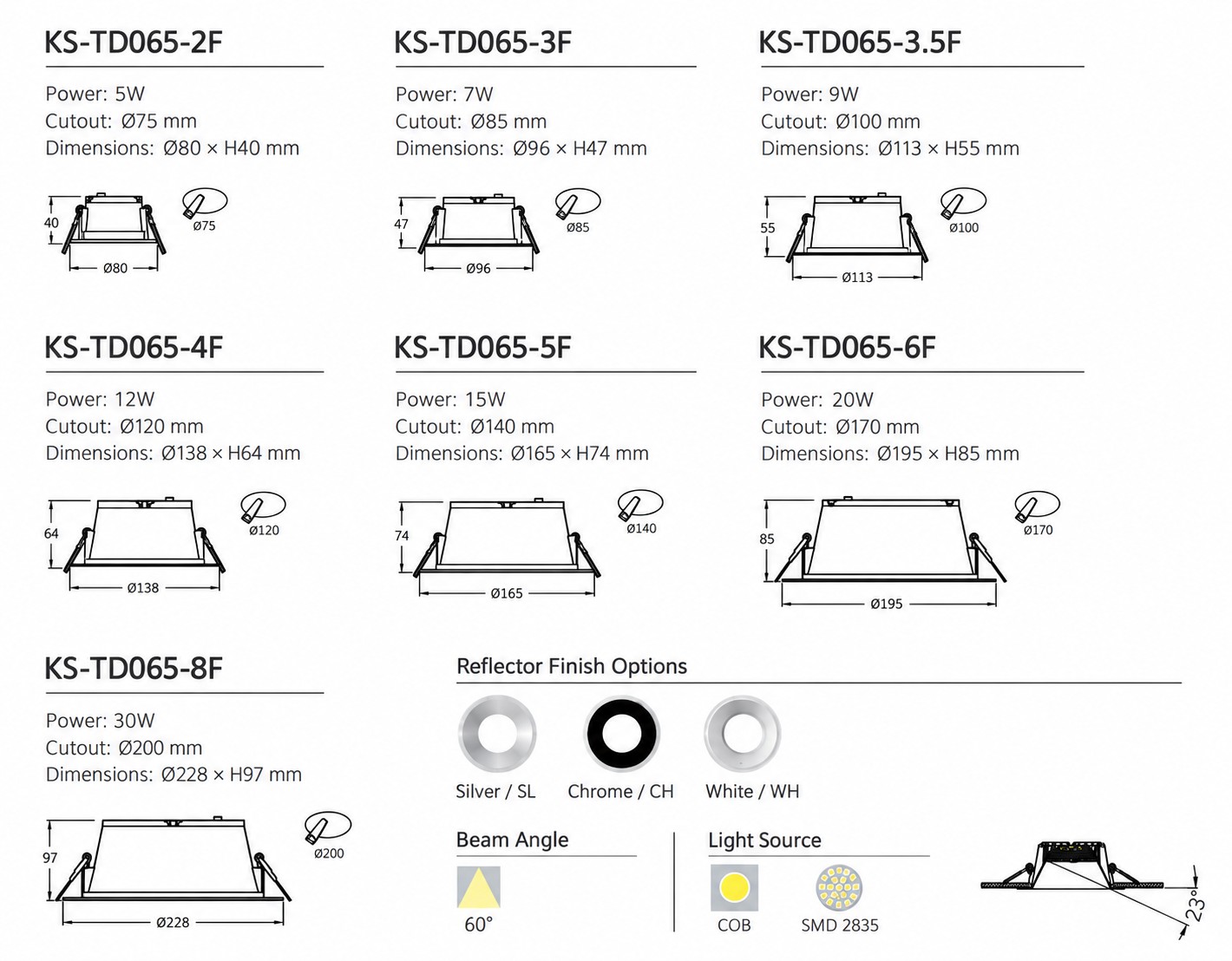

Ceiling cutouts range from 75 mm to 200 mm. Overall dimensions range from Ø80 × H40 mm for the 5W model to Ø228 × H97 mm for the 30W model. Each model has a specific cutout and installation height; please refer to the specification chart when checking ceiling clearance.

For project quotations, please provide the model, reflector finish, required light source configuration and quantity. Contact KONS to confirm color temperature, driver options and any additional project requirements.
