The KONS KS-TD067 series is a recessed LED grille downlight range for commercial interior lighting projects. Available in 5W, 10W and 18W versions, the series combines a round white trim with a square recessed optical grid, offering a consistent appearance across three sizes.

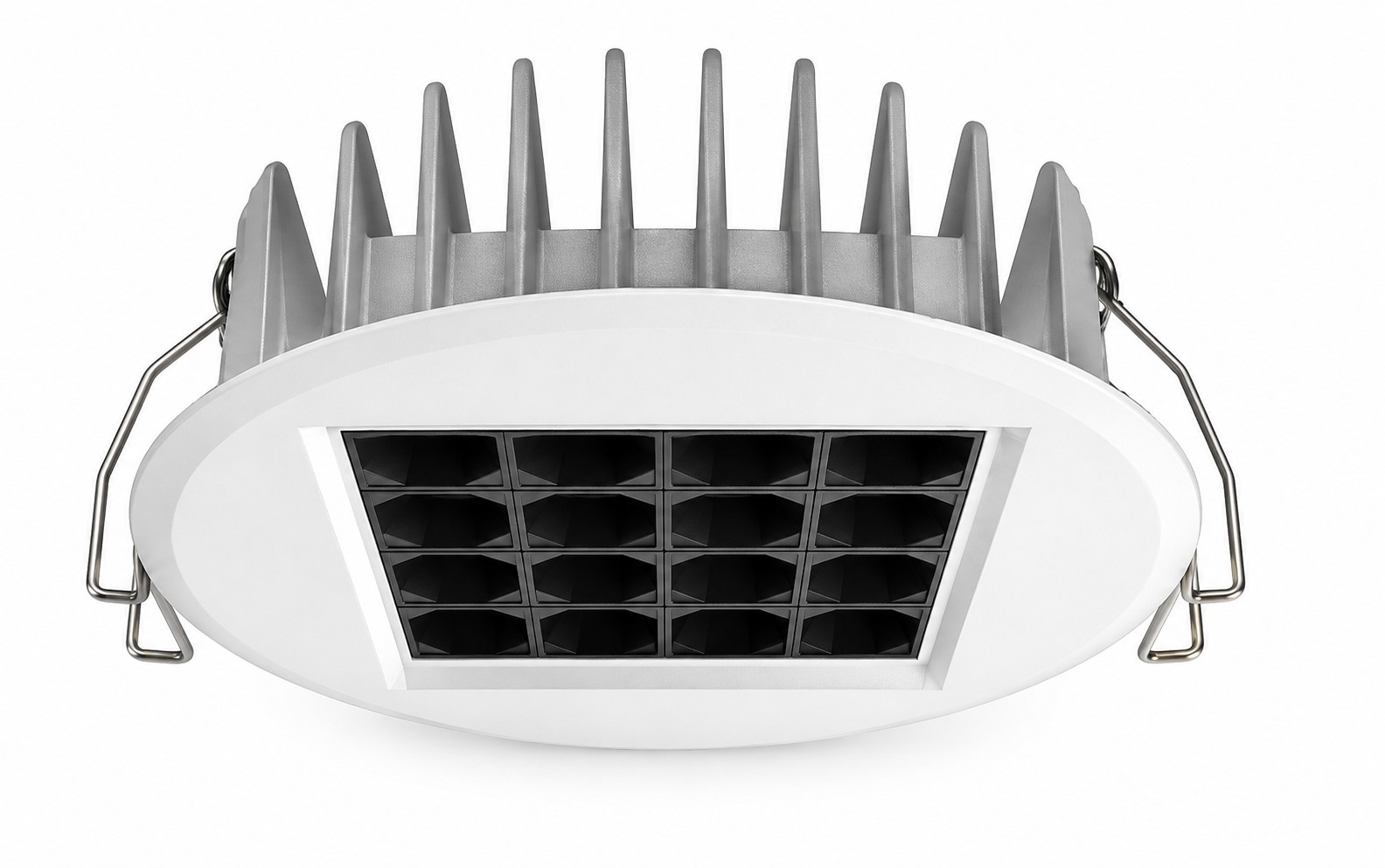

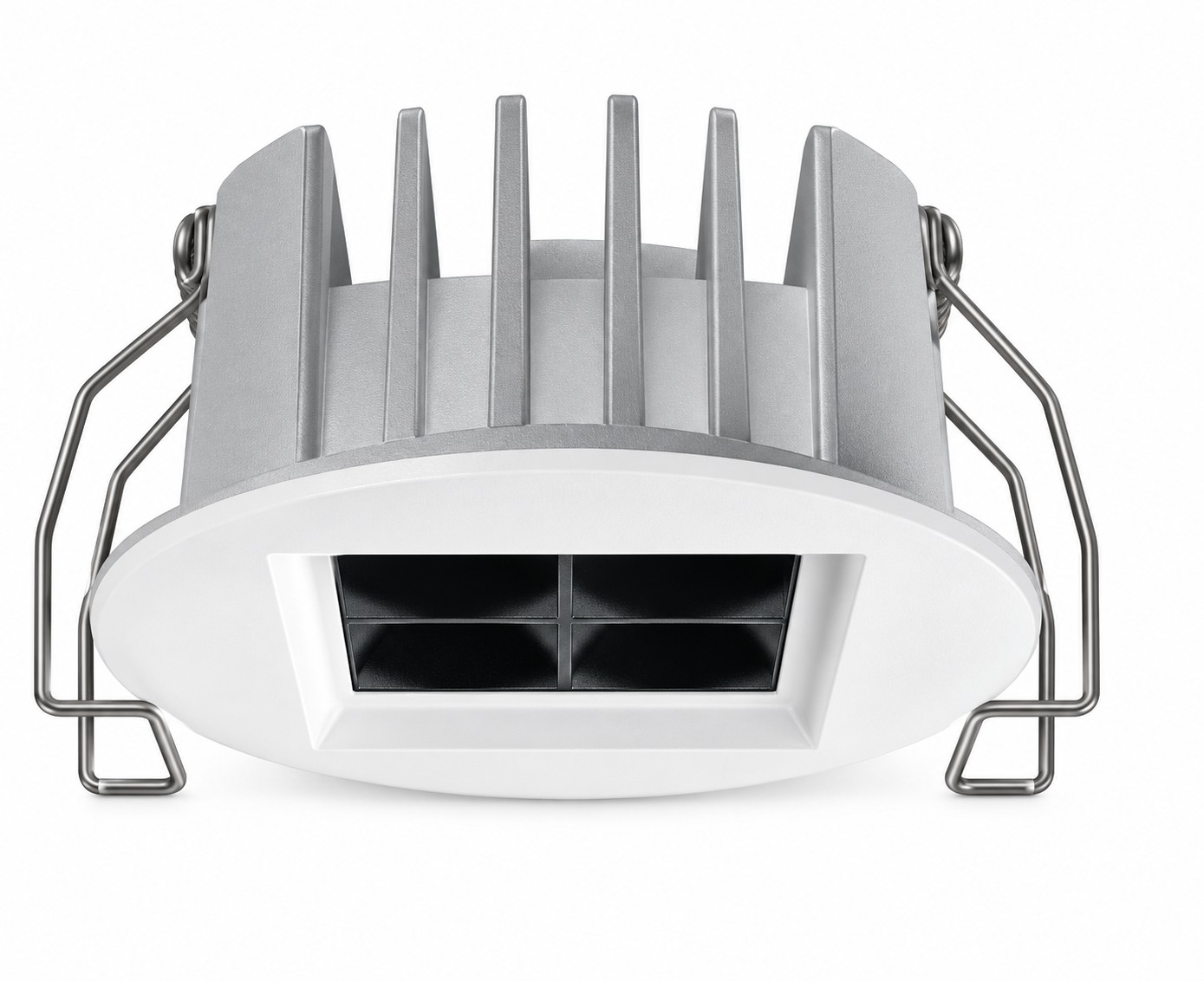

The range includes 4-cell, 9-cell and 16-cell configurations. The recessed black optical cells create a distinctive ceiling appearance, while the die-cast aluminum housing features cooling fins and spring clips for recessed installation.

Using SMD 3030 LEDs, the series offers 15°, 24° and 38° beam angle options. These options allow lighting designers to select different beam distributions for retail displays, hotel interiors, corridors and other commercial spaces.

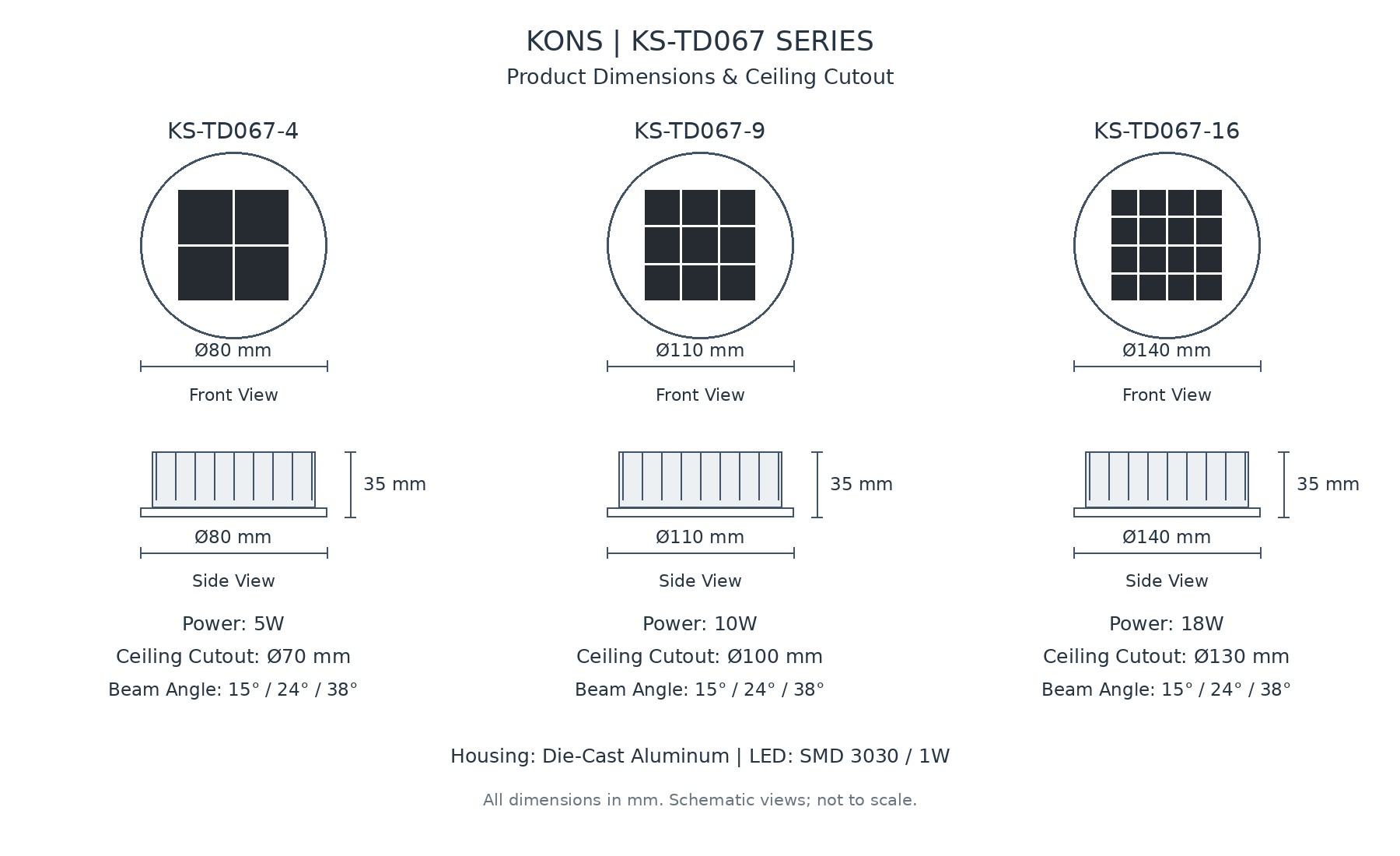

KS-TD067-4 provides 5W power with a 4-cell optical grid, dimensions of Ø80 × H35mm and a Ø70mm ceiling cutout. KS-TD067-9 provides 10W power with a 9-cell grid, dimensions of Ø110 × H35mm and a Ø100mm cutout. KS-TD067-16 provides 18W power with a 16-cell grid, dimensions of Ø140 × H35mm and a Ø130mm cutout.

For project enquiries, please specify the model, beam angle, required color temperature, color rendering requirements, driver configuration and quantity. Contact KONS to confirm the electrical specifications, installation requirements and available configurations before ordering.
