The KONS KS-TD069 series combines an integrated ultra-slim design with dimming and tunable white capabilities for commercial interior lighting projects. Available in 5W, 9W, 12W and 15W versions, the range offers compact recessed lighting options for hotels, retail spaces, offices and residential projects.

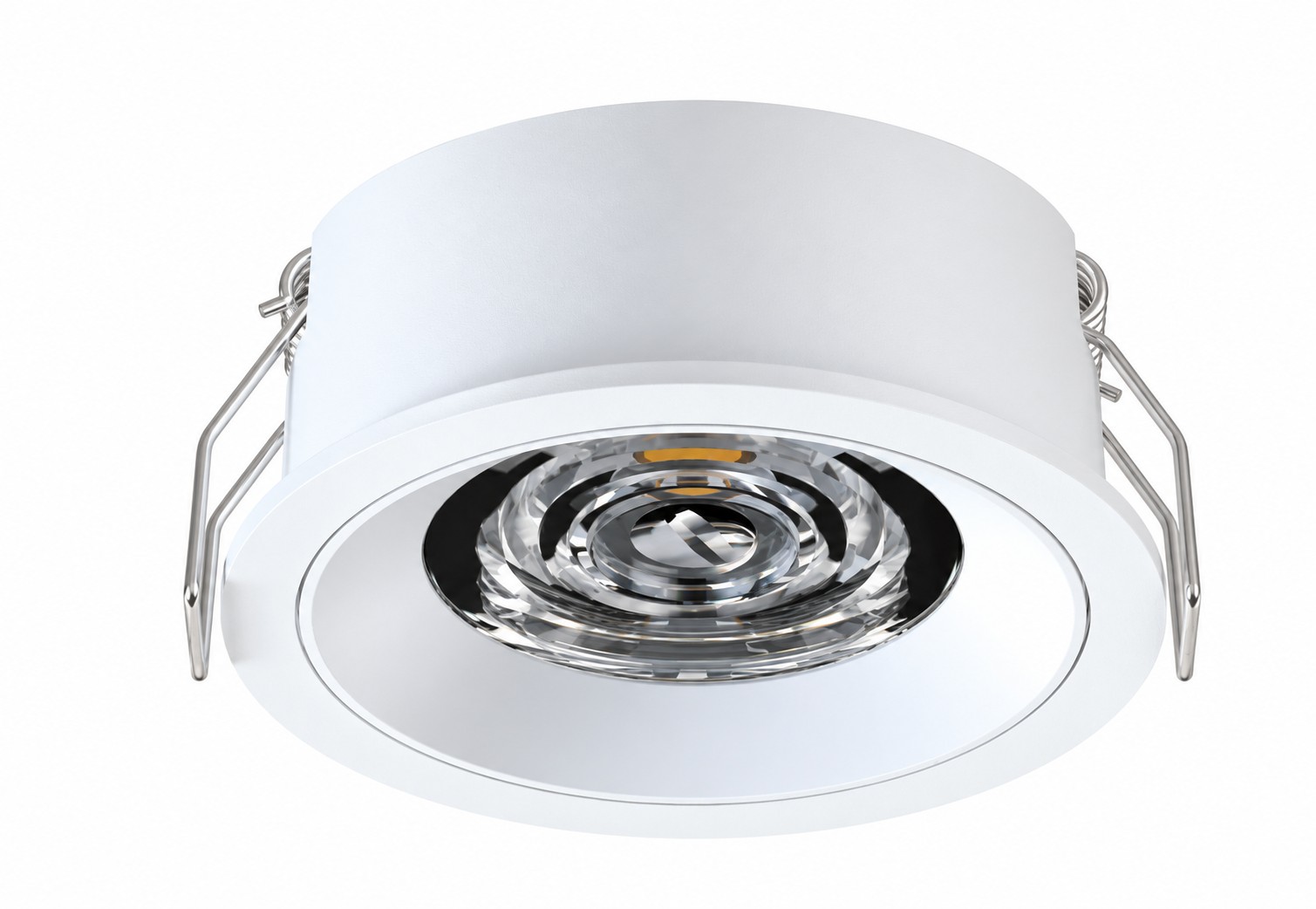

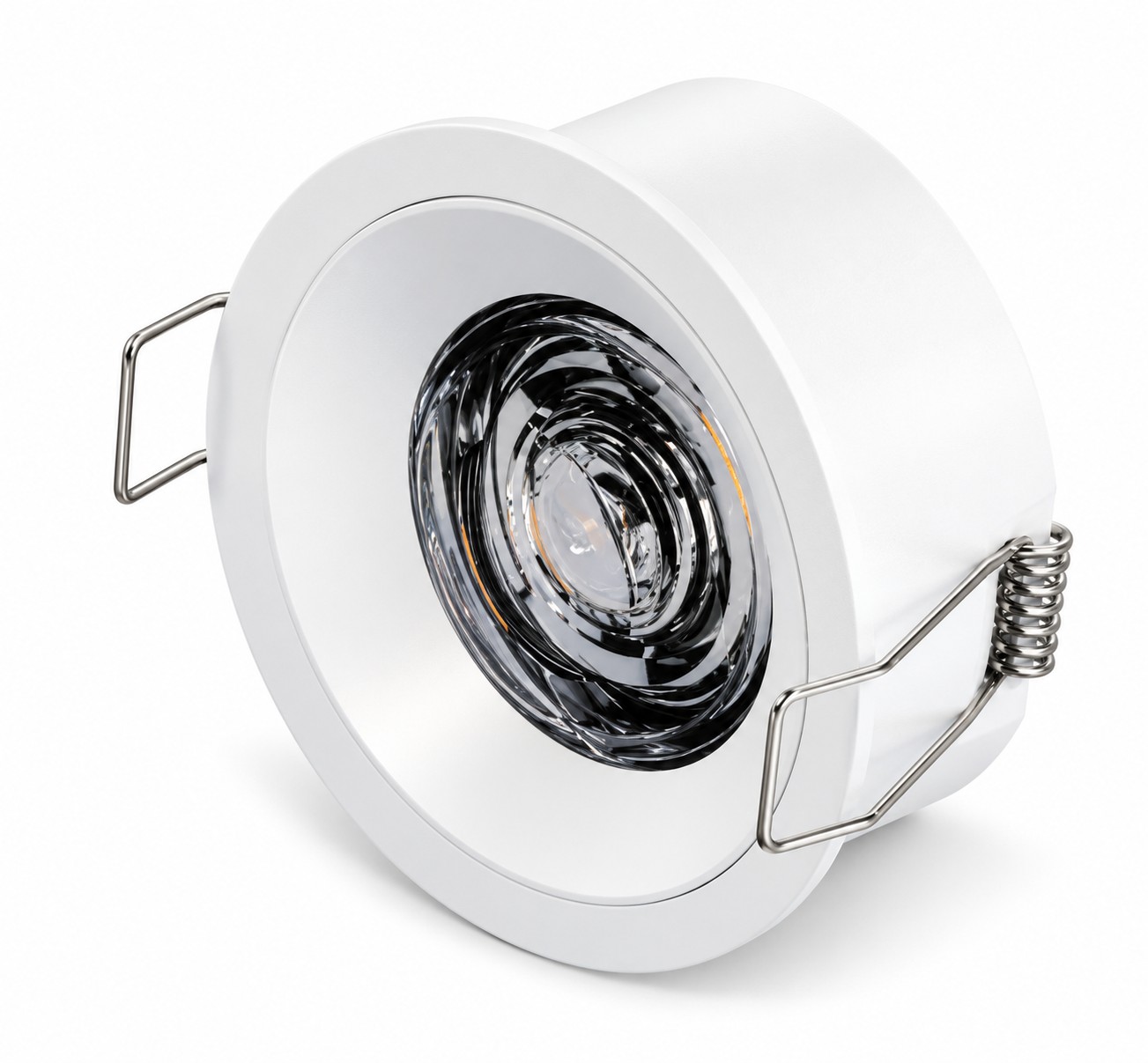

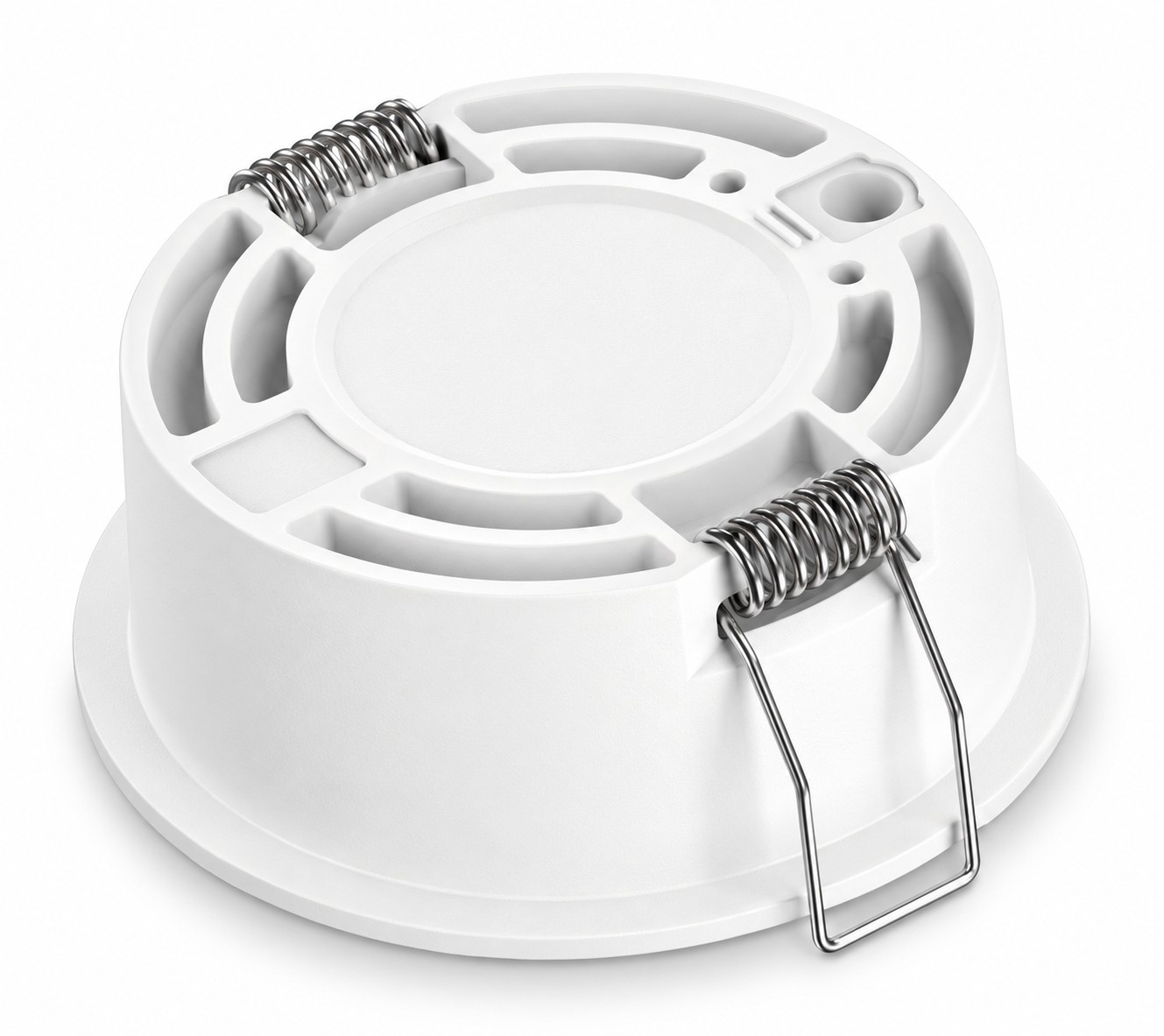

Housing heights range from 25mm to 34.4mm, helping accommodate installations with limited ceiling depth. The die-cast aluminum housing features a clean round trim, a recessed optical lens and spring clips for ceiling mounting. Installation clearance should be checked against the selected model and electrical configuration.

The series uses COB LED technology and offers 18°, 24°, 36° and 60° beam angle options for different lighting layouts. Black and white reflector options allow the appearance of the recessed aperture to suit the interior design.

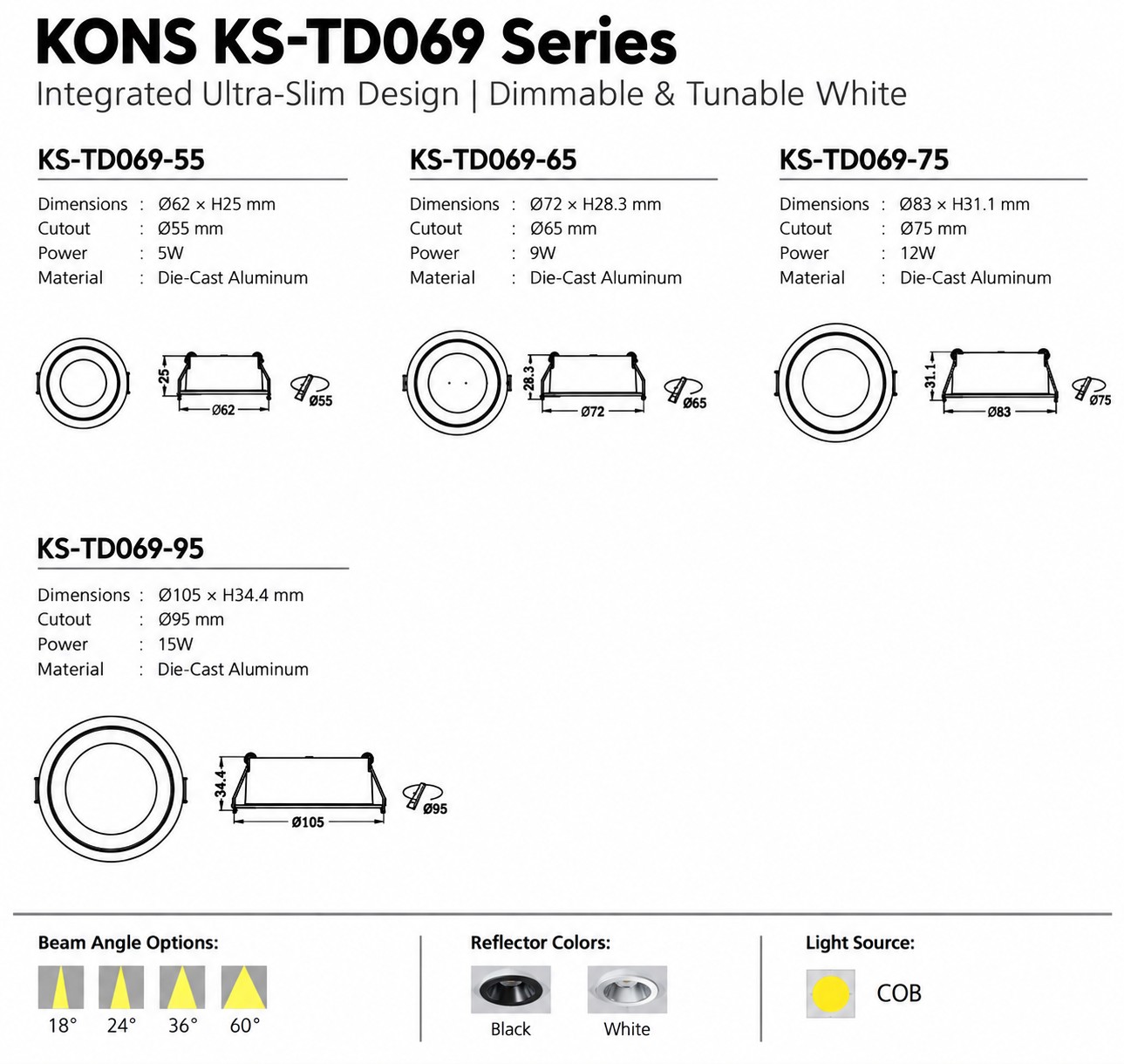

KS-TD069-55 provides 5W power with dimensions of Ø62 × H25mm and a Ø55mm ceiling cutout. KS-TD069-65 provides 9W power with dimensions of Ø72 × H28.3mm and a Ø65mm cutout. KS-TD069-75 provides 12W power with dimensions of Ø83 × H31.1mm and a Ø75mm cutout. KS-TD069-95 provides 15W power with dimensions of Ø105 × H34.4mm and a Ø95mm cutout.

Dimming and tunable white allow brightness and white-light color temperature to be adjusted for different settings. Please confirm the required color temperature range, control method and compatible driver configuration when requesting a quotation. Contact KONS with your preferred model, beam angle, reflector color and quantity for project specifications and pricing.
