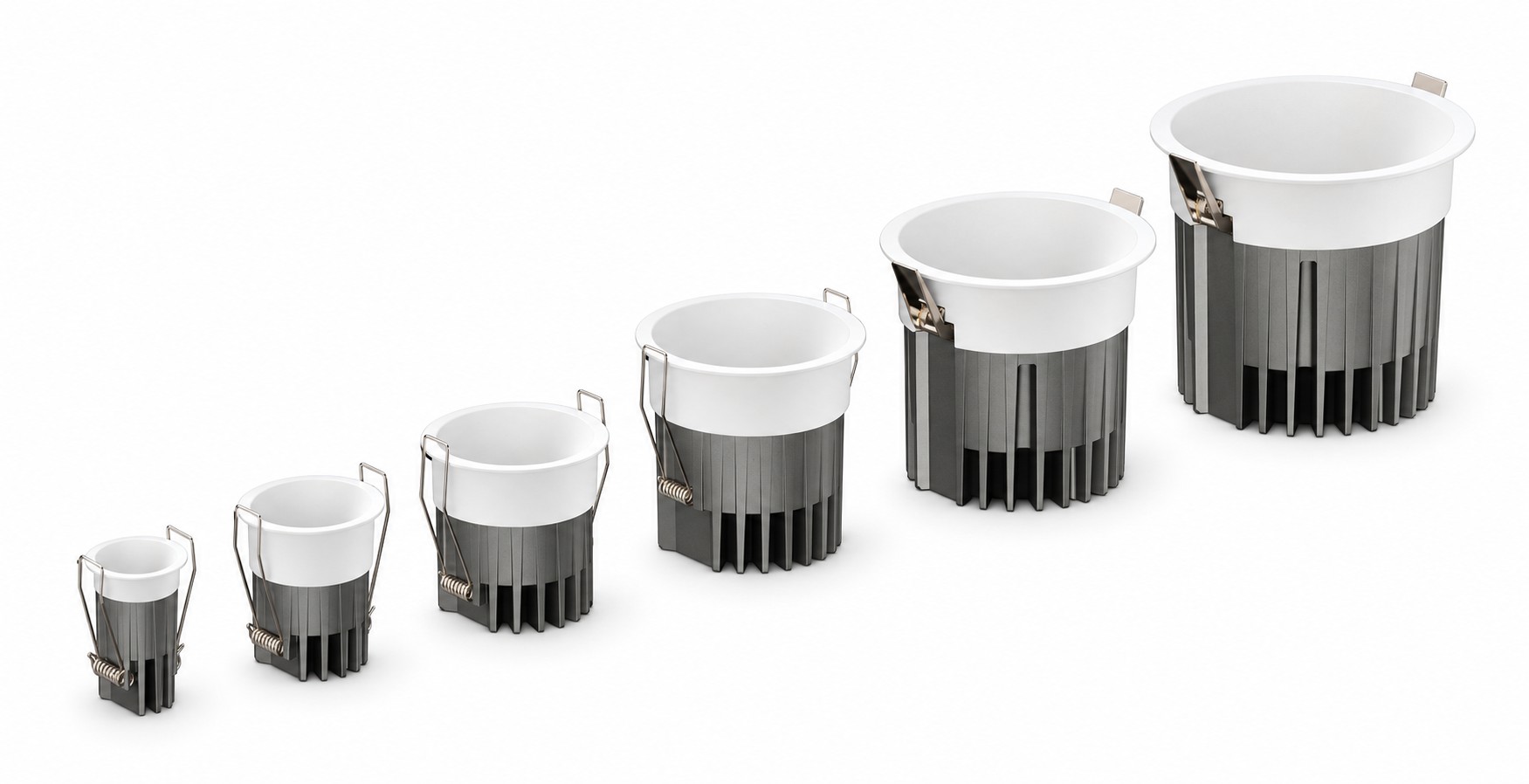

The KONS KS-TD070 series offers deep recessed COB LED downlights in six power options: 5W, 7W, 12W, 20W, 30W and 40W. The range provides a consistent round appearance across multiple sizes for commercial lighting projects, including hotels, retail spaces, offices and residential interiors.

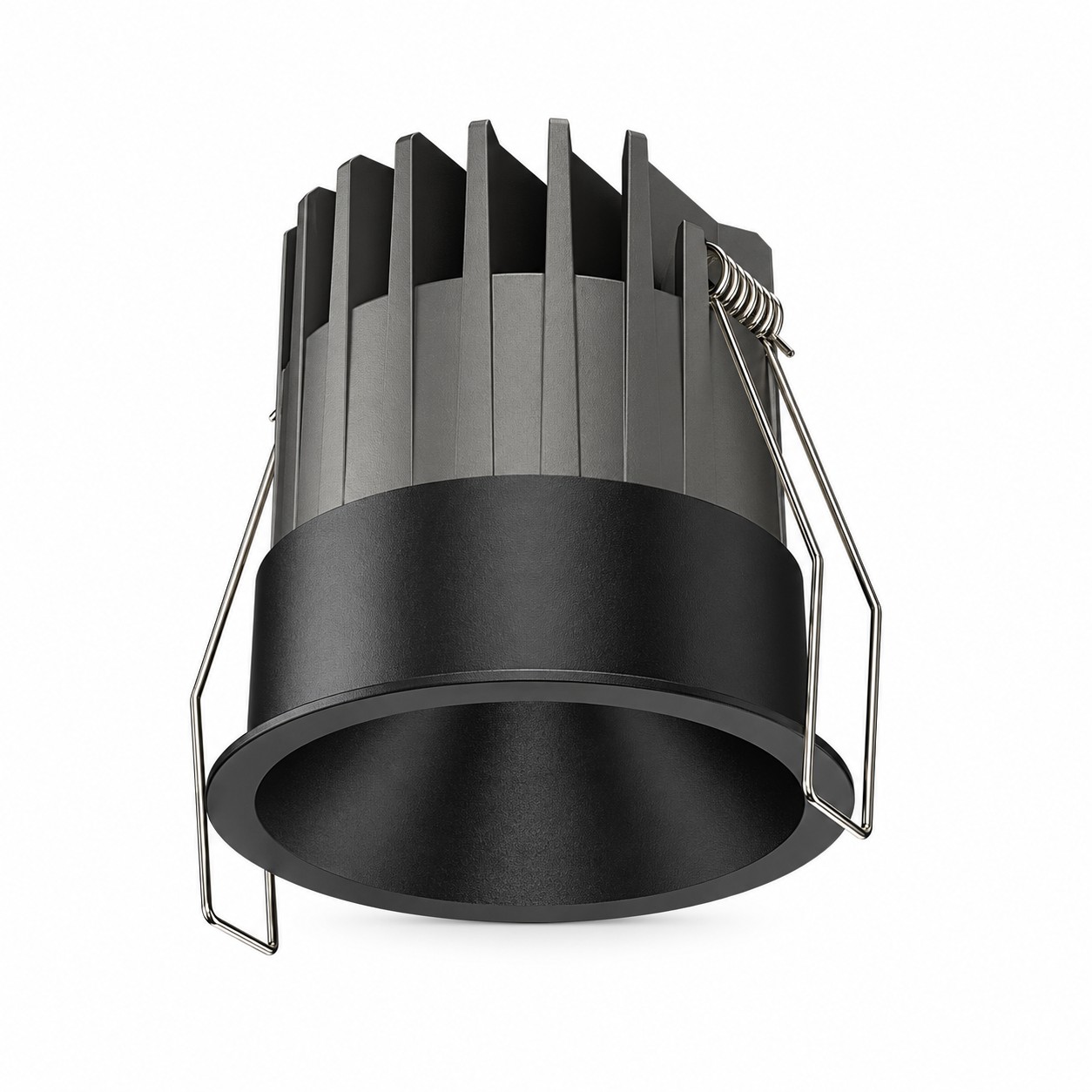

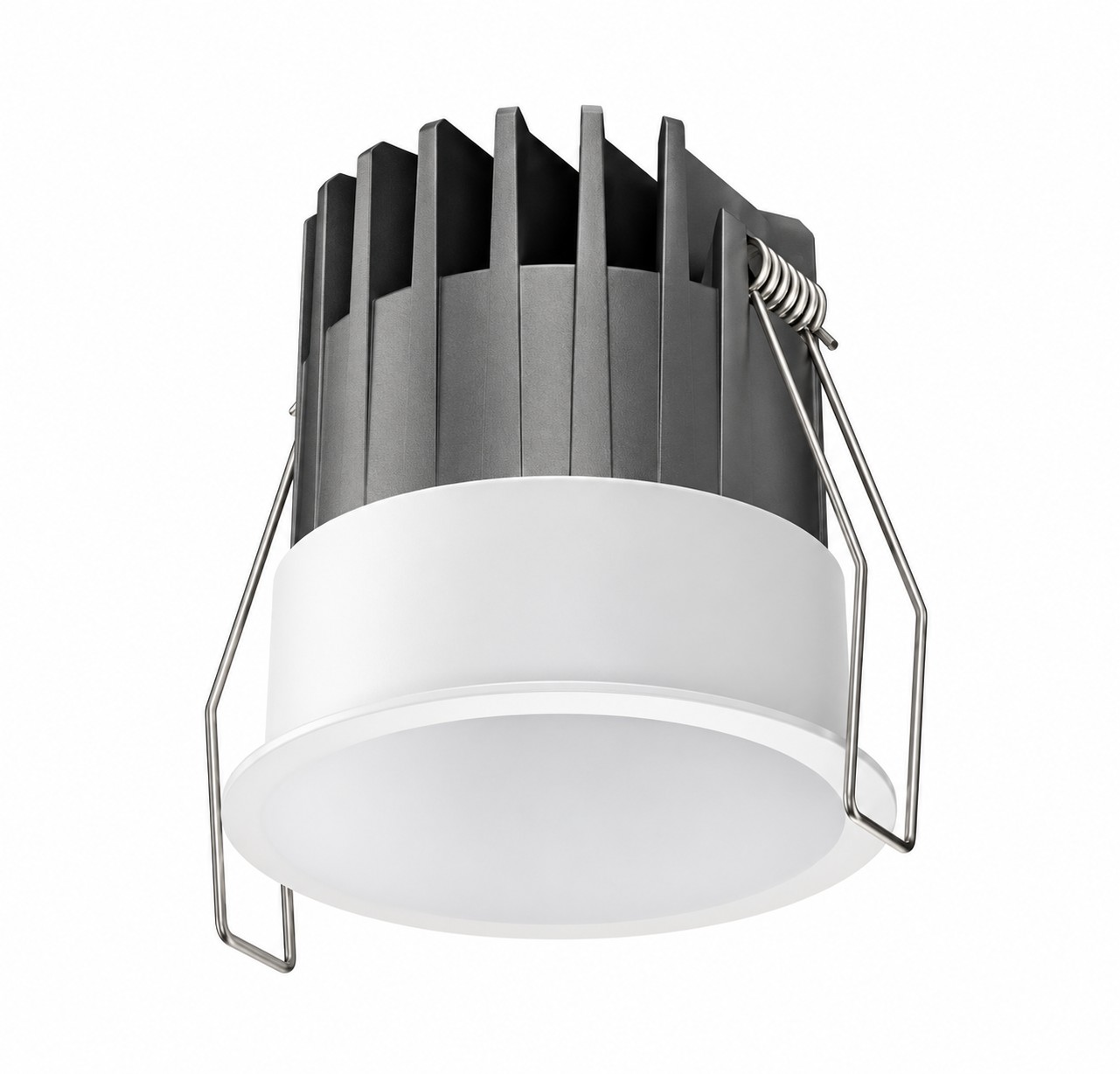

The die-cast aluminum housing features a finned heat sink, a deep recessed optical aperture and spring clips for ceiling mounting. White and black reflector options allow the recessed opening to suit different interior finishes.

All six models offer 15°, 24° and 36° beam angle options. The 7W and 12W models also offer a 55° option, providing an additional choice for wider light distribution. Select the beam angle according to the ceiling height, fixture spacing and lighting layout.

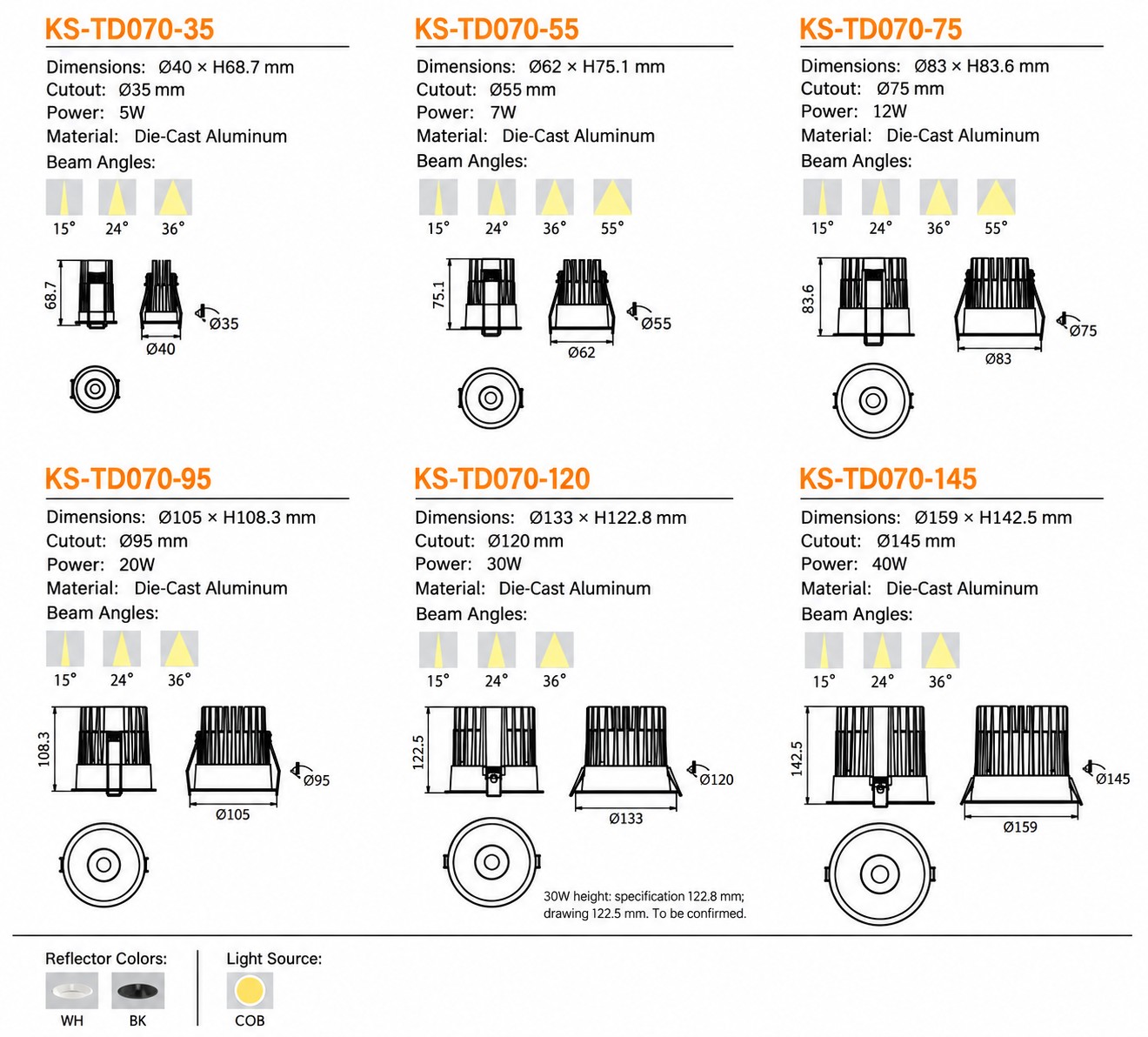

KS-TD070-35 provides 5W power with dimensions of Ø40 × H68.7mm and a Ø35mm ceiling cutout. KS-TD070-55 provides 7W power with dimensions of Ø62 × H75.1mm and a Ø55mm cutout. KS-TD070-75 provides 12W power with dimensions of Ø83 × H83.6mm and a Ø75mm cutout.

KS-TD070-95 provides 20W power with dimensions of Ø105 × H108.3mm and a Ø95mm ceiling cutout. KS-TD070-120 provides 30W power with an outside diameter of Ø133mm and a Ø120mm cutout; please confirm the housing height before installation. KS-TD070-145 provides 40W power with dimensions of Ø159 × H142.5mm and a Ø145mm cutout.

For project enquiries, please specify the model, beam angle, reflector color, required color temperature, color rendering requirements and quantity. Contact KONS to confirm the driver configuration, electrical specifications, installation clearance and available options before ordering.
