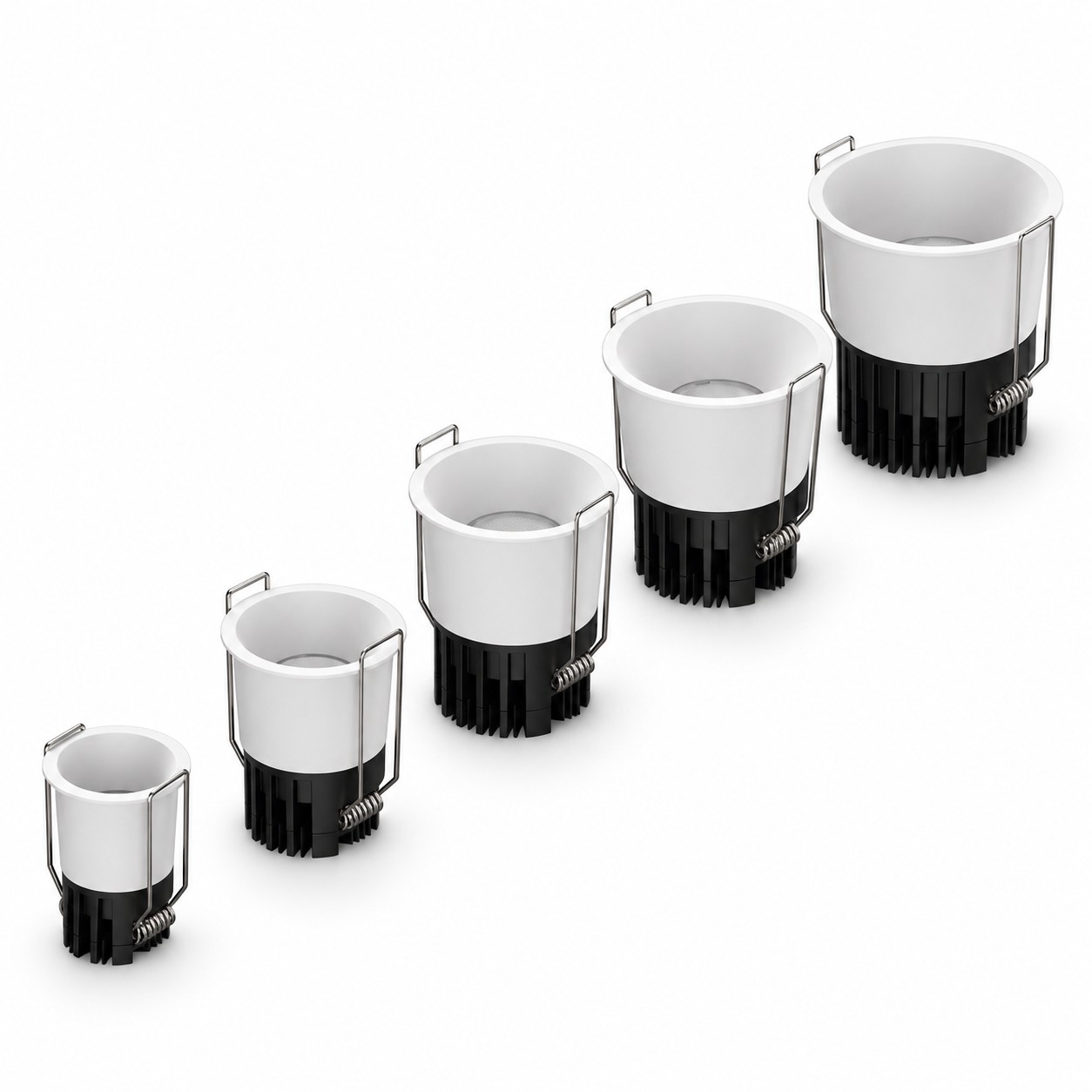

The KONS KS-TD071 series features an ultra-narrow trim design that creates a discreet border around the ceiling opening. Its slim visible edge and deep recessed aperture suit minimalist interiors where a clean ceiling appearance is a key design priority. The series is available in 3W, 5W, 7W, 9W and 12W for commercial and residential lighting projects.

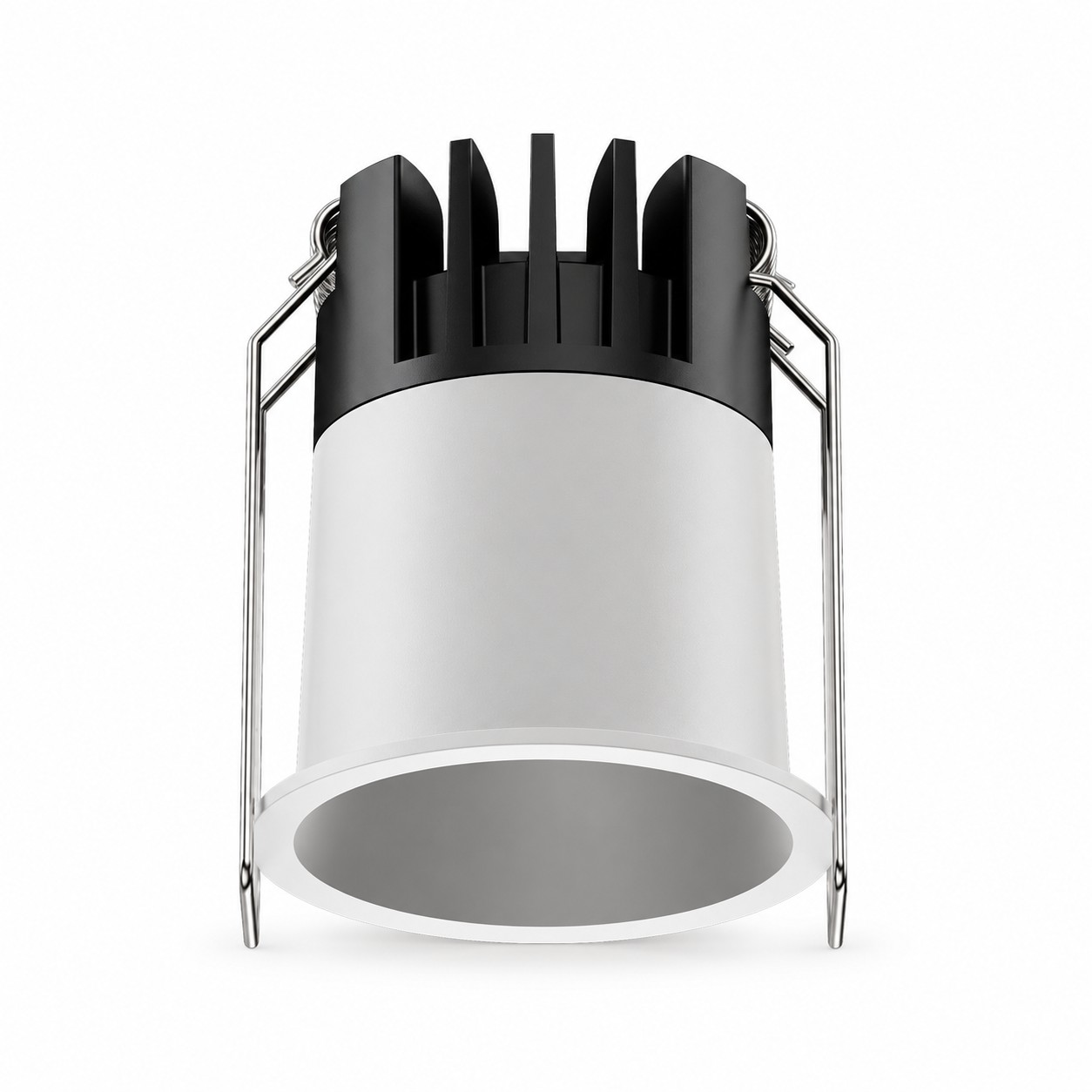

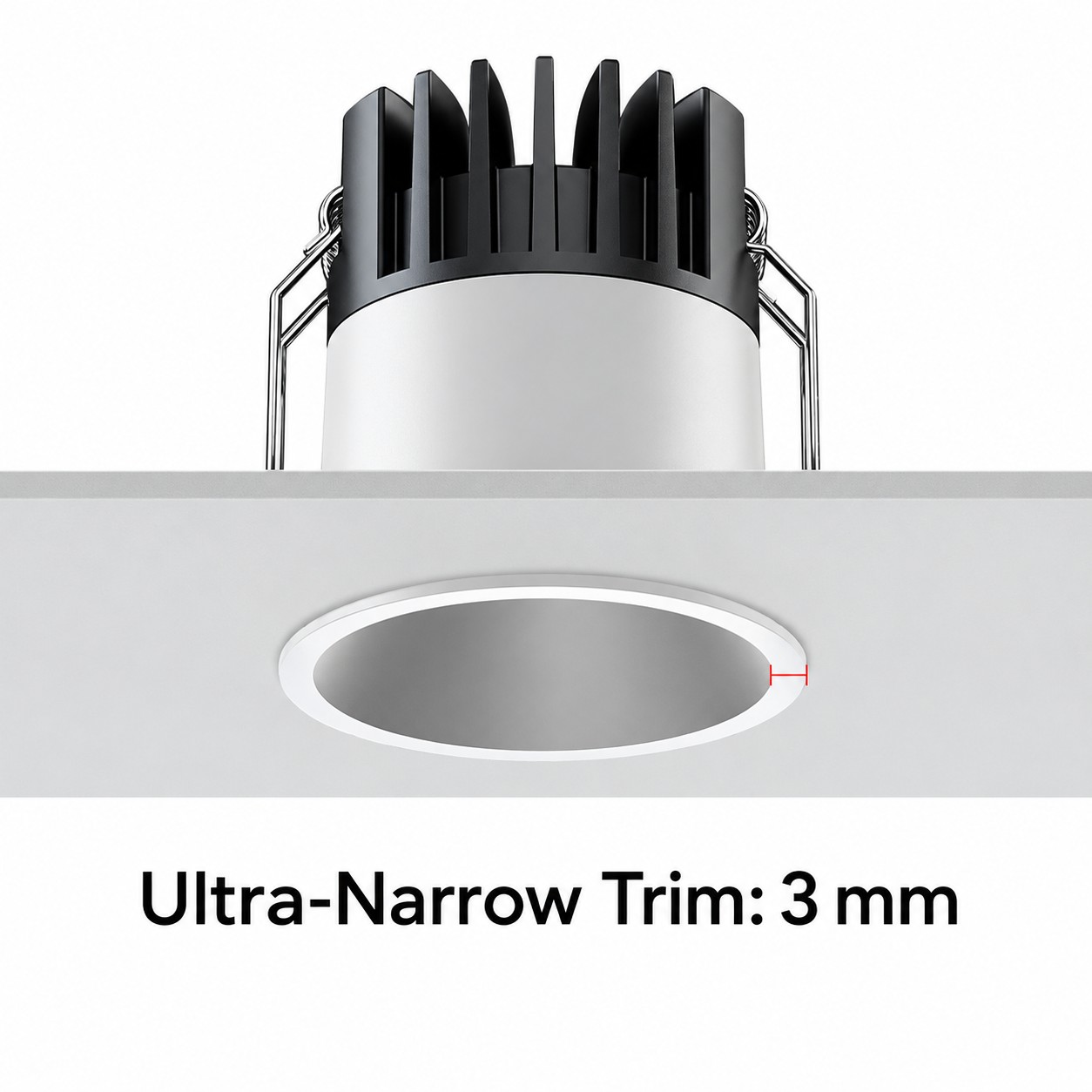

The installation reference highlights a 3mm ultra-narrow trim. With most of the housing concealed above the ceiling, the visible opening provides a simple architectural finish. The die-cast aluminum housing incorporates cooling fins and spring clips, while black and white baffle options allow the recessed interior to complement the surrounding design.

The series uses COB LED technology. All five models offer 15°, 24° and 36° beam angles. The 5W, 7W and 9W models also offer a 55° option, allowing different beam distributions within the same product family.

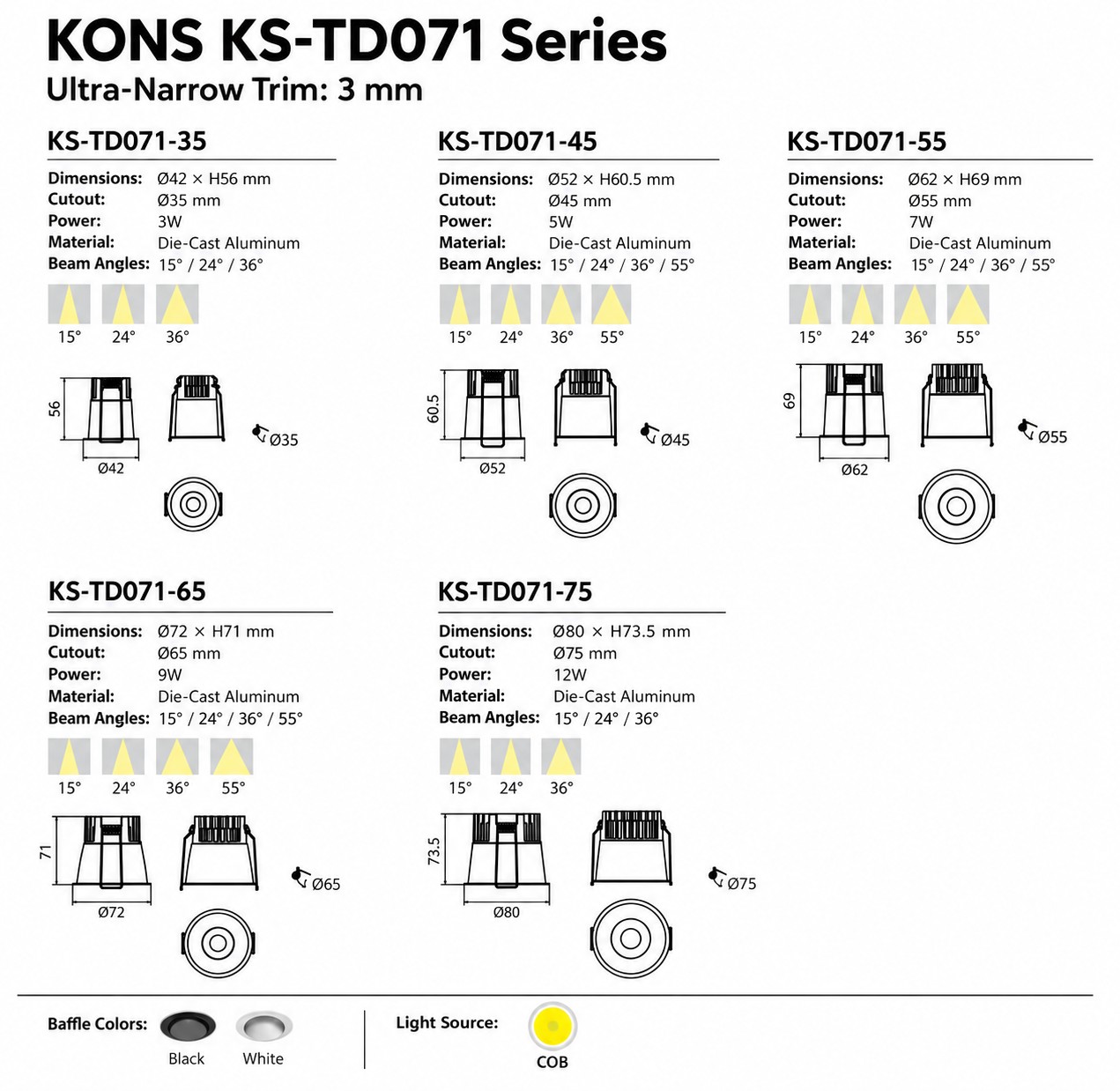

KS-TD071-35 provides 3W power with dimensions of Ø42 × H56mm and a Ø35mm ceiling cutout. KS-TD071-45 provides 5W power with dimensions of Ø52 × H60.5mm and a Ø45mm cutout. KS-TD071-55 provides 7W power with dimensions of Ø62 × H69mm and a Ø55mm cutout.

KS-TD071-65 provides 9W power with dimensions of Ø72 × H71mm and a Ø65mm ceiling cutout. KS-TD071-75 provides 12W power with dimensions of Ø80 × H73.5mm and a Ø75mm cutout. Confirm the selected model’s trim dimensions and ceiling opening before installation.

For hotels, retail spaces, galleries and other architectural projects, specify the model, beam angle, baffle color, required color temperature and quantity when requesting a quotation. Contact KONS to confirm color rendering, light output, driver configuration and control options for the selected specification.
