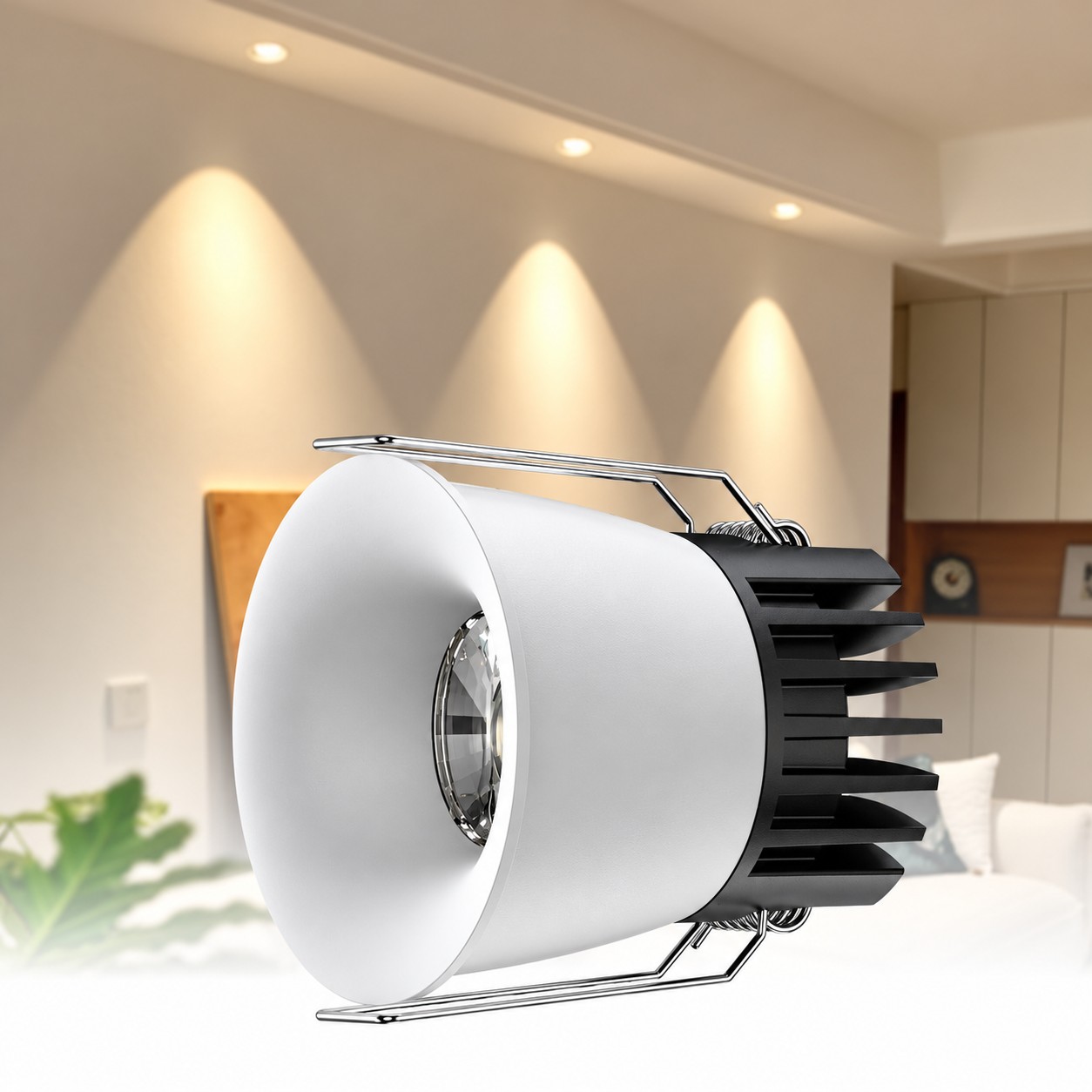

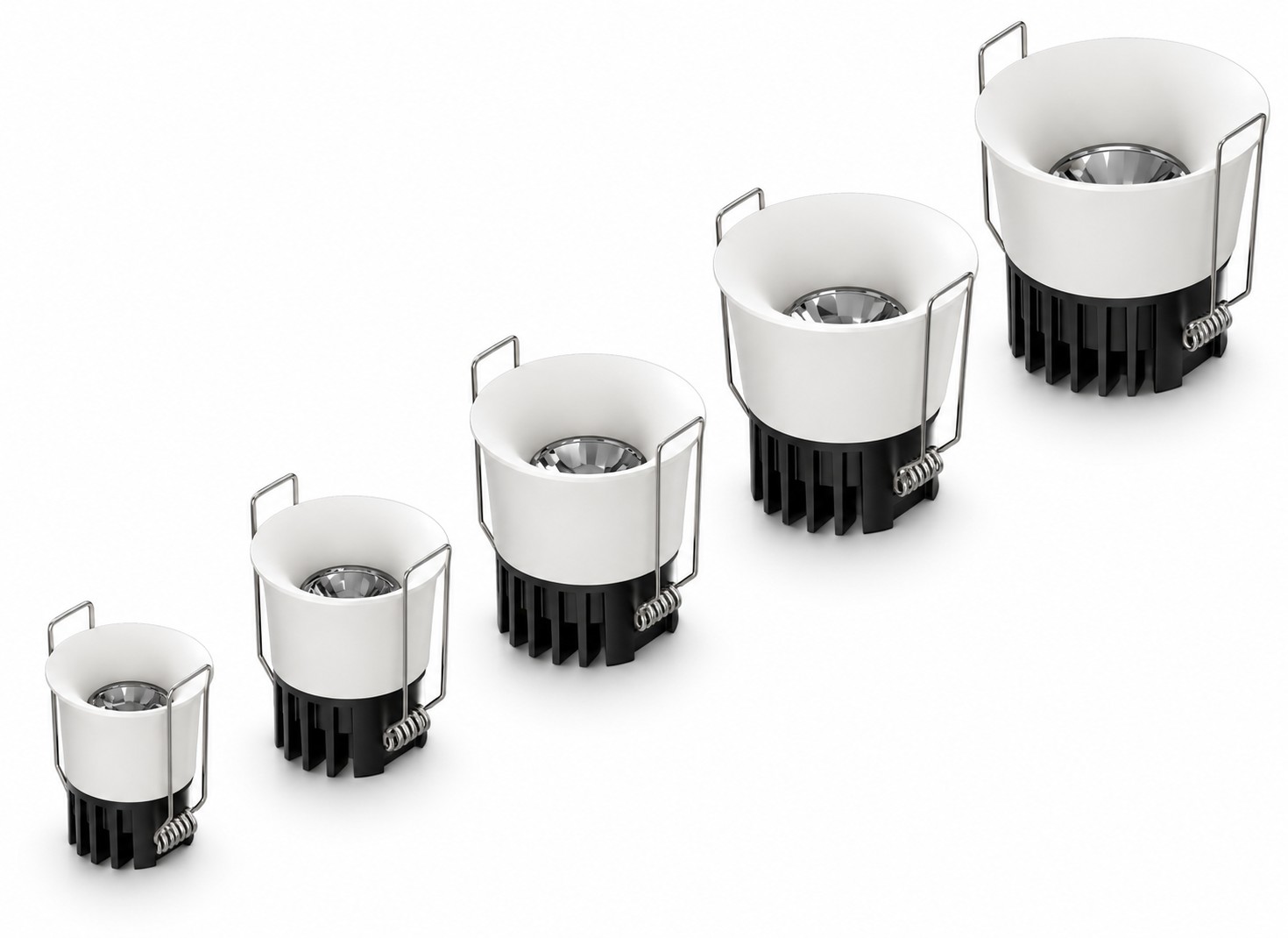

The KONS KS-TD072 series features a smooth curved recessed aperture for a clean architectural ceiling appearance. The curved baffle leads into a deeply positioned optical element, creating a discreet lighting opening for plasterboard ceiling projects. Available in 3W, 5W, 7W, 9W and 12W, the series suits hotels, retail spaces, residential interiors and other commercial projects.

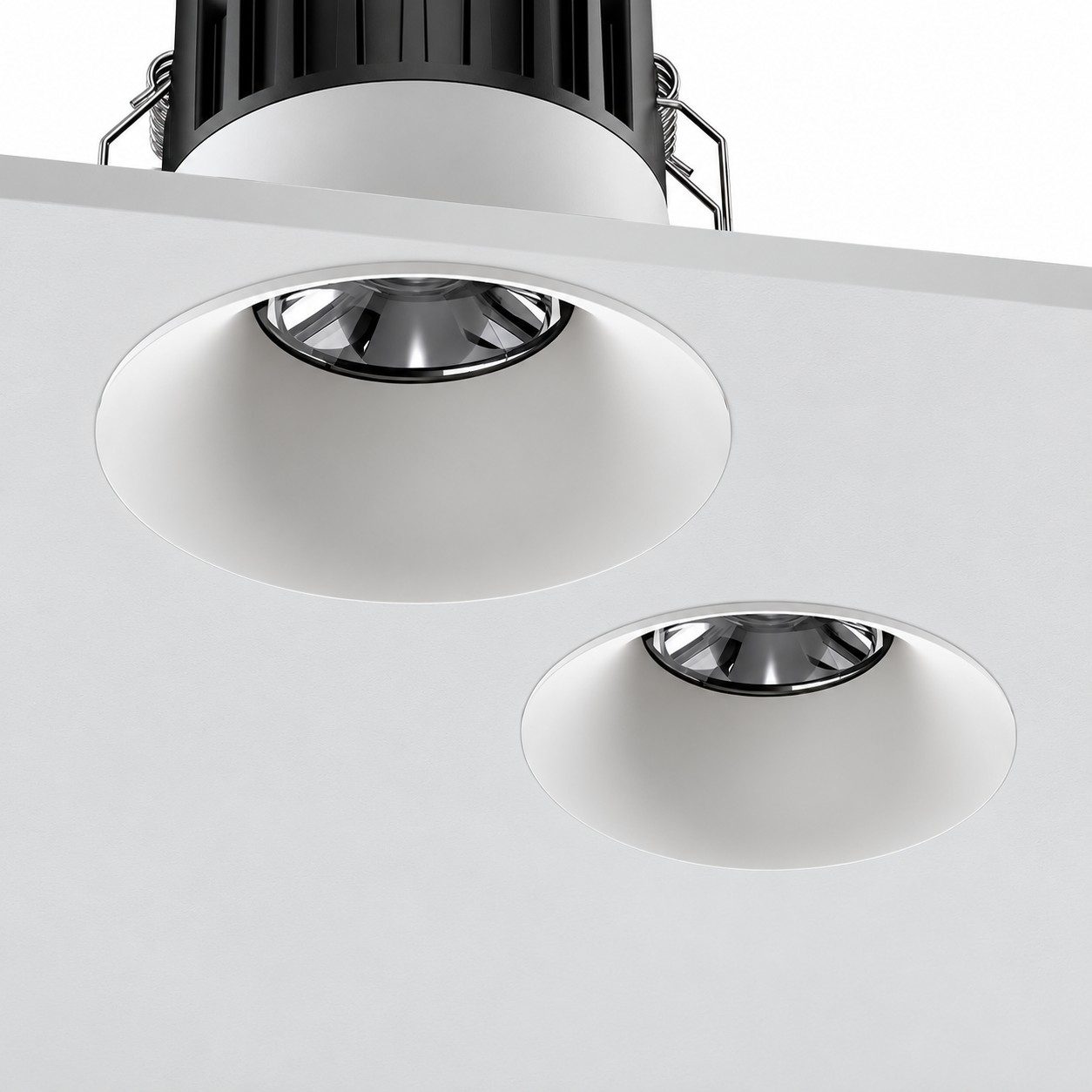

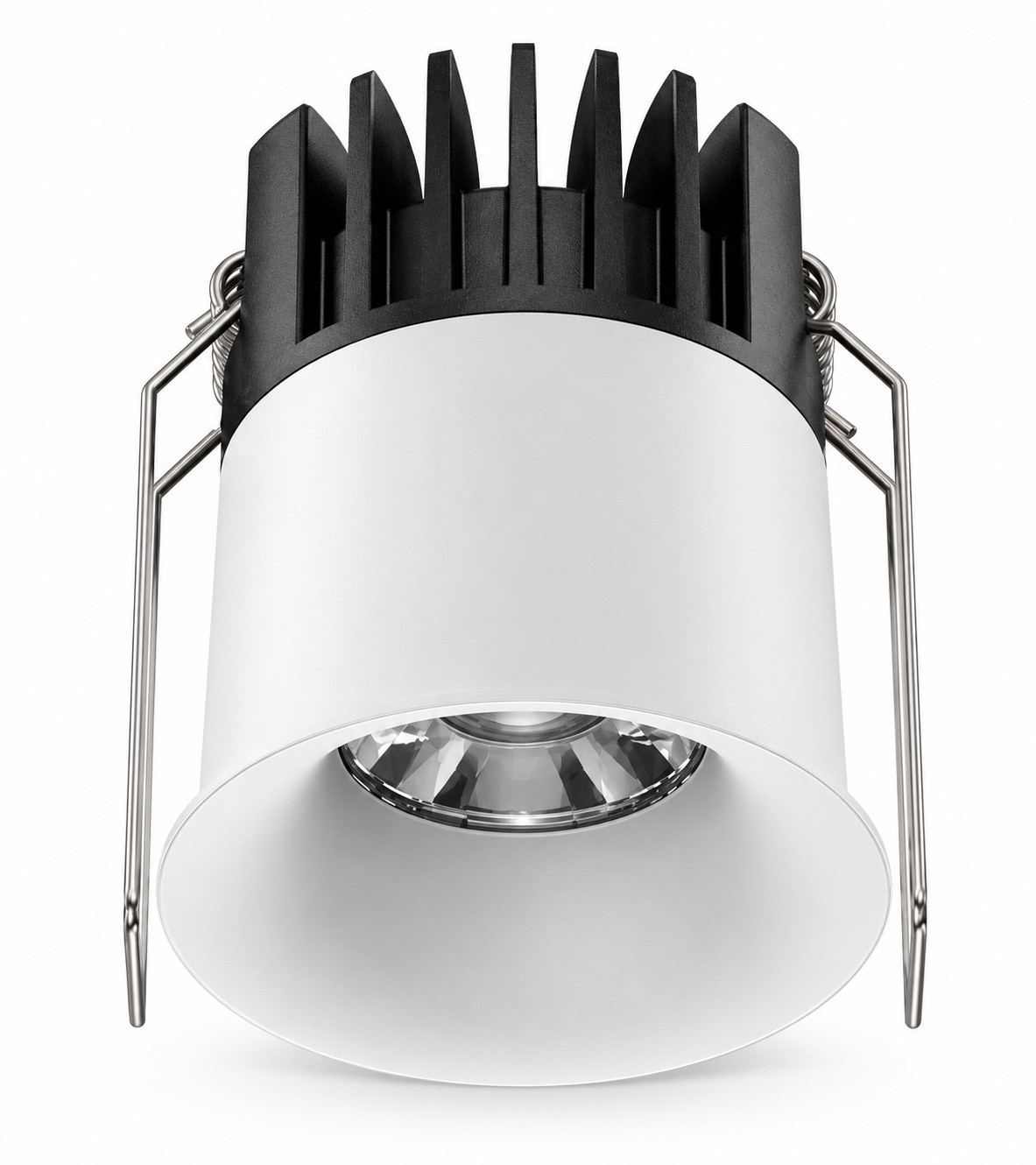

The housing is made from die-cast aluminum and incorporates a finned heat sink and spring mounting clips. Black and white baffle options allow the recessed interior to coordinate with different ceiling finishes. The installation reference shows the curved opening closely integrated with the ceiling surface; confirm the mounting details and ceiling compatibility before installation.

The series uses COB LED technology. All five models offer 15°, 24° and 36° beam angle options. The 5W, 7W and 9W models also offer a 55° option, providing additional flexibility for different lighting layouts.

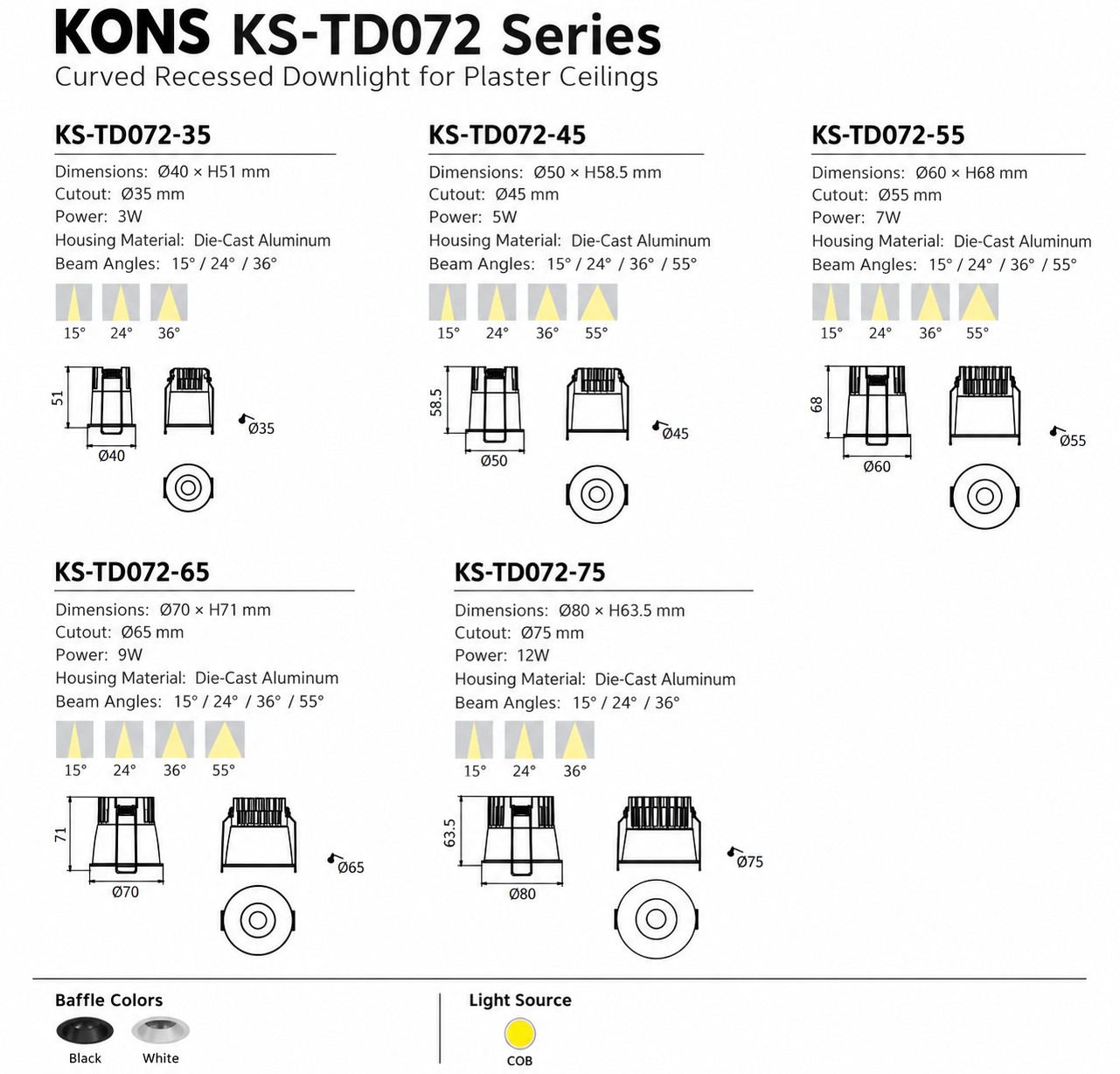

KS-TD072-35 provides 3W power with dimensions of Ø40 × H51mm and a Ø35mm ceiling cutout. KS-TD072-45 provides 5W power with dimensions of Ø50 × H58.5mm and a Ø45mm cutout. KS-TD072-55 provides 7W power with dimensions of Ø60 × H68mm and a Ø55mm cutout.

KS-TD072-65 provides 9W power with dimensions of Ø70 × H71mm and a Ø65mm ceiling cutout. KS-TD072-75 provides 12W power with dimensions of Ø80 × H63.5mm and a Ø75mm cutout. Check ceiling depth, opening dimensions and driver clearance for the selected model.

For project enquiries, please specify the model, beam angle, baffle color, required color temperature and quantity. Contact KONS to confirm color rendering, light output, driver configuration and available control options before ordering.
