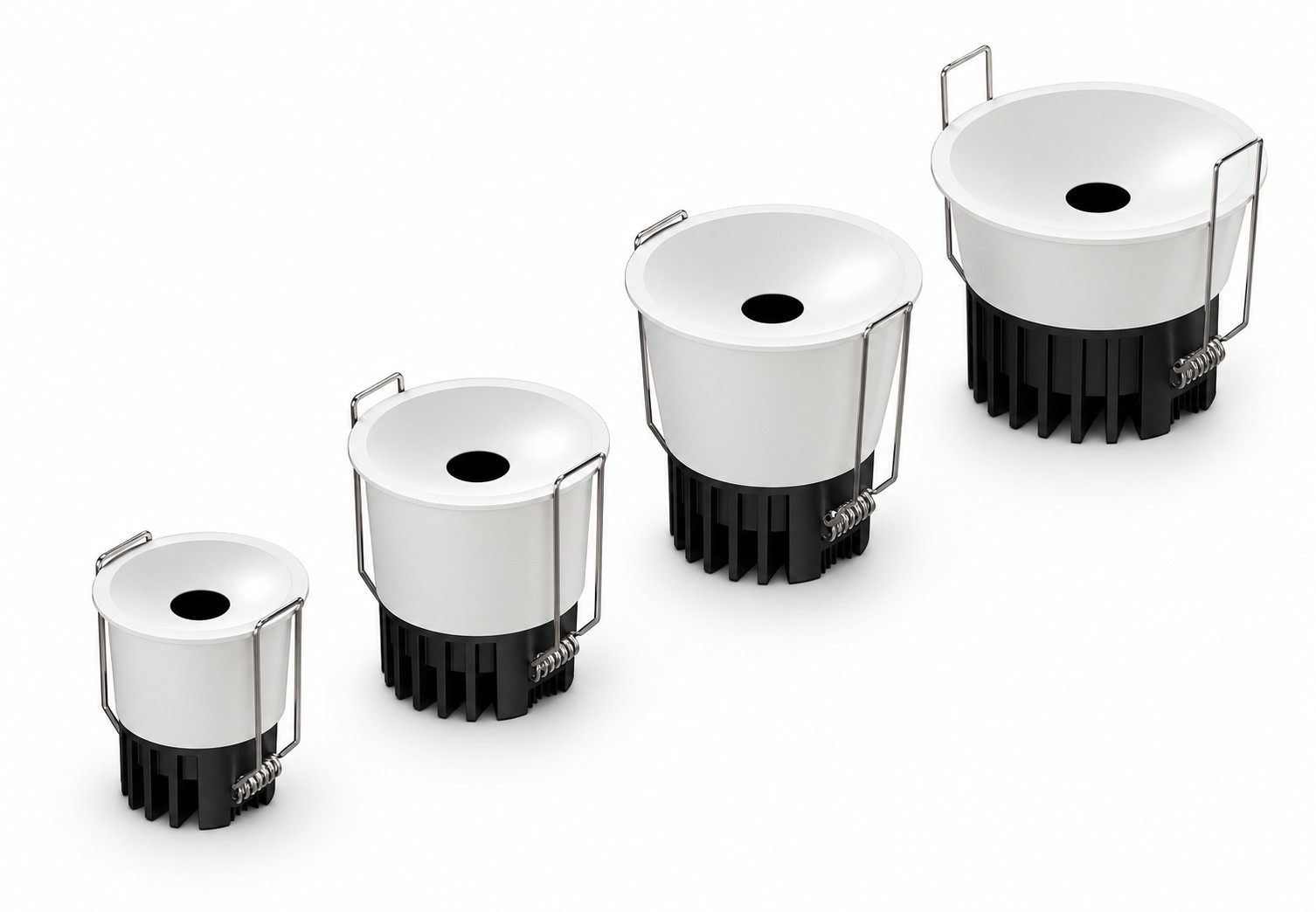

The KONS KS-TD073 series features a small central light aperture within a smooth curved recessed face. This design creates a discreet lighting opening and a clean ceiling appearance for minimalist interiors. Available in 5W, 7W, 9W and 12W, the series offers four sizes for hotel, retail, residential and other commercial lighting projects.

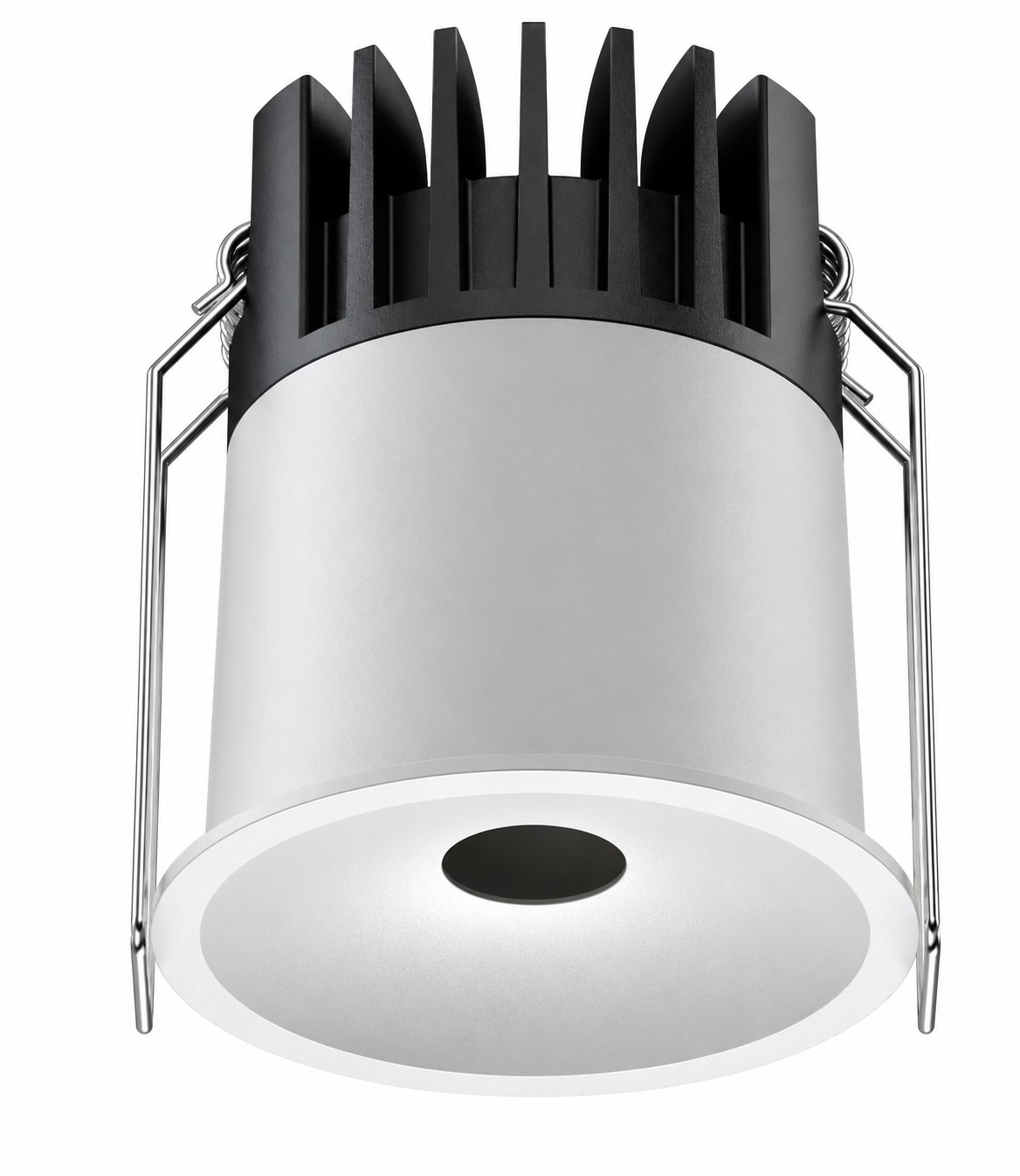

The curved face surrounds the small light opening, keeping the optical element recessed within the fixture. The die-cast aluminum housing incorporates cooling fins and spring clips for ceiling mounting. Black and white baffle options allow the recessed interior to coordinate with the project’s ceiling finish.

The series uses COB LED technology and offers 24° and 36° beam angle options across all four models. Select the beam distribution according to the ceiling height, fixture spacing and the area or objects to be illuminated.

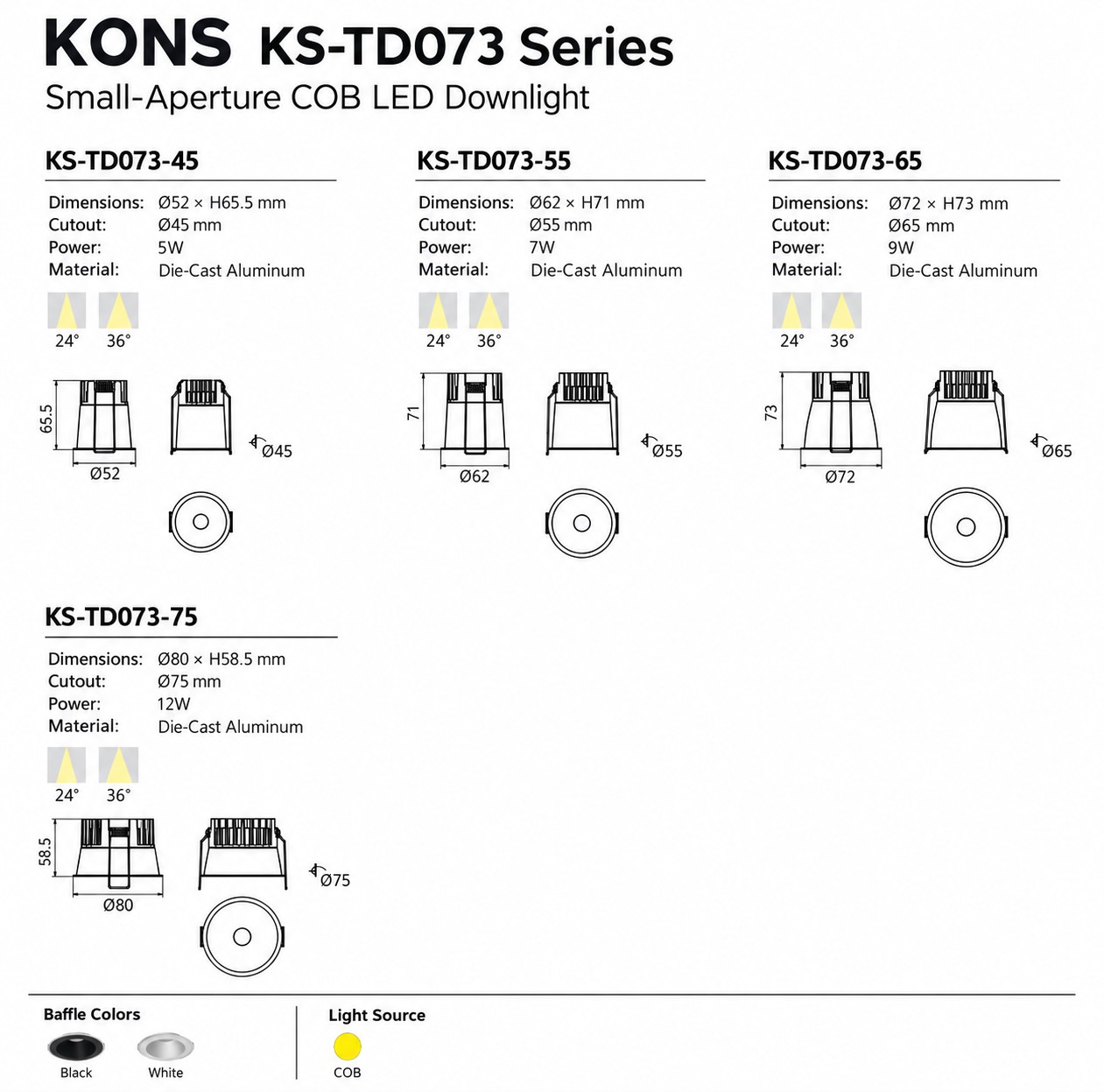

KS-TD073-45 provides 5W power with dimensions of Ø52 × H65.5mm and a Ø45mm ceiling cutout. KS-TD073-55 provides 7W power with dimensions of Ø62 × H71mm and a Ø55mm cutout.

KS-TD073-65 provides 9W power with dimensions of Ø72 × H73mm and a Ø65mm ceiling cutout. KS-TD073-75 provides 12W power with dimensions of Ø80 × H58.5mm and a Ø75mm cutout. Check the ceiling opening, installation depth and driver clearance for the selected model.

For project enquiries, please specify the model, beam angle, baffle color, required color temperature and quantity. Contact KONS to confirm light output, color rendering, driver configuration and available control options before ordering.
