The KONS KS-TD075 series offers recessed LED downlights in 10W, 15W, 20W, 30W and 40W for commercial interior lighting projects. Five sizes provide options for different ceiling openings, helping maintain a consistent lighting appearance across hotels, offices, retail spaces and other interiors.

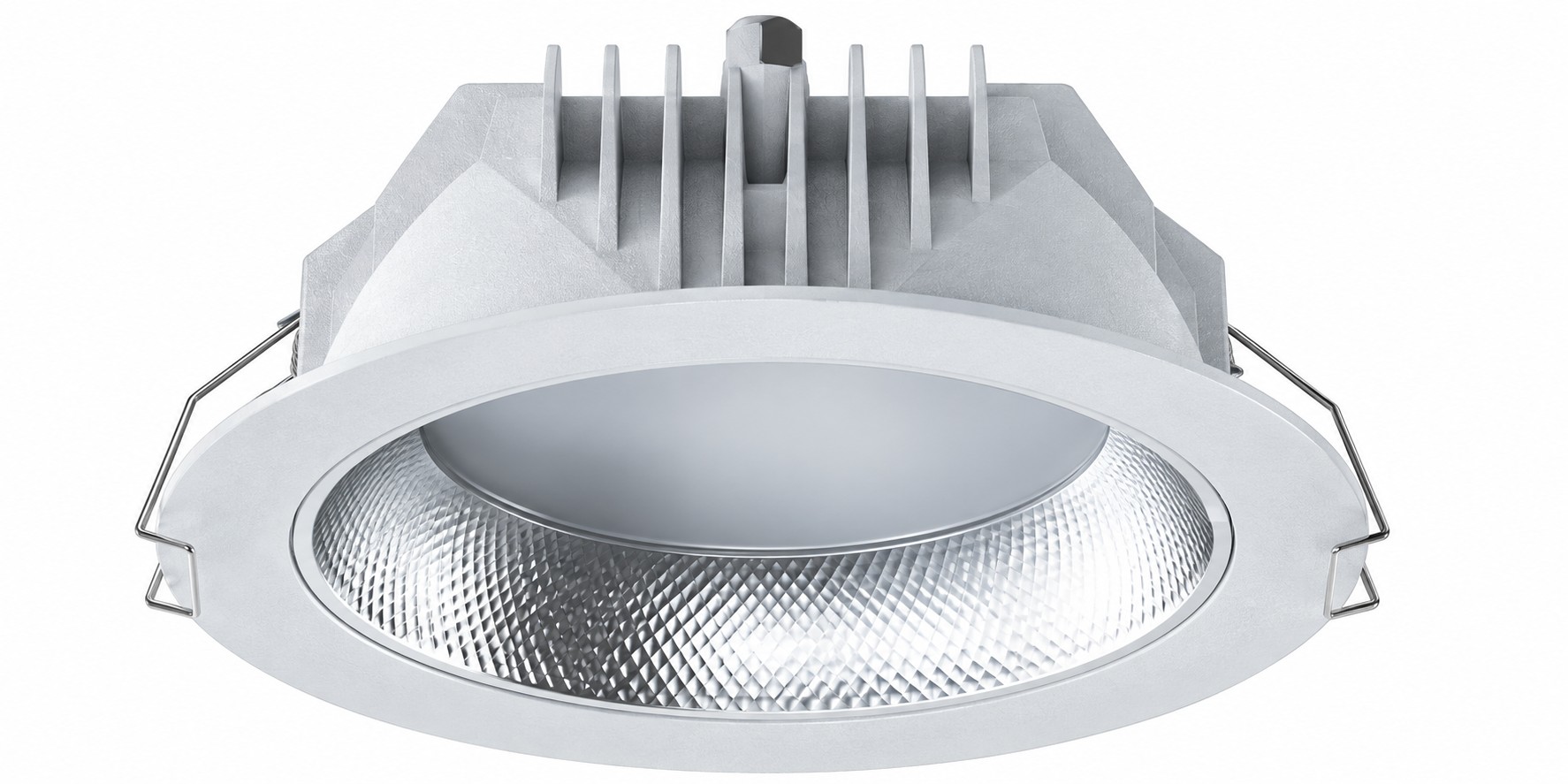

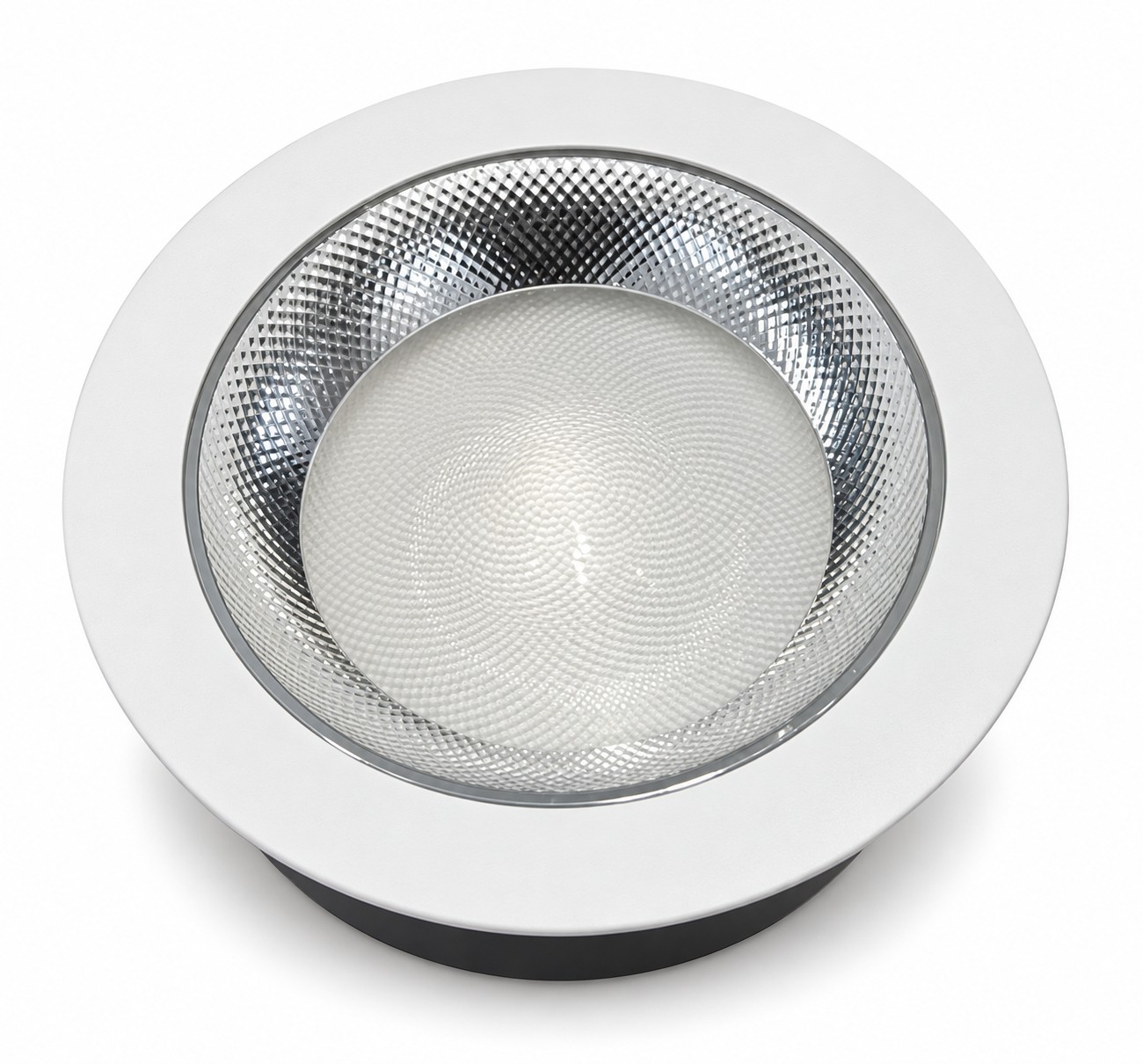

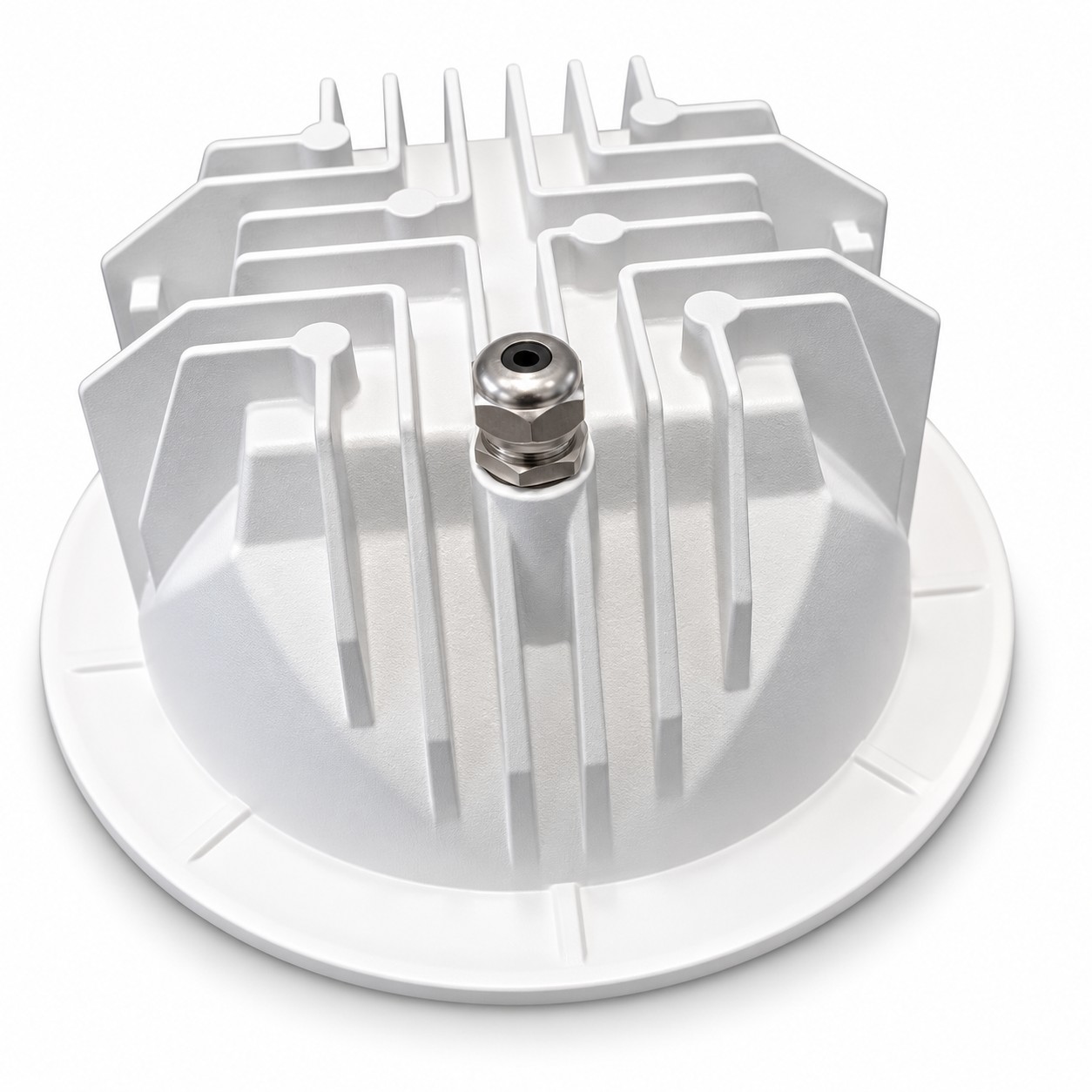

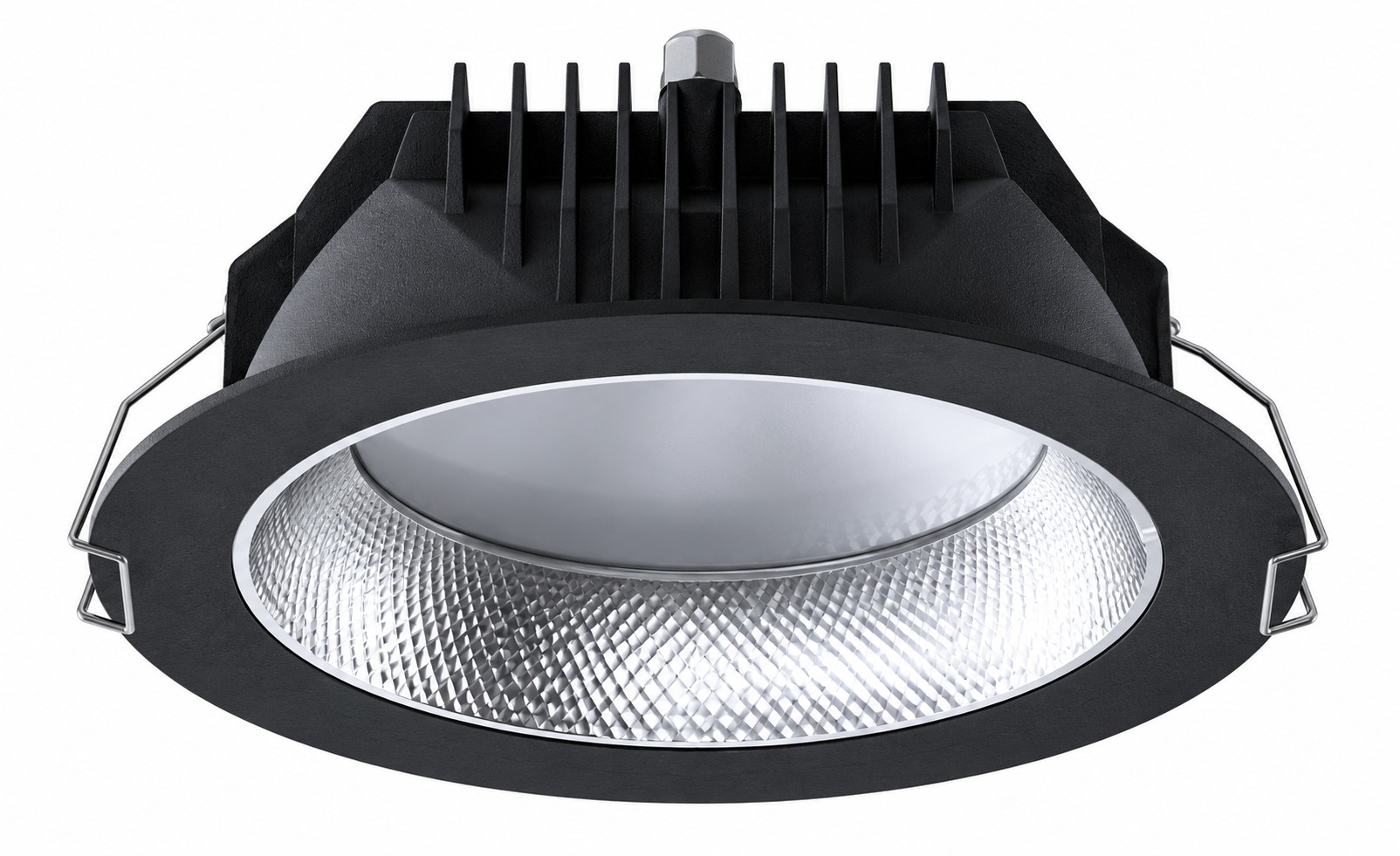

The die-cast aluminum housing features cooling fins, a round recessed reflector and spring clips for ceiling mounting. White and black reflector color options are listed in the series specifications. Please confirm the required reflector and housing finish when ordering.

The range offers SMD 3030 and COB light source options. The S version has a 110° beam angle, while the C version has a 70° beam angle, allowing selection of different beam distributions for the project. Light source and driver configurations should be confirmed for the selected model.

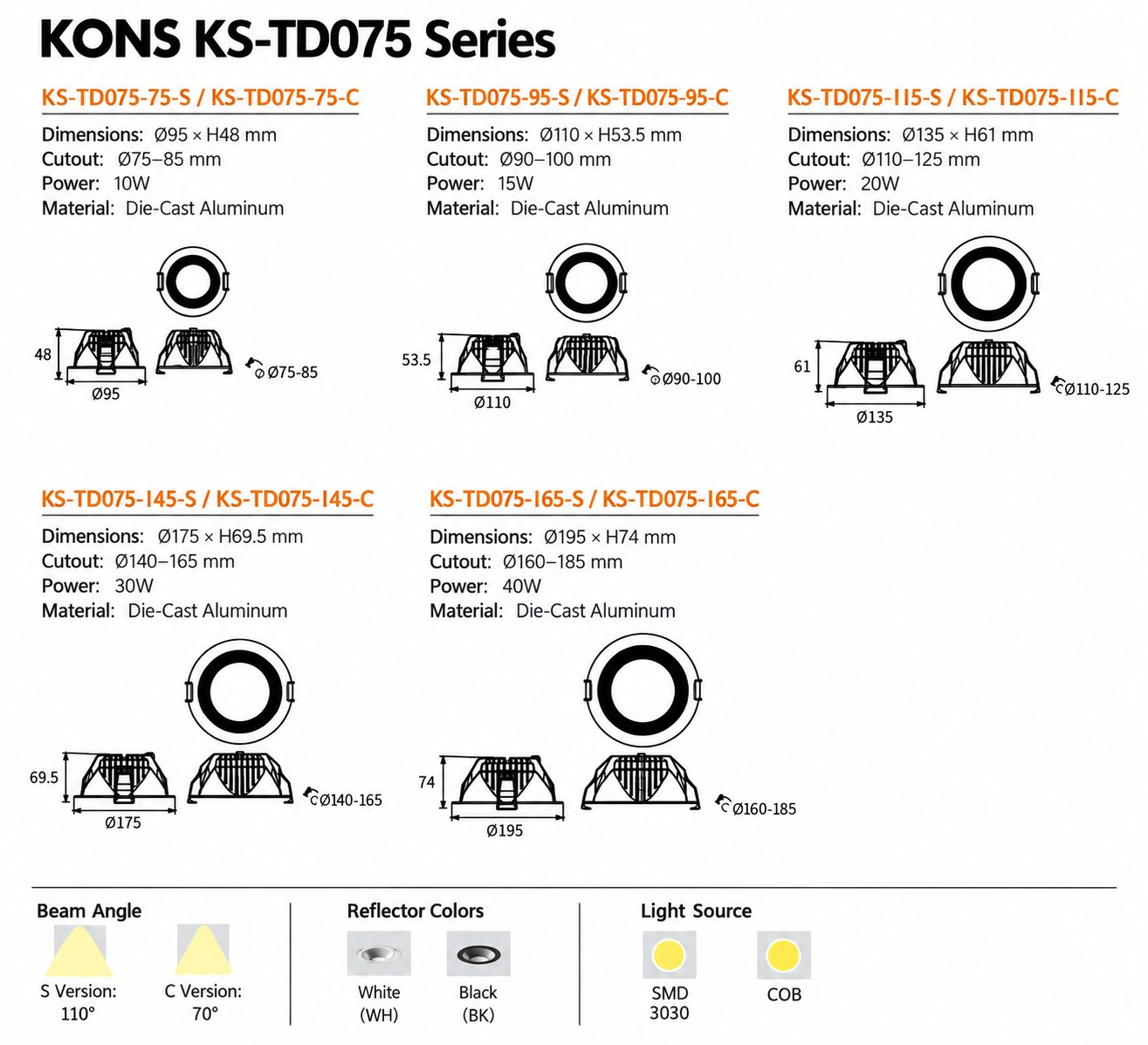

KS-TD075-75-S and KS-TD075-75-C provide 10W power, dimensions of Ø95 × H48mm and a ceiling cutout range of Ø75–85mm. KS-TD075-95-S and KS-TD075-95-C provide 15W power, dimensions of Ø110 × H53.5mm and a cutout range of Ø90–100mm. KS-TD075-115-S and KS-TD075-115-C provide 20W power, dimensions of Ø135 × H61mm and a cutout range of Ø110–125mm.

KS-TD075-145-S and KS-TD075-145-C provide 30W power, dimensions of Ø175 × H69.5mm and a ceiling cutout range of Ø140–165mm. KS-TD075-165-S and KS-TD075-165-C provide 40W power, dimensions of Ø195 × H74mm and a cutout range of Ø160–185mm.

For project enquiries, please specify the model, power, beam version, finish, required color temperature, color rendering requirements and quantity. Contact KONS to confirm driver compatibility, electrical specifications, installation clearance and available configurations before ordering.
