The KONS KS-XTD-A1 recessed linear LED spotlight series offers 1, 2, 5, 10 and 15-head configurations, with power options from 3W to 30W. A compact 45mm-wide design, multiple reflector finishes and 15°, 24° or 38° beam options provide flexibility for hotel, retail and commercial lighting projects.

KONS KS-XTD-A1 Recessed Linear LED Spotlight Series
The KS-XTD-A1 series combines a slim rectangular trim with individual reflector optics in a recessed linear format. Five configurations allow designers and project buyers to select the fixture length and power that suit their lighting layout.
Key Features

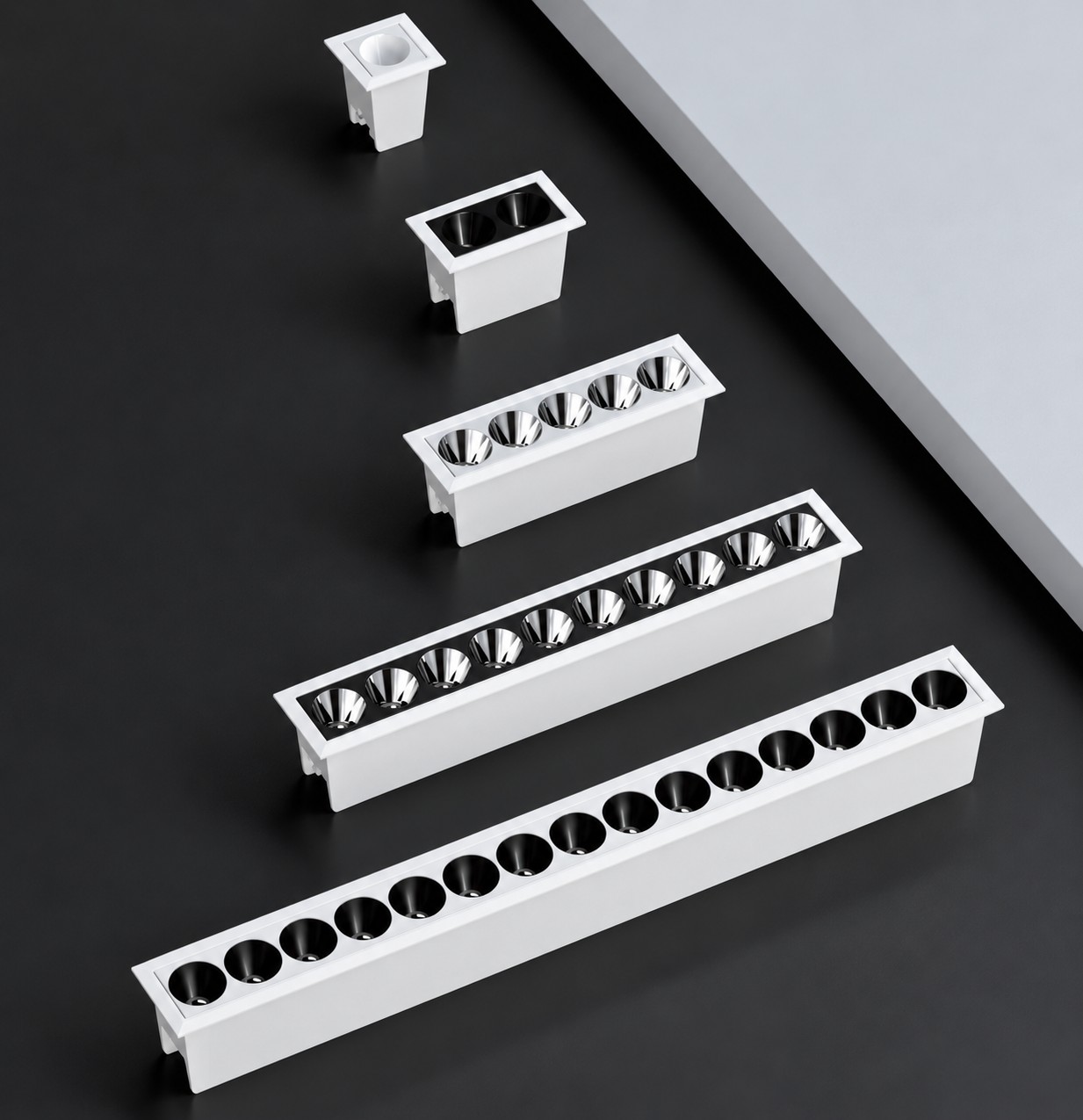

• 1, 2, 5, 10 and 15-head configurations
• Power options: 3W, 5W, 12W, 20W and 30W
• Compact fixture width: 45mm
• Fixture height: 49mm
• Beam angle options: 15°, 24° and 38°
• SMD LED options: 3030 / 3535
• Multiple trim and reflector finish combinations
• Recessed ceiling installation

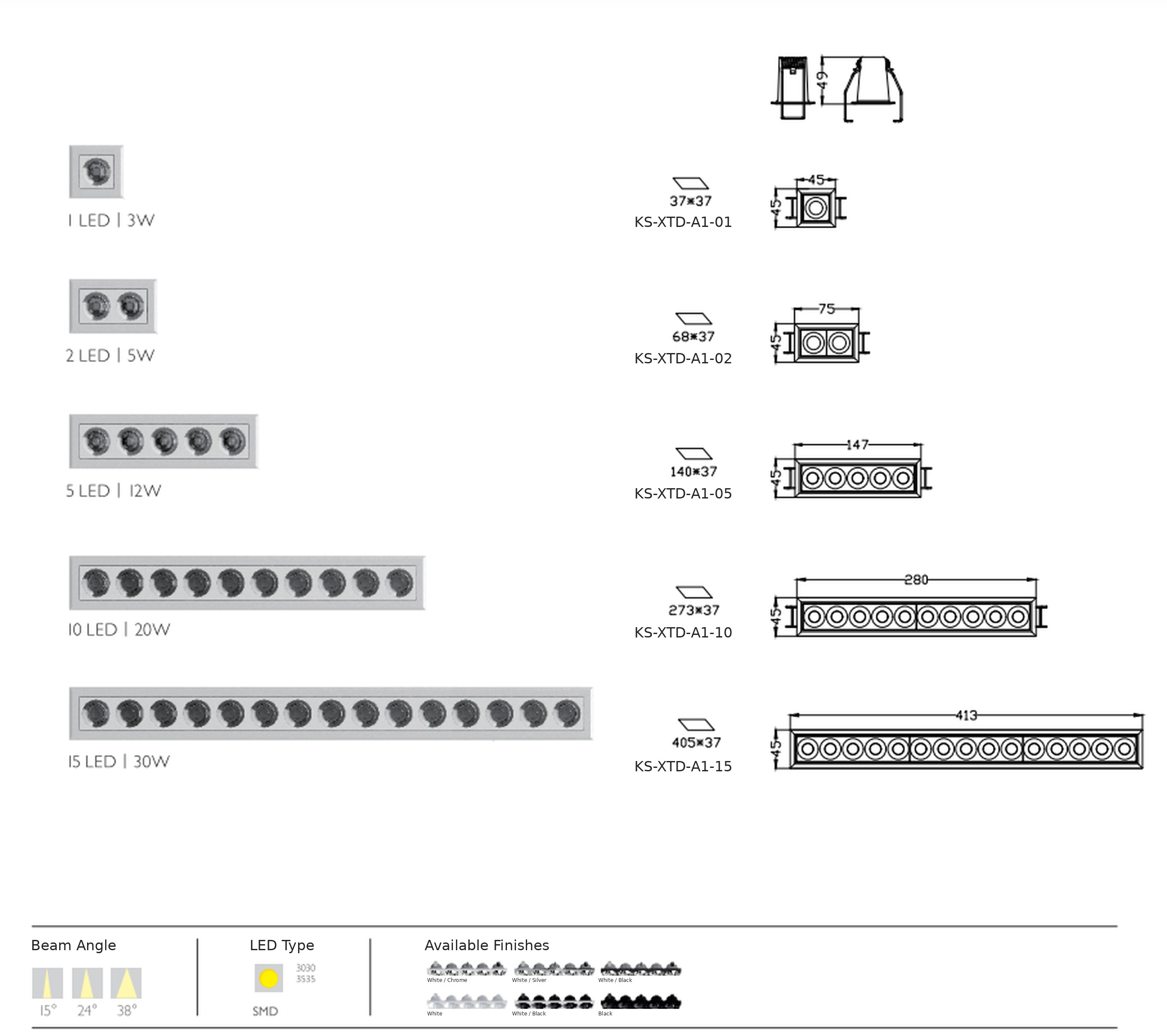

Models and Dimensions
KS-XTD-A1-01: 1 LED, 3W, 45 × 45 × 49mm; cutout 37 × 37mm.
KS-XTD-A1-02: 2 LEDs, 5W, 75 × 45 × 49mm; cutout 68 × 37mm.
KS-XTD-A1-05: 5 LEDs, 12W, 147 × 45 × 49mm; cutout 140 × 37mm.
KS-XTD-A1-10: 10 LEDs, 20W, 280 × 45 × 49mm; cutout 273 × 37mm.
KS-XTD-A1-15: 15 LEDs, 30W, 413 × 45 × 49mm; cutout 405 × 37mm.
Applications
Suitable for consideration in hotel interiors, retail stores, showrooms, reception areas, corridors and other commercial ceiling lighting projects.
Project Enquiries
Please specify the model, quantity, beam angle and preferred finish when requesting a quotation. Confirm electrical specifications and any dimming requirements before ordering.
