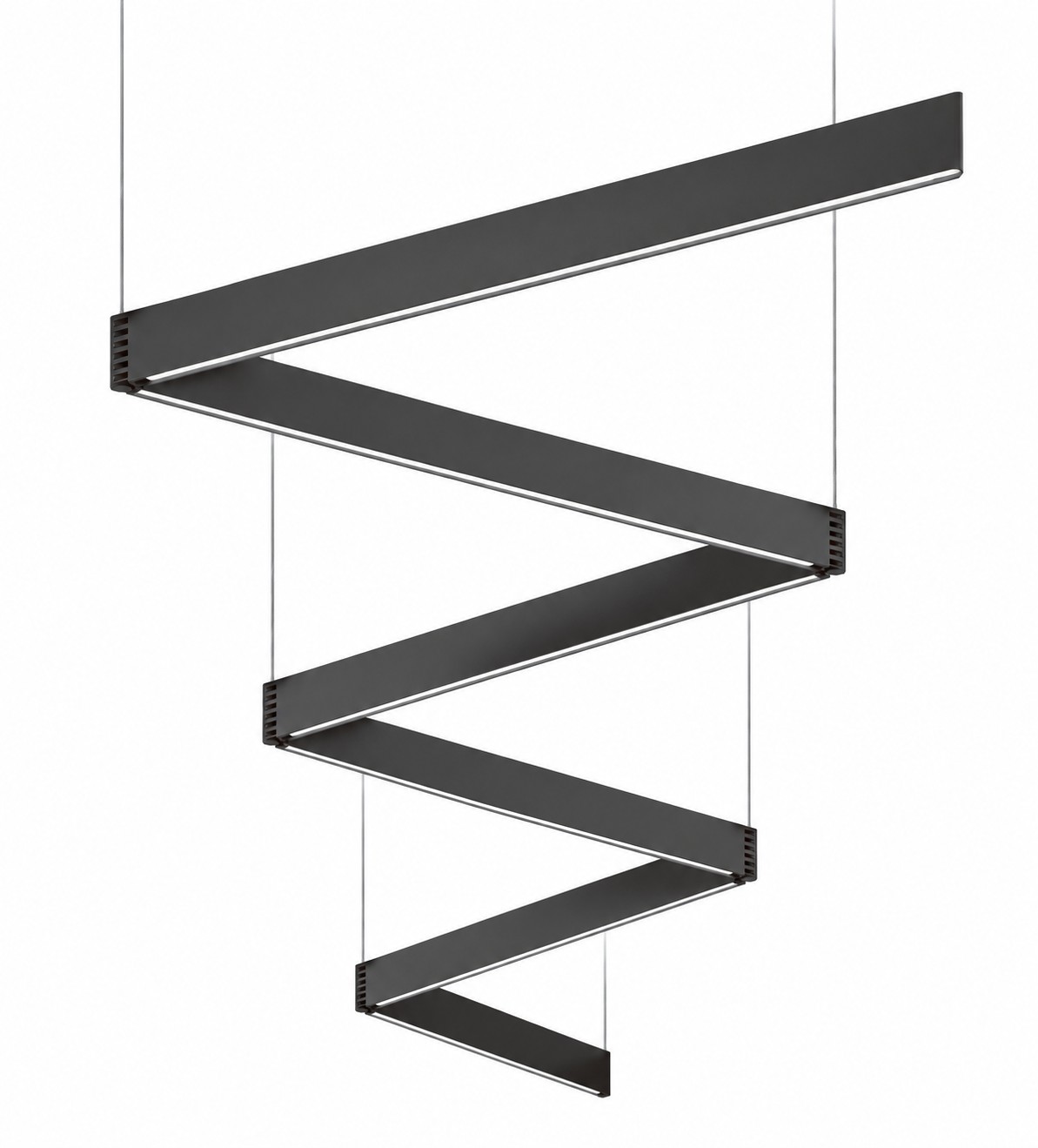

The KONS KSKD917S modular suspended linear LED lighting system offers flexible configurations for commercial interiors. Straight sections and corner connectors can create continuous lines, geometric layouts and zigzag arrangements for offices, meeting rooms, retail spaces and reception areas.

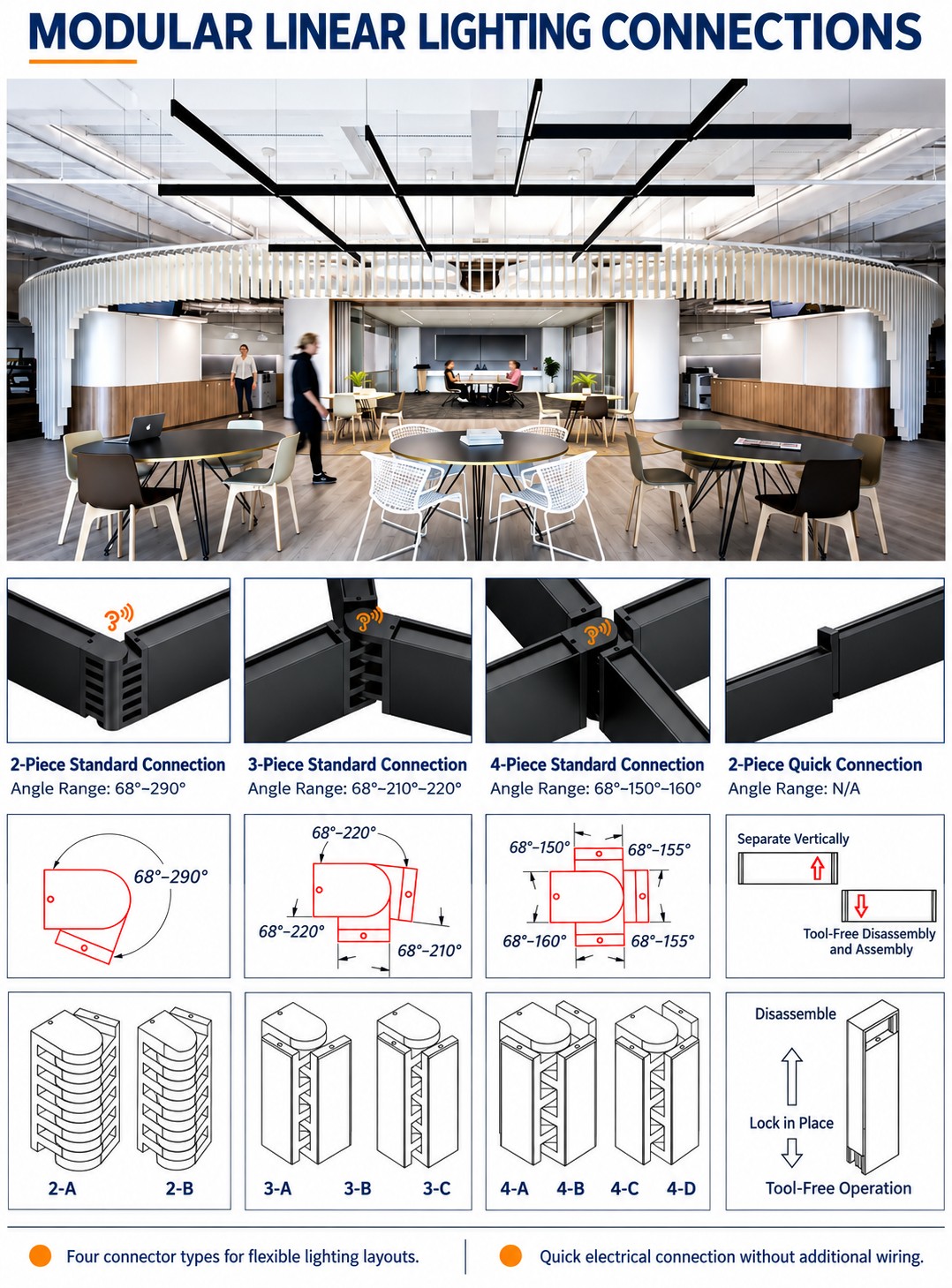

The system offers eight light distribution options and four connector types to suit different project requirements. Electrical interconnection between compatible sections reduces the need for additional wiring at each connection.

Optical Options
• Eyebrow-style anti-glare louver: 80–95 lm/W
• Frosted PMMA diffuser: 110–125 lm/W
• Microprismatic diffuser: 110–125 lm/W
• Linear-pattern diffuser: 90–105 lm/W

Each of the four optical configurations listed above is rated at 25W per metre, with a 110° beam angle and colour temperature options of 3000K, 4000K and 6000K.

The system supports integration with compatible 48V magnetic track spotlights, combining linear illumination with accent lighting. A 48V low-voltage output also supports compatible lighting control configurations.

Product Specifications
Model: KSKD917S
Installation: Suspended
Power: 25W/m
Colour Temperature: 3000K / 4000K / 6000K
Beam Angle: 110° for the listed optical configurations
Luminous Efficacy: Varies by optical configuration
Light Distribution Options: 8
Connector Types: 4
Low-Voltage Output: 48V
Compatible Modules: 48V magnetic track spotlights

Contact KONS for available lengths, optical options, connector configurations and control compatibility. Request a quotation for your commercial lighting project.
