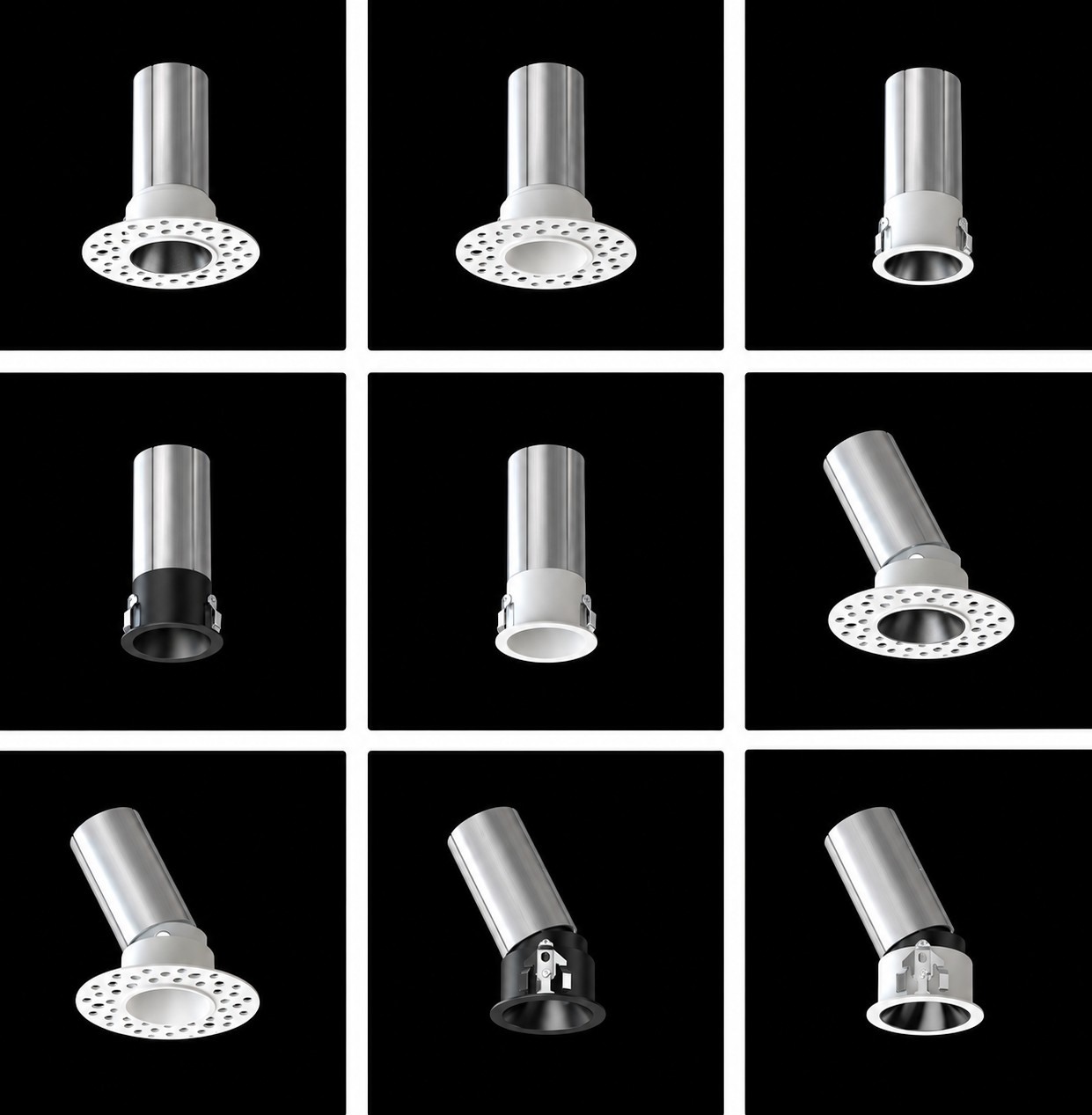

The KONS mini recessed lighting collection offers compact downlights, directional spotlights and asymmetric wall washers for architectural interiors. Conventional trimmed versions and perforated plaster-in mounting options allow the lighting layout to suit different ceiling finishes.

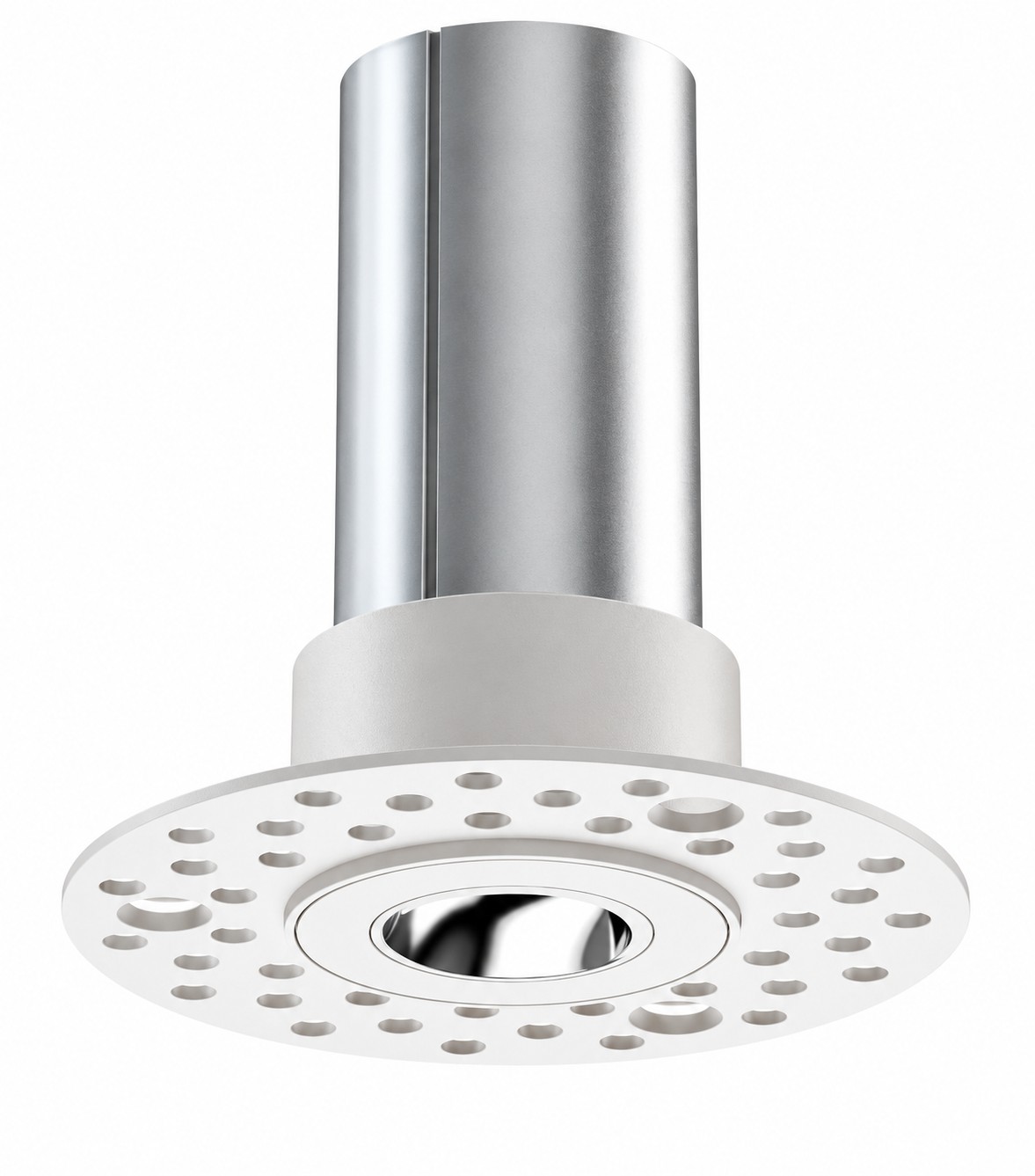

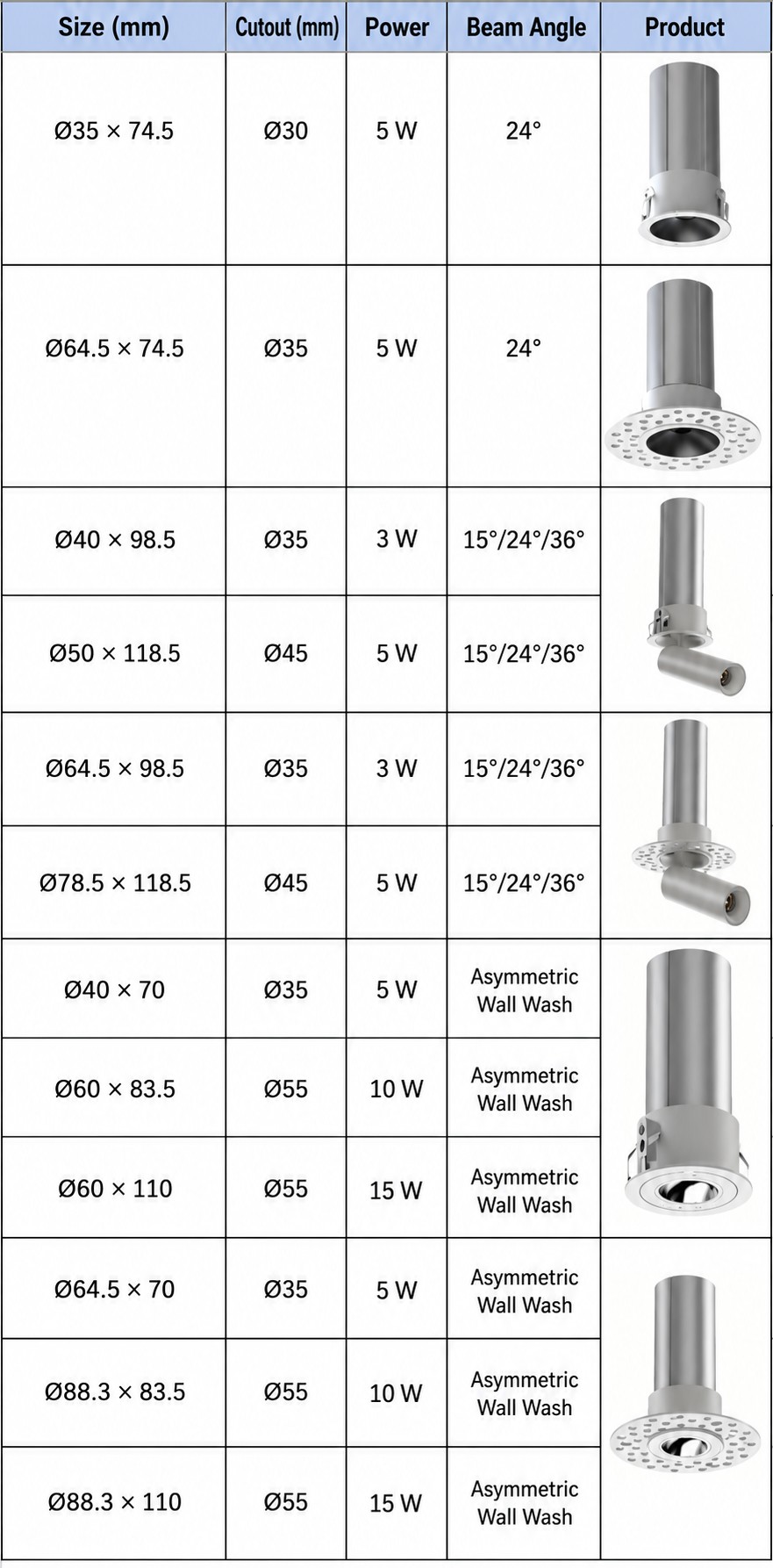

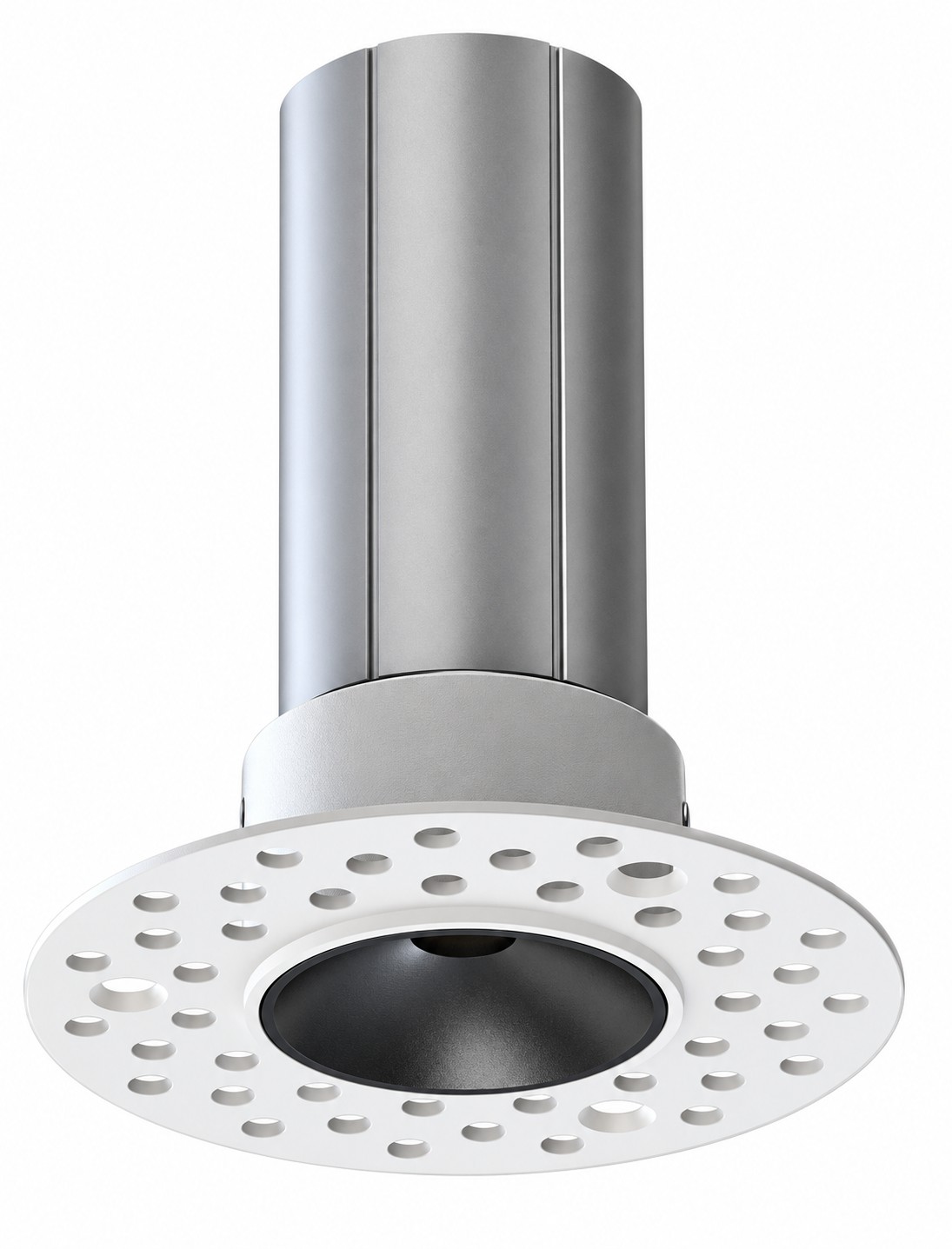

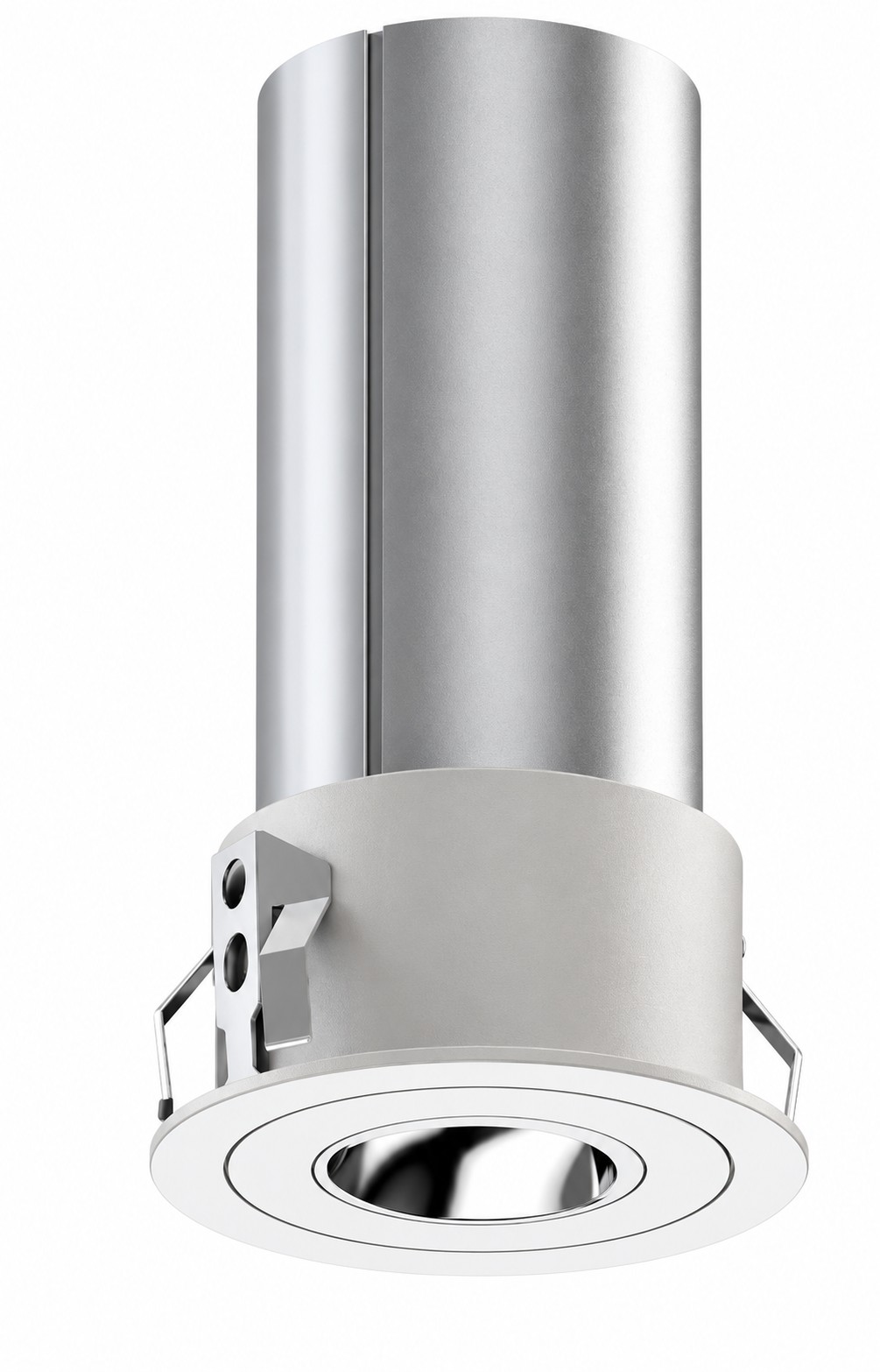

The deeply recessed downlight versions are rated at 5W with a 24° beam. The trimmed version measures Ø35 × 74.5 mm with a Ø30 mm cutout. The plaster-in version measures Ø64.5 × 74.5 mm with a Ø35 mm cutout.

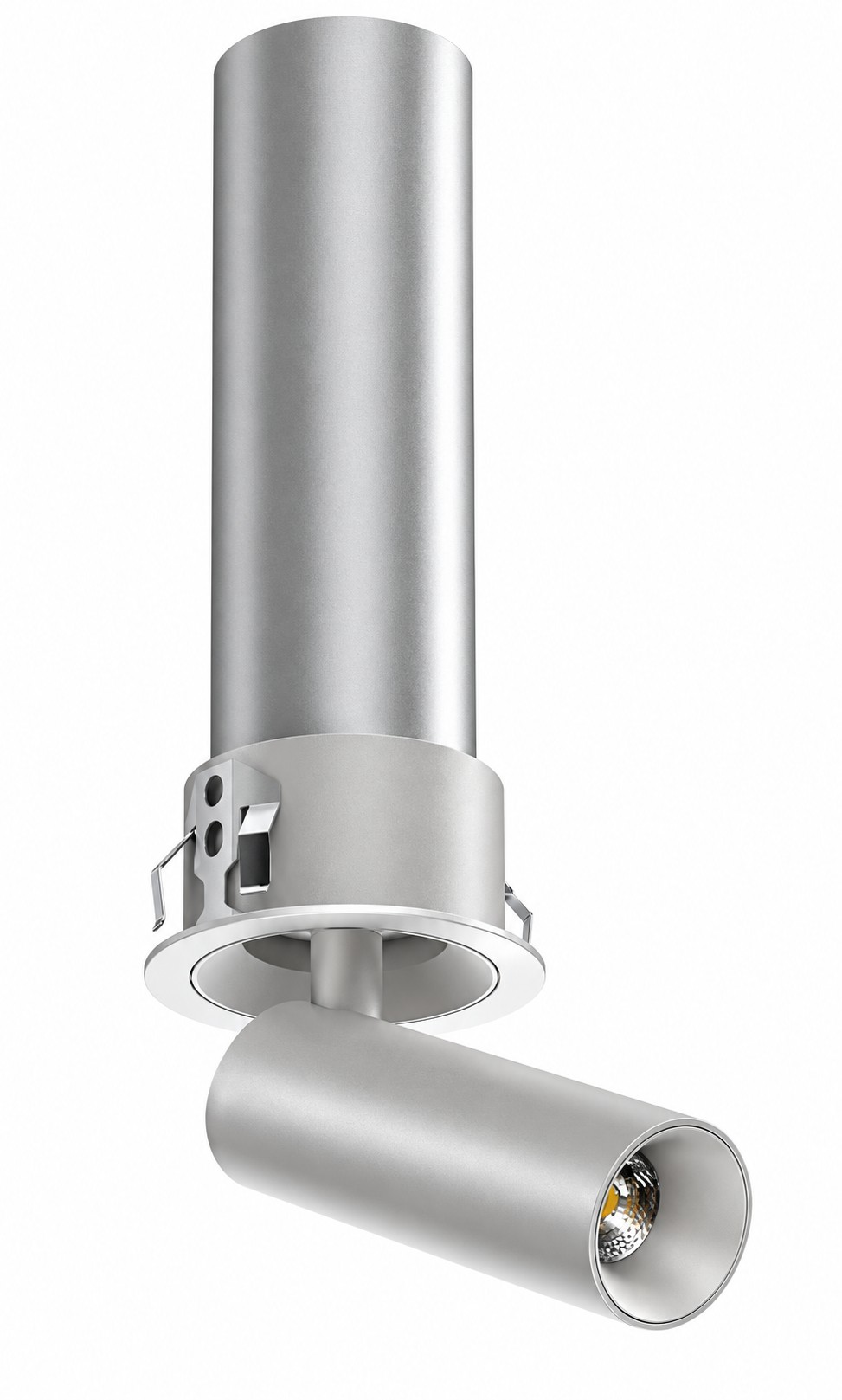

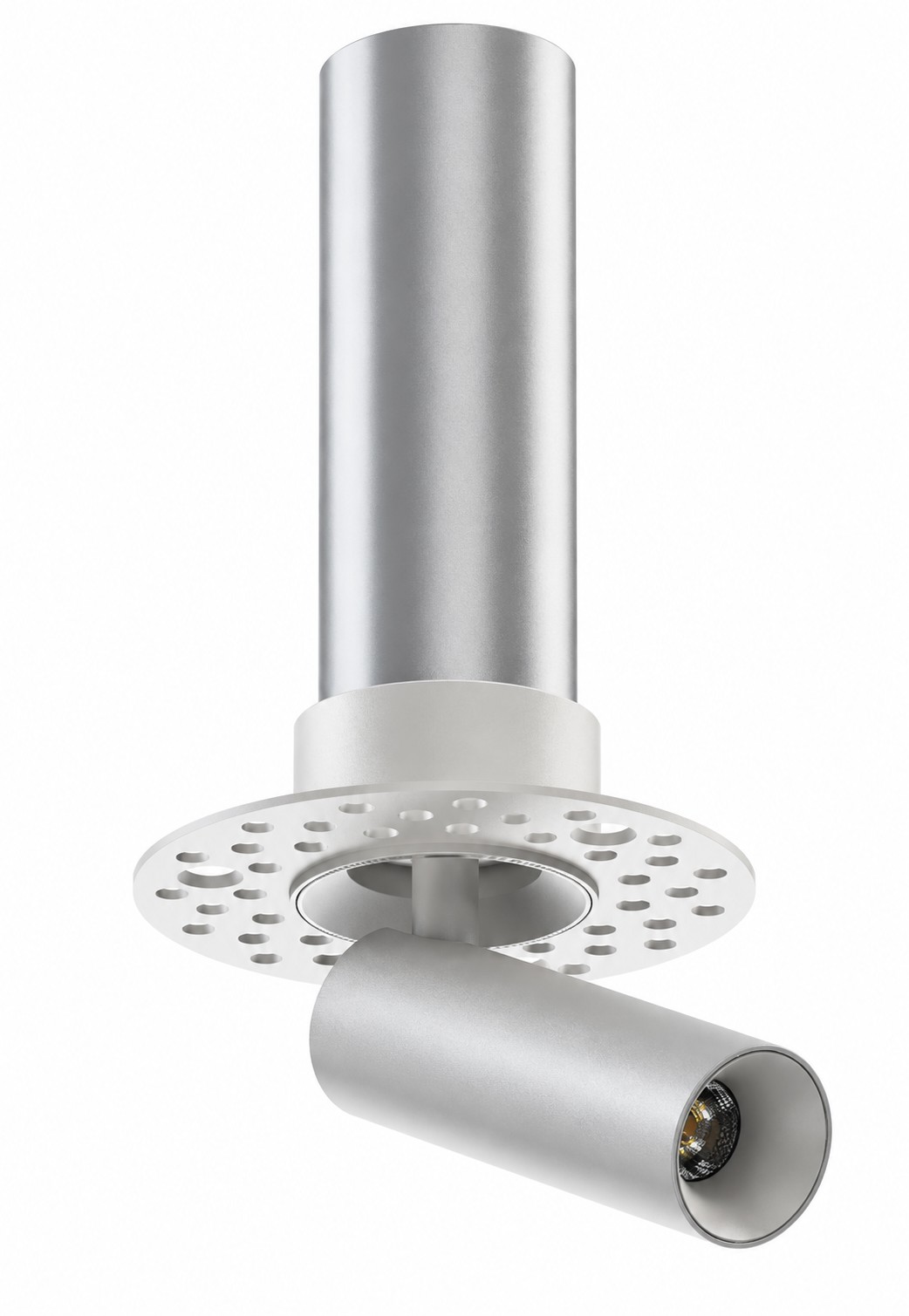

Directional spotlight versions feature a cylindrical head positioned below the recessed mounting base. The 3W and 5W versions offer 15°, 24° and 36° beam options. Trimmed versions measure Ø40 × 98.5 mm and Ø50 × 118.5 mm, with respective cutouts of Ø35 and Ø45 mm. Plaster-in versions measure Ø64.5 × 98.5 mm and Ø78.5 × 118.5 mm, using the same respective cutout sizes.

Asymmetric wall wash versions are available in 5W, 10W and 15W for vertical surface lighting. Trimmed versions measure Ø40 × 70 mm, Ø60 × 83.5 mm and Ø60 × 110 mm. The respective cutouts are Ø35, Ø55 and Ø55 mm. Plaster-in versions measure Ø64.5 × 70 mm, Ø88.3 × 83.5 mm and Ø88.3 × 110 mm, with the same respective cutout sizes.

The collection can be considered for hotel interiors, residential spaces, galleries and retail accent lighting. Select the optical configuration and mounting type according to the intended lighting task, then confirm the model, finish, color temperature, color rendering, lumen output, driver and dimming requirements for the project.
