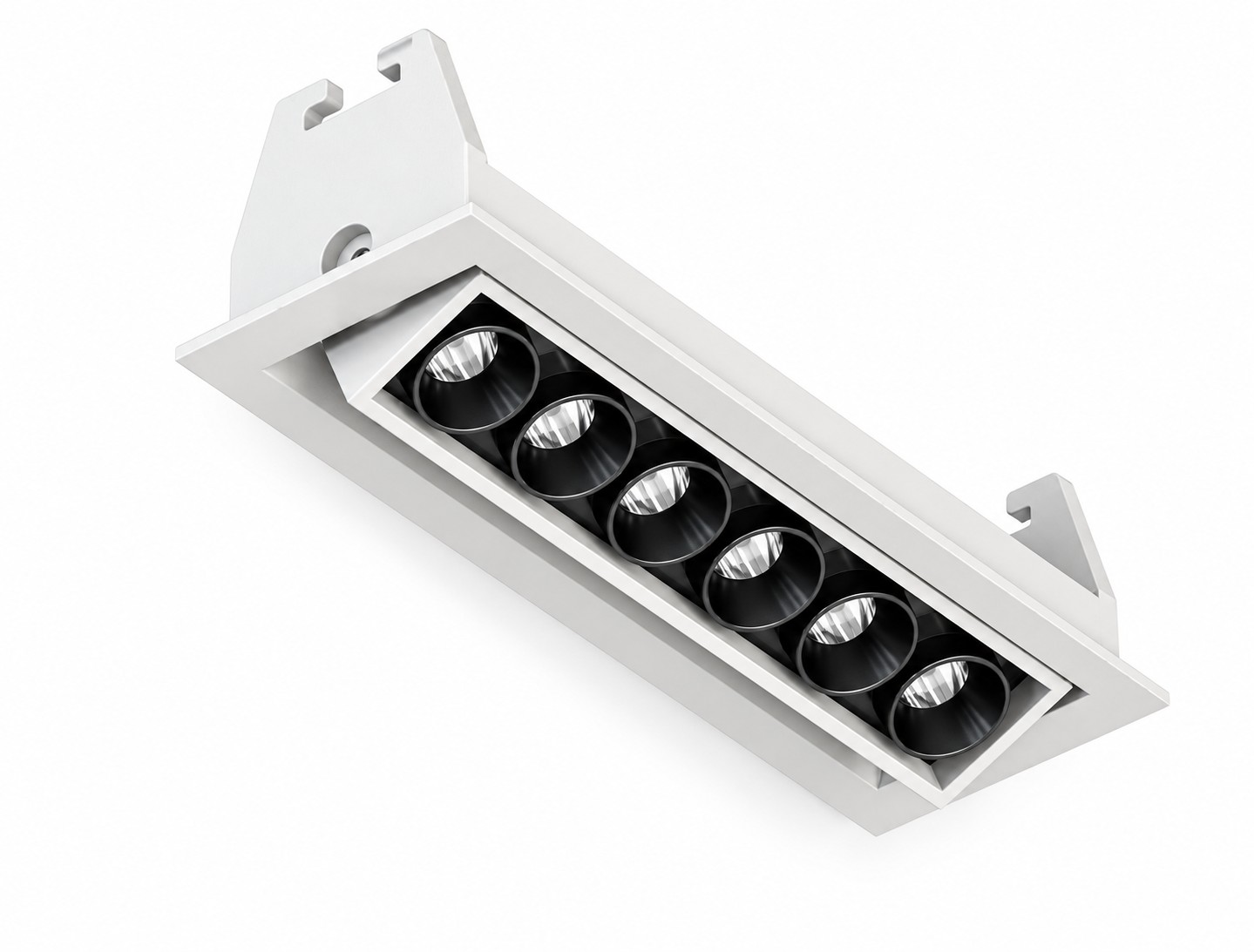

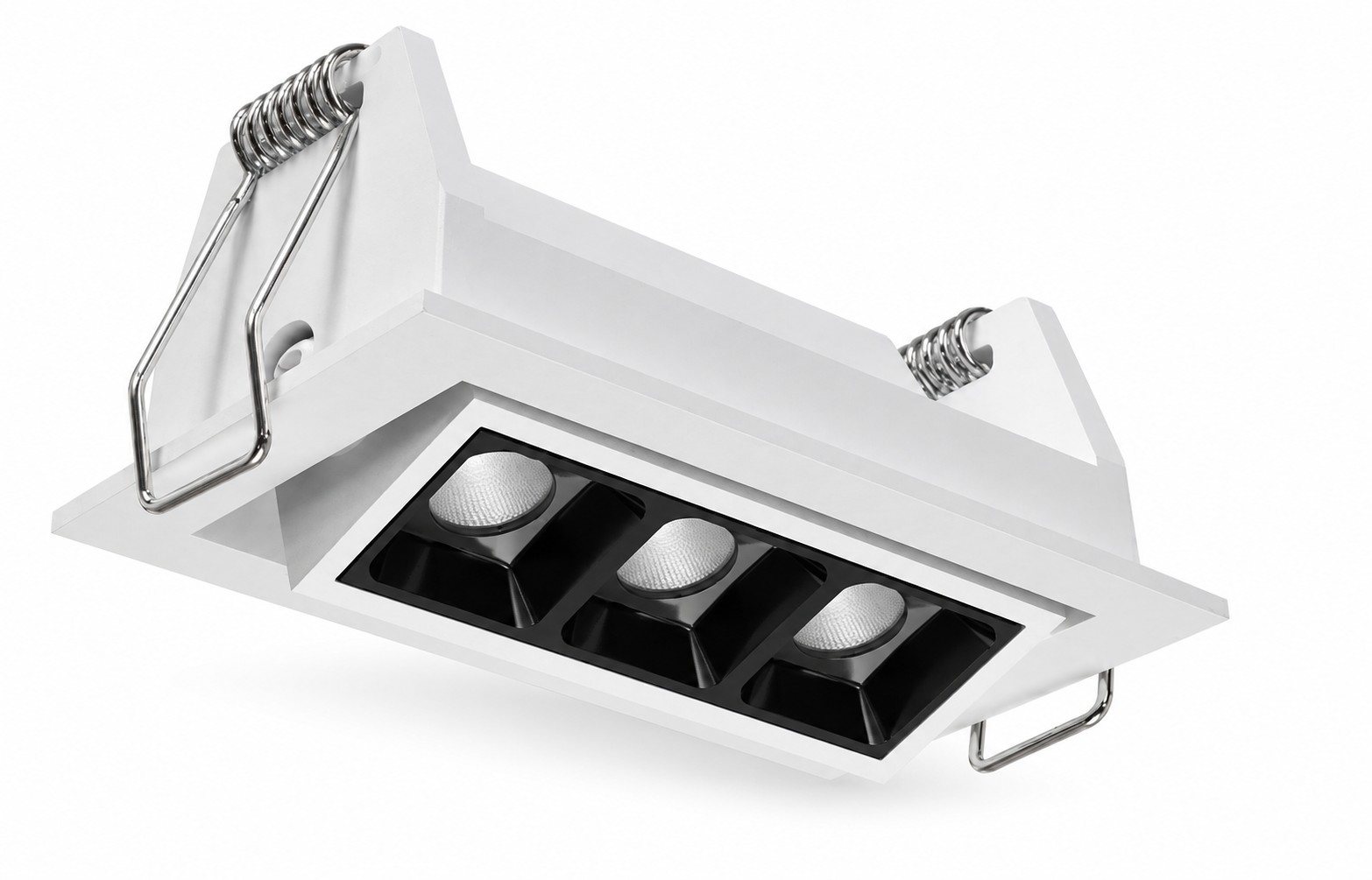

The KONS GSD-S series offers adjustable recessed linear LED spotlights in 3-head, 6-head and 12-head configurations, with power options of 6W, 10W and 20W. The rectangular trim and recessed optical cells provide a coordinated appearance for hotel interiors, retail displays, offices and residential projects.

The die-cast aluminium housing features an adjustable optical assembly with a tilt range of 25° to either side. This allows the light direction to be adjusted for accent lighting on merchandise, artwork and interior features.

Beam angle options include 26° and 38°. Concave and convex optical styles, multiple reflector finishes and selected honeycomb accessories are available. Confirm the required optical configuration for the selected model before ordering.

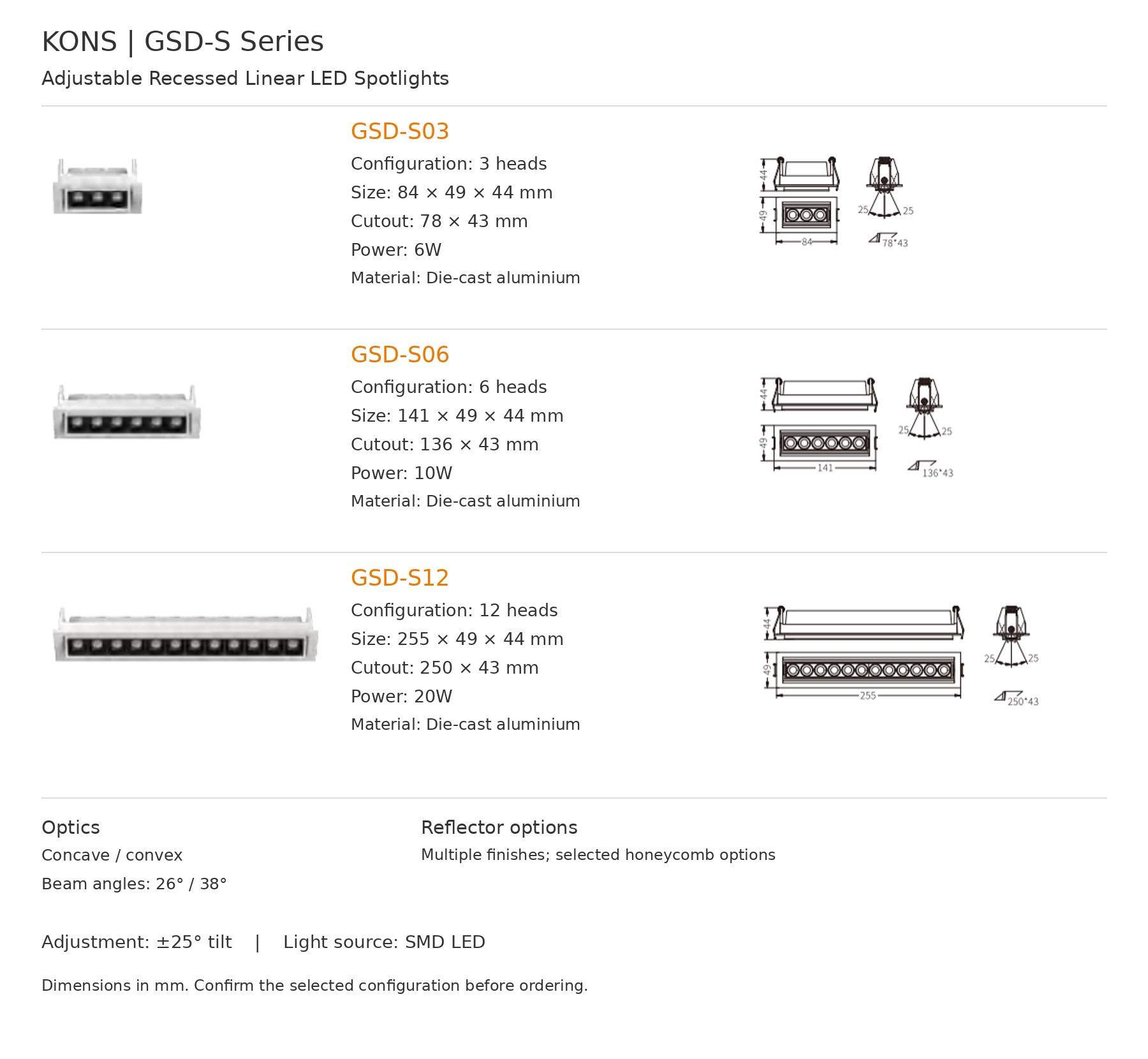

The GSD-S03 is a 3-head, 6W model measuring 84 × 49 × 44 mm, with a 78 × 43 mm ceiling cutout. The GSD-S06 is a 6-head, 10W model measuring 141 × 49 × 44 mm, with a 136 × 43 mm cutout. The GSD-S12 is a 12-head, 20W model measuring 255 × 49 × 44 mm, with a 250 × 43 mm cutout.

For project enquiries, please specify the model, beam angle, optical style, reflector finish and quantity. Contact KONS to confirm color temperature, color rendering, lumen output, driver configuration and dimming options.
