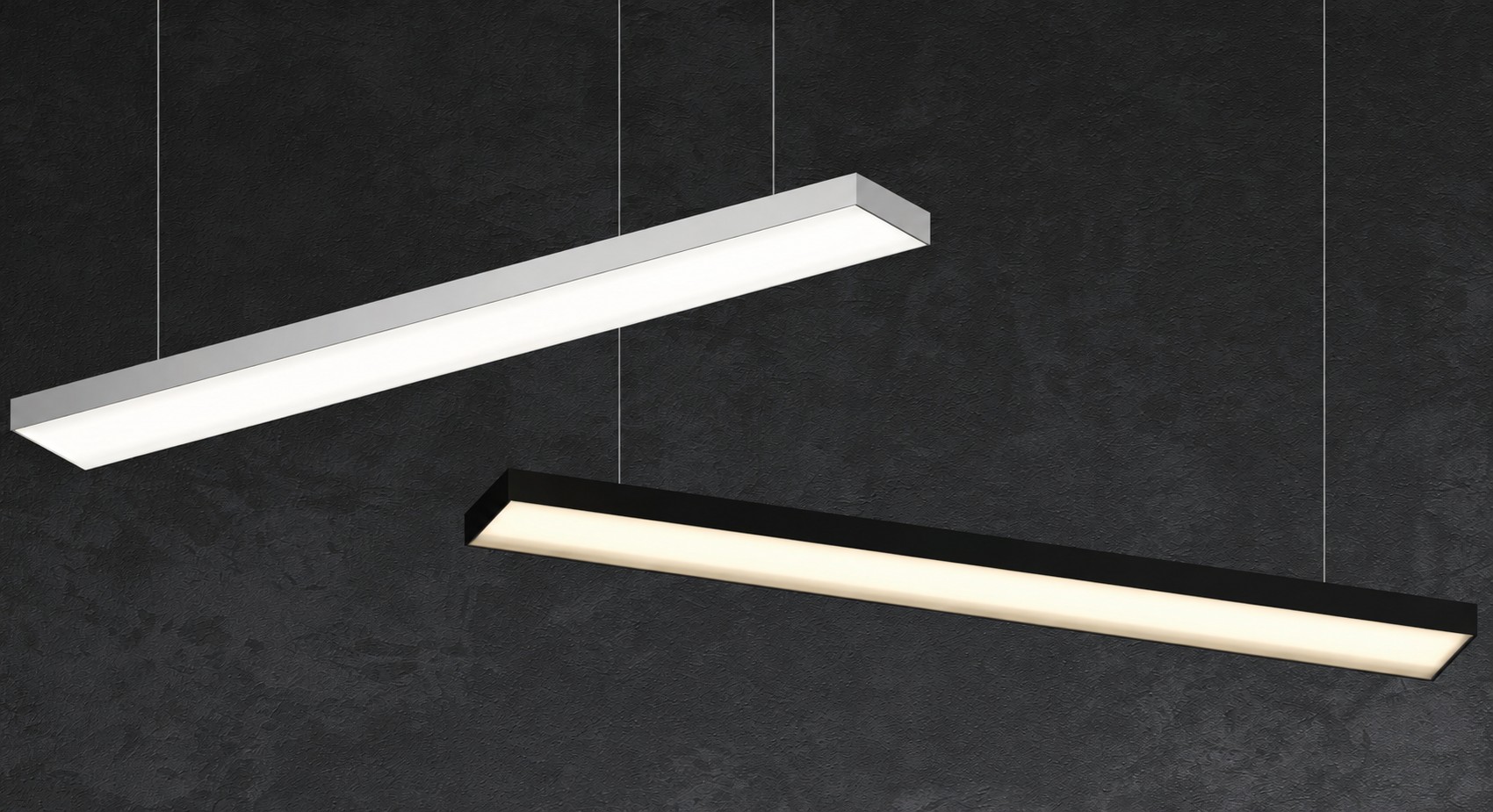

KONS LED Linear Pendant Lighting Series

The KONS linear pendant lighting range brings together KSKD10050, KSKD12050, KSKD14845, KSKD15040, and KSKD20050 for lighting wholesalers, distributors, electrical contractors, and commercial project procurement teams.

Multiple profile widths and diffuser configurations allow trade buyers to select suitable luminaires for offices, meeting rooms, reception areas, and retail interiors. The range shares a 6063 aluminum body, PMMA diffuser, and die-cast aluminum endcaps.

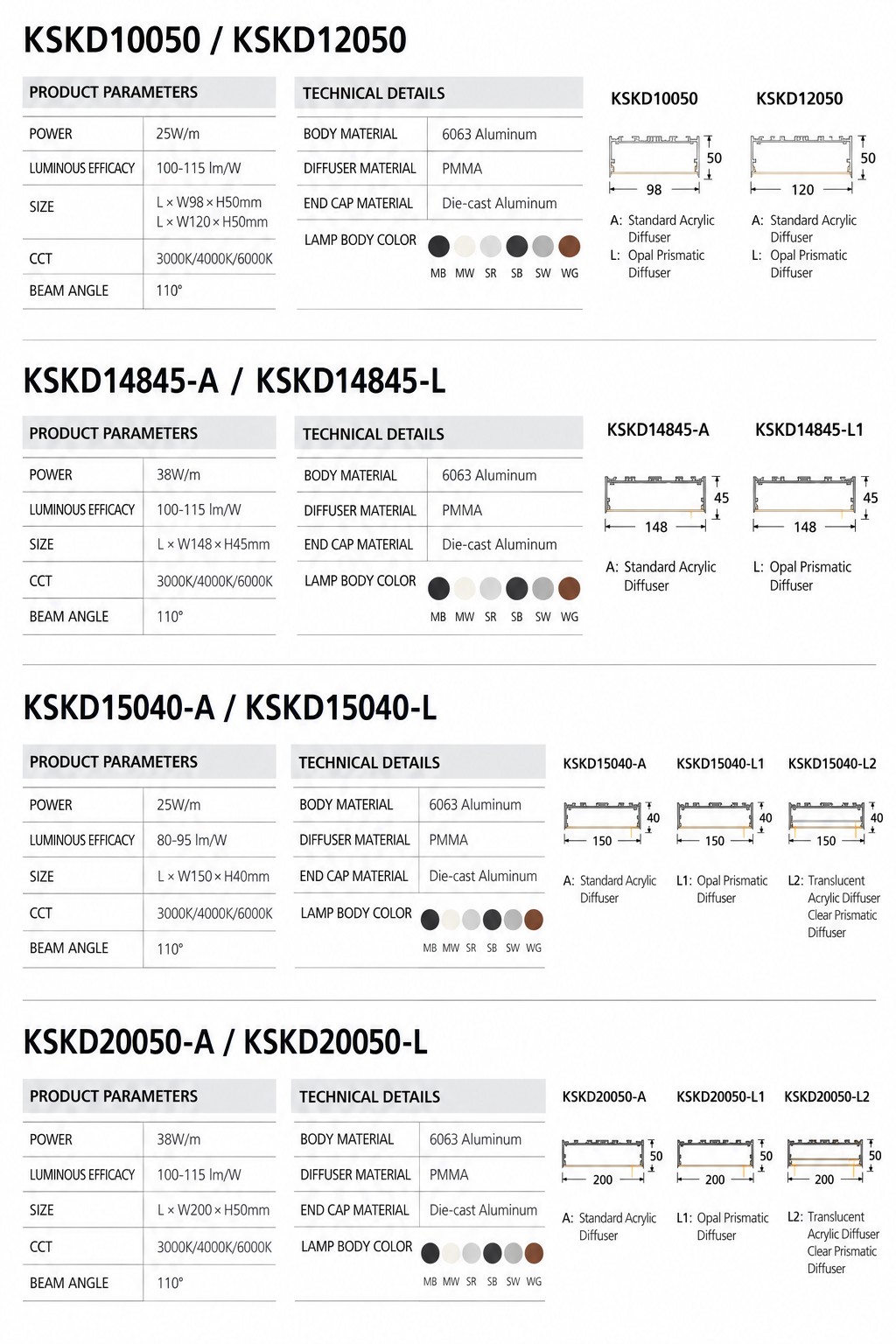

Models and Specifications

• KSKD10050: L × W98 × H50 mm; 25 W/m; 100–115 lm/W.
• KSKD12050: L × W120 × H50 mm; 25 W/m; 100–115 lm/W.
• KSKD14845-A / KSKD14845-L: L × W148 × H45 mm; 38 W/m; 100–115 lm/W.
• KSKD15040-A / KSKD15040-L: L × W150 × H40 mm; 25 W/m; 80–95 lm/W.
• KSKD20050-A / KSKD20050-L: L × W200 × H50 mm; 38 W/m; 100–115 lm/W.

Diffuser Options

KSKD10050 and KSKD12050:
Standard acrylic or opal prismatic diffuser options.

KSKD14845:
A configuration with a standard acrylic diffuser; L1 configuration with an opal prismatic diffuser.

KSKD15040 and KSKD20050:
A configuration with a standard acrylic diffuser; L1 configuration with an opal prismatic diffuser; L2 configuration combining a translucent acrylic inner diffuser with a clear prismatic outer diffuser.

Common Specifications

• Color temperature options: 3000K / 4000K / 6000K
• Beam angle: 110°
• Body material: 6063 aluminum
• Diffuser material: PMMA
• End cap material: Die-cast aluminum
• Body finish codes: MB / MW / SR / SB / SW / WG
• Installation: Suspended

Wholesale and Project Procurement

Contact KONS for distributor sourcing, bulk purchase quotations, and commercial lighting projects.

For a quotation, provide the selected model, diffuser configuration, required luminaire length, quantity, color temperature, finish code, and delivery destination. Project buyers can also submit lighting layouts and any driver, dimming, or certification requirements for confirmation.
