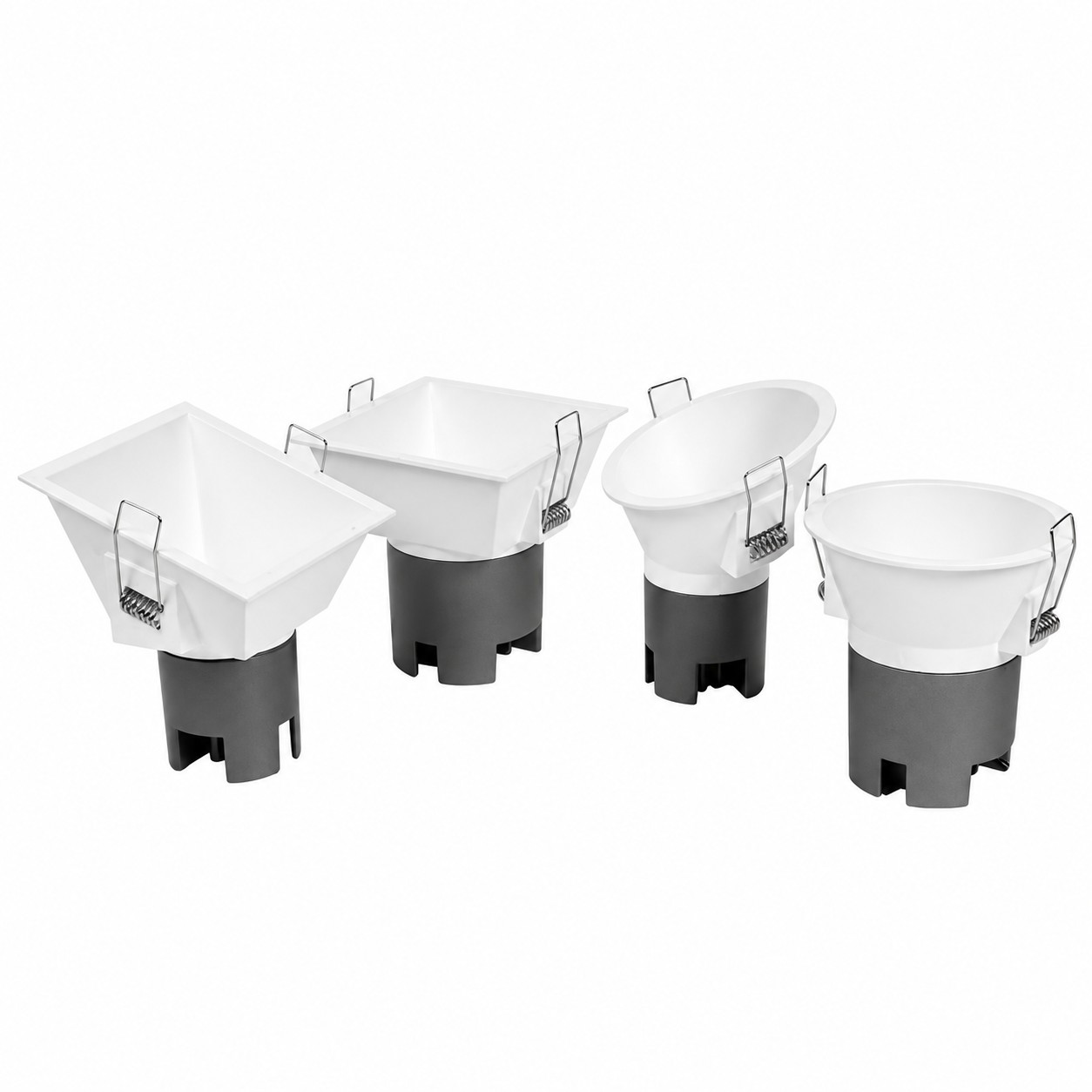

The KONS TSD002 and TSD003 families offer recessed COB LED ceiling spotlights with round and square designs. A 4 mm narrow trim and deeply recessed optical opening create a discreet appearance for hotel, residential, retail and other architectural interiors.

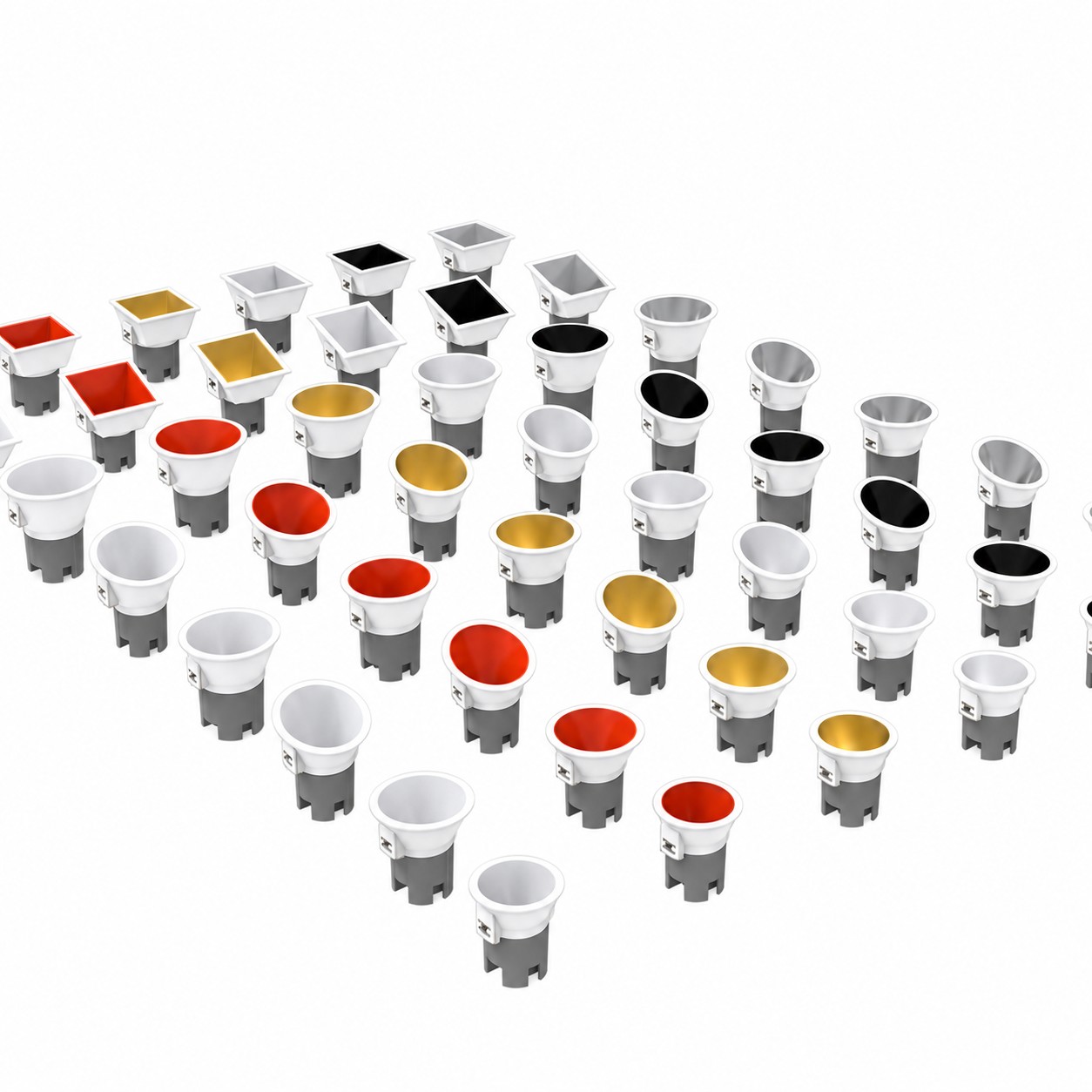

The round TSD002 family offers silver, gold, red, black and white reflector finishes, allowing the visible interior of the spotlight to complement different decoration schemes. White and black accessory frames are also shown in the supplied specifications. Finish availability for square and adjustable models should be confirmed for the selected version.

The supplied models use die-cast aluminum and PC construction. Beam options of 15°, 24° and 38° support different accent lighting layouts, from focused illumination to broader coverage.

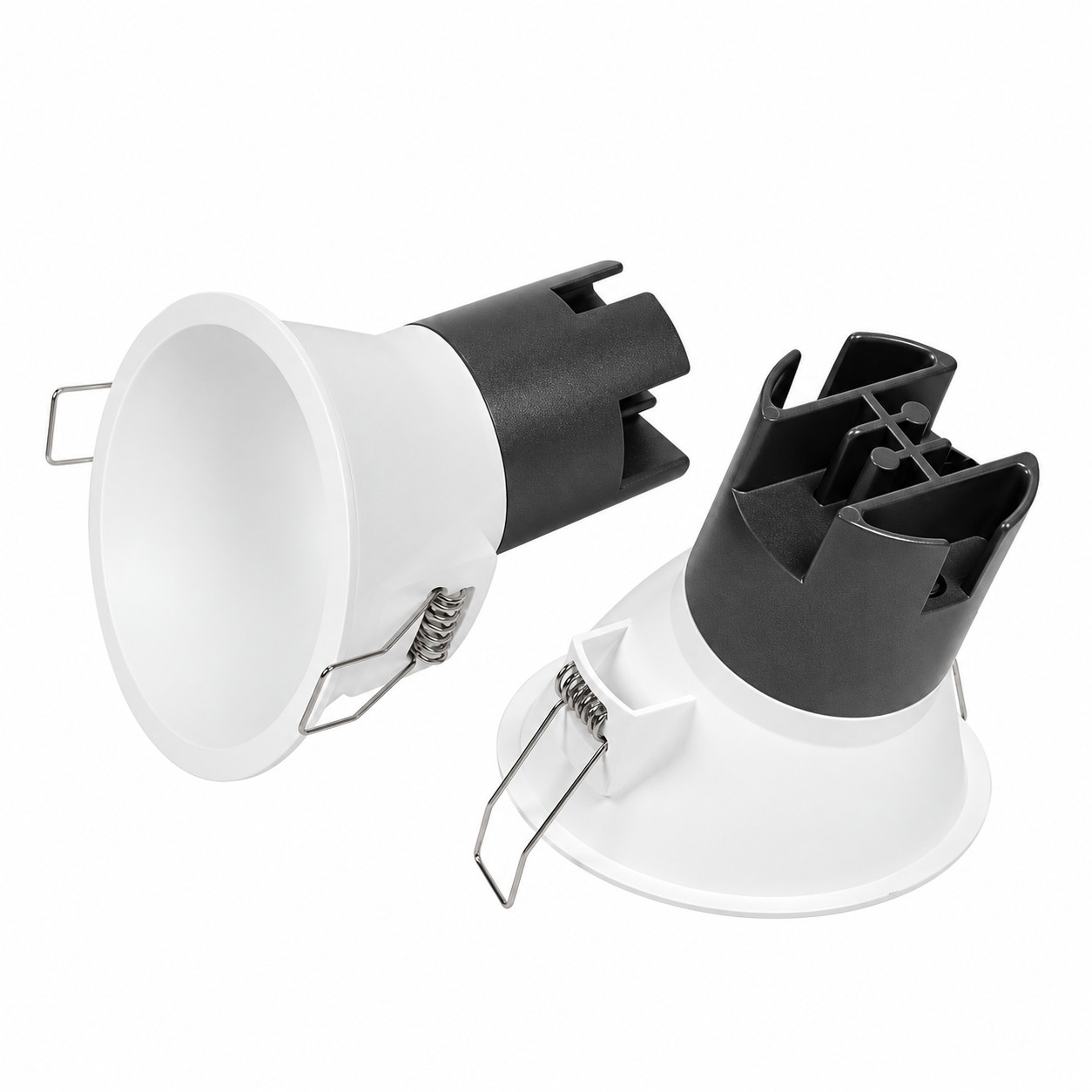

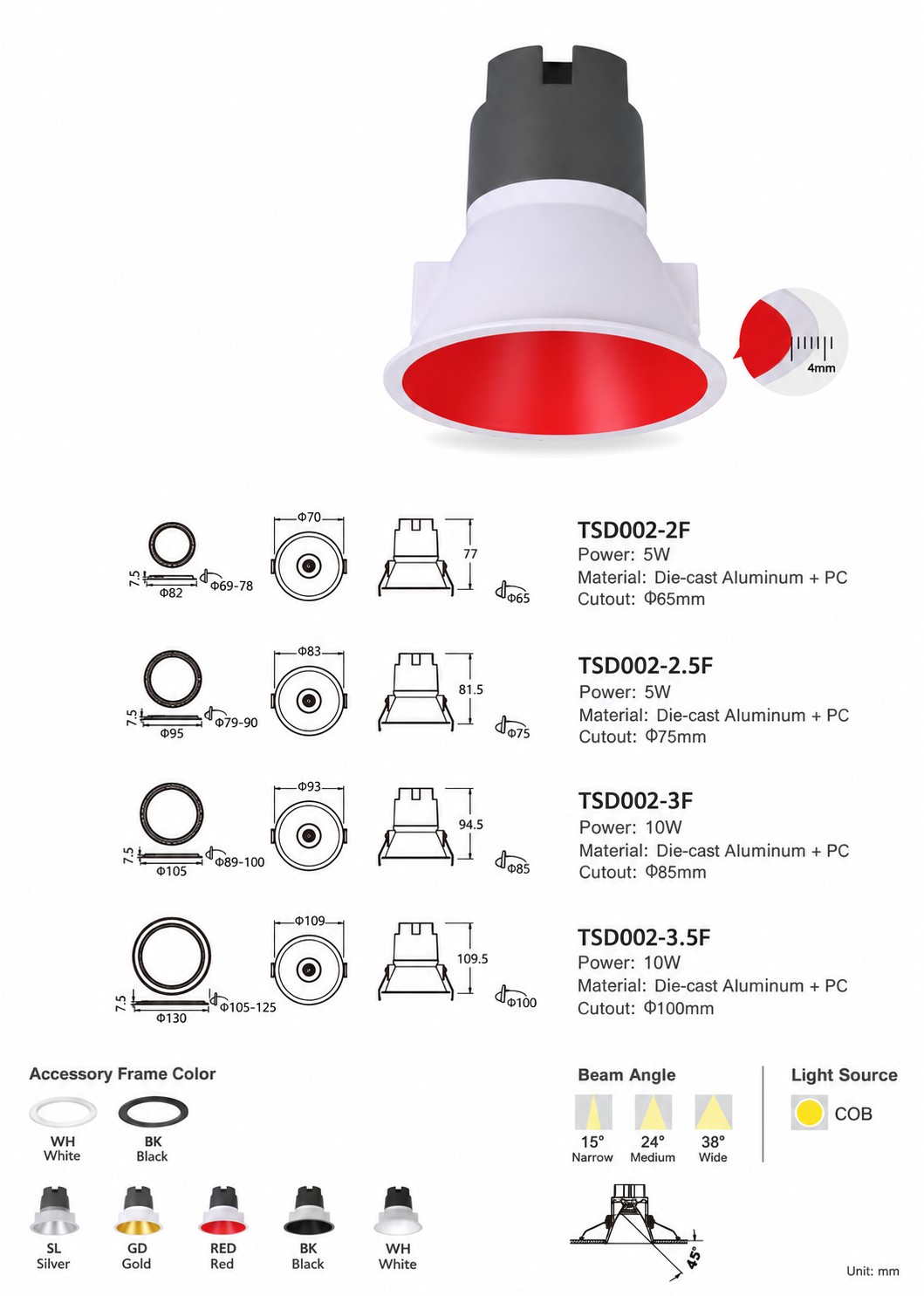

Fixed round models include TSD002-2F at 5W with a Ø65 mm cutout, TSD002-2.5F at 5W with a Ø75 mm cutout, TSD002-3F at 10W with a Ø85 mm cutout, and TSD002-3.5F at 10W with a Ø100 mm cutout. Their respective body diameters are Ø70, Ø83, Ø93 and Ø109 mm, with heights of 77, 81.5, 94.5 and 109.5 mm.

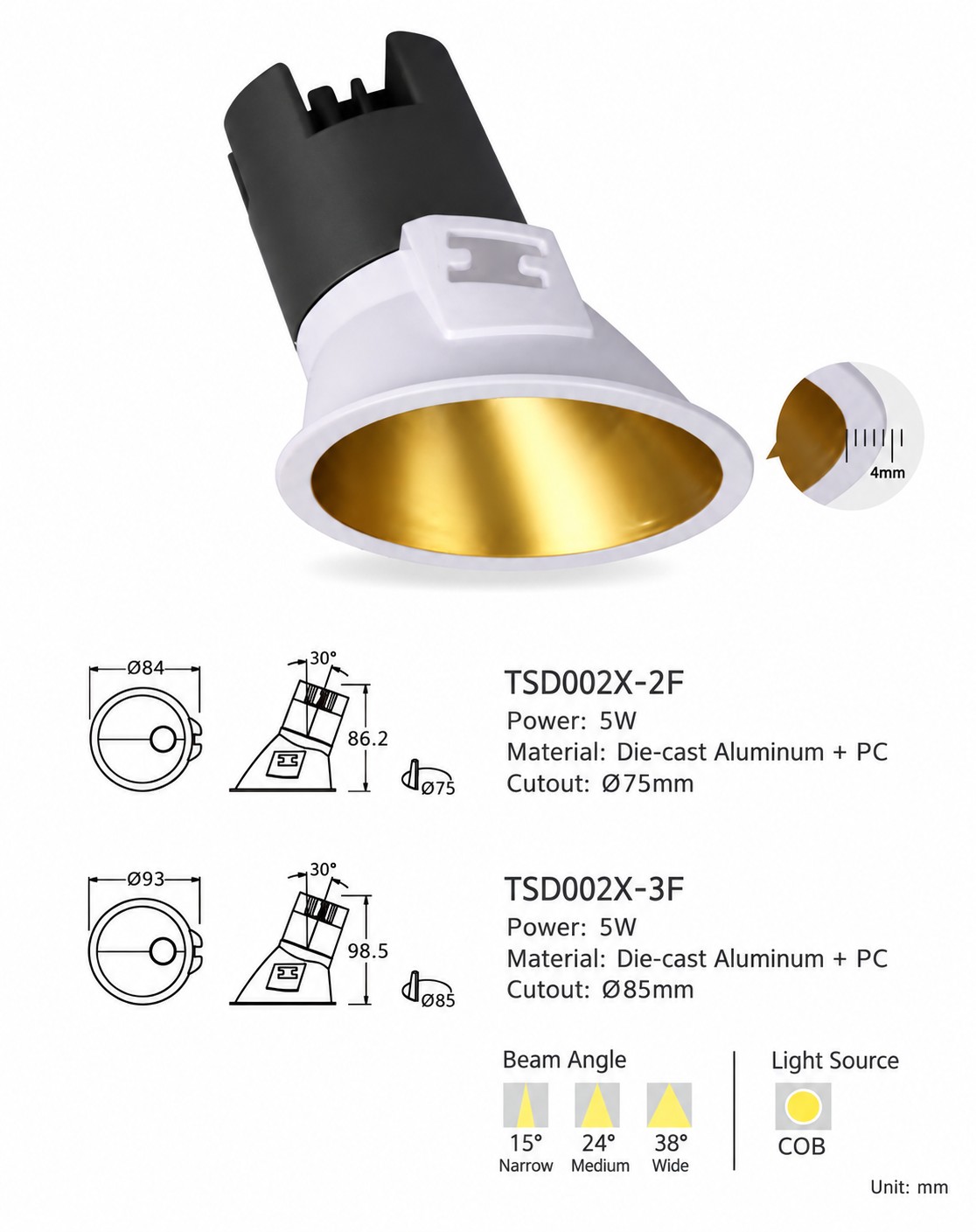

Adjustable round models include TSD002X-2F and TSD002X-3F, both rated at 5W. Their cutouts are Ø75 and Ø85 mm, with outer diameters of Ø84 and Ø93 mm and illustrated heights of 86.2 and 98.5 mm.

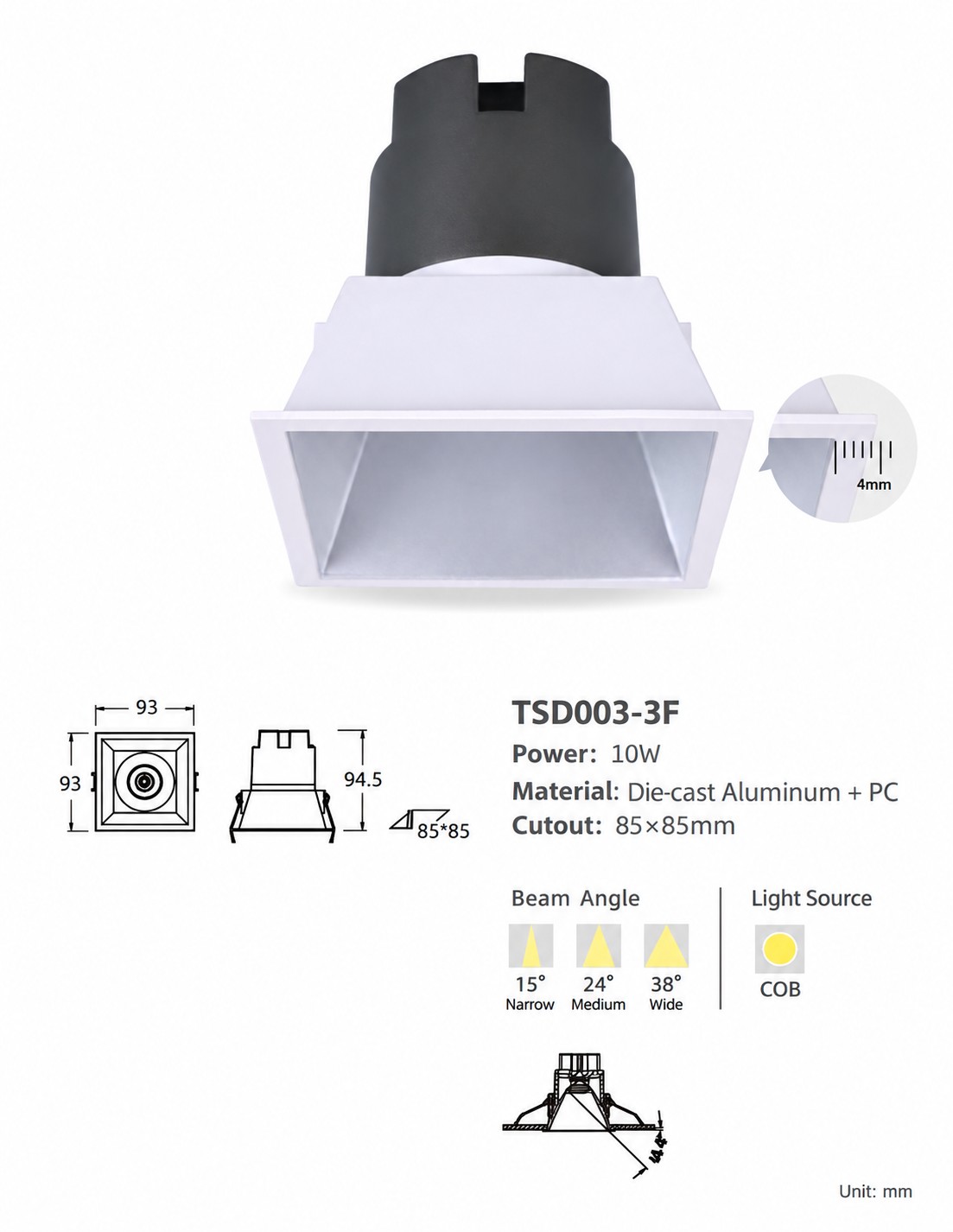

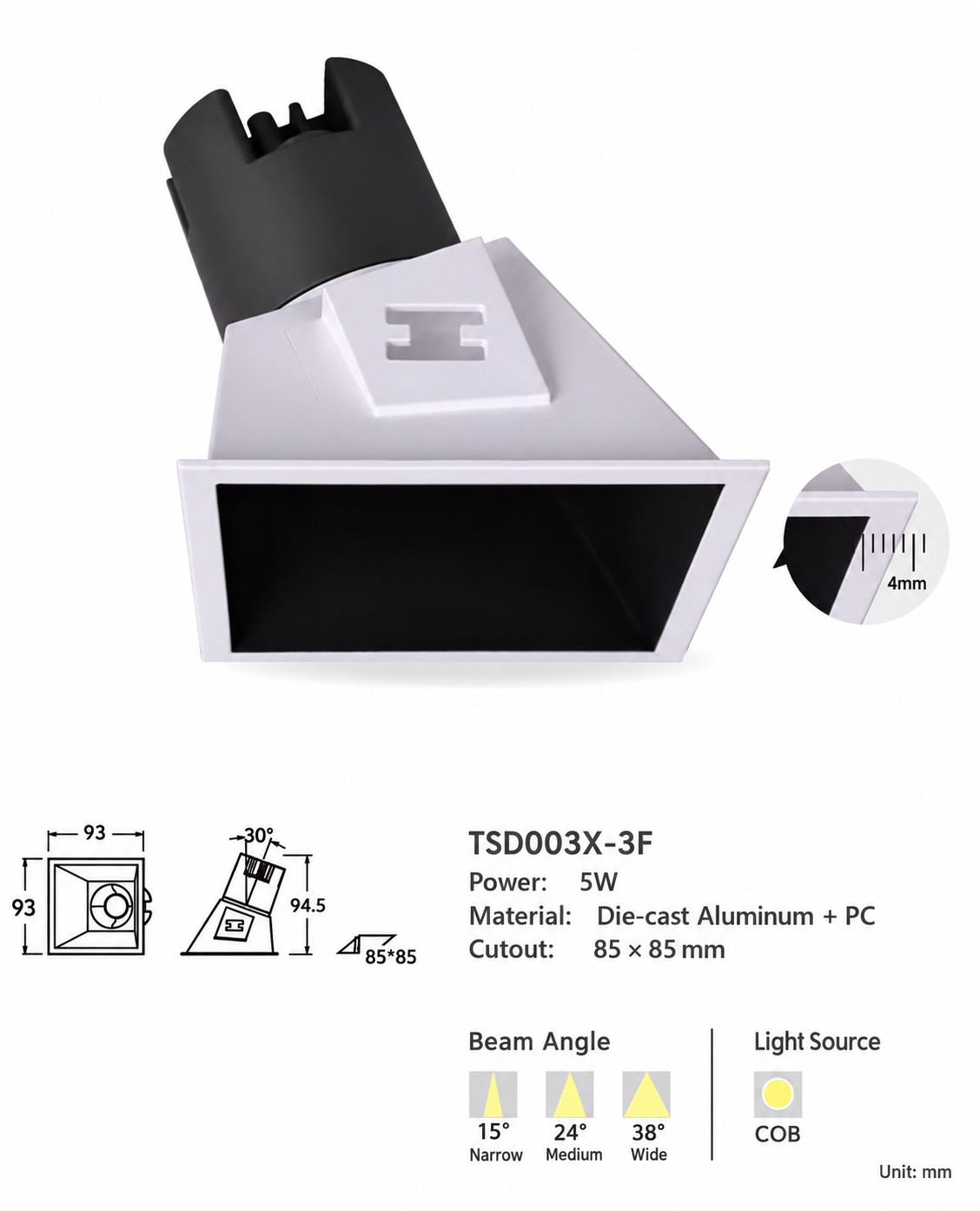

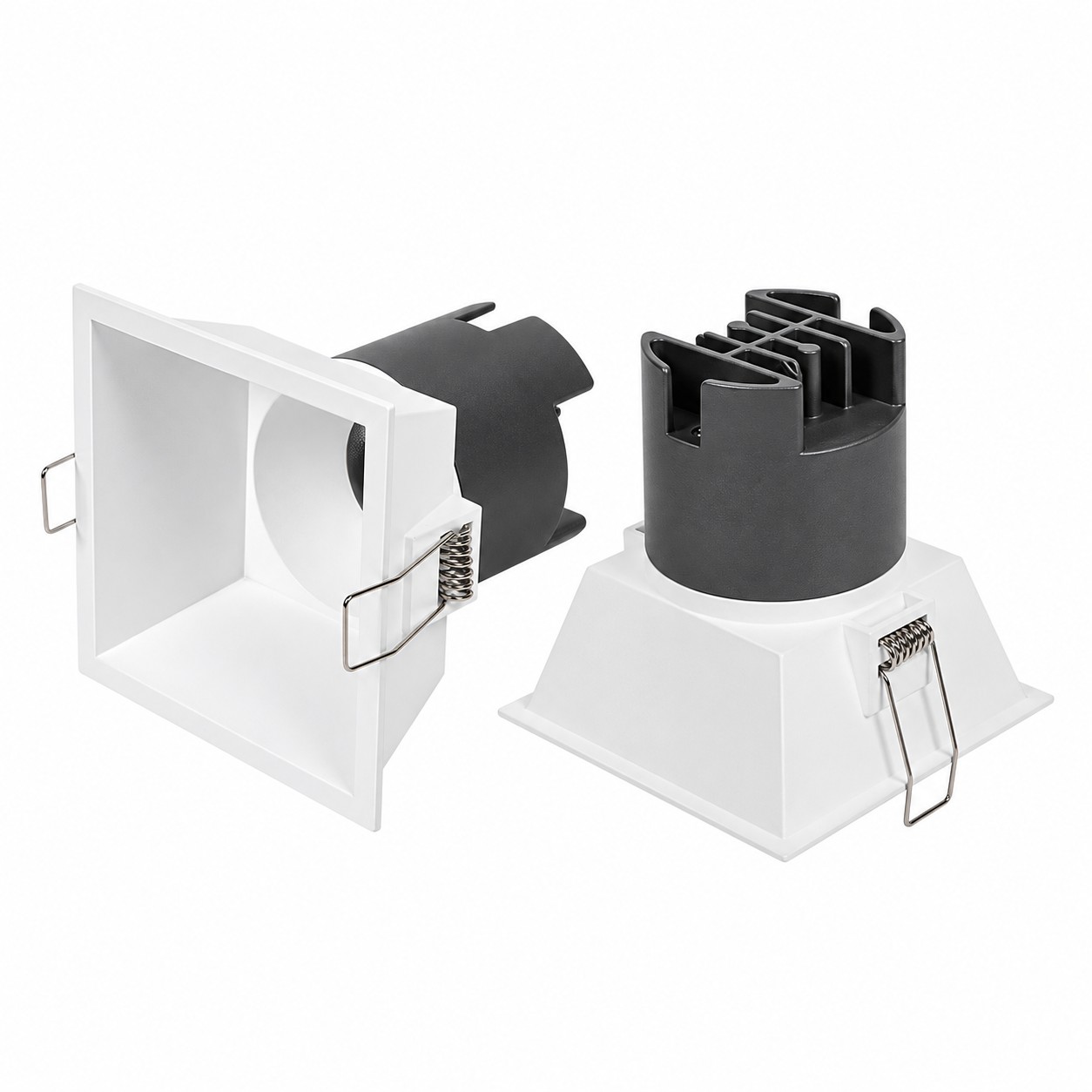

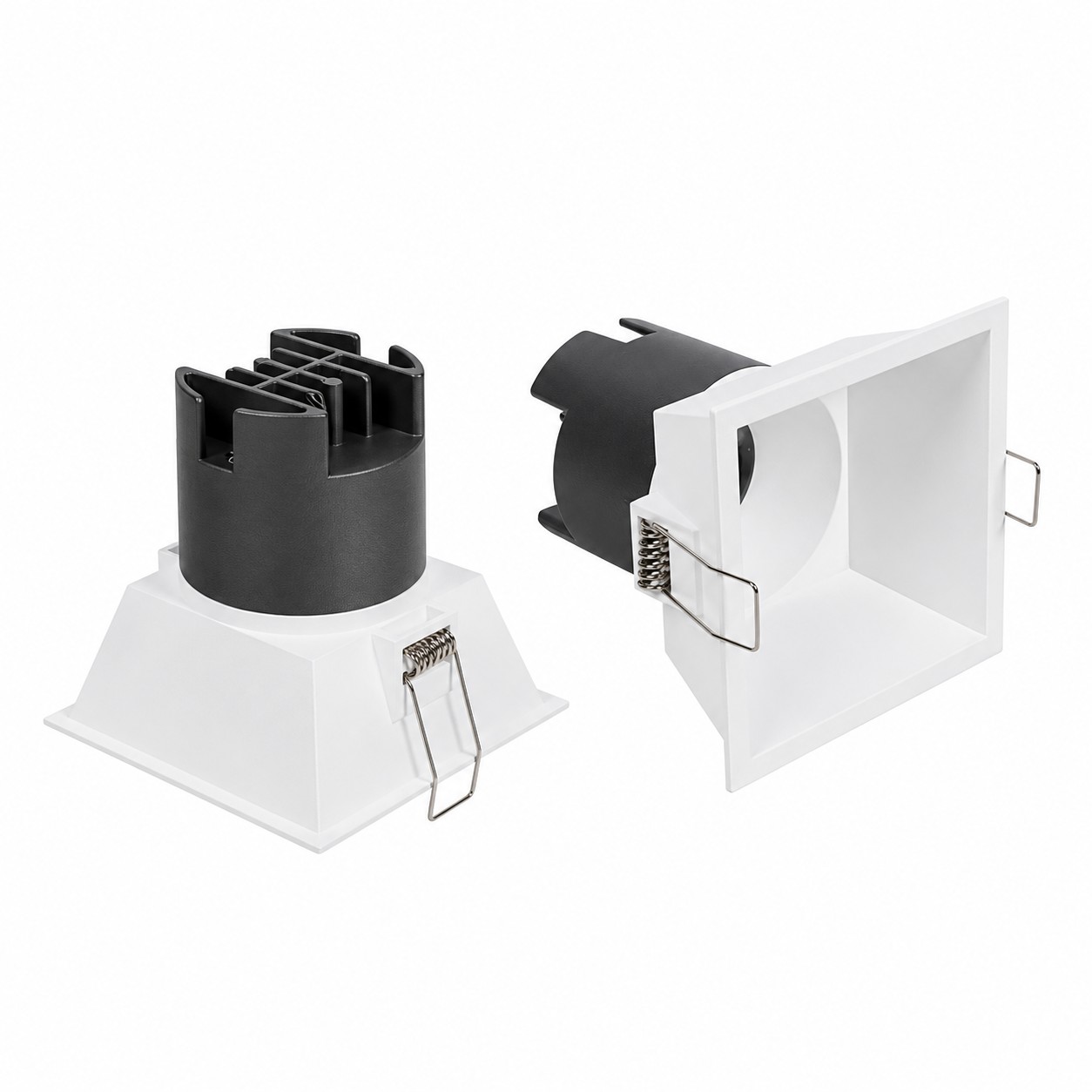

Square models include the fixed TSD003-3F at 10W and the adjustable TSD003X-3F at 5W. Both use an 85 × 85 mm ceiling cutout, with an outer size of 93 × 93 mm and a listed height of 94.5 mm.

For project orders, specify the model, reflector finish, frame option and beam angle. Confirm color temperature, color rendering, lumen output, driver specifications and dimming requirements before final selection.
