Magnetic Track Rail Mounting Options

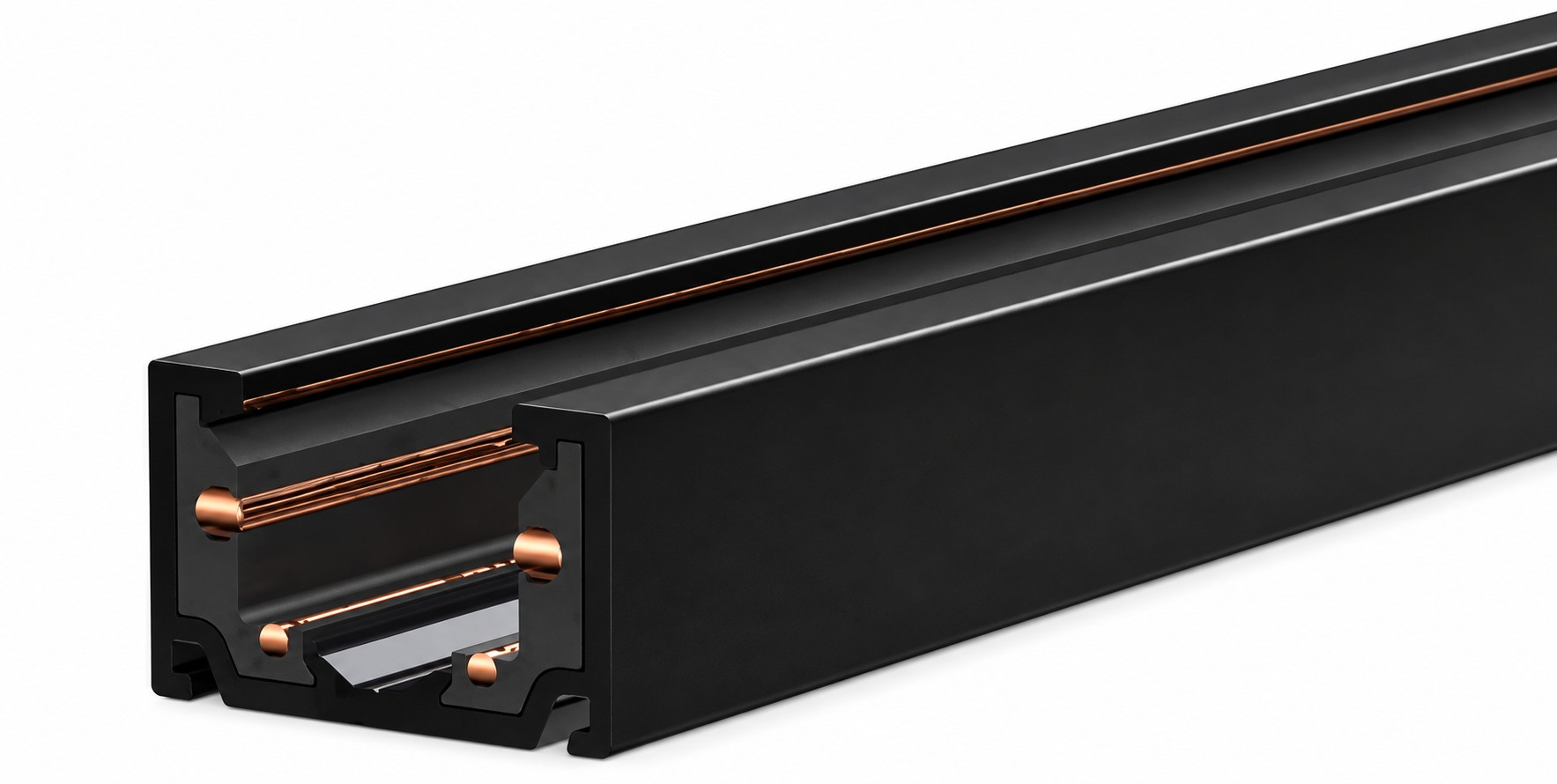

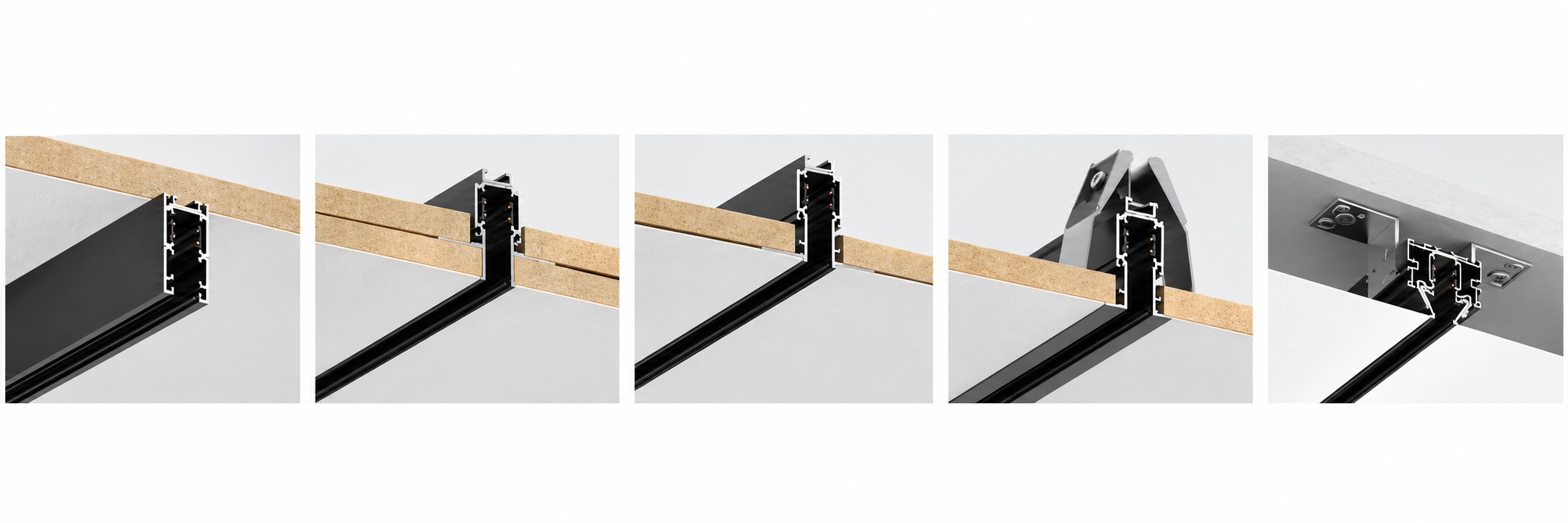

Option 1: Surface-mounted Installation
The track rail is mounted directly onto the ceiling surface without recessing the rail into the ceiling. This option is suitable for projects where a visible track profile is preferred.

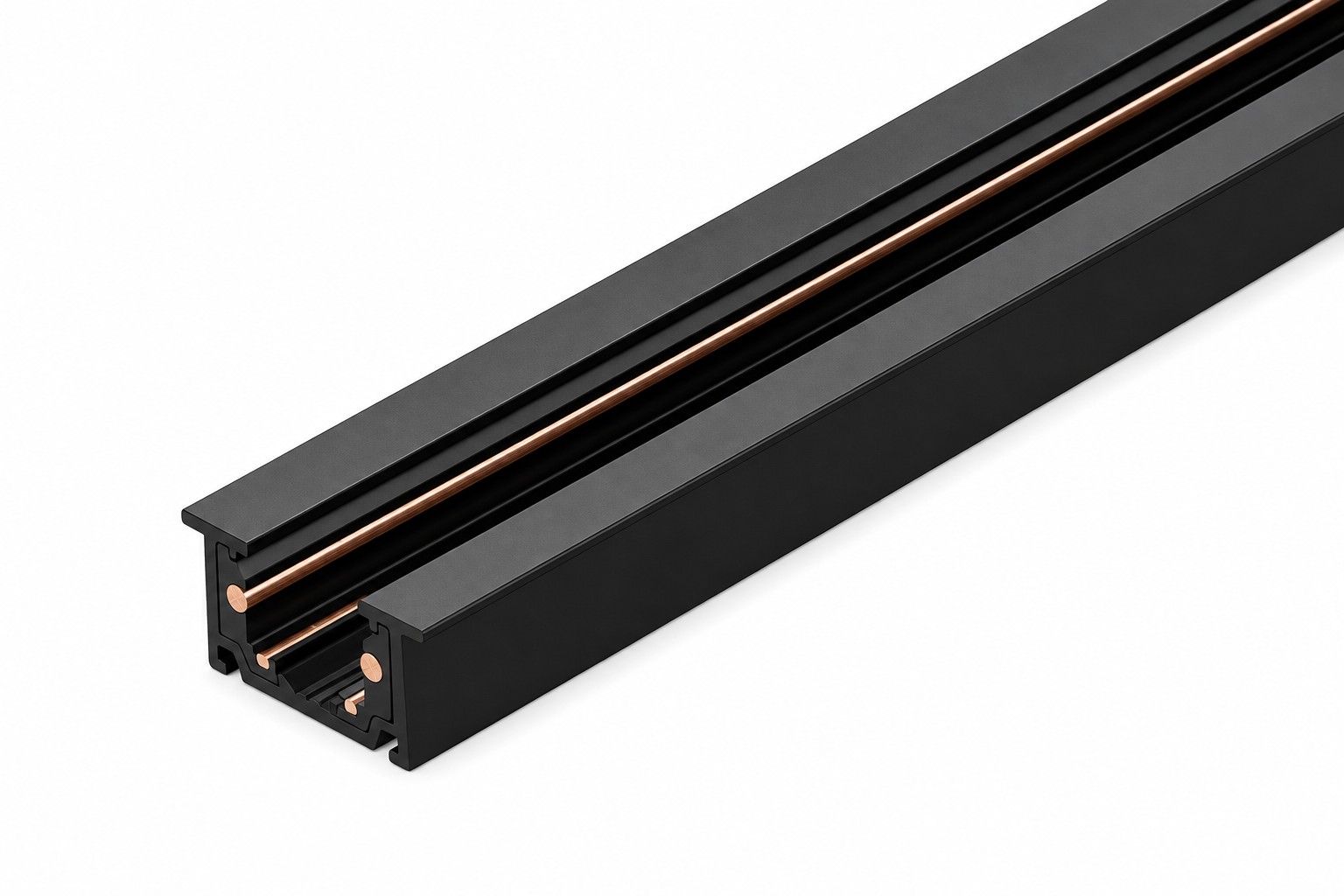

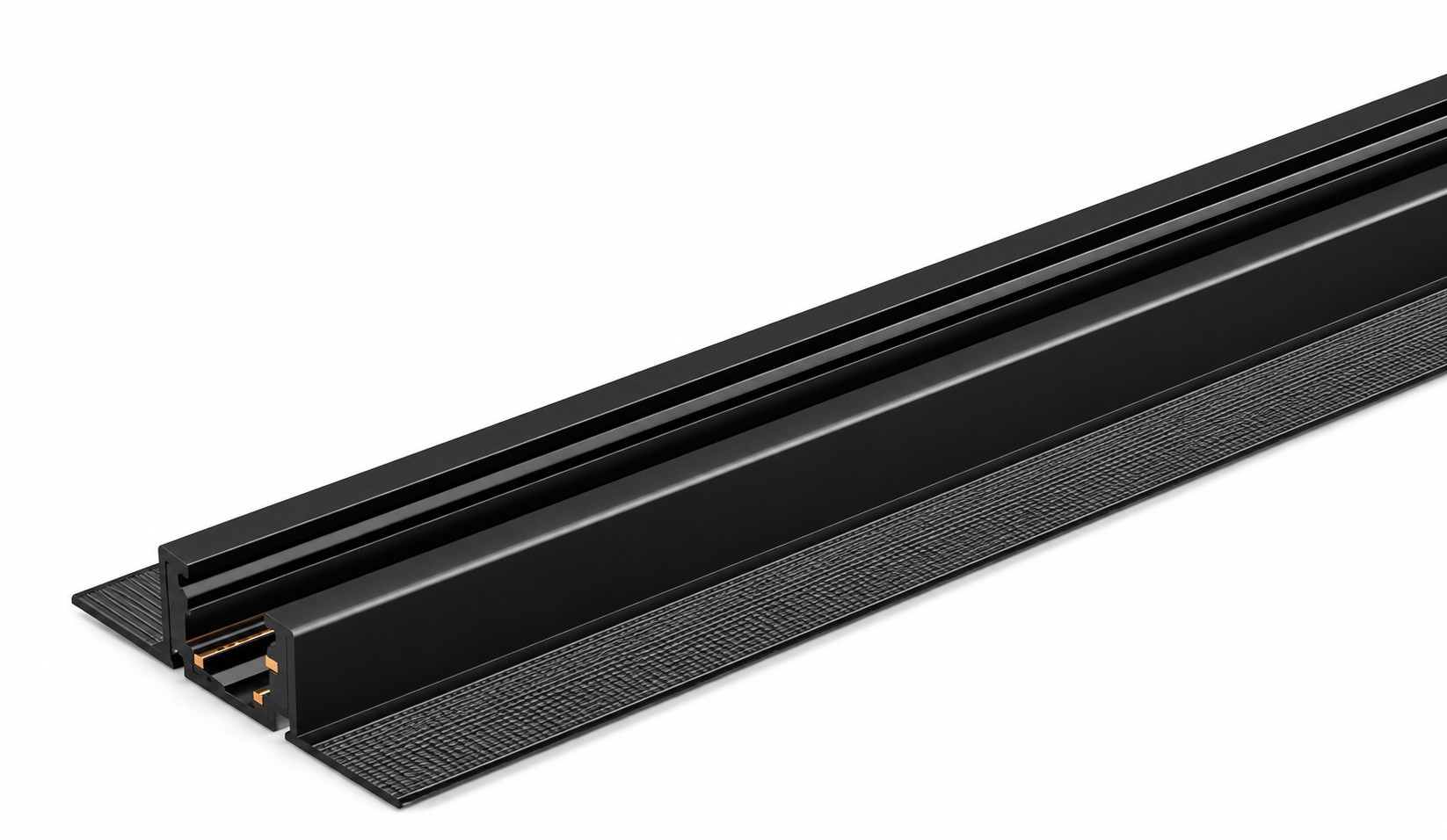

Options 2–3: Recessed Installation
The track rail is integrated into the ceiling opening. Different profile arrangements suit different ceiling details. Confirm the opening size, ceiling thickness and installation clearance for the selected model.

Option 4: Recessed Installation with Support Brackets
The track rail is recessed into the ceiling and secured using support brackets above the ceiling board. Confirm the compatible brackets and fixing requirements before ordering.

Option 5: Overhead Structure Mounting
The track rail is secured to the overhead structure using mounting brackets. Confirm the fixing method and required accessories according to the project layout.

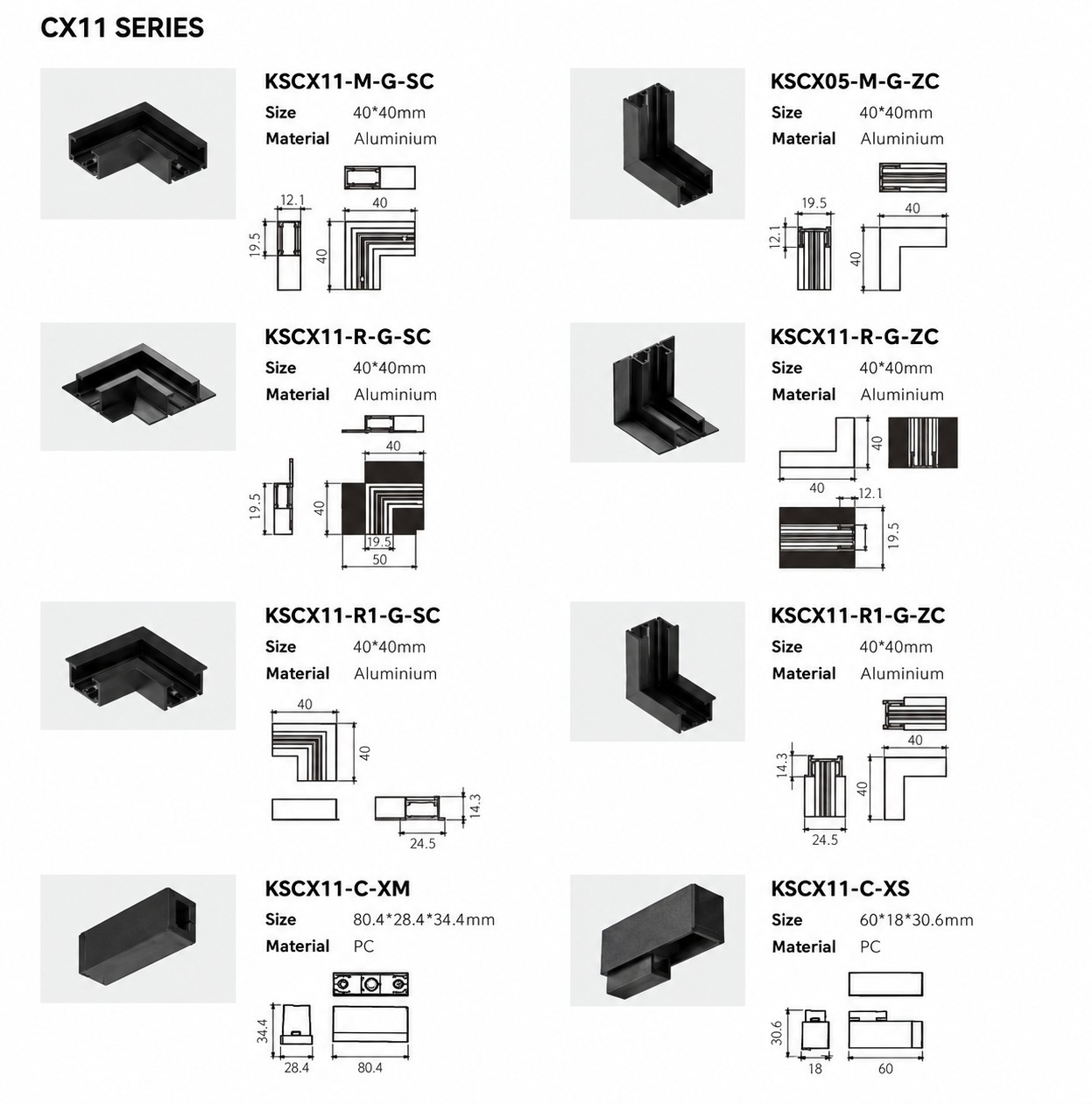

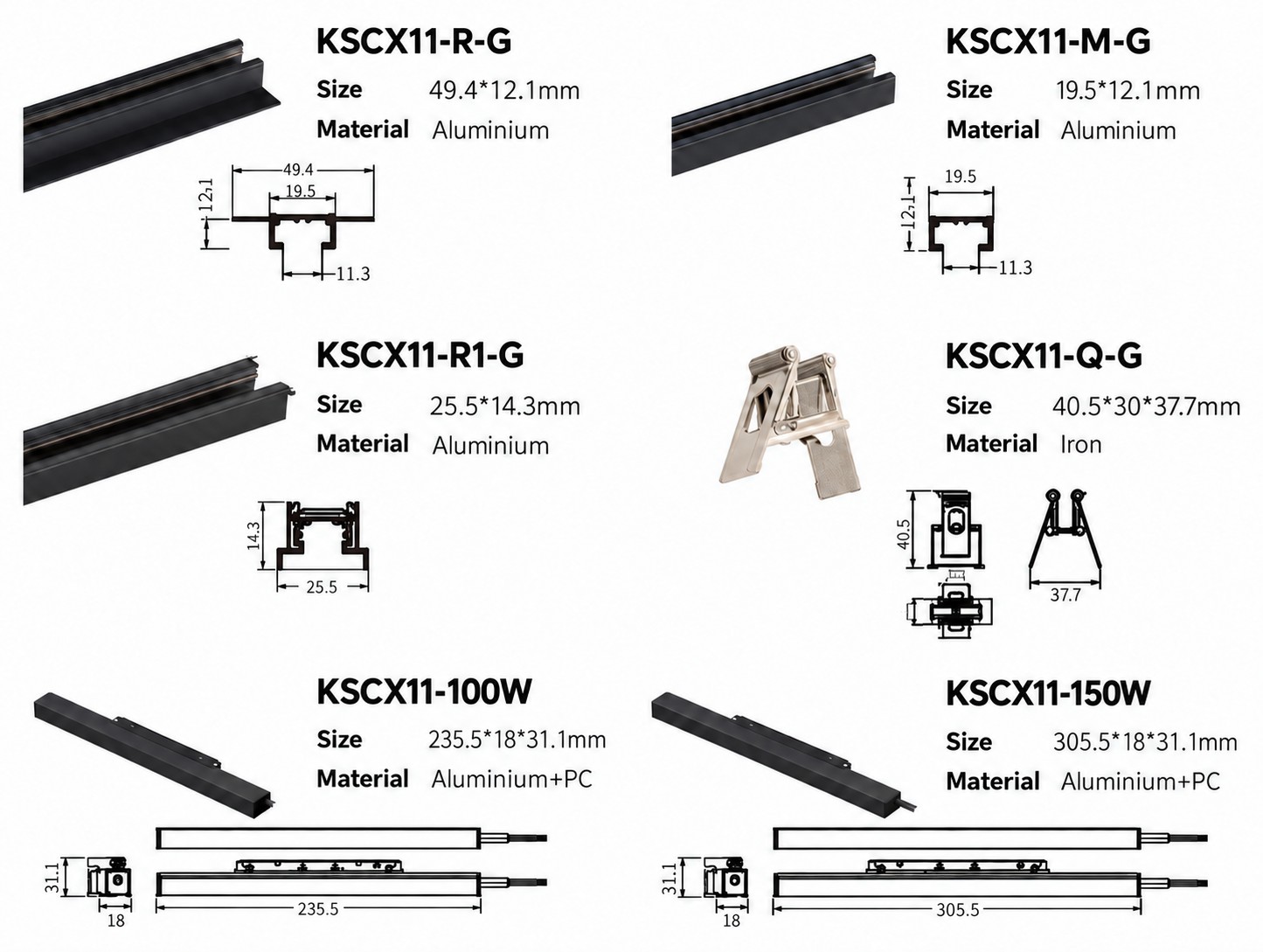

Contact KONS for rail dimensions, compatible mounting accessories and project quotations.
