The KONS KS-XTD-70 recessed LED spotlight series offers single, double and triple-head configurations with white trim and deep black reflector compartments. Ra90 colour rendering and 15°, 30° or 45° beam options provide flexible choices for hotel, retail and commercial interior lighting.

KONS KS-XTD-70 Recessed LED Spotlight Series

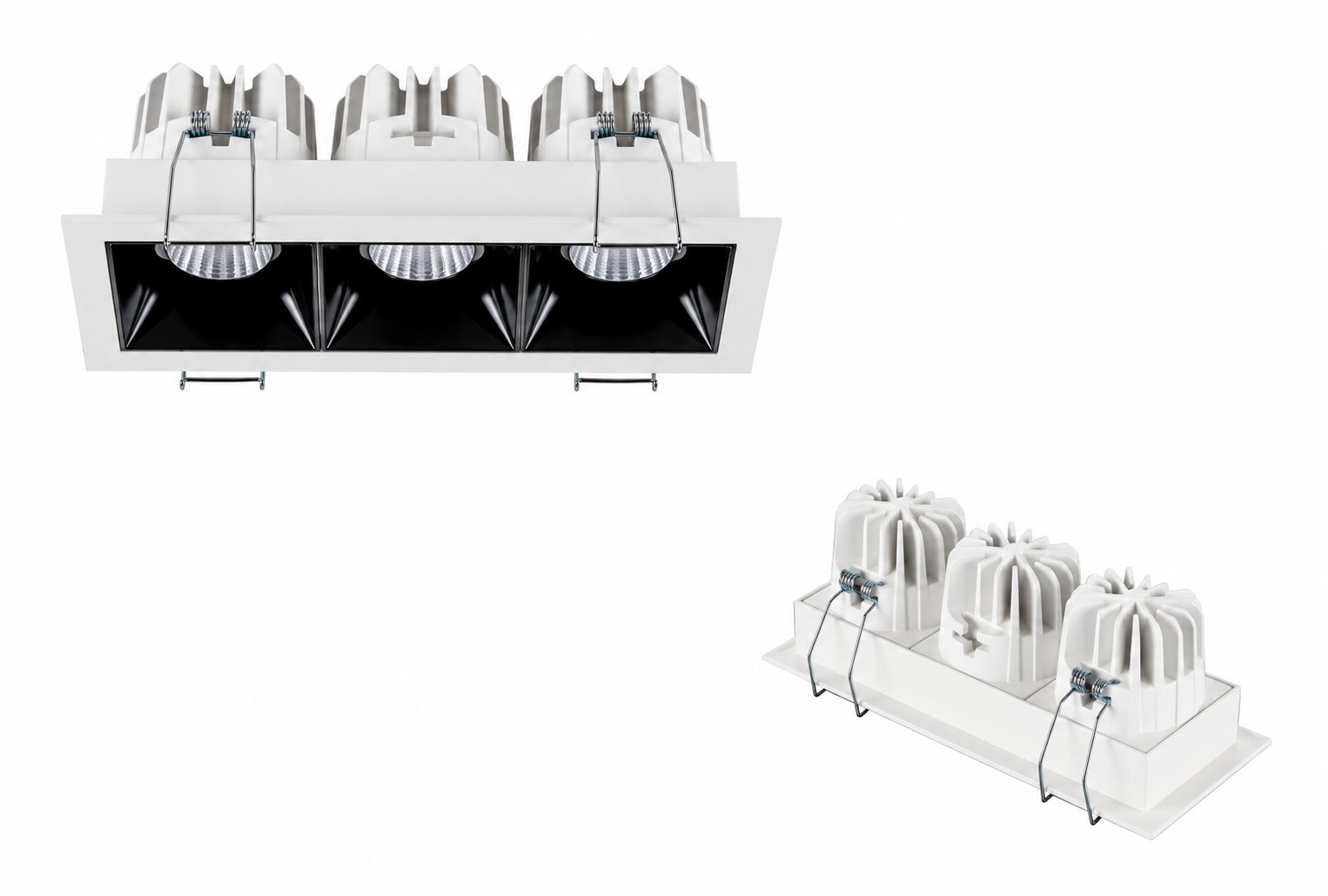

The KS-XTD-70 series combines white ceiling trim with individual deep black reflector compartments. Available in single, double and triple-head versions, the series provides a coordinated appearance across different ceiling lighting layouts.
Key Features
• Single, double and triple-head configurations
• Colour rendering index: Ra90
• Die-cast aluminium construction
• Individual finned heat sinks
• Spring clips for recessed installation
• Beam angle options: 15°, 30° and 45°
• Fixed colour temperature options: 2700K, 3000K, 4000K and 5000K
• 2700K–6000K tunable-white option listed in the specifications; compatible driver and control system to be confirmed

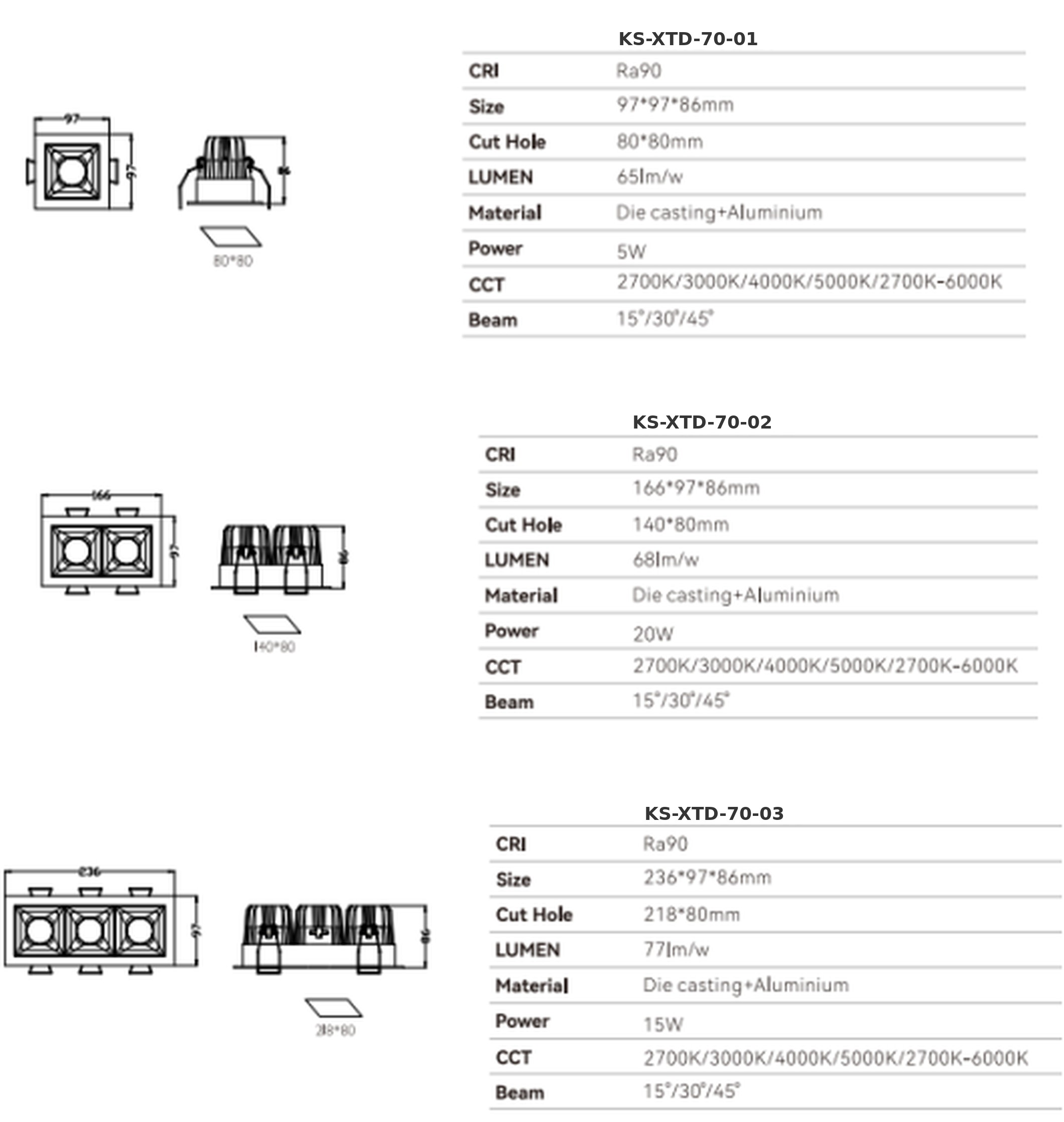

Model Specifications

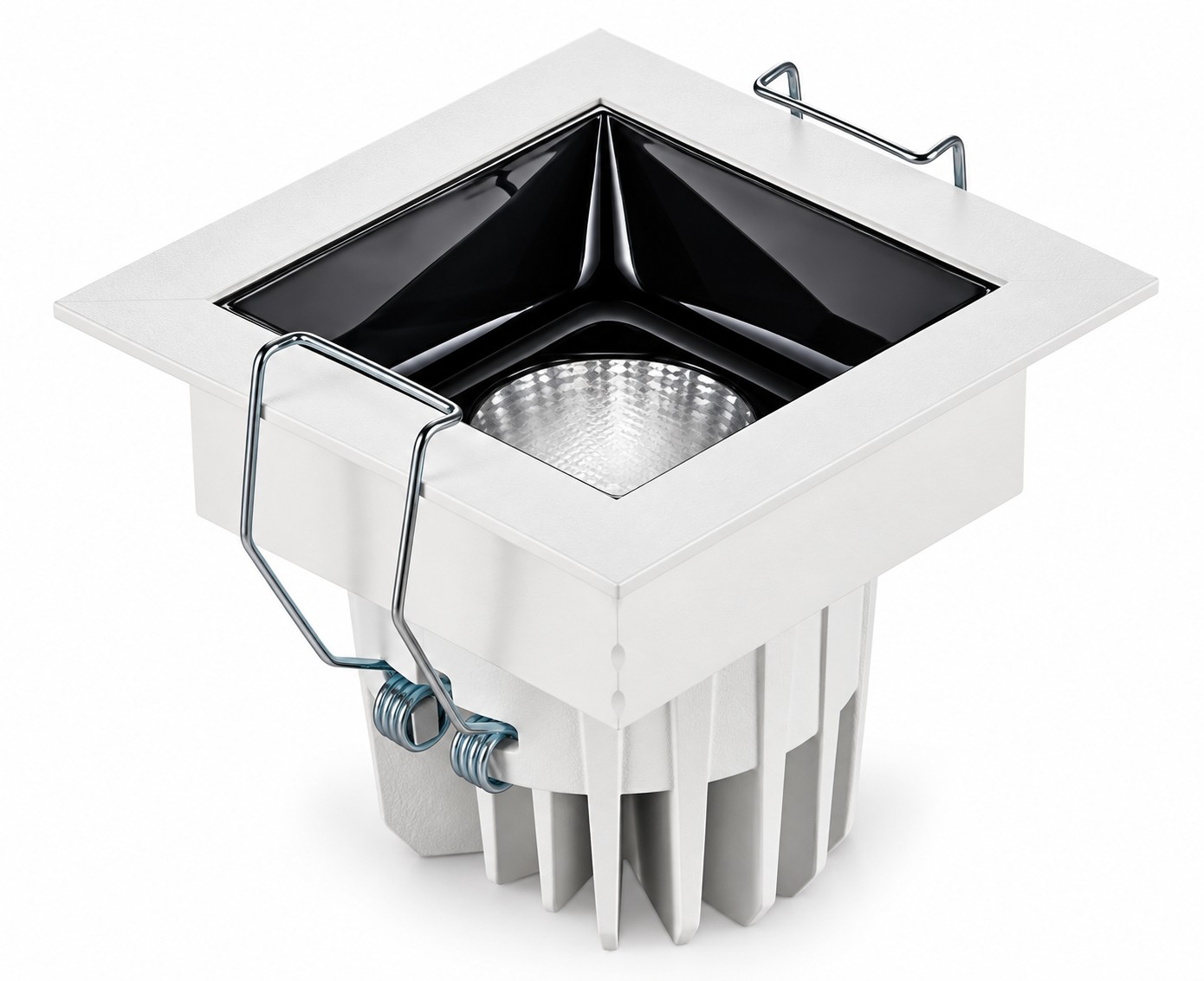

KS-XTD-70-01
• Configuration: Single head
• Power: 5W
• Dimensions: 97 × 97 × 86mm
• Ceiling cutout: 80 × 80mm
• Luminous efficacy: 65 lm/W

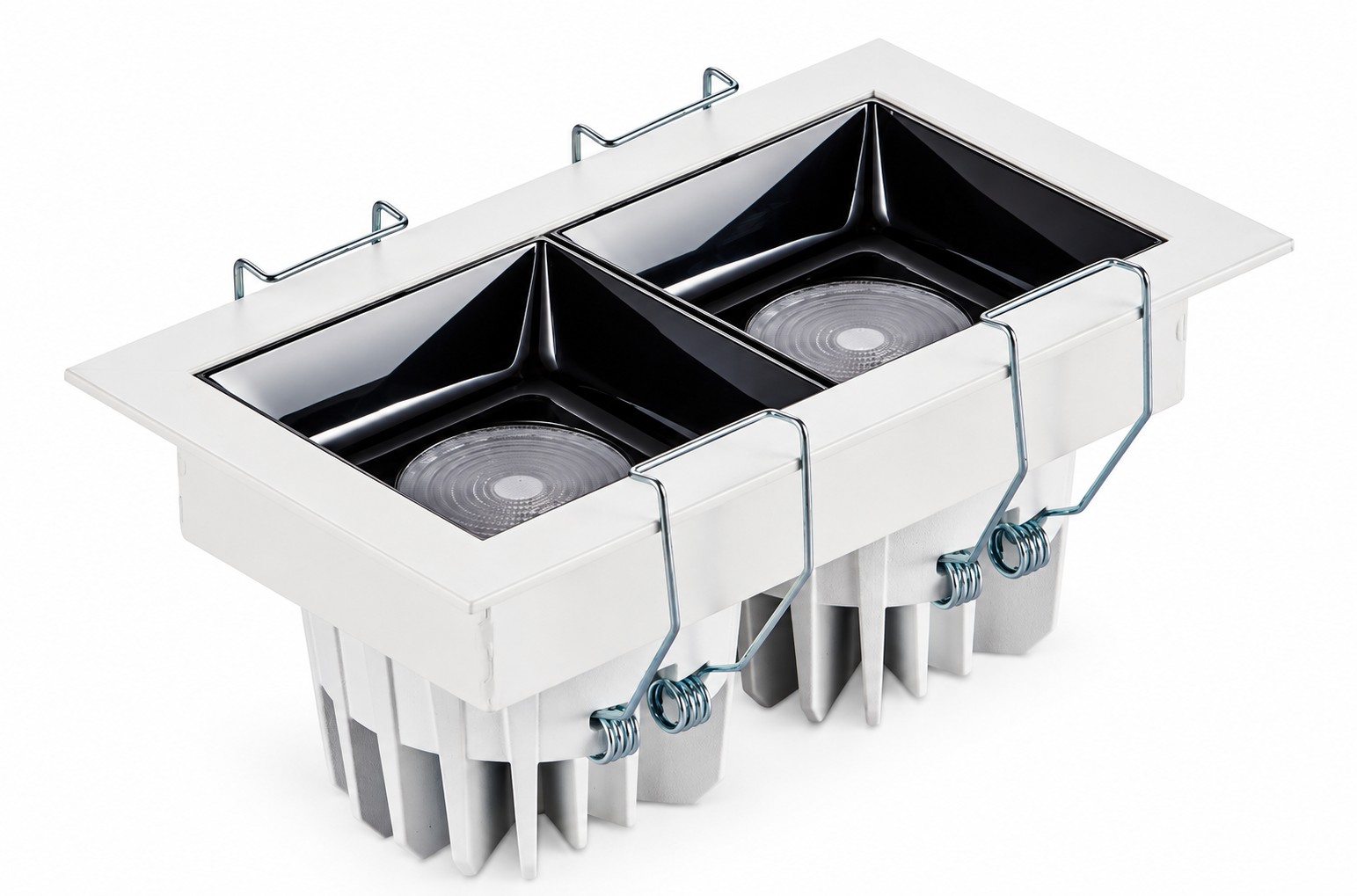

KS-XTD-70-02
• Configuration: Double head
• Dimensions: 166 × 97 × 86mm
• Ceiling cutout: 140 × 80mm
• Luminous efficacy: 68 lm/W
• Please contact us for confirmed power specifications.

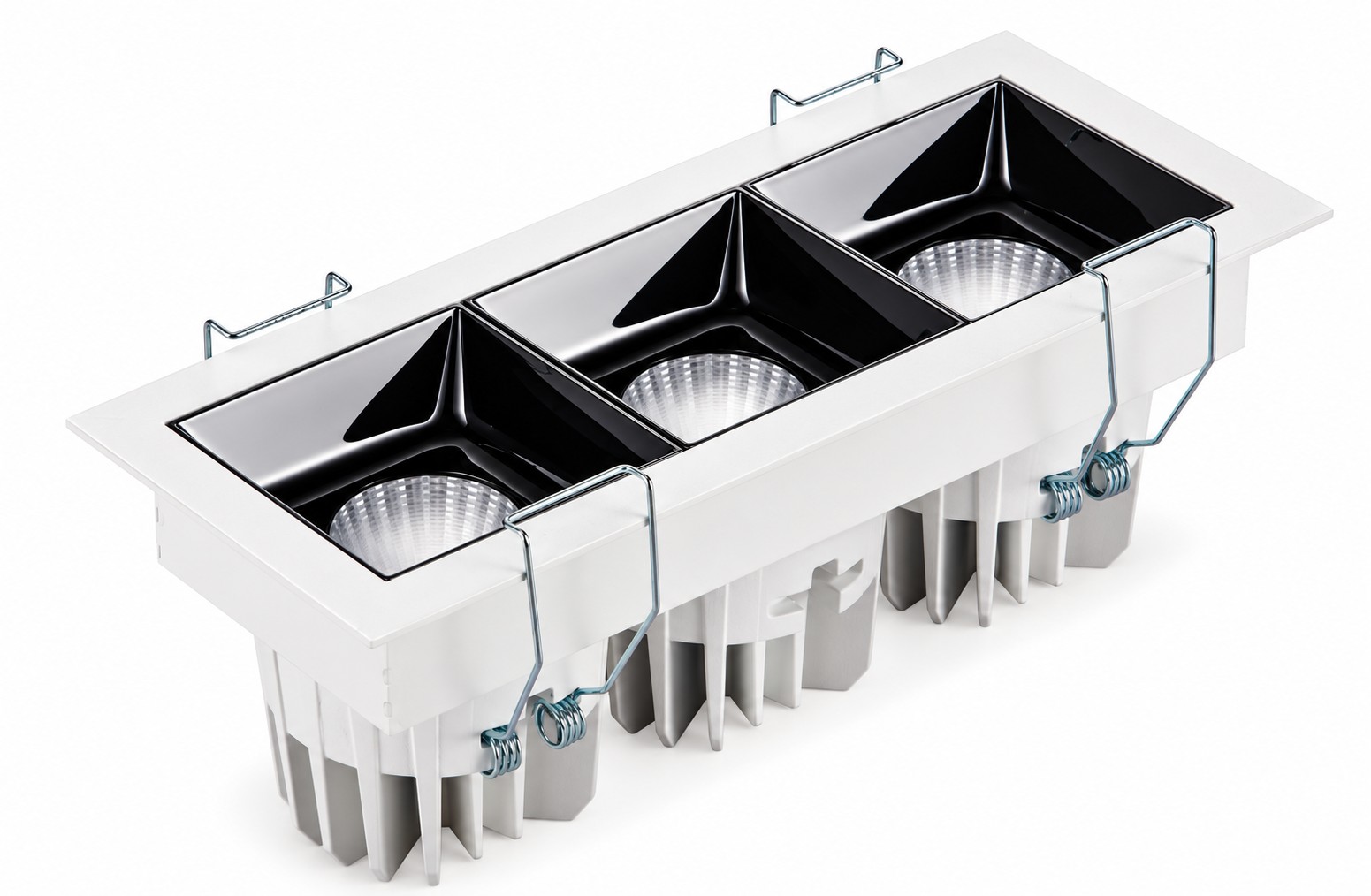

KS-XTD-70-03
• Configuration: Triple head
• Power: 15W
• Dimensions: 236 × 97 × 86mm
• Ceiling cutout: 218 × 80mm
• Luminous efficacy: 77 lm/W
Applications
Hotel interiors, retail stores, showrooms, reception areas and commercial ceiling lighting projects.
Project Enquiries
Please specify the model, quantity, beam angle and colour temperature when requesting a quotation. Confirm input voltage, driver configuration and control requirements before ordering.
