The KONS XTD-S series offers recessed linear LED spotlights in 3-head, 6-head and 12-head configurations, with power options of 6W, 10W and 20W. The slim rectangular trim provides a clean ceiling appearance for hotel interiors, retail displays, offices and residential projects.

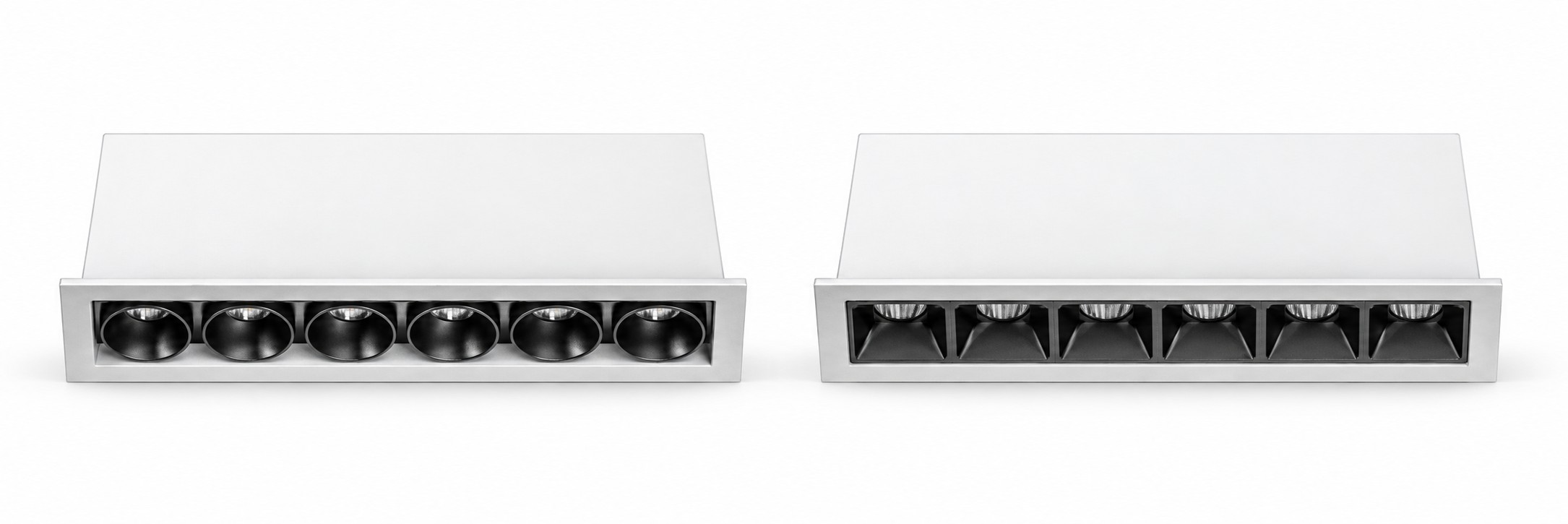

The die-cast aluminium housing is designed for recessed ceiling installation. Concave and convex optical options, multiple reflector finishes and selected honeycomb accessories provide choices for different interior designs. Beam angle options include 26° and 38°.

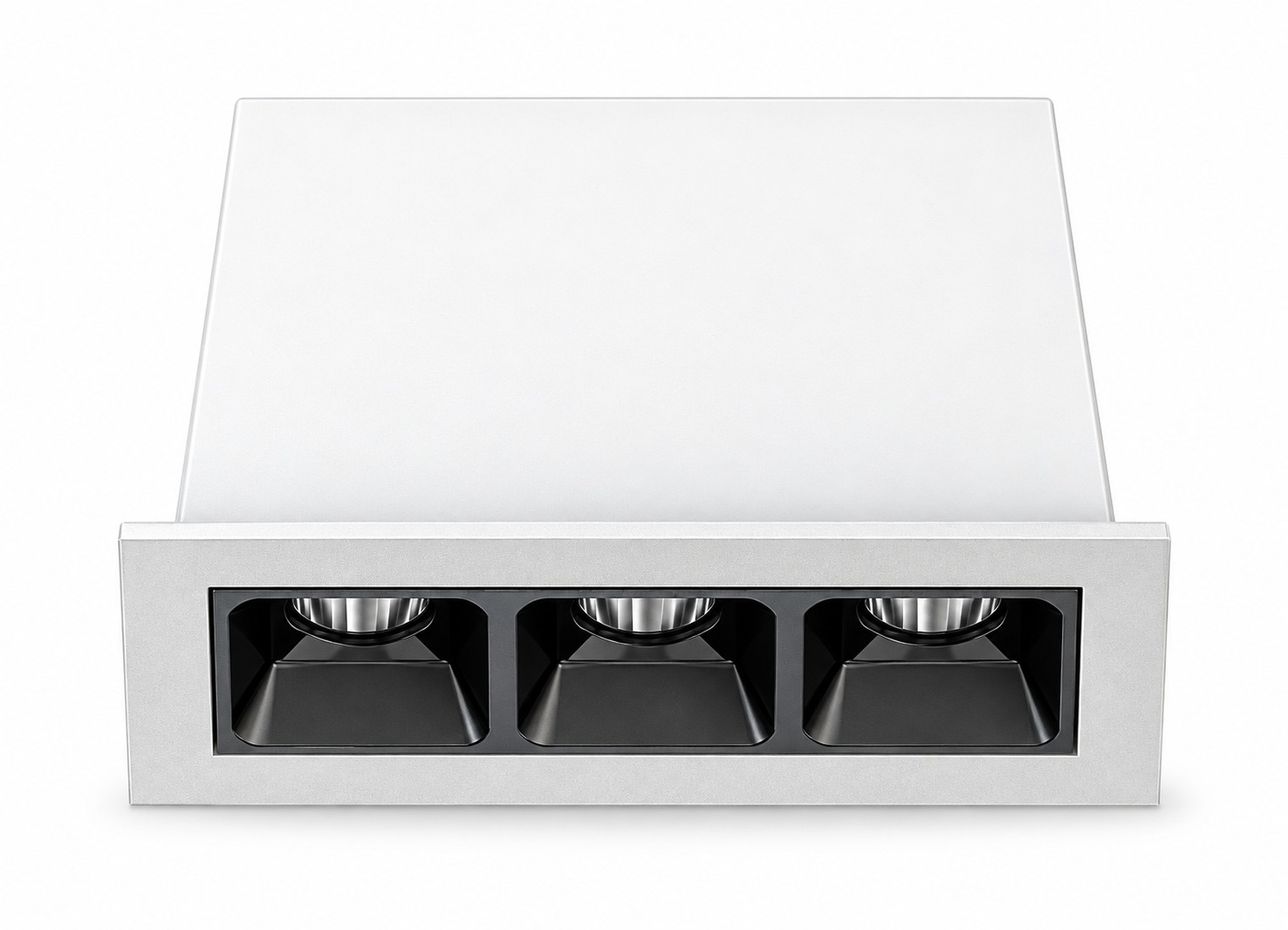

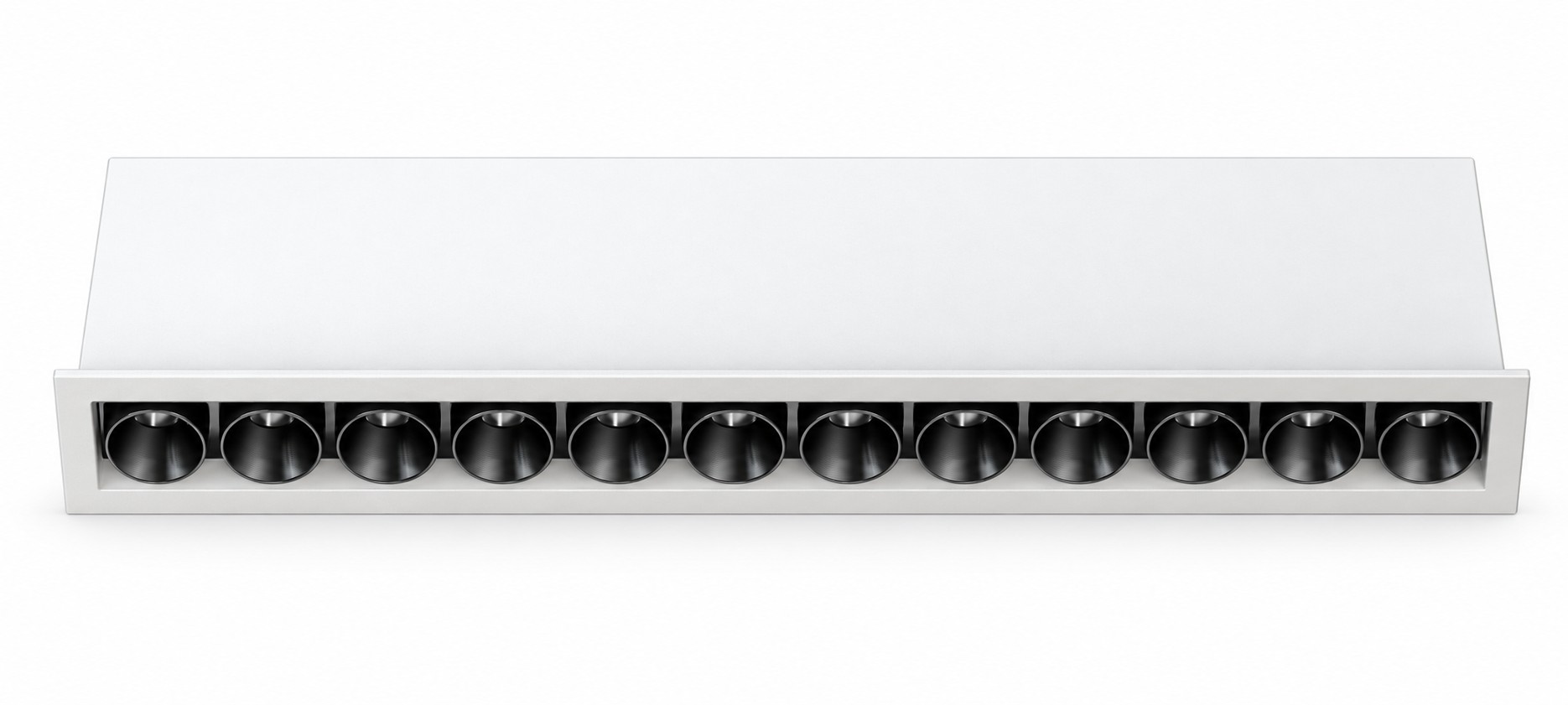

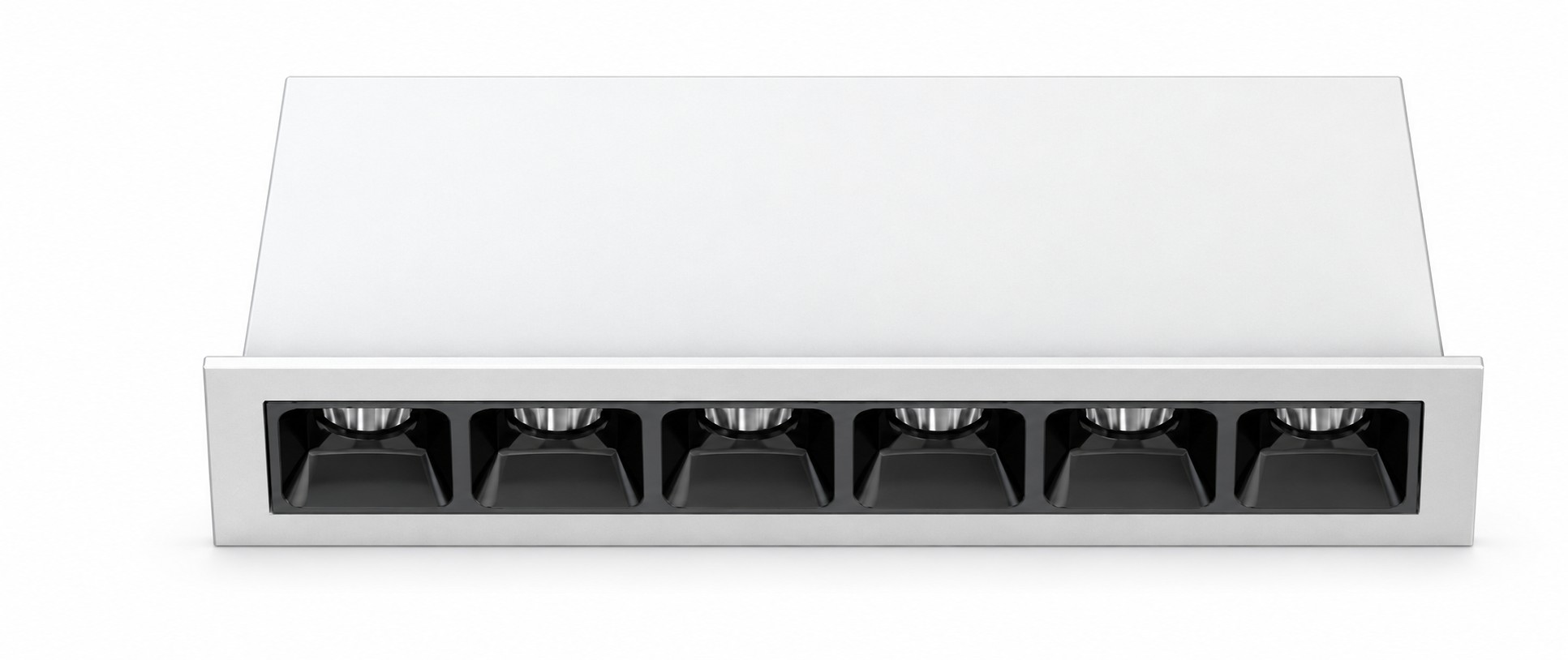

The XTD-S03 is a 3-head, 6W model measuring 69 × 31 × 40 mm, with a 65 × 27 mm ceiling cutout. The XTD-S06 is a 6-head, 10W model measuring 126 × 31 × 40 mm, with a 122 × 27 mm cutout. The XTD-S12 is a 12-head, 20W model measuring 240 × 31 × 40 mm, with a 236 × 27 mm cutout.

For project enquiries, please specify the model, optical style, beam angle, reflector finish and quantity. Contact KONS to confirm color temperature, color rendering, lumen output, driver configuration and dimming options for the selected version.
