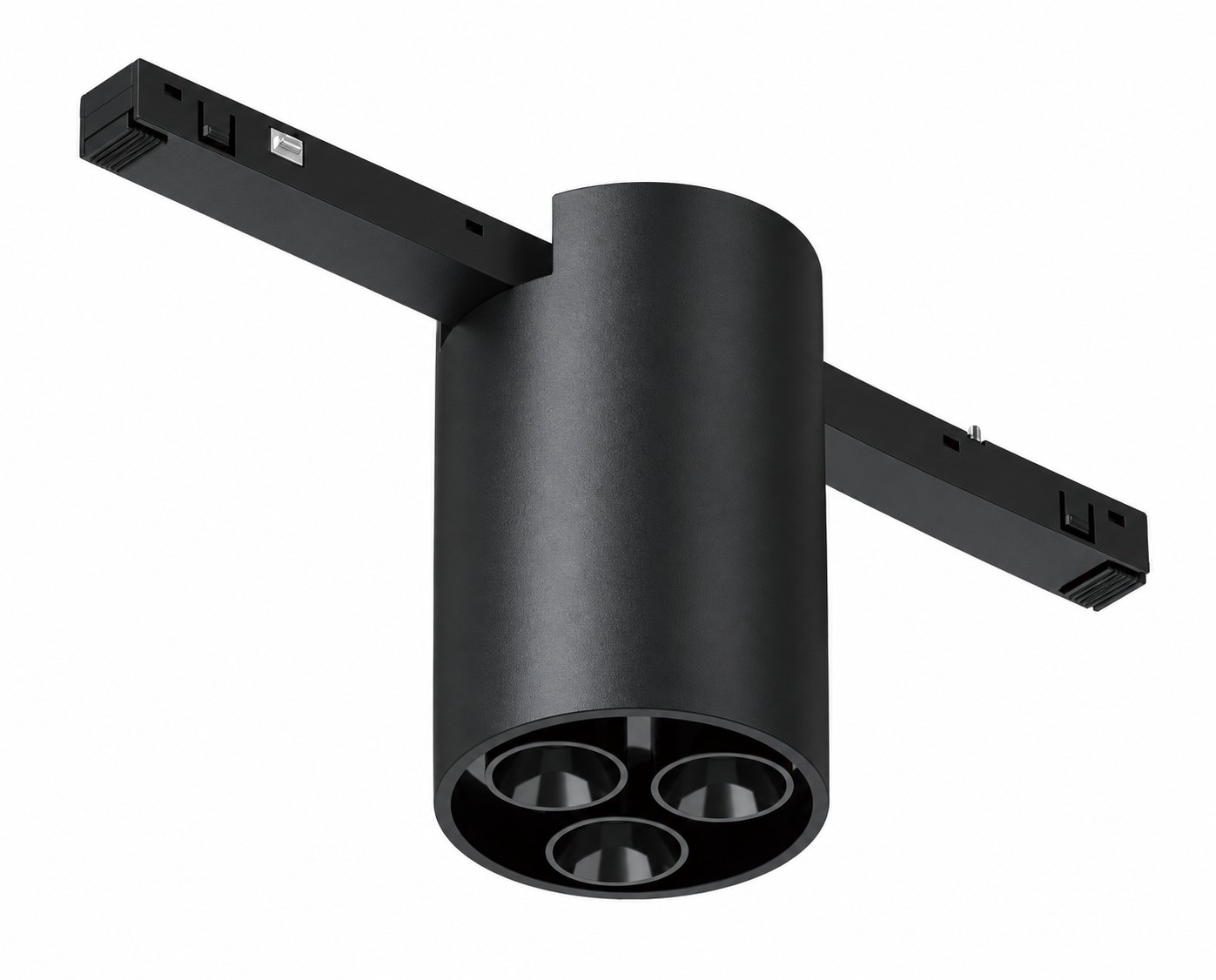

KONS Cylindrical Magnetic Track Downlight

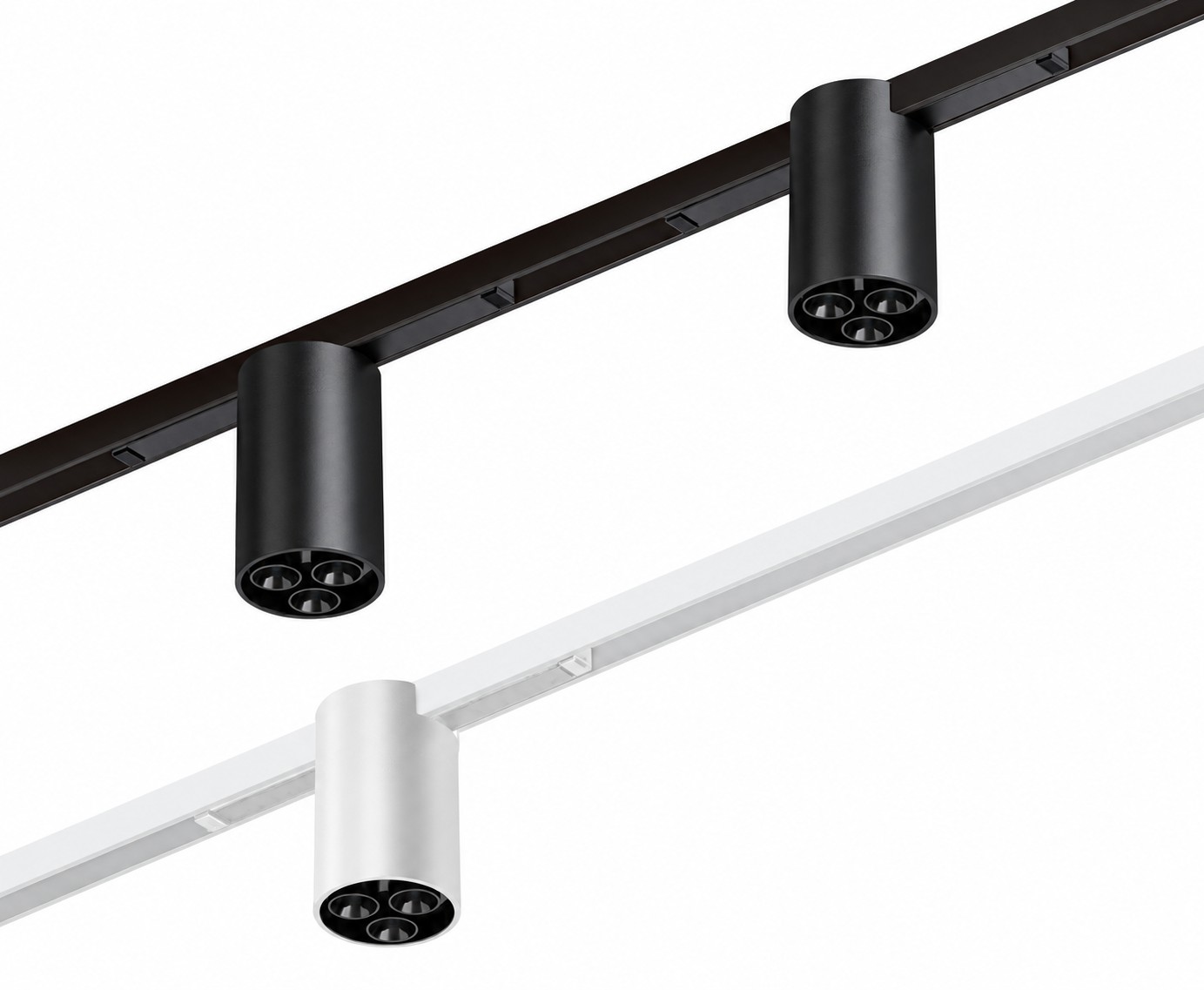

The KONS CX11-M series features a compact cylindrical aluminium housing with three-lens and four-lens options. Designed for compatible magnetic track systems, it provides downward directional lighting for retail stores, showrooms and interior lighting projects.

Ra90 colour rendering and a choice of 26° or 38° beam angles support merchandise displays and accent lighting.

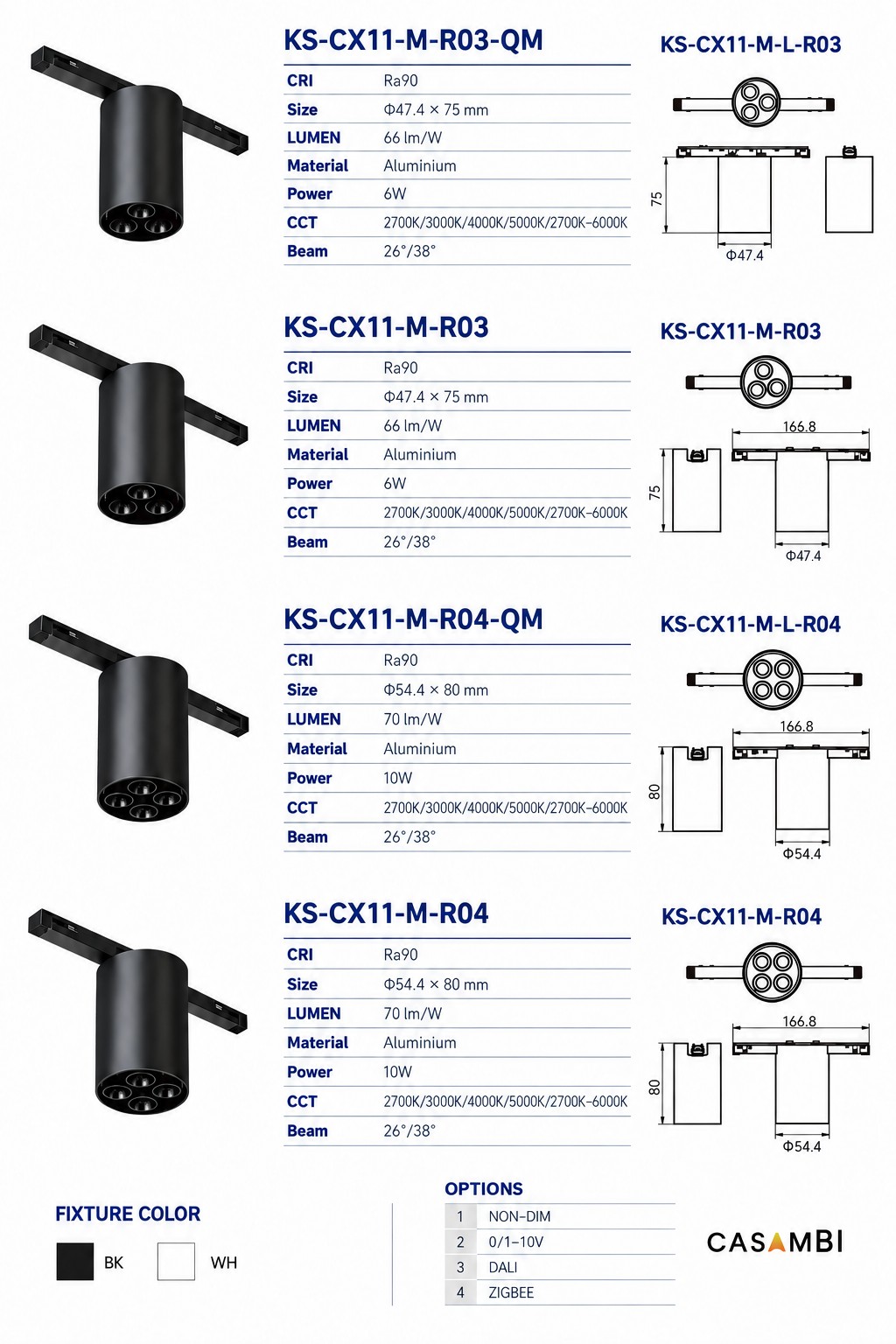

Product Specifications

Models: KS-CX11-M-R03-QM / KS-CX11-M-R03
Optical Design: Three lenses
Power: 6W
Lamp Body Dimensions: Ø47.4 × 75 mm
Luminous Efficacy: 66 lm/W

Models: KS-CX11-M-R04-QM / KS-CX11-M-R04
Optical Design: Four lenses
Power: 10W
Lamp Body Dimensions: Ø54.4 × 80 mm
Luminous Efficacy: 70 lm/W

Shared Specifications

CRI: Ra90
Material: Aluminium
Beam Angle Options: 26° / 38°
Fixture Colour: Black / White
Colour Temperature Options: 2700K / 3000K / 4000K / 5000K / Tunable White 2700K–6000K
Control Options: Non-dimmable / 0/1–10V / DALI / Zigbee

Contact KONS for bulk quotations, track compatibility and available model, colour temperature and control configurations.
