XTD Series Mini Recessed LED Spotlights

The KONS XTD series combines compact recessed fixtures with white trims and black reflector cups. Round and square versions provide a coordinated appearance for hotel, retail and commercial interiors.

The range includes 2W single-head spotlights and 8W four-head downlights. The four-head versions arrange four reflector cups within one ceiling fixture, while the single-head models provide a smaller ceiling opening.

Key Features

• Round and square trim options.
• Single-head and four-head configurations.
• White exterior with black recessed reflectors.
• Die-cast aluminium construction.
• Spring mounting clips for recessed installation.

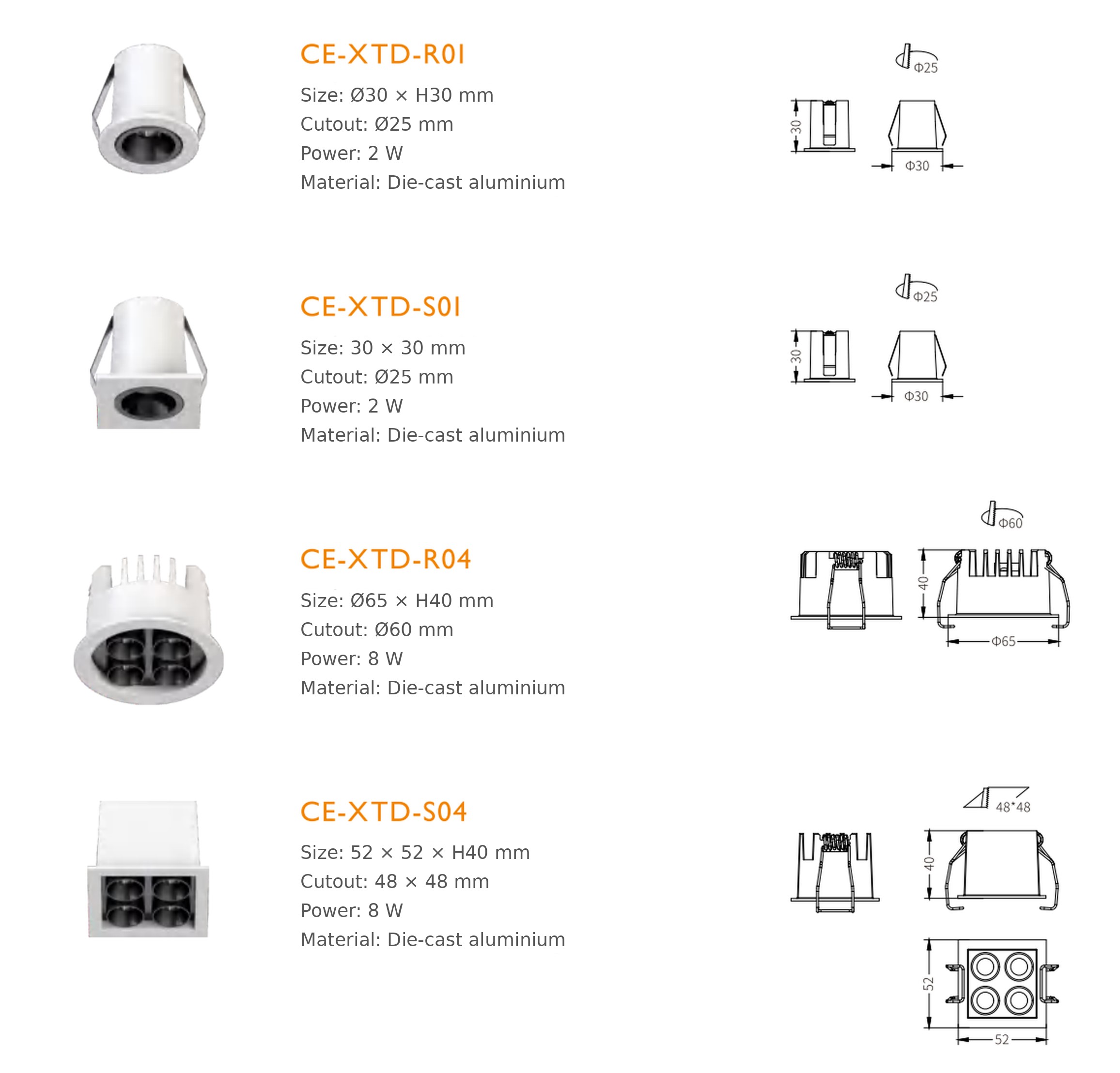

Model Specifications

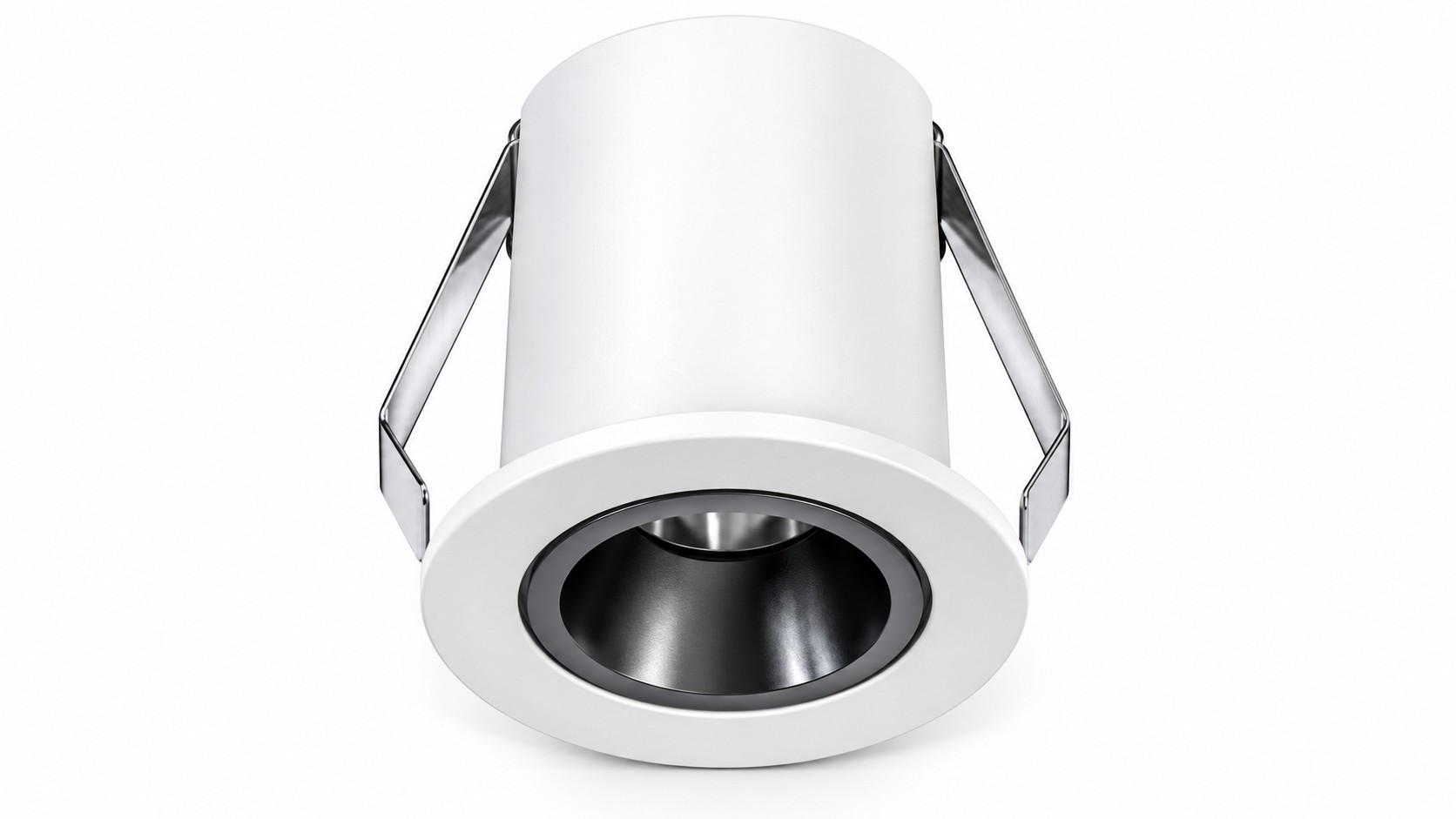

CE-XTD-R01 — Round Single-Head Spotlight
• Power: 2W.
• Dimensions: Ø30 × H30 mm.
• Ceiling cutout: Ø25 mm.

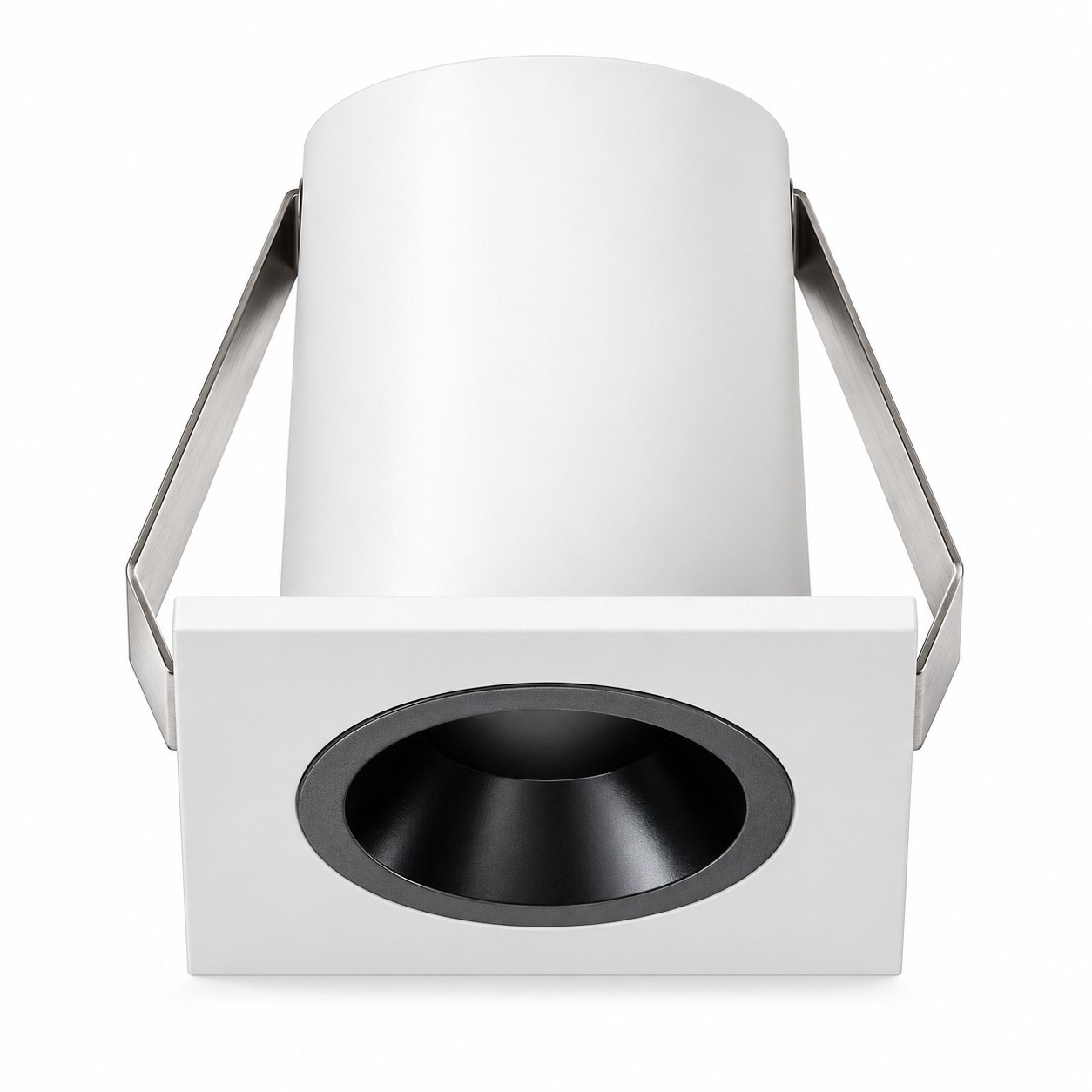

CE-XTD-S01 — Square Single-Head Spotlight
• Power: 2W.
• Trim dimensions: 30 × 30 mm.
• Height shown in the drawing: 30 mm.
• Ceiling cutout: Ø25 mm.

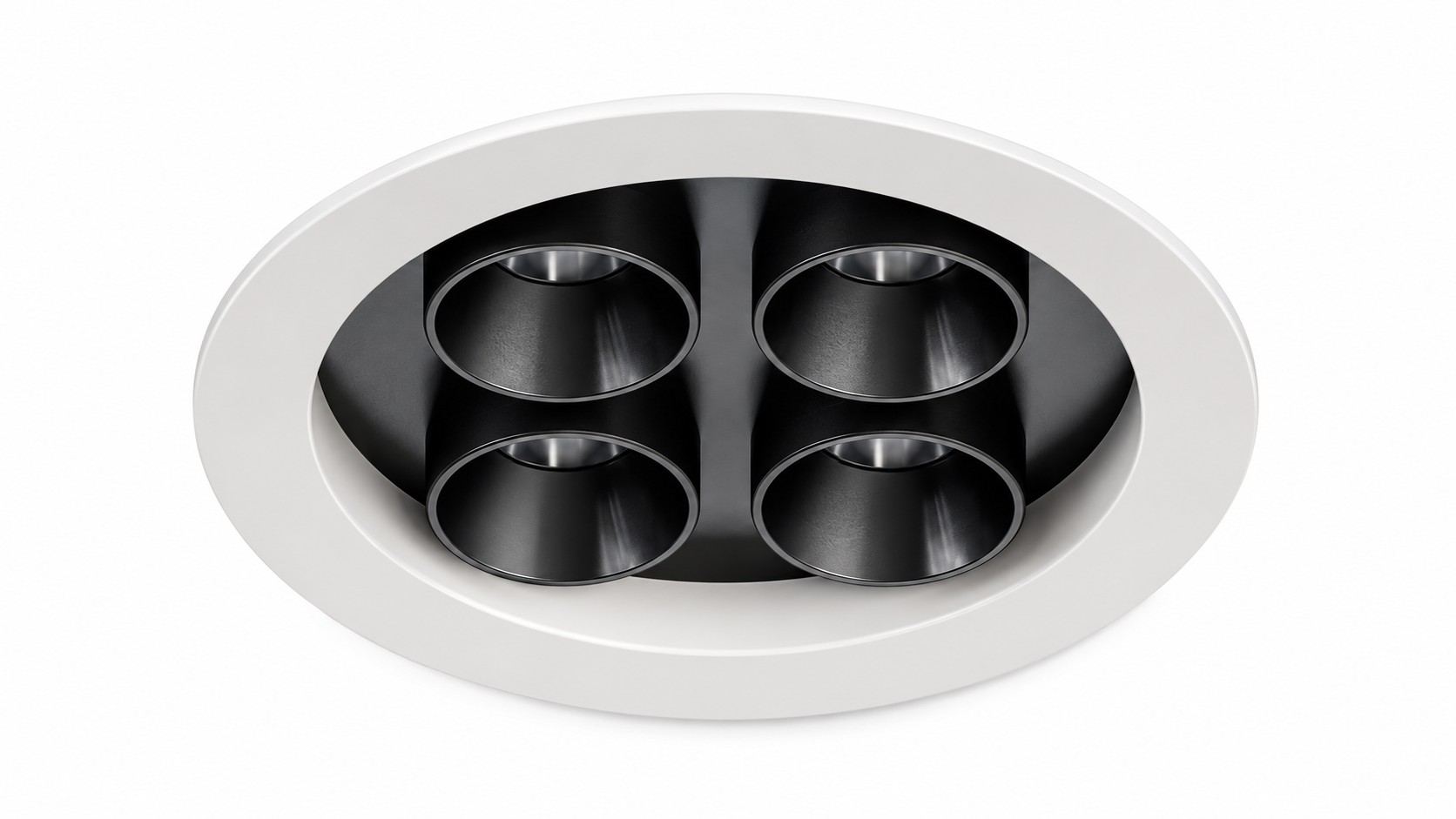

CE-XTD-R04 — Round Four-Head Downlight
• Power: 8W.
• Dimensions: Ø65 × H40 mm.
• Ceiling cutout: Ø60 mm.

CE-XTD-S04 — Square Four-Head Downlight
• Power: 8W.
• Dimensions: 52 × 52 × H40 mm.
• Ceiling cutout: 48 × 48 mm.

Applications

Suitable for accent lighting in hotel interiors, retail displays, restaurants, reception areas and other commercial spaces requiring compact recessed fixtures.
